| GWS EDF30 Ducted Fan Power System
GWS Electric Ducted Fan Power System. EDF-30 for 6 to 8.4 volts. Fan EDF-1220x6. Motor: CN10. .46oz. thrust at 7.2v. .74oz. at 9.6v. Weight 9.9 grams (including conntector).Note: We are only able to obtain these units by ordering the parts and assembling the fans in house. They are built from new parts and sealed in a bag awaiting your order.
|
|
|
SKU Number:GWEDF30
|
|
|
|
|
| EDF40 Ducted Fan Power System
GWS Electric Ducted Fan Power System for 6-8.4 volts. Rotor-1630X6 6-blade. Motor: CN12-R-LC. Weight 27g/0.95oz.
Safe for use on 2S Lipo packs. Suggest our 340/350 or 740 packs.
Thrust,Volts,Amps
53g,6V,3.1A
71g,7.2V,3.9A
87g,8.4V,4.9A
|
|
|
SKU Number:EDF40
|
|
|
|
|
|
| GWS EDF40H Ducted Fan Power System
GWS Electric Ducted Fan Power System for 9.6-12 volts. Rotor-1630X6 6-blade. Motor: CN12-RXC. Weight 27g/0.95oz.
Safe for use on 2S Lipo packs. Suggest our 340/350 or 740 packs.
Thrust,Volts,Amps
53g,9.6V,1.5A
65g,10.8V,1.8A
74g,12V,2.1A
|
|
|
SKU Number:GWEDF40H
|
|
|
|
|

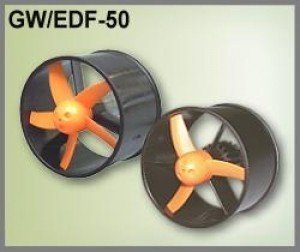

| EDF50 Ducted Fan Power System
GWS Electric Ducted Fan Power System with 3 blade 2 pitch rotor. EDF-50 for 6-8.4 volts. Fan EDF-2020x3. Motor: CN12-R-LC. 73g thrust at 7.2v &3.39 amps. Safe to use on 2S Lipo, performance will be slightly better than 7.2V GWS ratings. Performance is also improved to 82g @ 3.4 amps duct and intake ring. Weight 30g/1.05oz.
|
|
|
SKU Number:EDF50
|
|
|
|
|
|
| EDF50A Ducted Fan Power System
GWS Electric Ducted Fan Power System with 3 blade 3 pitch rotor. EDF-50 for 6-8.4 volts. Fan EDF-2030x3. Motor: CN12-R-LC. 74g thrust at 7.2v & 4.2 amps. Safe to use on 2S Lipo, performance will be slightly better than 7.2V GWS ratings. Performance is improved to 97g thrust @ 4.2 amps with duct and intake ring. Weight 30g/1.05oz.
|
|
|
SKU Number:EDF50A
|
|
|
|
|
|
| EDF50BH Ducted Fan 6 Blade Power System
GWS Electric Ducted Fan 50mm Power System with 5 blade 3 pitch rotor 6-8.4 volts. (Unit to left in photo) Rotor EDF-2030x5. Motor: CN12-R-LC. 78g thrust at 7.2v & 4.9 amps. Safe to use on 2S Lipo, performance will be slightly better than 7.2V GWS ratings. Performance is improved to 98g thrust @ 4.93 amps with duct and intake ring. Weight 30g/1.05oz.
|
|
|
SKU Number:EDF50BH
|
|
|
|
|
| EDF55-150H 7.2-9.6V
GWS Electric Ducted Fan Power System. EDF-55-150H for 7.2-10.8 volts (limited use at 108v). Fan uses rotor EDF-2245x6. Motor: EM150. Weight 66.8g/2.4oz. Black duct.
Thrust,Volts,Amps
32g,3.6V,1.5A
50g,4.8V,2.2
77g,6V,3A
95g,7.2V,3.8A
119g,8.4V,4.8A
190g,9.6V,5.9A
152g,10.8V,6.6A (GWS Warning, damage may occur at this voltage)
|
|
|
SKU Number:GWEDF055
|
|
|
|
|
| EDF55-300H 7.2-9.6V
GWS Electric Ducted Fan Power System. EDF-55-300H for 6-9.6 volts. Fan uses rotor EDF-2245x6. Motor: EM300H. Weight 73g/2.56oz. Gray duct. I've seen several models running this fan on 3S Lipo packs and it seems to work out well despite GWS's warnings. I've always found S-300 type motors (this unit uses one variety) to hold up to 8 amps constant so my asumption that the warning is a little far fetched fits with that experiance as well. 2 of these motors in a GWS warthog on a high quality 3S 2000-2400 pack is a killer setup!Note old part #GW/EDF55-300H
NOTE: SORRY! GWS IS OUT OF STOCK, WE ARE OUT OF STOCK. Backorders are welcome. Send us an email and we'll place you on our backorder list to be notified when they come in stock again.
Thrust,Volts,Amps
133g,7.2V,4.6A
167g,8.4V,5.7A
190g,9.6V,6.6A
218g,10.8V,7.7A (GWS Warning, damage may occur at this voltage)
|
|
|
SKU Number:GWEDF055A
|
|
|
|
|
| EDF064 w/150 Motor 6-8.4V
GWS Electric Ducted Fan Power System. EDF64-150 for 6-8.4 volts. Uses rotor 2540x6. Motor: EM150. Weight=67g/2.353 oz. Black duct.
Thrust,Volts,Amps
117g,7.2V,4.4A
140g,8.4V,5.6A
169g,9.6V,6.7A
201g,10.8V,8.3A (GWS warning, damage may occur at this voltage)
|
|
|
SKU Number:EDF064
|
|
|
|
|
| EDF64-300H
GWS Electric Ducted Fan Power System for 6-8.4 volts. Fan Rotor EDF-2540x6. Motor: 300H. Weight=73g/2.56oz. Gray duct. 2 of these fans in a GWS Warthog on a high quality 3S2000-2400 pack is a killer setup that seems reliable despite the GWS warning about using these motors at that voltage. (Note, a 3S pack that's full is about 12.6V, under load it's more around the 10.8 listed below.) Generally any S-300 can type brushed motor is good to 8 amps constant.
Thrust,Volts,Amps
133g,7.2V,4.6A
167g,8.4V,5.7A
190g,9.6V,6.6A
218g,10.8V,7.7A (GWS Warning that damage may occur at this voltage)
|
|
|
SKU Number:GWEDF064A
|
|
|
|
|
| EDF75-400 w/3045 x 4 blade rotor
GWS Electric Ducted Fan Power System. EDF75-400 for 6-8.4 volts. Motor: 400. Weight 111.73g/3.924oz.
Thrust,Volts,Amps
147g,7.2V,6.6A
170g,8.4V,7.9A
210g,9.6V,9.3
246g,10.8V,11.2A
324g,12V,12.5A
Thrust,Volts,Amps With Duct and Intake Ring
182g,7.2V,6.2A
224g,8.4V,7.9A
279g,9.6v,9.7A
302g,10.8V,11.4A
324g,12V,13.1A
|
|
|
SKU Number:GWEDF75X4A
|
|
|
|
|
|
| EDF75-400 w/3043 x 6 blade rotor
GWS Electric Ducted Fan Power System. EDF75-400 for 6-8.4 volts. Motor: 400. Weight 110.89g/3.895oz.
Thrust,Volts,Amps
112g,7.2V,5.6A
139g,8.4V,6.8A
169g,9.6V,8.2A
202g,10.8V,9.6A
225g,12V,10.5A
Thrust,Volts,Amps With Duct and Intake Ring
156g,7.2V,5.5A
194g,8.4V,6.9A
233g,9.6v,8.6A
267g,10.8V,10A
319g,12V,10.7A
|
|
|
SKU Number:GWEDF75X6
|
|
|
|
|
|
