HE Inline Gearbox 2.58:1 Gear Ratio x 5mm shaft for Speed 400 & 480 Motors
Planetary "like" with ball bearing aluminum gearbox for S-400 and S-480 long can motors. Includes pinion for your motor with 2.3mm shaft. Output shaft diameter is 5mm. It's actually got an offset counter-shaft inside and is not planetary but certainly apears to be from the outside. Like Planetary, your shaft stays on center. Will fit in glider nose or tight cowlings nicely.
Astro Micro Gear Box #709 Fits Astro 010 motors. The New Astro Micro Box for the Astro 010 brushless motor weighs only 1/2 ounce and fits all astro 010 motors. The Gear ratio is 3.3 to 1 and it spins props from 8x6 to 10x7 on 8 to 10 NIMH cells or 2 to 3 lithium poly cells. The Gear Box is mounted to the motor with two screws and is mounted to the model with a single
nut on the threaded barrel of the bearing housing right behind prop. Nothing could be simpler! The motor in this photo is for illustration only and is not included at this price.
Planetary ballbearing gearbox for S-400 standard and S-400 long can motors.Comes with pinion for your motor with 2.3mm shaft. Output shaft diameter is 4mm. These gearbox's are very very smooth and quiet unlike other very similar looking units. Also works with brushless motors which have holes drilled to mount S-400 gearbox's such as the Chili Peppers, Himax 2015 and 2025 series motors. If you have a 20mm inrunner, it should bolt to this gearbox. Included pinion is for 2.3mm shaft only.
Size:
OD of mounting flange: 1.08" (27.5mm)
OD of main gearbox body 1.165" (29.6mm)
Length of gearbox housing 1.25" (31.9mm)
Overall Length W/Shaft 1.865 (52.2mm)
Planetary ballbearing gearbox for genuine S-480 motors. Comes with pinion for your motor with 3.2mm shaft. Output shaft diameter is 4mm. These gearbox's are very very smooth and quiet unlike other very similar looking units. Warning! Long can 400's with 2.3mm shaft use the S-400 gearbox.
Size:
OD of mounting flange: 1.08" (27.5mm)
OD of main gearbox body 1.165" (29.6mm)
Length of gearbox housing 1.25" (31.9mm)
Overall Length W/Shaft 1.865 (52.2mm)
Planetary ballbearing gearbox for S-500 thru S-600 motors. Comes with pinion for your motor with 3.2mm shaft. Output shaft diameter is 4mm. These gearbox's are very very smooth and quiet unlike other very similar looking units.
Size:
OD of mounting flange: 1.08" (27.5mm)
OD of main gearbox body 1.165" (29.6mm)
OD of motor mounting surface 1.38" (35mm)
Length of gearbox housing 1.44" (36.6mm)
Overall Length W/Shaft 2.050" (52.2mm)
Fox Lite Alloy Flange Combination Motor Mount /Gearbox Frame / and Heat Sink
Tired of breaking your standard plastic GWS motor frames? Motor overheating? New! An excellent alloy flange mount. Combination motor mount / gearbox frame / and heat sink. Works with EPS 300 and 350 GWS systems. Unit has two nice flanges, perfect for gluing or screwing to a profile fuse/foamy or similar surfaces. 100% compatible with GWS EPS300 and EPS-350 gearbox parts. Motor installs and removes easily with clamping action/fastener. The motor assembly is not included. Check out ("Electric Flight Accessories/Motors/Gear Drive for Black Diamond 301 motor combo assembly)
Himax Offset Stick Mount Gearbox S-280-300-301-350-370 & Brushless 24mm Motors
Fits all 24 mm Brushed motors with 2mm shaft. Direct replacement for most plastic gearboes. 10mm x 10mm mounting box – fits most planes designed with GWS and other stick mount gearboxes.
Aluminum gear housing - no more broken gear housing.
Built-in cooling fins - no more overheated motors.
Multiple gear ratios - 6.6:1, 5.4:1 & 3:1 gears included.
Dual Ball Bearings with hardened shaft - efficient and durable operation.
Spare parts available.
3 mm threaded shaft for GWS props.
Use band of tape to space up 280 motor for perfect centering, others direct fit.
Fits all 20 mm Brushless motors with 2mm shaft. Aluminum means no more broken gear housings.
Built-in cooling fins for cooler motors. 10mm x 10mm mounting box fits most planes designed with GWS gearboxes and any 10mm (3/8") square sticks. Comes with complete gearset assortment including 6.6:1, 5.3:1 & 4.4:1. Dual ball bearings and hardened shaft.
Spare parts available and kept in stock at Radical RC in the event you need one (oops!). Note, optional 3 mm threaded shaft available for direct fit (without prop adapter to most GWS props and many others that come stock with a 3mm hole.
If you want a smooth and quiet gearbox, search no further. Improve gearbox efficiency, output torque and RPM. 1g packet of thin, clear lubricant. Correct lube for electric flight gearbox applications. Also good for inside of servos. Enough for 2-10 applications, depending on size of your gearbox. A tiny bit goes a long way.

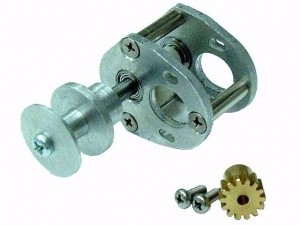

Maxx Flying GEARBOX (with Two Ball Bearings) & Prop Adapter. Ratio 1:1.7 (For 400-480 size motors). Pinion is 2.3mm bore. Maybe be used with brushless in runners with standards S-400 bolt pattern.
Maxx Flying GEARBOX (with Two Ball Bearings) & Prop Adapter. Ratio 1:2.5 (For 500-600 size motors). Comes with 1/8" (3.2mm) bore pinion for the common shaft size of these motors. May be used with brushless motors sharing this bolt pattern with 1/8" (3.2mm) shafts.
Photo is of 400 gearbox which is very similar, this gearbox slightly larger.
This is the last one in inventory, get it while you can."
Planetary Gearbox for high performance motors by Model Motors/AXI, Czech. Gear ratio on packages states 3.86:1, on gearbox label says 3.84:1. No idea which is correct and I'm sure it does not make any difference to anybody. Planet gear and output shaft mounted in ball bearings. Pinion gear is 2.3mm bore.
Gearbox for high performance motors by Model Motors/AXI, Czech Republic. Although gearbox apears to be planetary, in fact it runs on a motor with slight offset as the pinion gear mounted to the motor runs directly on an internal gear (prelubed at factory). So, the motor is not quite central but no where near the offset for traditional gearboxes. A very novel idea!
Gear ratio is 3.00:1
Pinion Bore: 5mm with set screw for 5mm shaft motors.
Gear and output shaft mounted in ball bearings.
Weight: 94g/3.3oz.
Special Notes: I have 2 gearbox's in inventory, these are leftover from when we were a direct importer of AXI motors. This gearbox seems to have been made for their earlier brushed motors. However, the adapter plate (2 are provided) will fit an AXI 28 series motor and they do in fact have 5mm shafts. So I would presume you could mount up an AXI outrunner here. It should also be noted this bolt pattern is the same on nearly all motors in this class, for example Himax 35 series motors and many others. Drawing included shows how to mount the gearbox on MEGA, PHASOR, VM24, 28 and 33 series motors. Another variation for motor with 3mm 3 bolt face around 30mm circle motors is also shown. Will fit any motor with 5mm shaft and standard Speed 600/700 bolt pattern including Hacker B50 and Fun 500/600 Tango series motors. MAKE sure you know how to setup this gearbox before you buy it. I'm telling you everything I know about it right here.
Fits all 20mm to 28mm brushless motors with 2 or 4 bolt mounting pattern on face (99% of everything ever made?). This is a heavy duty box (up to a Hacker B-40). Fits traditional 10mm x 10mm stick mounting box, fits most planes designed with GWS gearboxes also. Output shaft is a stout 4mm. Comes complete with aluminum prop adapter and mounting screws. Choose from popular gear ratios below. Included pinion is 2.0 mm bore. Other Pinion sizes and bores available in Gearbox Parts (a subcategory of the Gearbox category your in now). Notice that since the motor may be pivoted for gear lash adjustment that many other ratios may be attained with other pinions and spurs. Rugged 4mm shaft works with all GWS EPS 400 spur gears (Listed in "Brushed Motors" sub category "GWS Motor System Parts") for an even wider range of gear ratios than stock listed below.
Aluminum #2 Gear Box, Gear Ratio Assortment & Prop Adapter
Fits all 20mm brushless inrunner motors with 2mm shaft. Aluminum gear housing with heat sink, stick mount. 10mm x 10mm stick mounting box – fits most planes designed for GWS type gearboxes.
Photo shows gear already installed. Additional gears included for ratios 6.6:1, 5.3:1 or 4.4:1. Setup with any of provided gears to build ratio desired.
Aluminum prop adapter, motor mounting clamp screws and two allen wrenches included.
Compatible with HiMax set-screw style gearbox spur gears and pinions as well as GWS press on pinions. Main gearbox shaft is not splined so only set-screw secured spurs may be easily secured to it (Himax spurs fit).
Correct gear to adapt your 2mm shaft motor (like many 20mm inrunners) into our 3.8:1 planetary gearbox. Width .199" (5mm). 15 tooth. Modulus/pitch is unknown. It's finer than .6mod and coarser than .3mod. Might be an engliish gear? Proper sun gear for the RRC 3.8:1 planetary gearbox.
SKU Number: HES3.8-2MMPINON
MM1 Replacement Gear set.
10 tooth Pinion to press onto 2.0mm shaft, 48 tooth Spur threads nicely on 4-40 threads. Get a bargain here for your experiments.
SKU Number: MM103TIG
