Himax motors have been proven to be a lot of motor for the money. I feel you get a very good value and highly efficient motor for your projects. I fly several of them myself. These are my motor of choice for many of my own models. They are durable, well made and efficient. All come with Japanese bearings. None of these motors are 50-60% efficeint junk like so many of the imports are.

The provided Performance Charts are my own suggested setups and may vary from manufacturers suggestions. Some of these setups are outside the manufacturers wattage specifications. Understand you can get more wattage with more voltage as long as you don't violate the amperage limits your fine in most cases. Any power system should be checked with a watt meter and temp guage prior to flight and during several steps as you gradually increase the agressiveness and length of initial test flights.

Himax Brushless Motor Specifications.

Himax/Maxx Products Warranty Info.

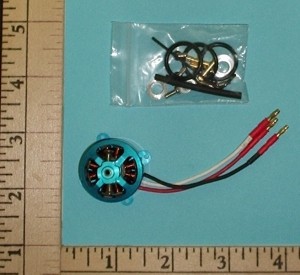

<b>Himax HC2805 Outrunner Motor 1430kv</b>

Himax HC2805 Outrunner Motor 1430kv

These 70 watt motors are for small models weighing 7-10 oz for 3-D flight, up to 8 oz for aerobatic flight and up to 14 oz for leisure flight.

Specifications:
Weight: 27g
Max power 70W
Max RPM: 20,000
Diameter: 28mm/1.09"
Length: 26mm/.97"
Shaft dia.: 6-7 & 8 mm prop saver equiped
Max case temp: 65C/149F

Motor Constants:
HC2805-1430 Kv=1430, Rm=.245, lo=0.6, Eff. Op current=4-8.5A, 11A Max 15 seconds.

Props Suggested:
2S: 8-3.8;8-4;8-6;9-3.8;9-4.7
3S: 6-3;6-4;7-3.8

Combination ESC and Prop Adapter Choices available, select option below.

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

2 8x3.8 5.6 42 7,030 7 24

2 8x4 5.8 43 6,900 8 25

2 8x6 6.9 51 6,180 8 34

2 9x3.8 6.9 51 6,180 8 21

2 9x4.7 7.5 56 5,790 9 25

3 5.5x4.5 4.7 53 12,290 8 50

3 6x3 4.5 50 12,450 9 33

3 6-4 5.4 60 11,740 10 42

3 7-3.8 7.1 79 10,400 12 35

4 5.25x4.75 6.3 94 15,490 12 67

Estimates based on manufacturers provided constants using E-Calc. High Quality 340mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number:MPIHC2805-1430

Price:	$45.95

Combo ESC:	15076:+:0,15074:+:49,15075:+:24

Prop Adapter:	15078:+:0,15077:+:4.5

ESC Motor Side Soldering:	15080:+:0,15081:+:3

ESC Battery Side Soldering:	15082:+:0,15083:+:2,15084:+:0

Quantity:

<b>Himax HC2208 Outrunner Motor 870kv</b>

Himax HC2208 Outrunner Motor 870kv

Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make todays radio controlled models perform. The HC2208 series motor is made for small to medium size models weighing 6 to 10 ounces. Prop adapter and versitile mounting hardware included. Package includes collet type bolt on prop adapter, prop saver, bullet females for your ESC and fasteners.

Manufacturers Specifications:
Weight: 25g/.88oz. (Motor with stick mount).
Max power 30W
Max RPM: 20,000
Diameter: 21.8mm/.86"
Length: 21.6mm/.85"
Shaft dia.: 2.0mm/.0787"
Max case temp: 65C/149F
Motor Constants:
HC2208-0870 Kv=870, Rm=.880, lo=0.25, Eff. Op current=1-3.6A, 4.5A Max 15 seconds.

Combination ESC and/or Prop Adapter choices below.

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

2 9x6 3 23 4,070 5 22

3 7x6 3.2 36 7,110 7 39

3 8x6 4.2 47 6,270 9 47

3 9x4.7 4.6 52 5,940 10 25

4 6x4 2.7 41 10,470 8 39

4 7x4 3.9 59 9,710 11 35

4 8x3.8 5.0 75 8,770 14 30

6 6x4 3.8 71 12,980 12 47

Estimates based on manufacturers provided constants using E-Calc. High Quality 1200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number:MPIHC2208-0870

Price:	$39.99

Combo ESC:	5815:+:0,5813:+:50,12569:+:21

Prop Adapter:	5817:+:0,5816:+:3.5

Quantity:

<b>Himax HC2208 Outrunner Motor 1260kv</b>

Himax HC2208 Outrunner Motor 1260kv

Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC2208 series motor is made for small to medium size models weighing 6 to 10 ounces. Replacement for N60-280 motors. Package includes collet type bolt on prop adapter, prop saver, bullet females for your ESC and fasteners.

Specifications:
Weight: 25g/.88oz. (Motor with stick mount)
Max power 30W
Max RPM: 20,000
Diameter: 21.8mm/.86"
Length: 21.6mm/.85"
Shaft dia.: 2.0mm/.0787"
Max case temp: 65C/149F

Motor Constants:
HC2208-1260 Kv=1260, Rm=.450, lo=0.50, Efficient Operating Current=1-5.0A, 6.5A Max 15 seconds.

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

2 7x4 2 26 7,270 6 26

2 7x6 4.3 32 6,690 6 37

3 8x6 5.5 41 5,920 8 32

3 9x5 6.2 47 5,470 9 25

3 7x4 6.1 69 10,080 12 36

3 7x5 6.9 78 9,550 13 43

3 8x3.8 7.8 88 8,940 14 30

4 6x4 6.6 99 14,280 15 51

5 4.7x4.2 5.2 98 19,840 153 75

Estimates based on manufacturers provided constants using E-Calc. High Quality 1200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number:MPIHC2208-1260

Price:	$39.99

Combo ESC:	8174:+:0,8173:+:50

Prop Adapter:	8176:+:0,8175:+:3.5

Quantity:

<b>Himax HC2212 Outrunner Motor 840kv</b>

Himax HC2212 Outrunner Motor 840kv

Himax Brushless motors are manufactured to high standards for the discerning modler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC2212 series motor is made for small to medium size models weighing 6 to 10 ounces. Replacement for N60-280 motors. Package includes collet type bolt on prop adapter, prop saver, bullet females for your ESC and fasteners.

Specifications:

Weight: 31g/1.1oz. (Motor with stick mount)
Max power 50W
Max RPM: 20,000
Diameter: 21.8mm/.86"
Length: 21.6mm/.85"
Shaft dia.: 2.0mm/.0787"
Max case temp: 65C/149F

Motor Constants:
HC2212-0840 Kv=850, Rm=.700, lo=0.30, Eff. Op current=1-4.5A, 5A Max 15 seconds.

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

2 9x7 3.4 25 4,130 6 27

2 10x8 4.3 32 3,555 7 26

3 7x6 3.3 37 7,300 8 40

3 8x6 4.5 50 6,500 10 36

3 9x4.7 5 56 6,170 11 26

4 6x4 4.7 40 10,810 8 39

4 7x4 4.0 60 9,920 12 36

4 8x3.8 5.3 79 9,030 14 31

5 6x4 3.8 71 13,150 13 47

5 7x3.5 5.2 97 12,170 16 38

Estimates based on manufacturers provided constants using E-Calc. High Quality 1200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number:MPIHC2212-0840

Price:	$42.99

Kv Perfomance Option:	5821:+:0,5819:+:0

Combo ESC:	5823:+:0,5822:+:51

Prop Adapter:	5825:+:0,5824:+:3.5

Quantity:

<b>Himax HC2212 Outrunner Motor 1180kv</b>

Himax HC2212 Outrunner Motor 1180kv

Himax Brushless motors are manufactured to high standards for the discerning modler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC2212 series motor is made for small to medium size models weighing 6 to 10 ounces. Replacement for N60-280 motors. Package includes collet type bolt on prop adapter, prop saver, bullet females for your ESC and fasteners.

Specifications:

Weight: 31g/1.1oz. (Motor with stick mount)
Max power 50W
Max RPM: 20,000
Diameter: 21.8mm/.86"
Length: 21.6mm/.85"
Shaft dia.: 2.0mm/.0787"
Max case temp: 65C/149F

Motor Constants:
HC2212-1180 Kv=1180, Rm=.300, lo=0.50, Eff. Op current=1-7A,8.5A Max 15 seconds.

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

2 7x6 4.3 32 6,960 7 38

2 8x6 5.9 44 6,280 9 35

2 9x5 6.8 51 5,900 10 27

3 7x4 6.2 69 10,380 13 37

3 7x6 7.9 88 9,620 14 53

4 6x4 6.4 95 14,520 16 52

5 6x3 47.4 138 18,240 21 48

Estimates based on manufacturers provided constants using E-Calc. High Quality 1200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number:MPIHC2212-1180

Price:	$42.99

Combo ESC:	15915:+:0,15914:+:51

Prop Adapter:	15917:+:0,15916:+:3.5

Quantity:

<b>Himax HC2808 Outrunner Motor 860kv</b>

Himax HC2808 Outrunner Motor 860kv

Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC2808 series motor is made for small to medium size models weighing 9 to 20 ounces. Replacement for 370-400 motors. Package includes collet type bolt on prop adapter, prop saver, bullet females for your ESC and fasteners.

Specifications:
Weight: 47g/1.66oz. (Motor with stick mount).
Max power 110W
Max RPM: 20,000
Diameter: 27.8mm/1.09"
Length: 24.7mm/.97"
Shaft dia.: 4.0mm
Max case temp: 65C/149F

Motor Constants:
HC2808-0860 Kv=860, Rm=.255, lo=0.36, Eff. Op current=2-7A, 11A Max 15 seconds.

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

2 9x7 5.2 39 5,040 10 32

2 10x8 7.1 53 4,530 12 33

2 12x8 9.9 74 3,770 15 28

3 9x5 7.7 87 7,440 18 34

3 9x7 9.4 106 6,950 19 45

3 10x4.7 9.4 106 6,950 21 30

3 10x6 10.8 122 6,540 23 36

3 11x4.7 11.5 129 6,340 24 27

4 8x4 7.6 114 10,550 22 38

4 8x6 10 150 9,800 24 54

5 8x4 10.7 201 12,610 32 45

Estimates based on manufacturers provided constants using E-Calc. High Quality 1200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number:MPIHC2808-0860

Price:	$45.95

Combo ESC:	4821:+:0,4819:+:49,4820:+:59

Prop Adapter:	4852:+:0,4853:+:4.5,5492:+:4.5

Quantity:

<b>Himax HC2808 Outrunner Motor 980kv</b>

Himax HC2808 Outrunner Motor 980kv

Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC2808 series motor is made for small to medium size models weighing 9 to 20 ounces. Replacement for 370-400 motors. Package includes collet type bolt on prop adapter, prop saver, bullet females for your ESC and fasteners.

Specifications:
Weight: 47g/1.66oz. (Motor with stick mount)
Max power 110W
Max RPM: 20,000
Diameter: 27.8mm/1.09"
Length: 24.7mm/.97"
Shaft dia.: 4.0mm
Max case temp: 65C/149F

Motor Constants:
HC2808-0980 Kv=980, Rm=.220, lo=0.4, Eff. Op current=3-8A, 12A max 15 seconds

SKU Number:MPIHC2808-0980

Price:	$45.95

Combo ESC:	8183:+:0,8181:+:49,8182:+:59

Quantity:

<b>Himax HC2808 Outrunner Motor 1160kv</b>

Himax HC2808 Outrunner Motor 1160kv

Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC2808 series motor is made for small to medium size models weighing 9 to 20 ounces. Replacement for 370-400 motors. Package includes collet type bolt on prop adapter, prop saver, bullet females for your ESC and fasteners.

Specifications:
Weight: 47g/1.66oz. (Motor with stick mount)
Max power 110W
Max RPM: 20,000
Diameter: 27.8mm/1.09"
Length: 24.7mm/.97"
Shaft dia.: 4.0mm
Max case temp: 65C/149F

Motor Constants: HC2808-1160 Kv=1160, Rm=.150, lo=0.6, Eff. Op current=5-11A, 15A max 15 seconds

SKU Number:MPIHC2808-1160

Price:	$45.95

Combo ESC:	8193:+:0,8191:+:49,8192:+:59

Prop Adapter:

Quantity:

Himax HC2812-650 Outrunner Motor

Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC2812 series motors are made for small to medium size models weighing 9 to 20 ounces. Replacement for 370-400 motors. Package includes collet type bolt on prop adapter, prop saver, bullet females for your ESC and fasteners.

Specifications:
Weight: 60g/2.12oz. (Motor with stick mount)
Max power 160W
Max RPM: 20,000
Diameter: 27.8mm/1.09"
Length: 28.9mm/1.14"
Shaft dia.: 4.0mm/.125
Max case temp: 65C/149F

Motor Constants:
HC2812-0650 Kv=650, Rm=.285, lo=0.36, Eff. Op current=2-8A, 11A max 15 seconds.

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

3 10x8 7.7 86 5,420 17 36

3 12x8 11.2 125 4,590 23 34

3 13x6.5 11.7 131 4,470 24 27

4 10x6 9.9 147 7,180 27 39

4 11x5.5 11.6 173 6,750 30 34

5 7x6 10.6 197 13,170 27 72

5 8x4 11.4 212 12,970 33 47

6 7x4 10.5 234 16,160 33 58

Estimates based on manufacturers provided constants using E-Calc. High Quality 1250mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number:MPIHC2812-650

Price:	$51.99

Combo ESC:	4828:+:0,4826:+:50,4827:+:67,12570:+:34

Quantity:

Himax HC2812-850 Outrunner Motor

Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC2812 series motors are made for small to medium size models weighing 9 to 20 ounces. Replacement for 370-400 motors. Package includes collet type bolt on prop adapter, prop saver, bullet females for your ESC and fasteners.

Specifications:
Weight: 60g/2.12oz. (Motor with stick mount)
Max power 160W
Max RPM: 20,000
Diameter: 27.8mm/1.09"
Length: 28.9mm/1.14"
Shaft dia.: 4.0mm/.125
Max case temp: 65C/149F

Motor Constants:
HC2812-0850 Kv=850, Rm=.169, lo=0.6, Eff. Op current=4-11A, 14A max 15 seconds

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

2 11x8 9.8 73 4,430 16 33

2 12x8 11.7 87 4,060 18 30

3 10x6 12.1 135 6,920 25 38

3 11x5.5 14.1 157 6,490 28 33

3 12x6 17.3 193 5,810 31 31

4 9x5 12.8 190 9,690 31 44

4 8x6 10.7 159 10,180 26 56

5 8x4 11.4 212 12,970 33 47

5 7x6 10.6 197 13,170 27 72

Estimates based on manufacturers provided constants using E-Calc. High Quality 1250mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number:MPIHC2812-850

Price:	$51.99

Combo ESC:	15782:+:0,15780:+:50,15781:+:67,15783:+:34

Quantity:

<b>Himax HC2812-1080 Outrunner Motor</b>

Himax HC2812-1080 Outrunner Motor

Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC2812 series motors are made for small to medium size models weighing 9 to 20 ounces. Replacement for 370-400 motors. Package includes collet type bolt on prop adapter, prop saver, bullet females for your ESC and fasteners.

Specifications:
Weight: 60g/2.12oz. (Motor with stick mount)
Max power 160W
Max RPM: 20,000
Diameter: 27.8mm/1.09" Length: 28.9mm/1.14"
Shaft dia.: 4.0mm/.125
Max case temp: 65C/149F

Motor Constants:
HC2812-1080 Kv=1080, Rm=.111, lo=0.75, Eff. Op current=5-13A, 15A max 15 seconds.

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

2 10x6 11.5 86 5,930 17 33

2 10x8 13.5 100 5,560 18 41

2 11x7 15.2 113 5,250 21 34

3 8x6 12.1 135 9,550 22 52

3 9x5 14.4 161 9,070 27 41

4 7x6 13.2 196 13,030 26 72

4 8x4 14.3 215 12,860 29 46

4 8x6 18.5 278 11,880 33 65

5 7x4 13.9 259 16,550 35 60

Estimates based on manufacturers provided constants using E-Calc. High Quality 1250mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number:MPIHC2812-1080

Price:	$51.99

Combo ESC:	15790:+:0,15788:+:50,15789:+:67,15791:+:34

Quantity:

Himax HC2816 Series Outrunner Motor

Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC2816 series motors are made for medium size models weighing 9 to 20 ounces. Replacement for 370-400 motors. Specifications: Weight: 77g/2.7oz. (Motor with stick mount). Max power 200W Max RPM: 20,000 Diameter: 27.8mm/1.09" Length: 32.5mm/1.28" Shaft dia.: 4.0mm/.1575 Max case temp: 65C/149F Electrical Specs: HC2816-0890 Kv=890, Rm=.119, lo=0.8, Eff. Op current=4-13A, 18A max 15 seconds. HC2816-1220 Kv=1220, Rm=.058, lo=1.4, Eff. Op current=7-20A, 25A max 15 seconds.
Select performance level & other options below.

SKU Number:MPIHC2816-****

Price:	$59.99

Kv Perfomance Option:	5828:+:0,5827:+:0

Combo ESC:	5832:+:0,5831:+:67

Prop Adapter:	5834:+:0,5833:+:4.5

Quantity:

Himax HC3510 Series Outrunner Motor

Photo shows left to right, 10, 16, 22 and 28 series motors. View the mounting cage on 35 series motors below.

Himax Brushless motors are manufactured to high standards for the discerning modler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make todays radio controlled models perform. The HC3510 series motor is made for small to medium size models weighing 24 to 32oz. for 3D flight, up to 40oz. for aerobatic flight and up to 50oz. for leisurely flight. Replacement for 05, 500-600 motors.

All 35 series outrunner motors include: Prop adapter, female wire connectors, motor mounting kit w/screws and two hex keys.

Specifications: Weight: 89g(3.10z)motor only. Max power 250W(dependent on several factors) Max RPM: 20,000 Diameter: 35.2mm(1.39") Length: 32.2mm(1.27") Shaft dia.: 4.0mm(.1575") Max case temp: 65C/149F

Electrical Specs: HC3510-1100/1540 Kv=1100/1540, Rm=0.055/0.029, lo=0.25, Eff. Op current=6-22A, 30A Max 15 seconds.

Recommended accessories:

35 Amp Brushless Speed Control, 11.1V Lithium Polymer or 10 Cell NiCd or NiMH Battery, capable of 22-30 Amps.

Select perfomance level option below.

SKU Number:MPIHC3510****

Price:	$64.00

Kv Perfomance Option:	6013:+:0,6011:+:0

Combo ESC:	6015:+:0,6014:+:80

Quantity:

Himax HC3516 Series Outrunner Motor

Photo shows mounting cage on left on a 3528 series motor. On right is 3522 series motor.

Himax Brushless motors are manufactured to high standards for the discerning modler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make todays radio controlled models perform. The HC3516 series motor is made for small to medium size models weighing 34 to 35oz. for 3D flight, up to 56oz. for aerobatic flight and up to 70oz. for leisurely flight. Replacement for 05, 500-600 motors.

All 35 series outrunner motors include: Prop adapter, female wire connectors, motor mounting kit w/screws and two hex keys.

Specifications: Weight: 134g(4.7z)motor only. Max power 350W(dependent on several factors) Max RPM: 20,000 Diameter: 35.2mm(1.39") Length: 42.2mm(1.66") Shaft dia.: 5.0mm(.1969") Max case temp: 65C/149F

Electrical Specs: HC3516-0840 to1350 Kv=0840/1350, Rm=0.055/0.029, lo=0.25, Eff. Op current=6-22A, 30A Max 15 seconds.

Recommended accessories:

35-40 Amp Brushless Speed Control, 14.4V Lithium Polymer or 12 Cell NiCd or NiMH Battery, capable of 26-37 Amps.

Select perfomance level option below.

SKU Number:MPIHC3516****

Price:	$69.95

Kv Perfomance Option:	6018:+:0,6024:+:0,6025:+:0

Combo ESC:	6022:+:0,6021:+:80,6038:+:97

Quantity:

Himax HC3522 Series Outrunner Motor

Photo shows mounting cage on left on a 3528 series motor. On right is 3522 series motor.

Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC3522 series motor is made for small to medium size models weighing 38 to 50oz. for 3D flight, up to 84oz. for aerobatic flight and up to 128oz. for leisurely flight. Replacement for 05, 500-600 motors.

All 35 series outrunner motors include: Prop adapter, female wire connectors, motor mounting kit w/screws and two hex keys.

Specifications: Weight: 162g(5.7z)motor only. Max power 400W(dependent on several factors) Max RPM: 20,000 Diameter: 35.2mm(1.39") Length: 48mm(1.89") Shaft dia.: 5.0mm(.1969") Max case temp: 65C/149F

Electrical Specs: HC3522-0700/0990 Kv=0700/0990, Rm=0.049, lo=1.3, Eff. Op current=8-29A, 40A Max 15 seconds.

Recommended accessories:

35-45 Amp Brushless Speed Control, 14.4V Lithium Polymer or 12-14 Cell NiCd or NiMH Battery, capable of 29-40 Amps.

Select performance level & other option below.

SKU Number:MPIHC3522****

Price:	$75.95

Kv Perfomance Option:	6028:+:0,6030:+:0,6029:+:0

Combo ESC:	6031:+:0,6026:+:80,6039:+:97

Quantity:

Himax HC3528 Series Outrunner Motor

Photo shows mounting cage on left on a 3528 series motor. On right is 3522 series motor.

Himax Brushless motors are manufactured to high standards for the discerning modler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make todays radio controlled models perform. The HC3528-0800 series motor is made for medium size models weighing 43 to 56oz. for 3D flight, up to 96oz. for aerobatic flight and up to 144oz. for leisurely flight. Replacement for 600-700 motors.

All 35 series outrunner motors include: Prop adapter, female wire connectors, motor mounting kit w/screws and two hex keys.

Specifications: Weight: 197g(6.9z)motor only. Max power 450W(dependent on several factors) Max RPM: 20,000 Diameter: 35.2mm(1.39") Length: 54.2mm(2.13") Shaft dia.: 5.0mm(.1969") Max case temp: 65C/149F

Electrical Specs: HC3528-0800/1000 Kv=0800/1000, Rm=0.055/0.031, lo=1.7, Eff. Op current=13-38A, 54A Max 15 seconds.

Recommended accessories:

45-60 Amp Brushless Speed Control, 14.4V Lithium Polymer or 12-14 Cell NiCd or NiMH Battery, capable of 22-30 Amps.

Select perfomance level option below.

SKU Number:MPIHC3528****

Price:	$83.95

Kv Perfomance Option:	6034:+:0,6036:+:0

Combo ESC:	6037:+:0,6032:+:97,6040:+:114

Quantity:

<b>Himax HC5018-530 Series Outrunner Motor</b>

Himax HC5018-530 Series Outrunner Motor

These motors are for large models weighing 4.8-5.8Lb for 3-D flight, up to 9.5Lb for aerobatic flight and 14Lb for leisure flight.

HC50 Outrunners 800-1500 Watts
High torque to turn large props direct drive.
Replaces .40-.60 size engines. Mounting hardware and connectors included.

All HC50 series outrunner motors include: Prop adapter, female wire connectors, motor mounting kit w/screws and two hex keys.

Specifications:
HC5018-530
Watts: 1700
Weight: 275g(9.7oz)motor only.
Max power 900W(dependent on several factors)
Diameter: 48.8mm(1.96")
Length: 53.2mm(2.09")
Shaft dia.: 6.0mm(.2362")
Prop size: 13x8-16x08 (see Himax website for specs)

Electrical Specs: HC5018-530 Kv=530, Rm=0.33, lo=1.8@10volts.
Cells:
Nicd/NiMh 14-20,
Lipo 4-6S.
Gas equilivent .40-.60cu.in.

SKU Number:MPIHC5018-530

Price:	$115.95

Quantity:

<b>Himax HC5030-390 Series Outrunner Motor</b>

Himax HC5030-390 Series Outrunner Motor

These motors are for large models weighing 6.5-8Lb for 3-D flight, up to 13Lb for aerobatic flight and 20Lb for leisure flight.

HC50 Outrunners 800-1500 Watts
• High torque to turn large props direct drive.
Replaces .40-.60 size engines. • Mounting hardware and connectors included.

All HC50 series outrunner motors include: Prop adapter, female wire connectors, motor mounting kit w/screws and two hex keys.

Specifications:
HC5030-390
Watts: 1700
Weight: 395g(13.9oz)motor only.
Max power 1500W(dependent on several factors)
Diameter: 49.8mm(1.96")
Length: 65.0mm(2.09")
Shaft dia.: 6.0mm(.2362")
Prop size: 13x8-16x08 (see Himax website for specs)

Electrical Specs: HC5030-390 Kv=390, Rm=0.33, lo=1.8@10volts.
Cells:
Nicd/NiMh 14-30,
Lipo 6-9S.
Gas equilivent .40-.60cu.in.

SKU Number:MPIHC5030-390

Price:	$135.95

Quantity:

<b>Himax HC6320-250 Series Outrunner Motor</b>

Himax HC6320-250 Series Outrunner Motor

These motors are for large models weighing 10-12Lb for 3-D flight, 17-22Lb for aerobatic flight and 22-30Lb for leisure flight.

HC63 Outrunners 1700-2200 Watts
• High torque to turn large props direct drive.
• Mounting hardware and connectors included.

All HC63 series outrunner motors include: Prop adapter, female wire connectors, motor mounting kit w/screws and two hex keys.

Specifications:
HC6320-250
Watts: 1700
Weight: 450g(15.9oz)motor only.
Max power 1700W(dependent on several factors)
Diameter: 63mm(2.48")
Length: 51mm(2.01")
Shaft dia.: 8.0mm(.1969")
Prop size: 15x12-20x08

Electrical Specs: HC6320-250 Kv=250, Rm=0.26, lo=2.
Cells:
Nicd/NiMh 30-40,
Lipo 9-12series.
Gas equilivent 1.2cu.in.

Setup and Performance Chart

# Cells Prop Amps Watts Input RPM Static Thrust oz. Pitch Speed MPH

10 15x8 31.9 1187 7,230 156 55

10 15x12 56.8 2215 7,960 237 91

10 16x10 59.8 2332 7,870 268 75

10 18x10 80.3 3132 7,220 337 69

10 16x12 57.3 2625 7,630 276 87

8 16x10 42.6 1329 6,610 184 63

8 18x12 65.8 2053 5,960 249 68

6 20x14 61.9 1448 4,330 198 58

6 22x12 70.3 1645 4,130 224 47

Estimates based on manufacturers provided constants using E-Calc. Kokam 3200 used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number:MPIHC6320-250

Price:	$179.95

Quantity:

<b>Himax HC6332-230 Series Outrunner Motor</b>

Himax HC6332-230 Series Outrunner Motor

These motors are for large models weighing 10-12Lb for 3-D flight, 17-22Lb for aerobatic flight and 22-30Lb for leisure flight.

HC63 Outrunners 1700-2200 Watts
• High torque to turn large props direct drive.
• Mounting hardware and connectors included.

All HC63 series outrunner motors include: Prop adapter, female wire connectors, motor mounting kit w/screws and two hex keys.

Specifications:
HC6320-230
Watts: 2200
Weight: 690g(24.3oz)motor only.
Max power 2200W(dependent on several factors)
Diameter: 63mm(2.48")
Length: 63mm(2.48")
Shaft dia.: 8.0mm(.1969")
Prop size: 16x12-24x10

Electrical Specs: HC6320-230 Kv=230, Rm=0.43, lo=1.5.
Cells:
Nicd/NiMh 30-40,
Lipo 9-12series.
Gas equivalent 1.8cu.in.

Setup and Performance Chart

# Cells Prop Amps Watts Input RPM Static Thrust oz. Pitch Speed MPH

12 16x12 77.7 3636 8,550 349 97

12 18x8 81.1 3795 8,450 397 64

10 18x8 62.4 2434 7,390 295 56

10 16x12 59.6 2324 7,460 261 85

10 16x12 57.3 2625 7,630 276 87

10 15x10 43.2 1685 7,880 212 75

8 20x10 69.2 2159 5,650 279 54

8 20x12 77.5 2418 5,460 298 62

7 22x12 81.1 2214 4,620 286 53

Estimates based on manufacturers provided constants using E-Calc. Kokam 3200 used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number:MPIHC6332-230

Price:	$199.95

Quantity:

Himax 2015 Brushless Gear Motor

Himax Brushless motors are manufactured to high standards for the discerning modler. Designed for light-weight, high efficiency and durability of todays performance. The HG2015 series gear motors for small models from 8oz. to approximately 30oz. High efiiciency, high power, light weight. Replaces 280-370-400 motors. Weight 82g/2.9oz.
Direct upgrade for GWS 300/350 & GWS400 gear motors, Himax HA2015 or HA025 BL motor installed optimum power and performance, - use HG2015 to replace 280 & 370 type motors, - use HG2025 to replace 370, 400, & 480 type motors, Aluminum gear housing no more broken gear housing, Built-in cooling fins no more overheated motors, 10mm x 10mm mounting box fits most planes designed with GWS gearboxes, 6.6:1 gears installed, 5.3:1 & 4.4:1 gears included flexible power management, Dual Ball Bearings with hardened shaft efficient and durable operation, Aluminum prop adapter included, Completely assembled Plug & Play! Select perfomance level option below.

SKU Number:MPIHG2015-****

Price:	$57.95

Kv Performance Option:	4638:+:0,4639:+:0,4640:+:0,4641:+:0

Combo ESC:	4660:+:0,4661:+:53,4662:+:63

Quantity:

Himax 2025 Brushless Motor & Gearbox

Himax Brushless motors are manufactured to high standards for the discerning modler. Designed for light-weight, high efficiency and durability of todays performance. The HG2025 series gear motors for small models from 8oz. to approximately 30oz. High efiiciency, high power, light weight. Replaces 280-370-400 motors. Weight 82g/2.9oz.
Direct upgrade for GWS 300/350 & GWS400 gear motors,
Himax HA2015 or HA025 BL motor installed optimum power and performance, - use HG2015 to replace 280 & 370 type motors, - use HG2025 to replace 370, 400, & 480 type motors, Aluminum gear housing no more broken gear housing, Built-in cooling fins no more overheated motors, 10mm x 10mm mounting box ï¿½ fits most planes designed with GWS gearboxes, 6.6:1 gears installed, 5.3:1 & 4.4:1 gears included flexible power management, Dual Ball Bearings with hardened shaft efficient and durable operation, Aluminum prop adapter included, Completely assembled Plug & Play! Select perfomance level option below.

SKU Number:MPIHG2025-****

Price:	$62.95

Kv Performance Option:	4646:+:0,4647:+:0,4648:+:0,4649:+:0

Combo ESC:	4663:+:0,4664:+:50,4665:+:67

Quantity:

<b>Himax 2015-2800 Brushless Motor Direct Drive</b>

Himax 2015-2800 Brushless Motor Direct Drive

Himax Brushless motors are manufactured to high standards for the discerning modler. Designed for light-weight, high efficiency and durability of todays performance. Select ESC Combo below.

Specifications:
Weight: 48g(1.7oz)
Max Power: 110W, (This is dependent on several Factors)
Max RPM: 60,000 RPM
OD: 20mm, (.79")
Length: 32mm, (1.26")
Shaft Size: 2.0mm, (.078")

Constants: Kv = 2800, Rm = .355, Io = .40, Efficient Operating Current = 2-7A

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

2 4.1x4.1 4.1 31 15,530 4 57

2 4.7x4.2 5.4 41 13,800 6 52

2 5.5x4.5 7.3 55 11,270 7 46

3 4x2.5 6.6 56 24.090 8 52

3 4.5x3 7.2 81 20,830 10 55

Estimates based on manufacturers provided constants using E-Calc. High Quality 500mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

Himax/Maxx Products Warranty Info.

SKU Number:MPIHA2015-2800

Price:	$39.99

Combo ESC:	15948:+:0,15950:+:21,15946:+:21,15945:+:31,15947:+:50,15949:+:60

Quantity:

<b>Himax 2015-3600 Brushless Motor Direct Drive</b>

Himax 2015-3600 Brushless Motor Direct Drive

Himax Brushless motors are manufactured to high standards for the discerning modler. Designed for light-weight, high efficiency and durability of todays performance. Select ESC Combo below.

Specifications:
Weight: 48g(1.7oz)
Max Power: 110W, (This is dependent on several Factors)
Max RPM: 60,000 RPM
OD: 20mm, (.79")
Length: 32mm, (1.26")
Shaft Size: 2.0mm, (.078")

Constants: Kv = 3600, Rm = .295, Io = .54, Efficient Operating Current = 3-8A

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

2 4x2.5 4.6 35 20,110 6 44

2 4.5x3 6.5 49 17,260 7 46

2 4.7x4.1 8 60 15,010 7 55

3 4x2.5 8 90 26,980 11 59

Estimates based on manufacturers provided constants using E-Calc. High Quality 500mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

Himax/Maxx Products Warranty Info.

SKU Number:MPIHA2015-3600

Price:	$39.99

Combo ESC:	4655:+:0,15943:+:21,15941:+:21,15942:+:31,4654:+:50,4656:+:60

Quantity:

Page [ 1 | 2 ]

NASA wants to go back to the moon. Radical RC's Wicked Wing beat them to it! Check out our original designs! Radical RC Verti-Go 125, Verti-Go 3D, E-Hornet, Mini Stick, Micro Stick, Micro Bipe, Micro Low Stick, Quick Wing 12mm, Quick Wing 20mm, Quick Wing Twin 20mm Double Trouble, Das Mini Low Stick, Das Mini Bipe, Mini Hunter, and now available...Mini Intern Trainer!
Electric Flight Flight Kits The Dayton Wingmasters

Help pages, scan the gauges while you're here:
We've Got Radical Wire

Radical RC Shameless Plugs

Battery Configuration Terminology Help Page

Battery FAQ's

Transmitter Battery & Connector Help Page
Radical RC Crystal Exchange
Print our new Crystal Exchange Request Form and learn how to exchange your unwanted channels for those you can use Radical RC Order Form Radical RC Mail/Fax Order Form
Print out our Order Form, fill in the blanks, then mail or fax your order to us! See form for details, thank you!

Radical RC Cycler F.A.Q.
How to check your cycler for accuracy

NIMH, Which is better? NiMH or NiCad? How do I charge it?
I've been asked 1000's of times, here's your answer

Lithium Applications

Lithium Cells
Safety and Instructions!

Should I choose 4.8 or 6 volt packs?
Copy of an email I answered with all the key questions about 6 volt packs

Soldering Cells
Radical RC's help page for soldering together your own battery packs
Jump those DIODES!
Sirius Electronics web page showing many TX's and how to jump the diodes. Great photos!

SHIPPING FAQ's

Cool Links Coming to Dayton?
Here's a link to a hotel just down the road from Radical RC, and across from the Museum of the United States Air Force!

Charging, Cycling & Returns ~ A Must Read!
We cover all the basics on charging and cycling, and the receivers that we provide. PLEASE READ THIS PRIOR to sending any items back. 99% of all returned items test perfect. Learn how to check your cycler/charger or receiver here without spending money on postage.

Pictured to left is one of Garrett's competition ships, to right ....
Dave, Here is a picture of my second plane. This is a 3W Extra 330 40%. The plane is flying great. Thanks so much for all your support in this hobby. I really like using your products. My friends as well are very happy with the equipment & fast-friendly service that is coming out of your company. Let's keep in touch. -Garrett Morrison

Print Radical RC Mail/Fax Order Form
Our Address:
Radical RC
5339 Huberville Ave
Dayton, Ohio 45431-1250
Voice Number: 937-256-7727

Fax 937-256-7220

Email:davthacker@aol.com

Radicalizing your model one order at a time!

Accept Credit Cards
