Astro's charger for Lithium Polymer Cells. Charges from one to ten cell packs. Charge rate 50 ma to 9 amps. Specifications:
Cell Types Lithium Polymer
Minimum Cells One cell
Maximum Cells Ten cells
Maximum Charge rate 9 amps
Minimum Charge rate 50 ma
Charge Time cut off 10 hours
Discharge Rate 1.25 amps
Discharge cut off 3 volts per cell
Current Display 50 ma to 10 amps
Voltage Display 0 volt to 40 volts
Charge time Display hrs, min and seconds
Milliamp hour Display 0 to 95 amp hours
Supply Voltage 12 to 15 volts
Supply Current 0.1 to 16 amps
Sirius Charge Lithium is a high performance charger for Lithium Polymer or Lithium Ion batteries. Charge acceptance and battery life is extended with Sirius RPC charging technique. Has safety features to prevent battery damage from charging the wrong number of cells. This charger is "Goof Proof". You cannot harm the charger or your batteries by plugging anything in backwards! Charger may be programmed to charge many different sizes of Lithium batteries: 1-3 cells(in series) at 100mA to 1500mA of charge current. When unit is set to off it can be used as a voltmeter 0.5 to 12.7 volts. Requires 10 to 14 volt DC power source...
Specification:
- Input voltage : 11-14 VDC and current should more than 10A.
- For li-Po batteries 1-4 cells
- Maximum current charge 4A. (adjustable)
- Inverse polarity protection with both input and output
- Alarm sound when cell error, false setting or full cell.
- LED display will show on when battery or input voltage less than 10V.or full cells. Built in cooling fan. Easy adj. current. LED on when charging changing to blinking when battery is full.
Simple design & easy to use for Li-PO Batteries 7.4 & 11.1 V. Palm size only 102x54x28 mm. Auto detects cell count and has auto cut-off. Monitors each lipo cell individually. Adjustable current from 0 to 1000mah. Needs input from 10-15v DC. Comes with alligator clip equiped power cord for connecting to your 12v battery or power supply. Led indicators for simple "Charging" and "Complete" indication. Protected against accidental output shorting. GWS says CE & RoHS certification ready.
Charges directly through XH equiped balance connector on your pack. Adapters included for charging directly through output red BEC connector if you wish. We reccomend always charging through balance connector.
Redevex Lipo Charger V1, E0062 with Built-in Balancer. Input voltage: 9-15V, 3A. Will charge & balance 1, 2, 3 and 4 cell Lipo packs. Output current is switchable, 0.5, 1.0, 1.5, and 2.0amps. Two, two cell packs can be charged and balanced simultaneously using port 1 and 4. Output ports labeled 7.4V, 14.8V, 11.1V and 7.4V. Fan cooled. Fuse, 5A, protected. LED indicators. Attractive polished aluminum panel in bright yellow and purple case. Comes with alligator clips for input side. No output cables supplied with unit (use balancing output on your Lipo pack).
Compact reliable Lithium Polymer Charger. Dedicated for 1 to 2 cells (4.2-8.4 volt packs) (Nominal 3.7-7.4). Trouble free manual cell count/charging voltage setting. Automatic "oversight"-voltage check safety circuit. Input and output reverse polarity connection protection. Lithium polymer cells are a tremendous advance in battery technology for RC flight. Always consider the hazards of lithium chemistry and potential for fire when charging and charge on fireproof surface, such as a brick platform. Never charge near flammable liquids. Never leave batteries unattended while charging.
Extend your battery life! Do not overcharge your batteries, stock chargers charge at over 3C and shorten battery life. Each batterys charge current is adjustable from 20ma to 400mA.
Fly More Charge one to four single cell Li-Po batteries simultaneously. Charge away from home without AC power! Use any 3 cell Li-Po battery for power when you are away from home. Automatic shut off if battery drops below 9.6V. Charge up to 400mA! Be ready to charge the next generation of higher capacity batteries. Easy to use! Just plug in the battery, the CHARGE LED is green when charging and red when done.
Charge any single cell Li-Po! You are not limited to just charging E-Flight batteries, the Four-Play Pro can charge any single cell Li-Po from auxiliary battery connections
Four Play 1 Amp AC Power Supply Adapter
Plugs directly into FourPlay Charger for your micro Park Zone 1S battery packs. This 1 Amp 12V Power Supply could also be used to power other small chargers if the batteries you're charging are 3S or less and the total of your charge rates is less than 1 Amp, this supply will power your charger.
Microprocessor controlled high performance balance charger for Lipo batteries with cell voltage ballancer, temperature control, capacity control and time control. Charge current up to 5A. 1 to 5 cell Lipo batteries. Instructions and connectors/pigtails included. Connects directly to PolyQuest, SkyHolic, Hyperion, Poly-RC, E-Tech, XCITE, Max Amps, True RC, Impulse and Apache packs with provided adapters. All these packs use the "HP" Plug.

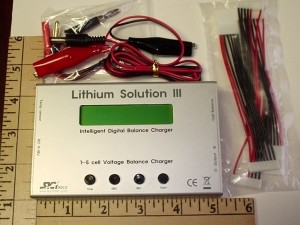

LiPo Charger - LiPo Solution III with LCD Digital Display
Charger for Lithium batteries only.
Balancing during charging.
Input Power : 11V ~ 18V DC
Max output : 50W
Charge Range : 1- 5 Lithium polymer Cells
Charge Current : 100mah to 5A Max
Discharge Current 600 mA Max
Polarity protected on Input and Output
Dimensions 128 x 82 x 30mm
Weight 223g
Made with barrell connector ready to go for the GWS C3-LP Charger. Plug into your 110V wall outlet and then plug power cord into your charger. Now you can leave the battery behind. Also a usefull power supply for many other chargers intended to run on 12V. Understand a running car 12V system is often about 14.5V so most other chargers made for typical 12V inputs will accept 15V just fine.
Astro Flight Upgrade Chip for Lithium Polymer Cells V2.0
Upgrade Micro Chip for any Astro Flight Model 109 Charger (and some later model 110D chargers). Easy to install. Plugs into the socket on your circuit board and upgrades your charger to the latest Lipo software version 2.0.
Special Notes for 110D (NiMH and NiCad) charger owners: If your unit has a chip socket on the circuit board this chip will work in it also. If all your chips are soldered in, it's a no go. Even desolding the old chip and soldering in the new one does not work. If you have a socketed 110D and change it, be sure to relable the front of the charger.
1. Cell count is frozen in the first five seconds after detecting the lithium poly battery and is displayed on the screen.
2. Time out is increased from 1 hour to 10 hours.
3. Amp Hours are increased to 9.5 to 95 amp hours. Now you can charge large packs in parallel.
4. Discharge stops at 3.2 volts instead of 2.9 volts.
Warning!!! Batteries are a potential FIRE HAZARD. NEVER EVER LEAVE THE BATTERY ALONE WHILE CHARGING! Always charge in a FIRE PROOF CONTAINER. Never top off a fully charged battery. Never fast charge if cells are less than 3.2 volts each. Always verify and monitor the correct battery voltage and correct cell count. Never charge a swollen pack. Never charge in a motor vehicle, nor while driving.
READ & REREAD ALL DIRECTIONS!!!
SKU Number: AST550
