Orbit Direct Digital Charging System. Pocketlader charger with balancer, up to 65W, for NiMh/NiCd- and Lithium-batteries (LiPo/LiFP-A123). Combines all functions an R/C hobbyist could wish for in a ultra-compact charger. All rechargeable battery types 1V up to 21V can be charged with 50mA up to 4 amps. Also a powerful charger for Nickel Metal Hydride (NiMh), Nickel Cadmium (NiCd), lead (Pb), and Lithium-Ion/ -Polymer/-Ferrophosphate-A123 batteries, and simultaneously serves as a precise measurement device for the battery condition. A clearly arranged LCD display informs you at any time about the battery voltages, the charging current, the charging time, and the capacity/charge (in mAh).
An integrated high power balancer can be used active with the charger or even passive and stand-alone (without power supply) to balance a lithium pack.
The POCKETLADER-COMBO includes a SIO computer interface to analyze the measured battery data with the Orbit MICROLOG software and to update the POCKETLADER-COMBO with the newest firmware (firmware-flash).
The POCKETLADER-COMBO is user-friendly and, due to its sophisticated, compact and rugged design, very handy.
Specifications:
INPUT: MPX-MG6 8-15VDC max.5A
OUTPUT: 4mm 0,8-21,5V / >25mA - 4A according to 1-12(14) Ni or 1-5s Lithium
BALANCER: 1-5s / 3,4-4,23V / max. 1A
POWER: 10-65W, 80W PEP
DISCHARGE: > 25mA - 3A max.7W
LC-DISPLAY: 2x16 character CoolBlue
DIMENSIONS: 110 x 107 x 24 mm
SIO-INTERFACE: 3,5mm Stereo TTL
Included items: 12V input power lead with gold-plugs, balancer-adapter (select your preference below), English manual.
The MICROLADER PC interface connects your Orbit MICROLADER to the USB port of a Windows PC and allows you to record and evaluate battery data in real time. An ideal tool for battery diagnostics and maintenance.
Included items: RS-232 interface board for installation in the MICROLADER, DB9/USB cable, MICROLOG software (Windows 95 or later)
Orbit PC Interface Pocketlader Microlader SIO USB/Serial Cable
Use this cable and software to connect your Pocketlader and Microlader charger to your Windows PC through the USB or Serial interface. With the included MicroLog software, It allows you to record and evaluate battery data. An ideal tool for battery diagnostics and maintenance. Also allows control of Charger by Orbit Lipo Check Pro when balancing your valuable Lipo packs. This software and cable is also required to get free firmware/flash updates for your charger.
Included items: SIO-PC ISB interface harness with DB9, MICROLOG software (Windows 95 or later).
The LiPoChecker Pro8s is a voltage checker and a balancer / equalizer for LiFP+Lion+LiPo Lithium batteries combined in one device. Eight separate circuits allow the LiPoChecker pro to balance battery packs up to 8s and a maximum charging voltage of 4.23 V per cell. This can be done preferably during charging, but also afterward or during a full test of the battery pack. The LiPoChecker pro universal connector system (16pin header), known from Personal Computers, is easily available and allows an easy adaptation to common connector systems, such as Graupner, robbe, Thunderpower, Tanic, Polyquest etc. Ready-to-use adapters are available from Orbit electronic. An additional SIO feedback line allows voltage data of the individual cells to be sent to the Orbit POCKETLADER or MICROLADER battery chargers. That way, alarm states can be easily detected (closed loop) and the charging result can be optimized even with old or low-grade battery packs.
* Connection: 16 pin male header
* Operating voltage: +2.1V to +4.5V
* Diversion: max.1000mA
* Balancing: 3.4V - 4.23V
* Dimensions: 41 x 16 x 160 mm / 1.6" x 0.6" x 6.3"
The LiPoChecker Pro Adapter-Graupner/Robbe will connect your Orbit LiPo Checker Pro, an Orbit Pocketlader Charger and a Graupner/Robbe Lipo Battery Pack. It isn't required to connect the Charger and Balancer/Checker, but if they are connected, then the Balancer/Checker can control charging rate to individual cells.
This is the adapter you'll need for Graupner/Robbe Lipo battery packs to the Balancer/Checker.
The LiPoChecker Pro Adapter Flight Power / Radical RC / E-sky / E-Flight / Most China packs - will allow you to connect to your Orbit LiPo Checker Pro to all these brands. It isn't required to connect the SIO plug between the an Orbit Charger and the Lipo Checker Prop, but if they are connected, then the Balancer/Checker can control charger if required.
This is the adapter you'll need for Flight Power Lipo battery packs to the Balancer/Checker.
The LiPoChecker Pro Adapter-BEC-Tanic will connect your Orbit LiPo Checker Pro, an Orbit Pocketlader Charger to your custom battery pack or BEC equipped Tanic style Lipo battery packs.It isn't required to connect the Charger and Balancer/Checker, but if they are connected, then the Balancer/Checker can control charging rate to individual cells.
This is the adapter you'll need for custom Lipo battery packs with BEC connectors to the Balancer/Checker.
Orbit Microlader RACE w/PC Interface - One Of A Kind
Manufacturers Description: If you want to take off with your high-performance battery packs as soon as possible, the Orbit MICROLADER Race is your perfect choice. With charging and discharging currents of up to 8 Amperes, it will make friends with all those who don't want to wait too long to have fun! The convenient program selection provides all you need: automatic quick charging, reflex charging, normal charging, discharging, and forming (or reconditioning) of 1 to 12 NiCd cells as well as NiMh, lead, and 1-4 cells Lithium Ion/Tadiran batteries. This charger was $282.00 Get $100 Off on the last one.
Operating the Orbit MICROLADER Race is easy: Use the control keys to select the individual operating modes from the main menu. In each mode you can directly enter the desired charging or discharging current or the number of cycles. The LCD display always shows you the battery voltage, battery current, charging time and charged electricity [mAh]. This device is not only a powerful quick charger, but also a maintenance and measuring device for demanding R/C hobbyists.
Just like the other chargers of its family, the Orbit MICROLADER Race supports the optional PC interface for measurement data transfer and analysis on a PC with the Orbit MICROLOG software
Comments from Radical RC: This Orbit charger gives you the current capabilities of the Orbit Pro at the price of the Orbit 6.0 with a limit of 12 cells. Primarily focused on the RC car racer or turbo-jet pilot and not suggested for the electric pilot due to 12 cell limit. Orbit makes the Ultimate chargers. Very versital, very user friendly, very smart. If your looking for more than the ordinary, here it is. This charger does all current cells in common use and everything we can think of in the forseable furure.
This version includes the PC interface, cable and software.
Orbit Adapter LiPo Checker Pro to Microlader Luxury/Pro
Adapts the Lipo Checker Pro through one of the above Adapters to your Luxury/Pro/Race type Orbit Chargers with PC interface. Connecting the adapter harness to the PC interface allows the checker to control the charger if needed.
SORRY, Currently out of stock, awaiting product from Orbit Eledctronics, backorders welcome.
The Microlader interface with double SIO connects the Lipo-checker and features a true single cell supervisory during charging Lipo packs. The SIO2USB-PC cable (#0590) can now be used.
Orbit Factory Power Input Cable/Cord Replacement Assembly. OEM quality. 32 inches long. 20 gauge wire. This is the factory replacement power cord if you should damage yours or need a spare.
Orbit Factory Input power plug only for input cord assembly. OEM quality. This is the factory replacement power input plug only. Use to make your own input replacement or spare cord.
Photo shows three plugs for configuration only. Priced per one plug.
The owner's manual for operation of the Orbit Microlader V6.3 battery charger. Explains features and functions of the charger. Covers units with serial numbers 201000 to 202000. 37 pages, 8" x 6", softback. Also for anybody updating to 6.3 firmware EPROM.
The owner's manual for operation of the Orbit Microlader Pro 6.3 battery charger. Explains features and functions of the charger. Covers units with serial numbers 993001 to 994000. 37 pages, 8" x 6", softback. Still applies for Version 6.4, as there were few changes made to interface with the Lipo Checker. Use this manual when upgrading from versions older than V6.3.

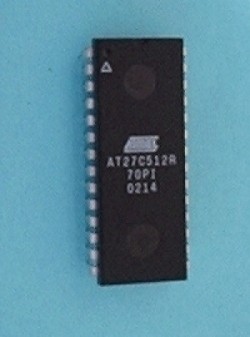

Updated EPROM Firmware for Orbit Microlader. Microlader 6.40 (replacement for 6.1/6.11 & 6.2/6.21/6.3x only, displayed at power on.) Modifications:
All chargers keep improvements of 6.3 EPROM chip, plus the following:
Luxury 6.11/6.2/6.21/6.3 chargers become 6.40: 1S-11S Lipo packs/ Max current increased 6amps.
Pro 6.1/6.11 & 6.2/6.21/6.3 chargers become Pro 6.4:1S-12S Lipo packs/ Charge current increased to 8 amps.
Race 6.1/6.2 chargers become V6.3 only!
Arno informs us of many small extra improvements also included, not yet documented. Some of them are:
Support for Tadiran cells (Lithium Metal) has been dropped, as these cells have not been manufactured for over 3 years now.
Discharging NiMH and NiCad cells to 1V per cell (in the past: 0,9 V)
Discharging LiPo cells to 3.0V per cell. You'll have a real Lipo Cycler to do testing.
New charge algorithm for voltage and current makes it very safe, you can even set for 8 amps with 350 Lipo pack without any danger!
The Microlader update Eprom V6.4 features higher charging power for the LiPo-mode and supports close loop charging with the LiPo-Checker [0605]. The Microlader PC-interface and a special adapter [0632] is needed for this function.
Orbit is the leading edge. Every update to latest technology keeps you on leading edge and non-Orbit owners are stuck buying new chargers to keep up with advances. Sometimes you can't afford to be cheap. Buy Orbit the first time.
Updated EPROM Firmware for Orbit Microlader. Microlader 6.5X (replacement for 6.1/6.11 & 6.2/6.21/6.3x/6.4x/6.50/6.51/6.52.6.53 only, displayed at power on.) Modifications:
This new chip adds adjustable lithium voltage level making it adaptable to the A123 Lithium cells. The Microlader update 6.5 features adjustable charging voltage CV for the Lithium-mode and supports close loop charging with the LiPo-Checker [0605]. The Microlader PC-interface and a special adapter [0632] is needed for this function.
Microlader 6.1-6.4: => update by new chip 6.5
Microlader PRO 6.1-6.4: => update by new chip PRO6.5
Microlader RACE 61/62: => update by new chip, but RACE 63 only!
Once again smart Orbit owners get to update thier chargers to the latest cell technology. It's cheaper in the long run to own the best! Don't be a tightwad on your next charger, get an Orbit and in the end you'll spend less than all the rest. Some of my customers are on their 5th upgrade now. Every upgrade is a time they didn't have to buy a new charger to keep pace with technology. Hmmm, lets see, that amortizes their charger down to cost around $60. Proven again; It's cheaper to buy the best if you plan on being alive for a few years. ;-)
Orbit is the leading edge. Every update to latest technology keeps you on leading edge and non-Orbit owners are stuck buying new chargers to keep up with advances. Usually it's very expensive being cheap. Buy Orbit the first time.
Orbit 6.0 owners: Early 6.0 chargers have a processer in them that was discontinued, late 6.0 chargers are the same as modern Orbit units. If you can toggle the language between English and German in setup then your charger is a later charger and can be chip updated. We suggest you send the unit in for calibration and update at this age. Early 6.0 chargers and Pre-6.0 chargers may be updated with a new board or receive a one time only update by round trip to Germany.
Orbit LiPo Checker Pro Adapter-Thunder Power/Flight Power 3S/11.1V
3S, 11.1Volt, Lipo Adapter. The LiPo Checker Pro Adapter Thunder Power & Flight Power / Radical RC / E-sky / E-Flight / Most China packs - will allow you to connect to your Orbit LiPo Checker Pro to all these brands. It isn't required to connect the SIO plug between the an Orbit Charger and the Lipo Checker Prop, but if they are connected, then the Balancer/Checker can control charger if required.
This is the adapter you'll need for Thunder Power & Flight Power / Radical RC / E-sky / E-Flight / Most China Lipo battery packs to the Balancer/Checker.
Orbit LiPo Checker Pro Adapter-Thunder Power/Flight Power 4S/14.8V
4S, 14.8Volt, Lipo Adapter. The LiPo Checker Pro Adapter Thunder Power & Flight Power / Radical RC / E-sky / E-Flight / Most China packs - will allow you to connect to your Orbit LiPo Checker Pro to all these brands. It isn't required to connect the SIO plug between the an Orbit Charger and the Lipo Checker Prop, but if they are connected, then the Balancer/Checker can control charger if required.
This is the adapter you'll need for Thunder Power, Flight Power, Radical RC, E-Sky, E-Flight and most China Lipo battery packs to the Balancer/Checker.
Orbit LiPo Checker Pro Adapter-Thunder Power/Flight Power 5S/18.5V
5S, 18.5Volt, Lipo Adapter. The LiPo Checker Pro Adapter Thunder Power & Flight Power / Radical RC / E-sky / E-Flight / Most China packs - will allow you to connect to your Orbit LiPo Checker Pro to all these brands. It isn't required to connect the SIO plug between the an Orbit Charger and the Lipo Checker Prop, but if they are connected, then the Balancer/Checker can control charger if required.
This is the adapter you'll need for Thunder Power & Flight Power / Radical RC / E-sky / E-Flight / Most China Lipo battery packs to the Balancer/Checker.
