Remember, good consistent and accurate ground testing of your airborne packs requires a "loaded voltmeter". Open (or unloaded resting) voltages can fool you into thinking a battery is OK to fly again when it is not. Thus the reason RC hobby meters have load capability.
High resolution display with 10 high intensity LEDs. 12 bits microchip IC design, for accurate voltage readings. Large LCD display shows battery voltage and 7-step capacity graphic display. Capable of measuring 1-2-3-4 cell (3.7V-7.4V-11.1V-14.8V) Li-Po or 4.8V-6.0V-9.6V NiXX battery packs. The test sequence shows battery condition under 500mA load. Test range is between 3.7V-20V. Reverse polarity protected. Universal test probe included.
Comments from Dave: This unit is easy to opperate. Just press the "Select" button to scroll through the "Nominal" voltages to find your pack. Stop on 6V to test a 5 cell RX pack, 4.8V to test a 4 cell pack. Stop at 8.4 to test a 2 cell Lipo, 11.1 for 3 Cell and etc. Press the test button, a 500mah load is applied for 5 seconds and your results both digital and graphical are displayed. An exacting and repeatable test every time. The connector is universal to plug into typical RX charge battery leads and most TX connectors. Any connector with a .100" standard pin spacing.
The rugged and compact Ace R/C Digital Voltmeter is designed with the R/C hobbyist in mind.
It checks all batteries up to 20 volts and indicates the voltage in a clear, hi-vis liquid crystal display. It also allows you to key a load in and out on both the receiver and transmitter battery so the voltage reading provides a valid determination of whether you have enough energy for another flight or run. A go/no-go green/red LED gives a quick visual reference of charge condition. Comes with test probes. Requires a 9V transistor battery. The load used to check packs is 200mah on TX setting, 100 on RX 4.8V setting. Meter can also be used to check 6V packs (although not marked on it's face this way) in the 4.8V switch setting which loads at 125mah. When checking 6V packs, do not rely on the indicator lights, you need to interpret the volt readings yourself as Recharge/Good.
The indicator lights are strictly indicative of condition as the switch is labeled.
Be sure to visit our charge cord section to acquire any cords you may need. This unit uses standard banana ended charge cords to it's simple to use your existing charge cords for testing your packs.

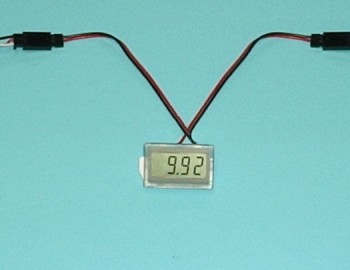

Digital expanded scale voltmeter. This is our RRC1000 onboard meter modified for separate power supply. This allows the meter to measure down to 0.00 volts. Popular for use for many other projects. Can also be usefull if you want an onboard meter for your low voltage glow assist battery. Solves many unusual voltage measuring problems. Connect to unused servo output on receiver or any 4-20V source to power the meter. Measure any 0-20V realtime battery voltage. Easily mounted in cockpit or panel mount anywhere. Two decimal readout. If your requirement is for 4 cell or larger packs (generally 4V or more) you should choose our lower cost RRC1000 meter.
Specifications:
Minimum Voltage 0.00V
Maximum Voltage 19.99
Current Used .001mah (Super Efficient!)
Supply Voltage 4-20V
Size 1 38"W , 7/8"H x 1/2"D
Measureed Voltag Lead Length 6 inch Universal plug.

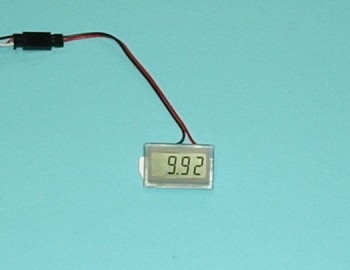

Onboard digital expanded scale voltmeter. Connect to unused servo output on receiver. Monitor realtime battery voltage. Easily mounted in cockpit or panel mount anywhere on your plane. Two decimal readout.
Specifications:
Minimum Voltage 3.6
Maximum Voltage 19.99
Current Used .001mah (Super Efficient!)
Size 1 38"W , 7/8"H x 1/2"D
Lead Length 6 inch Universal plug.

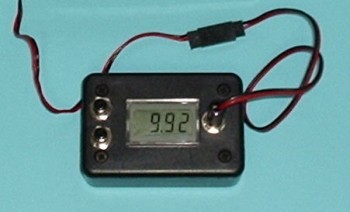

Digital Load Tester
The digital load tester will check battery packs up to 20 volts.
The jack in the top of the unit is 2.5mm and comes standard with Futaba receiver plug.
The top buttion will put a 500ma (.5Amp) load on your pack when pushed.
The bottom button will put a 1000ma (1Amp) load on your pack when pushed.
Pushing both buttons wil put a 1500ma 1.5 Amp) load on your pack.
Digital Battery Monitor Voltage Tester designed for 2-6 cells. Handy, small size for use as portable digital battery monitor or mount it on your model for real time voltage, cell monitor.
Weight: .22oz./6.1g
Dimension: .75" x 2" x .43" (19 x 50 x 11mm).
Input: 0.01V-4.5V per cell.
Shows individual cell voltage. Works with almost any connector. Adapter for TP type included. Reads out voltage of up to 6 cells. Gives fuel guage to let you kinow if pack is empty-mid- or full. Has self balancing feature with up to 50mah balancing current. Weighs only 2 grams. Fits easily in pocket or field box.
SKU Number: DSK30520
