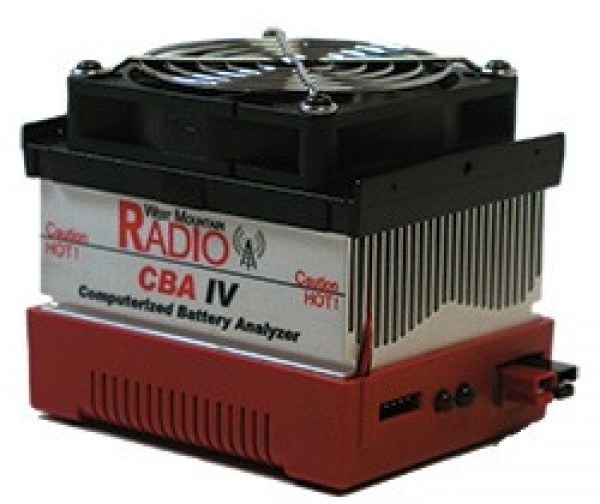

CBA IV Computer Battery Analyzer Consumer Version

CBA IV Computer Battery Analyzer Consumer Version

* Improvement/Enhancement on CBA IV


Capabilities Scientifically Analyze Battery Performance
True constant current battery capacity test with results graphically displayed
Constant power testing supported with Extended software upgrade
Discharge current is software and electronically regulated using a solid state switch and fan cooled electronic load
Test any type of battery; coin cell to automotive or larger; Presets for NiCad, NiMH, Lead Acid, Li Ion, Li Poly, Alkaline, Carbon Zinc, Mercury etc. Solar cell profiling capability *
Lower current testing capabilities - down to 10 mA *




Perform Fast, High Power Testing
Tests quickly at real world load conditions, up to 150 watts or 40 amps maximum, whichever is higher
High voltage testing at up to 55 volts; the equivalent of 1 to 38 NiCad or NiMh cells
Optional 500 watt and 1000 watt amplifiers




Accuracy and Precision for Demanding Applications
On-board computer performs accurate measurement with 12 bit effective resolution.
Auto ranging for 2 current ranges and three voltages
Each CBA is individually calibrated with a computerized calibration system
Calibration certification data provided with CBA IV Pro




Built-in Safety Features
Provide Superior Battery Protection Fail safe: automatic protection of temperature, current and power *
Safety watchdog stops a discharge in the event of a computer crash. *
Discharge test current user selectable from 0 to 40 Amps Automatic voltage shut off at end of test using a software recommended or user selected safe discharge voltage
Automatic over-temperature shut off at end of test at using a software recommended or user selected maximum temperature with optional external magnetic temperature sensor.




Free Standard Software for Data Analysis
User selected battery cell chemistry, number of cells and test current
Software recommends safe tests based on user supplied battery information
Automatic graph setup and scaling
Measures and displays voltage, current, amp-hrs, and watts
User can set the criteria for "Easy-Go/No-Go" testing
Easy overlay comparisons of multiple graphs may be displayed saved and recalled
Save, display and print battery test graphs and battery labels
Plug and Play high speed
USB interface, with easy to use and intuitive Windows® software supplied on CD ROM
Manage individual tests on any number of CBA IV units connected to the same PC


Extended Software Upgrade License Unlocks Features for Serious Battery Testing (click here for details)



Weight: 16oz
Dimensions: 3.5" H x 2.8" W x 3.6" D

TEMPORARILY OUT OF STOCK


SKU Number: CBAIV
Price: $179.95
Accessory
Quantity:





buy CBA IV using VISA MC Discover
