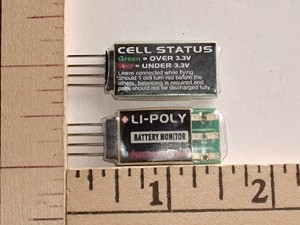

| Hextronik Li-Poly Onboard LED Voltage Monitor
Onboard Lipo voltage monitor with LED indicators. Will monitor 1,2 or 3 cell battery packs. Plugs into the balancing connector on battery pack.Green indicator = more than 3.3V, red is less than 3.3V. Weight 1.7g/0.053oz.. Color coded readout. Green, safe. Red, danger.
Discharging your pack to its normal level when you have an unbalanced pack will cause one cell to drop too low, which can lead to reduced pack performance. A properly balanced pack can last ~600 cycles or more. Unbalanced packs often fail around only 100 cycles. Note: Two units are shown in photo to show front and back of unit. Price is per each volt monitor. New batch in stock, be sure to look for the 4S version, too!
|
|
|
SKU Number:HXTBM3S
|
|
|
|
|
| Orbit M-Saver Ultra
Onboard optical voltage monitor for 4 or 5 cell receiver batteries. Ultra-bright twelve segment LED bar monitors voltage in three ranges: yellow(full battery), orange(voltage dropping), and red(very low voltage). Memory function shows current battery voltage as well as lowest voltage measured in flight. Connect to unused servo output on receiver. Factory setting: Coding jumper open for 4 cells. Solder closed jumper for 5 cell monitoring. Mounting holes are in each end of the monitor.
|
|
|
SKU Number:0790
|
|
|
|
|
| Orbit M-Saver Plus/Flash
Onboard optical voltage monitor for 4 or 5 cell receiver batteries. Orbit M-Saverplus: A LED flashes green, yellow, or red depending on the battery voltage. Orbit M-Saverflash: A very bright red LED flashes once, twice, or three times per interval, depending on the voltage. If red light or the triple flash is displayed when the battery is under load, the model should not be flown. Any under voltage that occurs once during a flight is later reported to the user as alternating between red flashing (plus) or triple flash (flash) and the signal indicating the current battery voltage. Connect to unused servo output on receiver. Factory setting: Coding jumper open for 4 cells. Solder closed jumper for 5 cell monitoring. Mounting holes are in each end of the monitor.
|
|
|
SKU Number:0780
|
|
|
|
|
| Digital Onboard Voltmeter
Onboard digital expanded scale voltmeter. Connect to unused servo output on receiver. Monitor real time battery voltage. Easily mounted in cockpit or panel mount anywhere on your plane. Two decimal readout.
Specifications:
Minimum Voltage 3.6
Maximum Voltage 19.99
Current Used .001mah (Super Efficient!)
Size 1 38"W , 7/8"H x 1/2"D
Lead Length 6 inch Universal plug.
|
|
|
SKU Number:RRC1000
|
|
|
|
|
| Digital Voltmeter Wide Range
Digital expanded scale voltmeter. This is our RRC1000 onboard meter modified for separate power supply. This allows the meter to measure down to 0.00 volts. Popular for use for many other projects. Can also be useful if you want an onboard meter for your low voltage glow assist battery. Solves many unusual voltage measuring problems. Connect to unused servo output on receiver or any 4-20V source to power the meter. Measure any 0-20V real time battery voltage. Easily mounted in cockpit or panel mount anywhere. Two decimal readout. If your requirement is for 4 cell or larger packs (generally 4V or more) you should choose our lower cost RRC1000 meter.
Specifications:
Minimum Voltage 0.00V
Maximum Voltage 19.99
Current Used .001mah (Super Efficient!)
Supply Voltage 4-20V
Size 1 38"W , 7/8"H x 1/2"D
Measured Voltag Lead Length 6 inch Universal plug.
|
|
|
SKU Number:RRC1000WR
|
|
|
|
|
| The Inspector Wattmeter Digital Onboard Power Analyzer Meter
The Inspector Wattmeter is an easy-to-use precision instrument for measuring and calculating the electrical parameter of any radio control model. These parameters would be used to optimize your electric model to its top performance.
The Inspector Wattmeter measures real-time current, voltage, peak current, minimum voltage, power, charge and energy for the electric model that it's connected to. This will allow you to investigate and tune the performance of your R/C model to its optimal performance. You can also determine critical things such as efficiency, and current consumption of an ESC, BEC and motor, power consumption/lost at all conditions. These precise measurements and data will help you fine tune your R/C model to get the proper performance and provide a safe and consistent power source. The Wattmeter is also ideal for tracking the current and power consumption during the charging / discharging of any rechargeable batteries in series with a battery charger.
The Inspector Wattmeter is designed and manufactured in Canada with the
leading edge micro-controller technology and robust components that will
"inspect" most high power applications.
FEATURES & SPECIFICATIONS:
Width ----- 40 mm
Length ----- 40 mm
Height ----- 11 mm
Weight ----- 42 grams
*Ultra compact watt meter and power analyzer that will fit most RC models.
*Measures current, voltage, power, charge, energy, peak current, peak
wattage and minimum voltage.
*Wide range of voltage reading from 0-60V and current reading of 0-100A.
*High precision and accuracy of 0.01A and 0.1 V.
*High current capability up to 50A continuous and 100A peak at 60V.
*Compact and light weight LCD gives visual feedback with user selectable display.
*Uses leading edge 25 MIPS micro-controller with 16 bit resolution delta-sigma ADC.
*High quality power components and wires to withstand high power applications.
|
|
|
SKU Number:WRL-WATTM
|
|
|
|
|
| GWS Onboard LED 4-7 Cell Voltage Monitor
Onboard voltage monitor with LED indicators. Will monitor 4 cell to 7 cell (4.8v,6.0,7.2,8.4) battery packs. Universal conector. Has two mounting points. Weight 5g. Color coded readout. Green, safe. Yellow, warning. Red, danger.
|
|
|
SKU Number:GWOBI05L
|
|
|
|
|

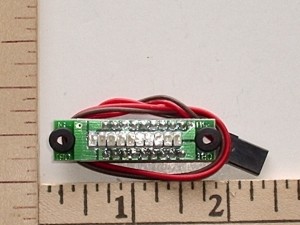

| GWS Onboard LED 5-8 cell Voltage Monitor
Onboard voltage monitor with LED indicators. Will monitor 5 cell to 8 cell (6.0,7.2,8.4,9.6) battery packs. Universal conector. Has two mounting points. Weight 5g. Color coded readout. Green, safe. Yellow, warning. Red, danger.
Voltage, Red Led 1,2,3, Yellow LED 4, Green LED 5,6,7,8,9,10
4.8V, 4.20, 4.30, 4.40, 4.50, 4.60, 4.70, 4.80, 4.90, 5.00, 5.10, (volts)
6.0V 5.25, 5.35, 5.55, 5.65, 5.75, 5.85, 6.00, 6.15, 6.25, 6.35
7.2V 6.30, 6.45, 6.60, 6.75, 6.90, 7.05, 7.20, 7.35, 7.50, 7.65
8.4V 7.35, 7.55, 7.70, 7.90, 8.05, 8.25, 8.40, 8.60, 8.75, 8.95
9.6V 8.40, 8.60, 8.80, 9.00, 9.20, 9.40, 9.60, 9.80, 10.00, 10.20
|
|
|
SKU Number:GWOBI05H
|
|
|
|
|

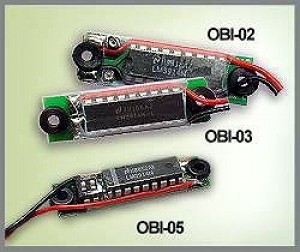

| GWS Onboard LED 4-8 Cell Voltage Monitor
Onboard voltage monitor with LED indicators. Will monitor 4 cell to 8 cell (4.8v,6.0,7.2,9.6) battery packs. Select or specify your pack size for monitoring. Universal conector. Has two mounting points. Weight 5g. Color coded readout. Green, safe. Yellow, warning. Red, danger.
This can check voltage of battery pack (4.8~9.6 Volts) by changing a resistor (included).
5 resistors (all different values) are being supplied with this device for modeler's convenience
Size: 43x11mm /1.69x0.43 in
Weight: 5 gram / 0.18 oz
|
|
|
SKU Number:GWOBI03
|
|
|
|
|
| RRC Onboard Lipo Low Voltage Alarm
Onboard voltage monitor with LED indicators for Lipo Packs. Will monitor 2-4 cells. Input voltage 6-18V. Solid Blue LED On is Good. Normal is slow flashing white LED. Low voltage warning(below 3.3V/cell) Fast flashing white and beeping.
|
|
|
SKU Number:RRCALARM
|
|
|
|
|
|
