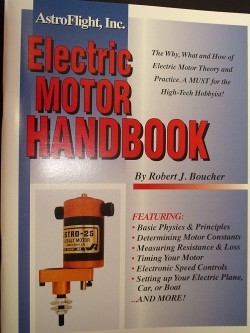

| Astro Flight Electric Motor Handbook
The why, what and how of Electric Motor Theory and Practice. A must of the high tech hobbyist!
Bob Boucher's Electric Motor Handbook covers theory and operation of brushed DC motors. Inlcudes chapters on props, speed controls and batteries and performance data on astro brushed motors.
The Electric Motor Handbook by Robert J. Boucher
Chapter 1 Understanding the Electric Motor
Chapter 2 Measuring Motor Constants
Chapter 3 Timing for Sparkless Commutation
Chapter 4 Understanding Airplane Propellers
Chapter 5 Understanding Electronic Speed Controls
Chapter 6 Understanding Nicad Batteries
Chapter 7 Astro Super Ferrite Marine Motors
Chapter 8 Astro Cobalt Marine Racing Motors
Chapter 9 Astro Cobalt Sport Motors for Airplanes
Chapter 10 Astro FAI Competition Motors
Personal note from Dave. Getting this book was one of the key moments in my electric flight hobby. Here are the nuggests of truth and wisdom to help you begin to understand how to setup your e-motor systems. What is Watts, KV, how does gear ratio or prop effect amps? Get a good foundation here as I did many years ago. Even though this text was written in the brushed motor days, all the principles apply. And, understanding these simple principles is what gives you the power to understand and figure out many of your motor setups or what they need to work well.
*SORRY! Book is currently out of print. Please check web site at a later date for future updates as we're hoping they will reprint or republish in another format ;-).Send us an email to davthacker@aol.com if you want email notification when or if it becomes available again, thanks!
|
|
|
SKU Number:AST600
|
|
|
|
|
| Astro Flight 799C Firefly Motor System with Planetary Gearbox & 4 amp ESC
Astro Flight 799C Firefly Motor System with Planetary Gearbox & 4 amp ESC. Supplied with one 5x4 prop.
Specs:
Motor:p/n 799C
Motor Diameter: 10mm(0.39")
Gearbox output shaft: 2mm(0.08")
Motor Length with Planetary: 39mm(1.54")
Motor kv 4333 rpm/ volt
Kv with Planetary: 1083 rpm/volt
Winding Resistance 2.1 ohms
No Load Current 25mAh
Maximum Current 950mAh
Maximum Power 8 watts
Speed Control current rating: 4 amps
Speed Control voltage rating: 5-12 volts
Motor Cut Off for Lithium cells: automatic
BEC (Battery Eliminator Circuit): 750 mAh
Motor,gbx & ESC Weight: 16g/0.51oz.
Motor alone Weight 10g/0.32oz.
The motor is designed to run on 5-7 Nicd/NiMh cells or 2 Lipo cells.
Caution: This motor has very little inductance in the armature winding, so it requires a special speed control like the Astro Model 200 Firefly High Frequency Control supplied in this package. Do not run motor with a conventional control (for speed 280 or 400 motors) as it could damage the motor.
|
|
|
SKU Number:AST799C
|
|
|
|
|
| Astro Flight 803M Direct Drive Motor
Astro Flight Mighty Micro 020 Direct Drive Motor, 5 turn.
Specs: Motor p/n 803M
Stator Winding 5 Turns #20
Motor kv 2567 rpm/ volt
Winding Resistance 0.070 ohms
No Load Current 1 amp
Maximum Current 25 amps
Maximum Power 250 watts
Rotor Magnets Sm Cobalt
Bearings Ball Bearings
Motor Length 1.75 inches
Motor Diameter 0.98 inches
Motor Weight 2.5 ounces
Motor Shaft Diameter 1/8 inch
Prop Adaptor Diameter. 3/16 inch
Voltage Range 6 to 12 Volts
Expected Performance with 5.5 x 4 MAS prop
Battery Amps Watts Rpm
2 Lithium 14 amps 110 watts 17,300 rpm
8 Nicads 17 amps 154 watts 19,200 rpm
3 Lithium 23 amps 259 watts 22,400 rpm
10 Nicads 26 amps 312 watts 23,500 rpm
Expected Performance with 6 x 4 APC-E Prop
Battery Amps Watts Rpm
2 Lithium 17 amps 136 watts 15,900 rpm
8 Nicads 21 amps 187 watts 17,500 rpm
3 Lithium 27 amps 304 watts 19,600 rpm
Expected Performance with 7 x 4 APC-E Prop
Battery Amps Watts Rpm
6 Nicads 22 amps 143 watts 11,500 rpm
2 Lithium 27 amps 196 watts 12,300 rpm
|
|
|
SKU Number:AST803M
|
|
|
|
|
| Astro Flight 019 Brushless Direct Drive Motor #819-9T
New Astro 19 motor spins a 9 to 10 inch prop without using a gear box. It is perfect fot 3 to 4 lb models like the House of Balsa P-51 Mustang. This Motor can handle 300 watts on a three cell lithium pack. Only 1.35 inches in diameter and 1.4 inches long, it weighs 4.2 oz.. Designed to run on 10 cell Nicad or Nimh packs or 2-4 cell Lithium packs. On a 3 cell Lithium pack the 19M can handle 300 watts.Specs: Motor p/n 819M
Stator Winding 9 Turns
Motor kv 1375 rpm/ volt
Winding Resistance 90 milliohms
No Load Current 450 ma
Maximum Current 25 amps
Maximum Power 300 watts
Rotor Magnets Sm Cobalt
Bearings Ball Bearings
Motor Length 1.25 inches
Motor Diameter 1.35 inches
Motor Weight 4.2 ounces
Motor Shaft Diameter 3.2mm
Voltage Range 6 to 12 Volts
Expected Performance 2-3 Lithium cells:
Battery-Amps-Watts-Rpm
2 Lithium 9.1 amps 68 watts 8700 rpm, 8x4 prop
2 Lithium 18.1 amps 125 watts 7400 rpm, 10x5 prop
3 Lithium 17.3 amps 191 watts 11800 rpm, 8x4 prop
3 Lithium 24.3 amps 250 watts 10000 rpm, 9x6 prop
|
|
|
SKU Number:AST819M
|
|
|
|
| |
| Astro Flight 801L-10T Direct Drive System

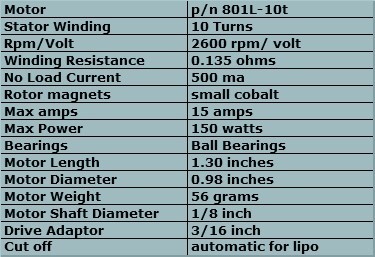

Astro Micro 010 motor 10T This is a new motor and is designed to replace the 14 turn motor
6-12 volts, 10 a max, max amp one min 15 a, deans 3 pin motor connector and deans 2 pin power connector.
|
|
SKU Number:AST801L10T
|
|
|
|
|
| Astro Flight 801G Geared Drive System
Astro Flight Mighty Micro 010 Geared System. Complete System includes Mighty Micro 010 14 turn Motor, Micro Gear Box and 10 amp Speed Control.
Specs: System p/n 801G
Stator Winding 14 Turns #25
Motor kv 2300 rpm/ volt
Winding Resistance 0.275 ohms
Gear Ratio 3.3 to 1
Kv with Gear Box 687 rpm/volt
No Load Current 200 ma
Maximum current 7.5 amps
Maximum Power 75 watts
Maximum Motor Rpm 30,000 rpm
Maximum Prop Rpm 7,500 rpm
Motor Weight 32 grams
Gear Box Weight 14 grams
Control Weight 14 grams
Motor Length 0.90 inches
Gear Box length 0.50 inches
Motor Shaft Diameter 1/8 inch
Prop Adaptor Diameter 3/16 inch
Control Type Sensorless
Control Rating 10 amp continous
Voltage Range 6 to 12 Volts
Voltage cut off for lithium AUTO
BEC Rating 5 volts at 1 amp
Expected Performance with APC 8 x 6 E prop
Battery Amps Watts Rpm
8 Nicads 4.0 amps 40 watts 5,500 rpm
3 Lithium 4.8 amps 55 watts 5,900 rpm
10 Nicads 5.6 amps 64 watts 6,400 rpm
Expected Performance with APC 9 x 6 E prop
Battery Amps Watts Rpm
8 Nicads 4.5 amps 45 watts 5,400 rpm
3 Lithium 5.5 amps 60 watts 5,800 rpm
10 Nicads 6.4 amps 72 watts 6,200 rpm
Expected Performance with APC 10 x 7 E prop
Battery Amps Watts Rpm
8 Nicads 4.7 amps 42 watts 5,300 rpm
3 Lithium 5.7 amps 64 watts 5,700 rpm
10 Nicads 6.7 amps 80 watts 6,100 rpm
Expected Performance with a11 x 7 APC-E prop
Battery Amps Watts Rpm
2 Lithium Poly 5.5 amps 42 watts 3,900 rpm
8 Nimh 6.5 amps 58 watts 4,300 rpm
3 Lithium 8.3 amps 91 watts 5,000 rpm
10 Nimh 9.0 amps 110 watts 5,200 rpm
|
|
|
SKU Number:AST801G
|
|
|
|
|
| Astro Flight 801P Planetary Geared Drive System
Astro Flight Mighty Micro 010 Planetary System. Complete System includes Mighty Micro 010 fourteen turn Motor, 4.4 to 1 Planetary gear box and 10 amp speed control.Specs: System p/n801P
Gear Ratio 4.4 to 1
Winding 14 turns #24
RPM/volt 2,300 rpm/v
Resistance 0.275 ohms
No load current 300 ma
Motor Diameter 0.98 inches
Length 1.50 inches
Prop shaft diameter 3 mm
Electronic Control Sensorless
Rating 10 amps
B.E.C. 5 Volts @ 1 amp
Voltage cut off Automatic for lipo
Power Connector Deans 2 pin micro
Server Connector Universal
Nimh battery 6 to 10 cells
Lithium Polymer 2 or 3 cells
Maximum Amps 7.5 amps
Maximum Power 75 watts
Expected Performance on 10 x 4.7 slow fly prop
Battery Amps Watts Rpm
2 Lithium 2.6 amps 20 watts 3,600 rpm
8 Nimh 3.2 amps 28 watts 4,000 rpm
3 Lithium 4.6 amps 52 watts 4,800 rpm
10 Nimh 5.0 amps 61 watts 5,000 rpm
Expected Performance on 11 x 4.7 slow fly prop
Battery Amps Watts Rpm
2 Lithium 3.4 amps 26 watts 3,300 rpm
8 Nimh 4.1 amps 36 watts 3,700 rpm
3 Lithium 4.6 amps 63 watts 4,400 rpm
10 Nimh 6.4 amps 77 watts 4,600 rpm
Expected Performance with 11 x 7 APC-E prop
Battery Amps Watts Rpm
2 Lithium 3.4 amps 26 watts 3,300 rpm
8 Nimh 4.0 amps 36 watts 3,700 rpm
3 Lithium 5.6 amps 62 watts 4,400 rpm
10 Nimh 6.2 amps 74 watts 4,700 rpm
Expected Performance with 12 x 6 APC-E prop
Battery Amps Watts Rpm
2 Lithium 3.4 amps 26 watts 3,300 rpm
8 Nimh 4.0 amps 36 watts 3,700 rpm
3 Lithium 5.7 amps 62 watts 4,300 rpm
10 Nimh 6.4 amps 76 watts 4,500 rpm
|
|
|
SKU Number:AST801P-14T
|
|
|
|
|
| Astro Flight GWS Stick Mount Bracket for Astro Flight 801 motors
GWS stick motor mount bracket for Astro 010 geared motors and direct drive motors.
Aluminum bracket attaches to stick with two 2.5 mm screws. Bracket weighs only 3 grams. Now you can use your Astro 801G brushless system with the popular GWS kits.
Select type mount for your 801 motor below.
|
|
|
SKU Number:AST510
|
|
|
|
|
| Astro Flight Micro Connector Three Pin Deans
Deans 3 pin micro connector for smaller brushless motors.
Specifications:
Stock Number p/n 520
Maximum Amps 7.5 amps
Maximum Wire size 20 gauge
Minimum wire size 24 gauge
Length of pair 0.57 inches
Width 0.30 inches
Weight of pair 1 gram
Priced per pair.
|
|
|
SKU Number:AST520
|
|
|
|
|
| Astro Flight 840GM Brushless Motor & 3.3:1 Gear Box
Astro 40 Brushless Motor and 3.3:1 Gear Box. Runs on 24 Nicd/NiMh or 6 Lipo batteries. Up to 990 watts and 8600 RPM.
Specifications:
Motor p/n 840GM
Stator Winding 4 Turns #17
Motor Kv 1,363 rpm/volt
Winding Resistance 0.043 ohms
Gear Ratio 3.49 to 1
Kv with Gear Box 369 pm/volt
No Load Current 1.2 amps
Maximum current 45 amps
Maximum Power 1,200 watts
Maximum Motor Rpm 40,000 rpm
Maximum Prop Rpm 11,000 rpm
Motor Weight 8.9 ounces
Gear Box Weight 2.3 ounces
Control Weight 1 ounce
Motor Length 2.50 inches
Gear Box Length 1.35 inches
Motor Shaft Diameter 5 mm
Prop Adaptor Diameter 1/4 inch
Measured Performance on 18.5 Volts
(5 lithium cells or 16 Nicads or Nimh)
Prop Rpm Thrust Volts Amps Watts
14 x 7 APCE 6,700 rpm 71 oz 18.5 volts 22 amps 410 watts
15 x 10 APCE 6,100 rpm 80 oz 18.5 volts 32 amps 590 watts
16 x 10 APCE 5,600 rpm 103 oz 18.5 volts 41 amps 760 watts
Measured Performance on 22.2 Volts (6 lithium cells or 20 Nicads or Nimh)
Prop Rpm Thrust Volts Amps Watts
14 x7 APCE 7,400 rpm 84 oz 22.2 volts 26 amps 588 watts
15 x 10 APCE 7,200 rpm 115 oz 22.2 volts 46 amps 990 watts
16 x 10 APCE 6,600 rpm 131 oz 22.2 volts 52 amps 1144 watts
Measured Performance on 25.9 Volts
(7 lithium cells or 22 Nicads or Nimh)
Prop Rpm Thrust Volts Amps Watts
14 x 7 APCE 8,600 rpm 110 oz 25.9 volts 37 amps 993 watts
|
|
|
SKU Number:AST840GM-4T
|
|
|
|
|
|
