| FlightPower Lithium Poly V-Balance
Intelligent Hi-Rate Equalising Balancing system for 2-6S Lipo's. The V-Balance System is a charge through balancer that will work with all Lipo chargers and FlightPower packs by connecting between the charger and the battery.
Features LED's for each cell to indicate balancing activity, a battery capacity fuel gauge and is capable of handling charge currents of up to 10A for 2C. Incividual cell analysis and discharge features. Compatible with other packs with special harness leads and adaptors. Includes harness leads for 2S, 3S, 4S, 5S and 6S.
(PLEASE NOTE THIS IS ONLY FOR PACKS WITH THE NEW
FLIGHT POWER HI-RATE V BALANCER CONNECTORS)
DIFFERENT HARNESS ADAPTORS FOR PACKS WITH CLASSIC CONNECTORS ARE LISTED BELOW.
|
|
|
SKU Number:FPVBALCOMP
|
|
|
|
|
| Orbit LiPo Checker Pro Adapter-Thunder Power/Flight Power 5S/18.5V
5S, 18.5Volt, Lipo Adapter.
The LiPo Checker Pro Adapter Thunder Power & Flight Power / Radical RC / E-sky / E-Flight / Most China packs - will allow you to connect to your Orbit LiPo Checker Pro to all these brands. It isn't required to connect the SIO plug between the an Orbit Charger and the Lipo Checker Prop, but if they are connected, then the Balancer/Checker can control charger if required.This is the adapter you'll need for Thunder Power & Flight Power / Radical RC / E-sky / E-Flight / Most China Lipo battery packs to the Balancer/Checker.
|
|
|
SKU Number:0685T5S
|
|
|
|
|
| Astro Blinky Battery Balancer p/n 106
This Battery Balancer is specially designed for Lithium Batteries.
The balancer accepts one to six cell lithium battery packs.
Now you can see if all cells are above 3.2 volts before charging.
Now you can Balance your pack while you are charging.
Now you can Balance your pack after you are finished charging.
Now you can Discharge individual cells that are over charged.
Now you will know that your batteries are balanced.
Connector has 0.100 in pin spacing with 0.025 square pins and fits
Apogee and other brands. Pins should be in order: red, black,
black and black with no gaps or missing pins in the sequence.
|
|
|
SKU Number:AST106
|
|
|
|
|
| Astro Adapter Blinky to Thunder Power Batteries
This adaptor mates the Astro Blinky Balancer to Thunder Power lithium battery packs and other packs that use the 2mm connector.
|
|
|
SKU Number:AST549
|
|
|
|
|

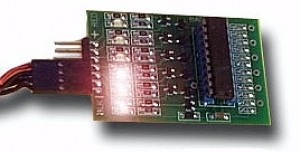

| Astro Blinky Battery Balancer p/n 106-123
Astro "Blinky" Battery Balancer for A123 Cells
This Battery Balancer is specially designed for A123 Lithium Ion Batteries.
The balancer accepts one to six cell lithium battery packs.
Now you can see if all cells are above 2.8 volts before charging.
Now you can Balance your pack while you are charging.
Now you can Balance your pack after you are finished charging.
Now you can Discharge individual cells that are over charged.
Now you will know that your batteries are balanced.
Connector has 0.100 in pin spacing with 0.025 square pins and fits
Apogee and other brands.
Pins should be in order: red, black,
black and black with no gaps or missing pins in the sequence.
|
|
|
SKU Number:AST106-123
|
|
|
|
|
| Astro Adapter Blinky to Cell Pro 3 Cell Batteries
This adaptor mates the Astro Blinky Balancer to Cell Pro 3S lithium battery packs.
|
|
|
SKU Number:AST549CP
|
|
|
|
|

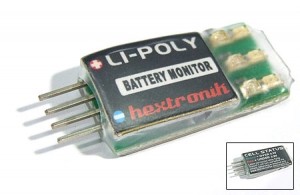

| Hextronik Li-Poly Battery Monitor for 3S LiPo
HXT Battery Monitor for 3S LiPo.
This device plugs into the balance port on your battery. Should any one of your cells fall below 3.3v the light will change from Green to Red, indicating an unbalanced pack and that your battery should not be discharged further.
Discharging your pack to its normal level when you have an unbalanced pack will cause one cells capacity/voltage to drop too low, resulting in a faulty cell which will very quickly reduce the packs performance.
A properly balanced pack can last 600 cycles or more. However, unbalanced packs rarely make it past 100 cycles before at least 1 cell becomes faulty. Balancing and discharging packs properly is a must.
With this device, you will know immediately when your pack is unbalanced and should not be discharged further or balanced.
Specifications:
* Size: (L) 39 x (D) 14 x (H) 3 mm
* Weight: 17g
New batch in stock, be sure to look for the 4S version, too!
|
|
|
SKU Number:HXTBM3S
|
|
|
|
|
| Orbit LiPo Checker 5s 4.2V
The Orbit LiPo-checker is a precision voltage supervisory unit (balancer)for rechargeable lithium battery cells (Lipo). It is simply connected or plugged to paralleled lithium cells. An ultra-bright LED digitizes the voltage curve of the cell(s) into: voltage is constant = (LED-OFF), voltage rise (LED-FLASHES) and overvoltage (LED-ON). An controlled current sink discharges the cells to an allowed level. This can balance the lithium cells in a pack to equal voltages. An alarm output is activated if the max or min voltage is reached anyway.Specs: * Operating current: 10uA, max. 550 mA
* Connection: BEC(Tanic) connectors
* Operating voltage: +2,1V to +4,5V
* Thresholds: < 2,7V, > 4,20V, >=4,23V
* Dimensions: 50 x 5 x 105 mm
* Package includes: 5s Orbit LiPo-checker with connection cable and plugs
*Closeout Deal, limited supply available!
|
|
|
SKU Number:0605
|
|
|
|
|
| Orbit LiPo Checker Pro Adapter-BEC-Tanic
The LiPoChecker Pro Adapter-BEC-Tanic will connect your Orbit LiPo Checker Pro, an Orbit Pocketlader Charger to your custom battery pack or BEC equipped Tanic style Lipo battery packs.It isn't required to connect the Charger and Balancer/Checker, but if they are connected, then the Balancer/Checker can control charging rate to individual cells. This is the adapter you'll need for custom Lipo battery packs with BEC connectors to the Balancer/Checker.
|
|
|
SKU Number:0685B5S
|
|
|
|
|
| Orbit LiPo Checker Pro Adapter-D-Sub 15
The LiPoChecker Pro Adapter-D-Sub 15 will connect your Orbit LiPo Checker Pro to your own custom Lipo charge setup.
|
|
|
SKU Number:0685D
|
|
|
|
|
| Orbit LiPo Checker Pro Adapter-Flight Power
The LiPoChecker Pro Adapter-Flight Power will connect your Orbit LiPo Checker Pro, an Orbit Pocketlader Charger and a Flight Power Lipo Battery Pack. It isn't required to connect the Charger and Balancer/Checker, but if they are connected, then the Balancer/Checker can control charging rate to individual cells. This is the adapter you'll need for Flight Power Lipo battery packs, Radical RC packs and many import packs to the Balancer/Checker.
*Temporarily out of stock
|
|
|
SKU Number:0685F
|
|
|
|
|
| Orbit LiPo Checker Pro Adapter-Graupner/Robbe
The LiPoChecker Pro Adapter-Graupner/Robbe will connect your Orbit LiPo Checker Pro, an Orbit Pocketlader Charger and a Graupner/Robbe Lipo Battery Pack. It isn't required to connect the Charger and Balancer/Checker, but if they are connected, then the Balancer/Checker can control charging rate to individual cells. This is the adapter you'll need for Graupner/Robbe Lipo battery packs to the Balancer/Checker.
|
|
|
SKU Number:0685G
|
|
|
|
|
| Orbit LiPo Checker Pro Adapter-Thunder Power/Flight Power 4-5S
4-5S, 14.8-18.5 Volt, Lipo Adapter.
The LiPo Checker Pro Adapter Thunder Power & Flight Power / will allow you to connect to your Orbit LiPo Checker Pro to these brands. It isn't required to connect the SIO plug between the an Orbit Charger and the Lipo Checker Prop, but if they are connected, then the Balancer/Checker can control charger if required.This is the adapter you'll need for Thunder Power & Flight Power to the Lipo Checker Pro.
|
|
|
SKU Number:0685T4S
|
|
|
|
|
|
| Orbit LiPo Checker Pro Adapter-Thunder Power/Flight Power 2-3S
2-3S, 8.4-11.1Volt, Lipo Adapter.
The LiPo Checker Pro Adapter Thunder Power & Flight Power / will allow you to connect to your Orbit LiPo Checker Pro to all these brands. It isn't required to connect the SIO plug between the an Orbit Charger and the Lipo Checker Prop, but if they are connected, then the Balancer/Checker can control charger if required.This is the adapter you'll need for Thunder Power & Flight Power Lipo battery packs to the Balancer/Checker.
|
|
|
SKU Number:0685T3S
|
|
|
|
|
| Orbit Pocketlader Combo Adapter T5 -Thunder Power/Flight Power 5S.
5S, 18.5 Volt, Lipo Adapter.
The Pocketlader Combo Adapter to Thunder Power & Flight Power Lipo Battery Packs.
This is the adapter you'll need for Thunder Power & Flight Power battery packs to the Orbit Pocketlader Combo.
|
|
|
SKU Number:0645T5
|
|
|
|
|
|
| Orbit Pocketlader Combo Adapter T4 -Thunder Power/Flight Power 4S.
4S, 14.8 Volt, Lipo Adapter.
The Pocketlader Combo Adapter to Thunder Power & Flight Power Lipo Battery Packs.
This is the adapter you'll need for Thunder Power & Flight Power battery packs to the Orbit Pocketlader Combo.
|
|
|
SKU Number:0645T4
|
|
|
|
|
|
| Orbit Pocketlader Combo Adapter T3 -Thunder Power/Flight Power 2S/3S.
2s/3s (7.4/11.1V), Lipo Adapte T3r.
The Pocketlader Combo Adapter to Thunder Power & Flight Power Lipo Battery Packs.
This is the adapter you'll need for Thunder Power & Flight Power battery packs to the Orbit Pocketlader Combo.
|
|
|
SKU Number:0645T3
|
|
|
|
|

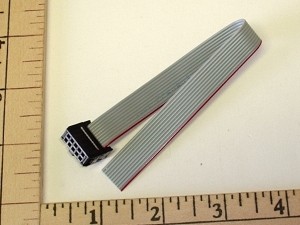

| Orbit Pocketlader Combo Adapter Header or Pigtail, 2 x 5
Make your own custom adapter to your Pocketlader Combo and Lipo packs with this Pigtail.
|
|
|
SKU Number:0645D
|
|
|
|
|
|
| Orbit Pocketlader Combo Adapter G5 - Kokam, Graupner, Robbe 5S
5s (18.5V), Lipo Adapter G5.
The Pocketlader Combo Adapter to Kokam, Graupner, Robbe Lipo Battery Packs.
This is the adapter you'll need for Kokam, Graupner, Robbe battery packs to the Orbit Pocketlader Combo.
|
|
|
SKU Number:0645G5
|
|
|
|
|
|
| Orbit Pocketlader Combo Adapter G5 - Kokam, Graupner, Robbe 4S
4s (14.8V), Lipo Adapter G4.
The Pocketlader Combo Adapter to Kokam, Graupner, Robbe Lipo Battery Packs.
This is the adapter you'll need for Kokam, Graupner, Robbe battery packs to the Orbit Pocketlader Combo.
|
|
|
SKU Number:0645G4
|
|
|
|
|
|
| Orbit Pocketlader Combo Adapter G3 - Kokam, Graupner, Robbe 2S/3S
2s/3s (7.4/11.1V), Lipo Adapter G3.
The Pocketlader Combo Adapter to Kokam, Graupner, Robbe Lipo Battery Packs.
This is the adapter you'll need for Kokam, Graupner, Robbe battery packs to the Orbit Pocketlader Combo.
|
|
|
SKU Number:0645G3
|
|
|
|
