| Transmitter Battery & Connector Help Page. |
|
| Radical RC 700mah NiCad 8-AA cell 9.6V Square TX Pack
Sanyo N-700 AAC Direct fit replacement for most Transmitters requiring square packs.
Weight 180g/6.37oz.
Adaptable to replace clip packs from early JR and Futaba TX's.
Maintenance charge rate for this pack is not to exceed 70mah.Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
|
|
|
SKU Number:RRC08N0700S-TX
|
|
|
|
|
| Radical RC 700mah NiCad 8-AA cell 9.6V Flat TX Pack
Side By Side, Flat Pack, 9.6V Sanyo N-700 AAC (Typical AA size).
Direct fit replacement for your Futaba NT-8JY pack, Tower system 3000 TX packs, Hitec TX Packs and any other TX that takes a flat 8 style pack.
Likely your factory pack is a 550-600. More capacity here.
Weight 180g/6.37oz.
Maintenance charge rate for this pack is not to exceed 70mah.Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
|
|
|
SKU Number:RRC08N0700F-TX
|
|
|
|
|
| Radical RC 700mah NiCad 8-AA cell 9.6V Airtronics Stylus/ Futaba FG TX Pack
Side By Side 9.6V Sanyo AA-700 NiCad. Yes, it is the same size as your current AA pack. A "AA" is a "AA". Slightly higher capacity than man factory packs (600mah is typical). Also fits Futaba FG radios with gold cases. In the Futaba case the pack appears to have 9 cells but one is a hollow dummy cell. This pack fits just fine and is correct voltage.
Maintenance charge rate for this pack is not to exceed 60mah.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours; 1100-30.8 hours; 1650-46.2 hours; 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
|
|
|
SKU Number:RRC08N0700ST-TX
|
|
|
|
|
| Sanyo 1100mah NiCad 8-AA cell 9.6V Square TX Pack
Square/Side By Side 9.6V TX Pack.
Sanyo KR-1100 AAU Same notes as 700 SQ pack above with extra high capacity.
Highly recommended for computer radio's.
Extra running time equals safety margin and peace of mind.
Why did they give you a paltry 500-600 pack with that expensive radio?
Weight 194.2g/6.84oz.
Maintenance charge rate for this pack is not to exceed 70mah.Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
|
|
|
SKU Number:RRC08N1100S-TX
|
|
|
|
|
| Sanyo 1100mah NiCad 8-AA cell 9.6V Flat TX Pack
Side by side, flat, 9.6V Sanyo KR-1100 AAU (Typical AA size)
All Sanyo AAU come in latest Sanyo lime green un-printed jackets.
Ultimate capacity in a NiCad type cell.
Highly recommended for computer radios.
Extra running time equals safety margin and peace of mind.
Why did they give you a paltry 500-600 pack with that expensive radio?
Weight 194.2g/6.84oz.
Maintenance charge rate for this pack is not to exceed 70mah.Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
|
|
|
SKU Number:RRC08N1100F-TX
|
|
|
|
|
| Radical RC 1100mah NiCad 8-AA cell 9.6V Airtronics Stylus/ Futaba FG TX Pack
Side By Side 9.6V Sanyo HR-AA NiCad Airtronics Stylus pack. HIGH capacity pack! Yes, it is the same size as your current AA pack. A "AA" is a "AA". This is what your computer TX should have come with! Tired of having to quick charge at the field? More capacity, nearly double the run time of original factory packs for the Futaba FG radios which this battery also fits. In the Futaba case the pack appears to have 9 cells but one is a hollow dummy cell. This pack fits just fine and is correct voltage.
Maintenance charge rate for this pack is not to exceed 100mah.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours; 1100-30.8 hours; 1650-46.2 hours; 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
|
|
|
SKU Number:RRC08N1100ST-TX
|
|
|
|
|
| Radical RC 1650mah NiMH 8-AA cell 9.6V Square TX Pack
Sanyo HR-AA-1650 Square Pack. HIGH capacity if you are sick of your TX running down. Yes, it's the same size as your current Square "AA" pack. About 3x the capacity of most factory packs! The 1650 has been around for a number years with great results and good longevity. If you've been afraid to try NiMH this is a great place to get your feet wet. Fits all the Futaba and JR radios requiring Square pack. If you have a clip pack, get the adapter kit to go with this pack. Clip packs are corrosion prone and any modeler at this level needs to make this update before you get bit. Why did they sell you that fine high end radio only to give you a paltry little pack with it? Fix that factory ignorance with this pack. Don't let the shadow in this picture fool you, this pack is about 3 15/16 long. A "AA" is a "AA" is a "AA". It's the same size as your current SQ AA pack. Weight 223g/7.85oz. Individual Cell Internal Impedance 25.0mΩ
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
Individual Cell Internal Impedance 25.0mΩ
|
|
|
SKU Number:RRC08H1650S-TX
|
|
|
|
|
| Radical RC 1650mah NiMH 8-AA cell 9.6V Flat TX Pack
Side By Side 9.6V Sanyo HR-AA NIMH 1650 Flat pack. HIGH capacity pack! Yes, it is the same size as your current AA pack. A "AA" is a "AA". This is what your computer TX should have come with! Tired of having to quick charge at the field? You can program all night Friday night and then fly all day Saturday with a fully charged 1650. Runs most simple TX about 12 hours, Computer TX about 6-8 hours. Weight 223g/7.85oz.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
Individual Cell Internal Impedance 25.0mΩ
|
|
|
SKU Number:RRC08H1650F-TX
|
|
|
|
|
| Radical RC 1650 NiMH 7.2V 6-AA cell Multiplex TX Pack
This AA 1650 Multiplex pack is the only way to go when replacing your weak factory pack. 7.2 volts and 6 cells just more bang. Comes without plug, reuse your old plug, direct solder or select optional Multiplex transmitter connector below. No thermal fuse in these packs.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
Individual Cell Internal Impedance 25.0mΩ
|
|
|
SKU Number:RRC06H1650X-TX
|
|
|
|
|

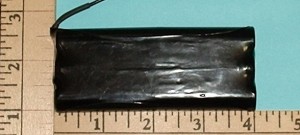

| Radical RC 1650 NiMH 7.2V 6 cell 3x2 TX Pack
AA 1650 TX pack made to fit Hitec's new Aurora 9 and the Aitronics SD-10G. Excellent way to go when replacing a weak factory pack. 7.2 volts and 6 cells just more capacity. Comes without plug, choose below or reuse your old plug.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
Individual Cell Internal Impedance 25.0mΩ
|
|
|
SKU Number:RRC06H16503X2
|
|
|
|
|
| Radical RC 1650mah NiMH 8-AA cell 9.6V Airtronics Stylus/ Futaba FG TX Pack
Side By Side 9.6V Sanyo HR-AA NIMH Airtronics Stylus pack. HIGH capacity pack! Yes, it is the same size as your current AA pack. A "AA" is a "AA". This is what your computer TX should have come with! Tired of having to quick charge at the field? You can program all night friday night and fly all day saturday with a fully charged 1650. Also fits older Futaba gold case FG radios. In the Futaba case the pack appears to have 9 cells but one is a hollow dummy cell. This pack fits just fine and is correct voltage.
Maintenance charge rate for this pack is not to exceed 150mah.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours; 1100-30.8 hours; 1650-46.2 hours; 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
|
|
|
SKU Number:RRC08H1650ST-TX
|
|
|
|
|
| Sanyo Eneloop, 2000mah NiMH 8-AA Cell 9.6V, 8 Cell, Tx Flat Pack
Sanyo Eneloop 9.6V, 2000mAh, AA 8 Cell Flat Pack.Sanyo's new more environmentally friendly NiMH battery.
Although these are advertised as charged and ready to go right out of the package, we recommend a forming charge period prior to use. Our tests have shown them be factory charged to 60% or less. Eneloop NiMH cells have a lower daily self discharge than typical NiMH cells.
Break in (first forming charge) for 2000mah pack on 50mah charger - 54 hours, 70mah charger - 40 hours, 100mah charger - 28 hours.
Individual Cell Internal Impedance 96.0mΩ
Although Sanyo's website shows Cx1 (capacity x 1) fast charge rates with a NiMH rated charger, I'm not prepared to warranty any packs damaged by fast charging. I've never found any AA cells larger than 1700mah capacity that last long with repeated fast charging. If you insist on experimenting with fast charging and damage a pack, call Sanyo, not Radical RC.
Weight 218g, 7.7 oz.
|
|
|
SKU Number:RRC08H2000ENF
|
|
|
|
|
| Sanyo Eneloop, 2000mah NiMH 8-AA Cell 9.6V, 8 Cell, Tx Square Pack
Sanyo Eneloop 9.6V, 2000mAh, AA 8 Cell Square Pack.Sanyo's new more environmentally friendly NiMH battery.
Although these are advertised as charged and ready to go right out of the package, we recommend a forming charge period prior to use. Our tests have shown them be factory charged to 60% or less. Eneloop NiMH cells have a lower daily self discharge than typical NiMH cells.
Break in (first forming charge) for 2000mah pack on 50mah charger - 54 hours, 70mah charger - 40 hours, 100mah charger - 28 hours.
Individual Cell Internal Impedance 96.0mΩ
Although Sanyo's website shows Cx1 (capacity x 1) fast charge rates with a NiMH rated charger, I'm not prepared to warranty any packs damaged by fast charging. I've never found any AA cells larger than 1700mah capacity that last long with repeated fast charging. If you insist on experimenting with fast charging and damage a pack, call Sanyo, not Radical RC.
Weight 218g, 7.7 oz.
|
|
|
SKU Number:RRC08H2000ENS
|
|
|
|
|

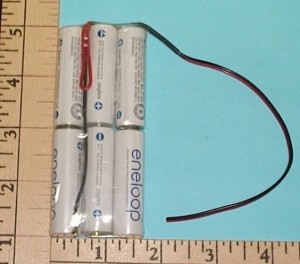

| Sanyo Eneloop 2000mah NiMH 3x2 Tx Pack
AA 2000 TX pack made to fit Hitec's new Aurora 9 and the Aitronics SD-10G. Excellent way to go when replacing a weak factory pack. 7.2 volts and 6 cells just more capacity. Comes without plug, choose below or reuse your old plug.
Although these are advertised as charged and ready to go right out of the package, we recommend a forming charge period prior to use. Our tests have shown them be factory charged to 60% or less. Eneloop NiMH cells have a lower daily self discharge than typical NiMH cells.
Break in (first forming charge) for 2000mah pack on 50mah charger - 54 hours, 70mah charger - 40 hours, 100mah charger - 28 hours.
Individual Cell Internal Impedance 96.0mΩ
Although Sanyo's website shows Cx1 (capacity x 1) fast charge rates with a NiMH rated charger, I'm not prepared to warranty any packs damaged by fast charging. I've never found any AA cells larger than 1700mah capacity that last long with repeated fast charging. If you insist on experimenting with fast charging and damage a pack, call Sanyo, not Radical RC.
Weight 164 grams, 5.78 oz.
|
|
|
SKU Number:RRC06H2000EN3x2
|
|
|
|
|
| Radical RC 2000mah NiMH 2X3 7.2V Flat Airtronics/Multiplex TX Pack
Side By Side, double stick, 7.2V Sanyo HR-AA NIMH. 6 cells, fits many Multiplex radios, Airtronics SD-10G.High capacity TX Battery if you are sick of your TX running down. Yes, it is the same size as your current AA pack. A "AA" is a "AA". This is what your computer TX should have came with!
Maintenance charge rate for this pack is not to exceed 70mah.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
Any peak or fast charger use on this pack voids warranty. Don't bother calling trying to get a warranty for failing to follow instrcutions. I've heard all the stories. They all end like this, "My battery does not cycle well now." and "It worked ok for a while but now it runs down fast shortly after charging". If you put any AA cell over 1700mah capacity on your peak charger, it's bad. I've already made theses tests for you so you could avoid the pain. If you ruin one of these mega capacity TX packs, just order a new one and do better the second time.
|
|
|
SKU Number:RRC06H2000EN2X3
|
|
|
|
| |
| Radical RC 2150mah NiMH 7.2V Double Stick Futaba 12FG TX Pack
Side By Side, double stick 7.2V Sanyo HR-4/5-A NiMH pack. Highest capacity pack available for your Futaba T12FG (A or H) transmitter. 26% more run time and charges well from your factory wall charger. Yes, it is the same size as your current 1700 factory pack.Maintenance charge rate for this pack is not to exceed 150mah. Break in (first forming charge) on 170mah factory wall charger (Futaba #HBC2B) is 17.7 hours. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
|
|
SKU Number:RRC06H2150X-TX
|
|
|
|
|
| Radical RC 2500mah NiMH 7.2V Flat Multiplex TX Pack
Side By Side, double stick, 7.2V Sanyo HR-AA NIMH. 6 cells, fits Multiplex radios.High capacity TX Battery if you are sick of your TX running down. Yes, it is the same size as your current AA pack. A "AA" is a "AA". This is what your computer TX should have came with!
Maintenance charge rate for this pack is not to exceed 70mah.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
Any peak or fast charger use on this pack voids warranty. Don't bother calling trying to get a warranty for failing to follow instrcutions. I've heard all the stories. They all end like this, "My battery does not cycle well now." and "It worked ok for a while but now it runs down fast shortly after charging". If you put any AA cell over 1700mah capacity on your peak charger, it's bad. I've already made theses tests for you so you could avoid the pain. If you ruin one of these mega capacity TX packs, just order a new one and do better the second time.
|
|
|
SKU Number:RRC06H2500X-TX
|
|
|
|
|
| Radical RC 2500mah NiMH 8-AA cell 9.6V Flat TX Pack
Side By Side 9.6V Sanyo HR-AA NIMH 2500 Flat pack. HIGH capacity pack! Yes, it is the same size as your current AA pack. A "AA" is a "AA". This is what your computer TX should have come with! Tired of having to quick charge at the field? You can program all night friday night and fly all day Saturday with a fully charged 2500.
Maintenance charge rate for this pack is not to exceed 70mah.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
Any peak or fast charger use on this pack voids warranty. Don't bother calling trying to get a warranty for failing to follow instrcutions. I've heard all the stories. They all end like this, "My battery does not cycle well now." and "It worked ok for a while but now it runs down fast shortly after charging". If you put any AA cell over 1700mah capacity on your peak charger, it's bad. I've already made theses tests for you so you could avoid the pain. If you ruin one of these mega capacity TX packs, just order a new one and do better the second time.
|
|
|
SKU Number:RRC08H2500F-TX
|
|
|
|
|
| Radical RC 2500mah NiMH 8-AA cell 9.6V Square TX Pack
Side By Side 9.6V Sanyo HR-AA NIMH 2500 Square TX pack. HIGH capacity pack! Yes, it is the same size as your current AA pack. A "AA" is a "AA". This is what your computer TX should have come with! Tired of having to quick charge at the field? You can program all night friday night and fly all day Saturday with a fully charged 2500.
Maintenance charge rate for this pack is not to exceed 70mah. Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
Any peak or fast charger use on this pack voids warranty. Don't bother calling trying to get a warranty for failing to follow instrcutions. I've heard all the stories. They all end like this, "My battery does not cycle well now." and "It worked ok for a while but now it runs down fast shortly after charging". If you put any AA cell over 1700mah capacity on your peak charger, it's bad. I've already made theses tests for you so you could avoid the pain. If you ruin one of these mega capacity TX packs, just order a new one and do better the second time.
|
|
|
SKU Number:RRC08H2500S-TX
|
|
|
|
|
| Radical RC 2500mah NiMH 8-AA cell 9.6V Airtronics Stylus/ Futaba FG TX Pack
Side By Side 9.6V Sanyo HR-AA NIMH 2500 Airtronics Stylus pack. HIGH capacity pack! Yes, it is the same size as your current AA pack. A "AA" is a "AA". This is what your computer TX should have come with! Tired of having to quick charge at the field? You can program all night friday night and fly all day Saturday with a fully charged 2500. Also fits older Futaba gold case FG radios. In the Futaba case the pack appears to have 9 cells but one is a hollow dummy cell. This pack fits just fine and is correct voltage.
Maintenance charge rate for this pack is not to exceed 70mah.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours; 1100-30.8 hours; 1650-46.2 hours; 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
Any peak or fast charger use on this pack voids warranty. Don't bother calling trying to get a warranty for failing to follow instrcutions. I've heard all the stories and they all end like this, "My battery does not cycle well now." and "It worked ok for a while but now it runs down fast shortly after charging". If you put any AA cell over 1700mah capacity on your peak charger, it's bad. I've already made these tests for you so you could avoid the pain. If you ruin one of these mega capacity TX packs, just order a new one and do better the second time.
|
|
|
SKU Number:RRC08H2500ST-TX
|
|
|
|
|
| Radical RC 2500mah NiMH 7.2V Flat Airtronics/Multiplex TX Pack
Side By Side, double stick, 7.2V Sanyo HR-AA NIMH. 6 cells, fits many Multiplex radios, Airtronics SD-10G.High capacity TX Battery if you are sick of your TX running down. Yes, it is the same size as your current AA pack. A "AA" is a "AA". This is what your computer TX should have came with!
Maintenance charge rate for this pack is not to exceed 70mah.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
Any peak or fast charger use on this pack voids warranty. Don't bother calling trying to get a warranty for failing to follow instrcutions. I've heard all the stories. They all end like this, "My battery does not cycle well now." and "It worked ok for a while but now it runs down fast shortly after charging". If you put any AA cell over 1700mah capacity on your peak charger, it's bad. I've already made theses tests for you so you could avoid the pain. If you ruin one of these mega capacity TX packs, just order a new one and do better the second time.
|
|
|
SKU Number:RRC06H2500X-TX
|
|
|
|
|
| 2500mah NiMH 7.2V 3x2 TX Pack
AA 2500 TX pack made to fit Hitec's new Aurora 9 and the Aitronics SD-10G. Excellent way to go when replacing a weak factory pack. 7.2 volts and 6 cells just more capacity. Comes without plug, choose below or reuse your old plug.
Break in (first forming charge) on 50mah factory wall charger 700mah-19.6 hours,1100-30.8 hours,1650-46.2 hours, 2500-70 hours. For 70mah wall charger deduct 28% of time, for 100mah wall charger deduct 50% of time. Forming charge (initial charge) on peak detection chargers is not recommended and voids warranty.
Individual Cell Internal Impedance 25.0mΩ
|
|
|
SKU Number:RRC06H25003X2
|
|
|
|
|
|
