A123/LithiumWerks Life Nano Phosphate 2S 2P 5000mah Receiver Pack

A123/LithiumWerks Nano phosphate 2S 5000mah Pack (configured from 2S2P 2500mah #ANR26650M1B Cells. Finest RX pack technology and cell ever produced. See individual cell listing above for cell specifications.

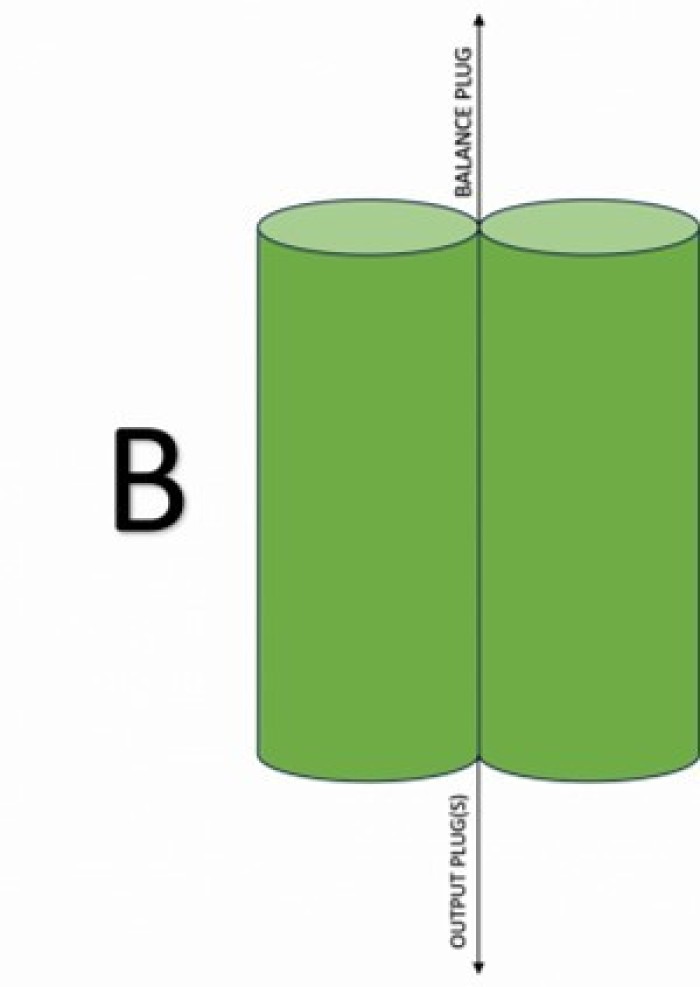

Standard shape is Flat (4 cells side by side), square is shown in photo. Stick packs may also be constructed, however they are not repairable if a cell is damaged.

There is no optional length for XH balance ends - use XH extensions for this purpose.

Use only Lithium chargers with an A123/LithiumWerks mode limiting charge voltage to 3.6V per cell. An Astro Blinky for A123/LithiumWerks is highly recommended as a balancing aid for these cells.

Specification's: Weight of built 4S 2500 RX pack is 11.72oz/(332g). See A123/LithiumWerks 2500 Single Cells Above for all other available data.

Want a custom pack? See our custom pack listings, or email us at Sales@RadicalRC.com, we can special make any kind of pack you require!

Note: Photo shows sample Rx pack with double lead option.

For checking pack voltage between flights, our best advice currently is: Leave model on after flight, plug loaded volt meter directly into pack balance plug (charge port OK but not preferred) hold load engaged, switch model off. Allow pack to drain into meter for 5 seconds, take your reading. See my blog post Checking A123 RX Packs For Recharge Point for help in this area.

SKU Number: RRC2S2P5000

Price:	$90.00

Pack Shape	13547:+:0,13548:+:0

Balance Plug	13545:+:0,13546:+:0,19190:+:0

1st Output Plug & Wire	19418:+:0,13539:+:0,13540:+:0,13538:+:2,13537:+:3,19419:+:2

1st Output Wire Length	24860:+:0,24861:+:0,24862:+:1,24863:+:1,24864:+:1,24865:+:1,24866:+:2,24867:+:2,24868:+:2,24869:+:2,24870:+:2,24871:+:2,24872:+:3,24873:+:3,24874:+:3,24875:+:3,24876:+:3,24877:+:3,24878:+:3

2nd Output Plug & Wire	13541:+:0,13542:+:3,13640:+:3,13544:+:5,13543:+:4,19420:+:3

2nd Output Wire Length	29675:+:0,24879:+:0,24880:+:0,24881:+:1,24882:+:1,24883:+:1,24884:+:1,24885:+:2,24886:+:2,24887:+:2,24888:+:2,24889:+:2,24890:+:2,24891:+:3,24892:+:3,24893:+:3,24894:+:3,24895:+:3,24896:+:3,24897:+:3
