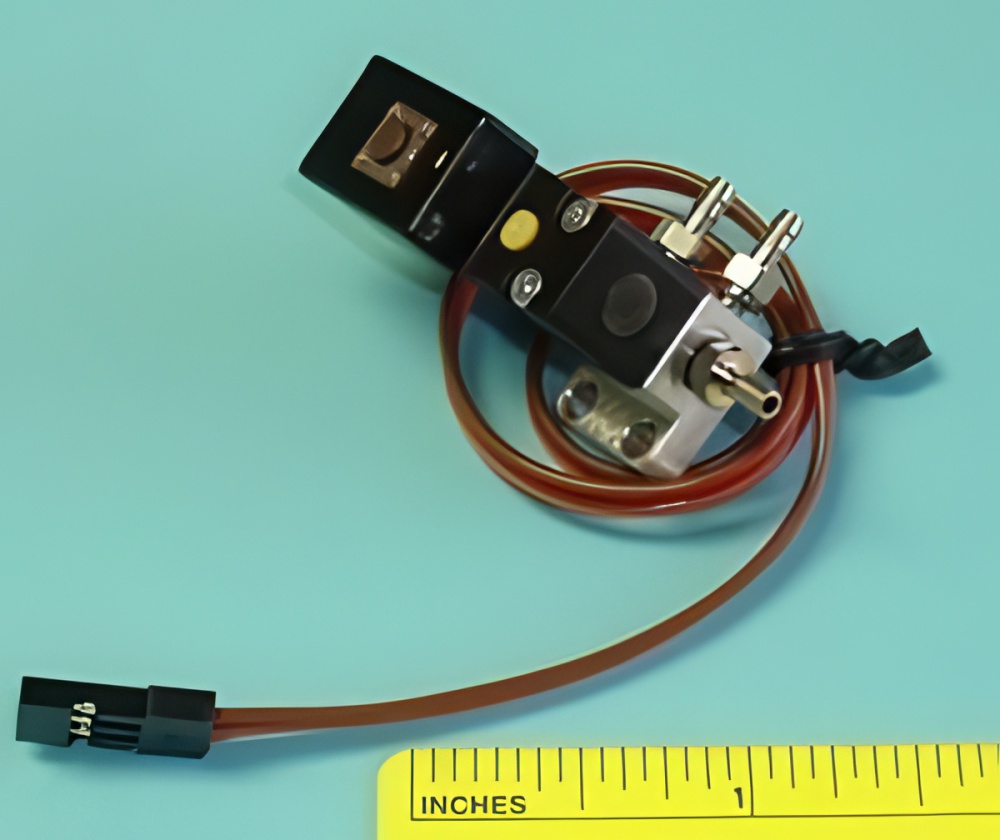

The PRO pneumatic evoJet Orbit valves are based on first-class miniature valves with Viton seals. These valves are equipped with entirely new digital micro controllers, making their handling even more convenient:
* Freely programmable switching points for compatibility with all R/C equipment * Switch mode(gear) or Pulse width mode(brakes) selectable * Completely EMC compliant (electromagnetic compatibility)
The valve is simply connected to a receiver output just like you would connect a servo, or e.g. combined with the elevator servo as a braking valve. This allows precise and easy programming of the switching points with the help of a small push-button on the valve. A red LED informs you about the current switching state.
This one-way version is suitable for landing gears and flaps with built-in spring or as a proportional braking valve.
* Weight: 21 g * Power: 4.8 - 6 V / 100 mA * Connector selection: A3: barbed pushover for 3mm+Robart A4: barbed pushover for 4mm tubing B: QS-3 straight for 3mm tubing C: QS-3 90? turnable for 3mm tubing * Operating pressure: max. 10 bar * Nominal flow rate: 12 l/min * Dimensions (W x H x D): 16 x 28 x 30 mm
Festo adapter QSM. 3mm-3mm tube size. Screws into evoJet Orbit pneumatic valves with 5mm threads (Fits valves 0981 and 0982). Use for retractable landing gear or brake systems. Pressure range: =12 to 110 psi.
Festo adapter QSM. 4mm tube size. Screws into evoJet Orbit pneumatic valves with 5mm threads (Fits valves 0981 and 0982). Use for retractable landing gear or brake systems. Pressure range: =12 to 110 psi.
3mm tube size. Screws into evoJet Orbit pneumatic valves threaded for 5mm fittings (0981, 0982 valves). Use for retractable landing gear and brake system controls. Pressure range: =12 to 110 psi.
Sorry, sold out, no longer available from manufacturer
4mm tube size. Screws into evoJet Orbit pneumatic valves with 3mm threads. Use for retractable landing gear or brake systems. Pressure range: =12 to 110 psi.
Scale models with retracting gear and working doors rely on air valves to route pressure at the right moment, and this category collects Orbit R/C pneumatic components built for those systems. The parts here handle the control side of a pneumatic retract setup.
Pneumatic Valves
The selection includes one way and two way valves along with single and dual action landing gear valves, including evoJet Orbit Pro premium versions. Dual action valves drive gear that needs air pressure in both directions, while simpler valves suit more basic circuits.
Sequencing
An Orbit R/C gear door sequencer coordinates the order of operations, so doors and gear move in the proper sequence rather than all at once. That timing is what gives a scale retract its realistic look, with doors opening ahead of the gear and closing again once it is down.
Choose the valve or sequencer that fits your pneumatic system in the listings below.
 "evoJet Orbit Pro Premium R/C Pneumatic Single Action Landing Gear Valve")
 "evoJet Orbit R/C Pneumatic 3mm Festo tube fitting into 5mm valve")
 "evoJet Orbit R/C Pneumatic 4mm Festo tube fitting into 5mm valve")
 "evoJet Orbit Pneumatic 3mm Straight Pushover Fitting for 5mm Valve")
 "evoJet Orbit R/C Pneumatic 4mm straight Tube Pushover Fitting for 3mm Valve")
 "evoJet Orbit R/C Pneumatic 3mm Festo tube fitting into 3mm valve")
 "Robart Pneumatic Gear Door Valve (each)")
