The expansion of the Hitec charger line continues with the introduction of our X2 AC Plus Black Edition AC/DC Dual Balance Charger/Discharger with built-in power supply. With increased capacity and compatibility, this portable, compact and reliable charging unit affords flexible charging of all battery chemistries whether you are at home or in the field. Its leading-edge power distribution mode allows efficient assignment of output power based on individual battery requirements while the Voice Guide feature makes for easy, user-friendly communication. With a built-in 10-amp power supply, internal balancing circuits and 10 different charge/discharge profiles, the X2 AC Plus Black Edition is an absolute powerhouse. Featuring our "SCAN TO GO" and Smartphone control via Bluetooth, this charger delivers the high performance and convenience that you can always expect from Hitec.
Cooling Method Cooling fan
Discharge Yes
Display CHARGE MASTER Software
Input Voltage 100 - 240V AC, 11 - 18V DC
Maximum Charge Rate 10.0 Amps x 2
Output 10-100 Watts
Peak Detection Yes
Product Height 2.75 in (70mm)
Product Length 5.74 in (146mm)
Product Weight 2.85 lbs. (1293g)
Product Width 7.24 in (184mm)
Programmable Yes
Selectable Charge Rate Yes
Features:
Twin Channels for Simultaneous Dual Battery Charging
Dual Input and Power Distribution
10 Battery Memory
Charge/Discharge Profiles
CHARGE MASTER Software
"Scan to Go" Smartphone Control
Terminal Voltage Control
Voice Guide
Supports DC Output Power
Included:
(1) X2 AC Plus Black Edition Charger
(2) x XH Adaptor
(1) Power Cord
(2) x Banana Connectors with XT60 Connector Charging Cable
Back in 1970, the February issue of RCM magazine featured a construction article of a design that took the pattern world by storm. This revolutionary design was the brainchild of Joe Bridi and it went on to be one of the most successful pattern and sport models of all time.
This outstanding, contest-winning model was the Kaos and we've based our kit on that same original design, updating it's construction with laser-cut precision, yet keeping all of the outstanding flying characteristics that made the original a legend.
In addition to our unique WEB-LOCK wing construction, this kit also includes a wing jig which makes assembling this triple-tapered wing a snap. Using our techniques, you'll quickly build a wing that's accurate and true - it just so easy to build!
The fuselage is built around a self-aligning, light-weight box for added strength. Surrounding this is the outer balsa skin that is strong, light-weight and twist resistant even when performing high-stress maneuvers. Overall, this balsa/ply airframe is uncomplicated, lightweight, easy to build, and features precision laser-cut parts that fit together quickly and accurately.
The wing is removable via 2 bolts from the bottom of the fuselage and utilizes a dual-servo setup for accurate aileron control. The wing's thick symmetrical airfoil coupled with the fuselage's long tail moment create a neutrally stable plane. Power can come from glow or electric powerplants. We've designed the fuselage with a magnetic top hatch so you have quick access to either your fuel tank or batteries.
Because of the Kaos' simple, clean design, it's a pattern plane you'll instantly feel comfortable flying. What's more, you'll become a better pilot because the Kaos let's you concentrate on technique, not distractions like pipes and retracts.
Our Old School Model Work's Kaos 60 is a Senior Pattern Association and Vintage R/C Society legal design for vintage and retro pattern competitions.
Specifications:
Wingspan: 59 inches
Wing Area: 644 sq. inches
Length (airframe only): 53 inches
Weight: 6.5-8 pounds RTF
Radio: 4 channel
Power:
o Glow (.61 engine, 10 ounce tank, fuel tubing)
o Electric (.61 equivalent brushless motor, 85+ amp ESC, 6S LiPo)
Features:
Premium USA Hardware
Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality.
Wing Jig included
Build both wings halves straight and true using the included wing jig.
WEB-LOCK Construction
There's nothing else like it. Our exclusive WEB-LOCK construction allows you to assemble the wings with a minimum amount of fuss.
Front hatch
Securely held in place with magnets, this hatch gives you easy access to batteries or fuel.
Removable Tank/Battery Floor
To help with C.G. balancing, we made the tank floor removable in case you'd like to place the receiver battery or the motor's ESC in the space under the floor.
SPA legal kit
Our Kaos 60 is a Senior Pattern Association qualifying design making it eligible for vintage/retro pattern competition.
VRCS legal kit
Our Kaos 60 is a Vintage R/C Society qualifying design making it eligible for vintage/retro pattern competition.
Design your color scheme
Download this sheet to design your Kaos' color scheme.
Additional items needed to complete the Kaos 60 kit:
o Propeller
o Engine/Motor mount & mounting hardware
o "Y" servo harness (for ailerons)
o Pushrods (two 5" for ailerons, two 32" for elevator & rudder, one 14" for nose gear, one 10" for throttle if glow powered)
o Clevises for the pushrods (10 if electric, 12 if glow).
o Wheels: one 2.5" nose, two 2.75" mains
o Covering
Due to high demand, please allow 1-2 weeks for shipment, thank you!
Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
Integrated Microchip Stores Unique Parameters for Each Battery
New IC3 and IC5 Connectors are Compatible with EC3 and EC5
Save Time and Hassle, while Improving Battery Life
Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage
Feature Overview
You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger "Start" button. Smart technology takes care of the rest.
Every Smart LiPo battery is factory assembled with the next-generation IC3(TM) or IC5(TM) output connector that's conveniently compatible with older devices equipped with robust EC3(TM) and EC5(TM) connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.
Spektrum Smart LiPo Batteries Store Unique Data, such as:
Battery Brand
Battery Type
Battery Capacity
Battery C Rating
Individual Cell Voltage
Battery Temperature
Charge/Discharge Cycles Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you've chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the "Start" button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.
PRODUCT SPECIFICATIONS Type:Smart LiPo Capacity:2200 mAh Voltage:11.1 Connector Type:IC3 Wire Gauge:12 Number of Cells:3 Weight:0.33 lbs. (150 g) Configuration:3S1P Length:4.5 in (115mm)Width:1.3 in (34mm)Height:0.8in (21.5mm) Application:Aircraft Maximum Continuous Discharge :50C
Our Bat is simplicity and excitement all at the same time. It is based off a 1970's World Engines kit and is a lot of fun to fly alone. But it's tons of fun to fly in groups. Thanks to precision laser-cutting, and the low parts count, this allows you to completely assemble the airframe in just a few hours.
Between the twin fins, there is an expansive internal area to allow in the installation of a variety of radio gear, as well as batteries (or fuel tank). This is all accessible via three hatches - the two servo hatches and a center hatch with a quick-release latch setup.
Parts are included to build the Bat with either an electric or glow powerplant. And it's one of the few designs in our lineup where you can overpower a little it without too much extra work.
We've had great fun with the recommended power systems, but as long as you keep a good eye on the C.G. (and lateral balance) you can strap on a little more power and streak through the skies. Obviously, some common sense needs to be applied here, but the structure is strong and can withstand a little overpowering with no problems. Thanks to precision laser-cutting, and the low parts count, this allows you to completely assemble the airframe in just a few hours. Parts are included to build the Bat with either an electric or glow powerplant. And it's one of the few designs in our lineup where you can overpower a little it without too much extra work. We've had great fun with the recommended power systems, but as long as you keep a good eye on the C.G. (and lateral balance) you can rev up the power and streak through the skies.
Obviously, some common sense needs to be applied here, but the structure is strong and can withstand a little overpowering with no problems.
Specifications: Wingspan: 37.25 inches Wing Area: 360 square inches Length (airframe only): 10.45" (glow), 11.5" (electric) Weight: 22-28 ounces (RTF) Radio: o 3 channel system (with elevon mixing) o 2 sub-micro servos for elevons; o 1 for throttle (if using a glow engine) Power: o Electric: 250+ watt brushless setup, 3s lipo o Glow (.09-.15 engine, 2 ounce tank, fuel tubing)
Due to high demand, please allow 1-2 weeks for shipment, thank you!
Trainer-like stability. Sport-Pattern performance. Quick and easy to build. What's not to love?!
Designed as a first low-wing trainer over five decades ago the Lark is still a terrific, everyday sport plane. OSM's version of the Lark keeps all of the iconic looks and great flying characteristics of the original. Plus, because it combines docile flight characteristics, trainer-like stability and an aptitude for super-smooth, exciting aerobatics, the Lark is just what you need to step forward with your flying ability.
OSM's kit has been designed to keep building time to a minimum and introduces new, simplified building features as well as laser-cut precision and self-aligning parts to make this all-time favorite even better. Building the wing and stab are a snap as all of the ribs include tabs which allow you to quickly and precisely align them on your building board. Did we say stab ribs? Why yes we did, as we integrated the original airfoil shaped stab into this design as well. The fuselage is built around a self-aligning, light-weight box for added strength. Surrounding this is the outer balsa skin that is strong, light-weight and twist resistant. Importantly, this balsa/ply airframe is uncomplicated, lightweight, easy to build, and features precision laser-cut parts that fit together quickly and accurately.
Power can come from glow or electric powerplants. We've designed the fuselage with a magnetic top hatch so you have quick access to either your fuel tank or batteries.
In the air, the Lark is an aerobatic, yet forgiving design that makes it the perfect entry-level low wing airplane. It's also great for experienced pilots because it packs a fully aerobatic capable design into a small package that can fit in the trunk of many cars, completely assembled.
When flying at slower speeds, it's a great way to relax, shoot touch-n-goes and enjoy low passes down the runway. But throttle it up and the Lark is just at home as an entry-level sport-pattern ship. Loop it. Roll it. Thrown in some Cuban 8's and even some hammerhead turns for fun and you'll enjoy every minute of it. This Old School Model Work's Lark is a Vintage R/C Society legal design for enjoying vintage fly-ins and contests.
Features: Premium USA Hardware Included in each Old School Model Works kit is a premium hardware package. OSM only sources their hardware from brand-name, USA manufacturers to guarantee the best quality.
Interlocking Construction There's nothing else like it. OSM's interlocking construction allows you to assemble the entire airframe with a minimum amount of fuss.
Front hatch Securely held in place with magnets, this hatch gives you easy access to batteries or fuel.
Build as Glow or Electric power Power the Lark with either a glow or electric powerplant.
VRCS legal kit OSM's Lark is a Vintage R/C Society qualifying design making it eligible for vintage/retro events.
Power: o Glow (.25-.40 engine, 4-6 ounce tank, fuel tubing) o Electric (equivalent brushless motor - 550+ watt, 40+ amp ESC, 3-4S LiPo)
Photos include shots of the Lark prototypes in various stages of construction and one of OSM's electric powered Lark prototypes finished and in flight.
Additional items needed to complete the Lark kit: o Propeller o Engine/Motor mount & mounting hardware o "Y" servo harness (for ailerons) o Pushrods (two 5" for ailerons, two 26" for elevator & rudder, one 14" for nose gear, one 10" for throttle if glow powered) o Clevises for the pushrods (10 if electric, 12 if glow). o Wheels: one 2.25" nose, two 2.5" mains o Covering (typically 2 rolls) o Optional 2.25" or 2.5" spinner
Due to high demand, please allow 1-2 weeks for shipment, thank you!
Fast, but not too fast. Maneuverable, agile and responsive - but not tricky. A snap to build - and with a fully sheeted airframe, surprisingly rugged compared to most.
Don't let the lack of landing gear scare you. Hand launching is easy because of the fuselage's light weight and strengthened design. In the air, it really looks the part without any exposed gear to detract from it's clean lines. Bringing the Fifty-One in for a belly landing on grass is just as easy.
You should see them take evasive maneuvers in Dog Fighting. Evade with snap rolls into spins, Immelmann turns and a loop.
OSM's Fifty-One kit is part of our Sunday Fighter lineup and just might be the most fun you've had in a long time.
Because of the interlocking design and high quality laser cutting of the parts, the Sunday Fighter is a quick build. Not only does it build quick, but it also builds straight and true as all of the parts are designed to align properly with a minimum of fuss and alignment tools.
The wing is removable for storage/transport and for giving access to the radio/servo area. From there you have easy access to install most any brand of radio and control linkages.
What's more, the fully assembled model can fit in the trunk of most cars.
Although mainly designed for electric power, you can also use a .25-sized glow engine as well. Glow engines are side mounted. Electric motors are mounted on the "extended" firewall to space the motor the proper distance forward. When assembled, you now have a blank canvas and can apply any number of color schemes, or make up your own. In the air, the Fifty-One is a blast to fly. A simple hand-launch gets it airborne, then you can cruise quite easily and 1/2 power. Throttle up for loops, eights, snaps, spins, hammerhead turnaounds - or maybe a screaming low-level pass, right down the runway. When you're ready to land, simply throttle back and gently bring the Fifty-One in for a belly landing on the grass.
This is just one design in our growing Sunday Fighter series. Specifications: Wingspan: 44.5 inches Wing Area: 330 sq inches Length (airframe only): 39 inches Weight: 3 - 3.5 pounds Radio: 4 channel system Power: o Glow (.25 engine) o Electric (350+ watt, 60 amp ESC, 3-4s LiPo)
Features: Premium USA Hardware Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality. Dual Ailerons Mounted under the lower wing, these two pre-cut aileron hatches make it easy to install the aileron servos. WEB-LOCK Construction There's nothing else like it. Build our wings, straight and true - with a minimum amount of fuss. Battery compartment Perfectly sized to take 3-4s 2200 lipo packs, plus an ESC. Open design makes batteries easy to swap out, and keeps the components cool. Under-Fuse Air Scoop Just like the full-scale, our Fifty-One has a scoop under the fuselage. It's held in place by the wing bolts. Fly with or without it - your choice.
Additional items needed to complete this Sunday Fighter kit: o Propeller o Engine/Motor mount & mounting hardware o 4-5 mini servos depending on setup: 4 flight controls, 1 for throttle if glow o "Y" servo harness (for ailerons) o Pushrods (two 6" for ailerons, one 10" for throttle if glow powered, two flexible 26" for elevator & rudder) o Clevises for the pushrods (8 if electric, 10 if glow). o 1-1/2 - 2 rolls of covering o 3" spinner
Due to high demand, please allow 1-2 weeks for shipment, thank you!
Fast, but not too fast. Maneuverable, agile and responsive - but not tricky. A snap to build - and with a fully sheeted airframe, surprisingly rugged compared to most.
Don't let the lack of landing gear scare you. Hand launching is easy because of the fuselage's light weight and strengthened design. In the air, it really looks the part without any exposed gear to detract from its clean lines. Bringing the One-O-Nine in for a belly landing on grass is just as easy.
You should see them take evasive maneuvers in Dog Fighting. Evade with snap rolls into spins, Immelmann turns and a loop. OSM's One-O-Nine kit is part of our Sunday Fighter lineup and just might be the most fun you've had in a long time.
Because of the interlocking design and high quality laser cutting of the parts, the Sunday Fighter is a quick build. Not only does it build quick, but it also builds straight and true as all of the parts are designed to align properly with a minimum of fuss and alignment tools.
The wing is removable for storage/transport and for giving access to the radio/servo area. From there you have easy access to install most any brand of radio and control linkages.
What's more, the fully assembled model can fit in the trunk of most cars.
Although mainly designed for electric power, you can also use a .25-sized glow engine as well. Glow engines are side mounted. Electric motors are mounted on the "extended" firewall to space the motor the proper distance forward.
When assembled, you now have a blank canvas and can apply any number of color schemes, or make up your own.
In the air, the One-O Nine is a blast to fly. A simple hand-launch gets it airborne, then you can cruise quite easily and 1/2 power. Throttle up for loops, eights, snaps, spins, hammerhead turnaounds - or maybe a screaming low-level pass, right down the runway. When you're ready to land, simply throttle back and gently bring the One-O Nine in for a belly landing on the grass.
This is just one design in our growing Sunday Fighter series.
Specifications: Wingspan: 44.5 inches Wing Area: 330 sq inches Length (airframe only): 39 inches Weight: 2.75 - 3.25 pounds Radio: 4 channel system Power: o Glow (.25 engine) o Electric (350+ watt, 60 amp ESC, 3-4s LiPo)
Features of the One-O Nine Sunday Fighter
Premium USA Hardware Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality. Dual Ailerons Mounted under the lower wing, these two pre-cut aileron hatches make it easy to install the aileron servos. WEB-LOCK Construction There's nothing else like it. Build our wings, straight and true - with a minimum amount of fuss. Battery compartment Perfectly sized to take 3-4s 2200 lipo packs, plus an ESC. Open design makes batteries easy to swap out, and keeps the components cool. Design your color scheme Download this sheet to design your One-O Nine's color scheme. Additional items needed to complete this Sunday Fighter kit: o Propeller o Engine/Motor mount & mounting hardware o 4-5 mini servos depending on setup: 4 flight controls, 1 for throttle if glow o "Y" servo harness (for ailerons) o Pushrods (two 6" for ailerons, one 10" for throttle if glow powered, two flexible 26" for elevator & rudder) o Clevises for the pushrods (8 if electric, 10 if glow) o 1-1/2 - 2 rolls of covering o 3" spinner
Due to high demand, allow 1-2 weeks for shipment, thank you!
Because of the interlocking design and high quality laser cutting of the parts, the Sunday Fighter is a quick build. Not only does it build quick, but it also builds straight and true as all of the parts are designed to align properly with a minimum of fuss and alignment tools.
The wing is removable for storage/transport and for giving access to the radio/servo area. From there you have easy access to install most any brand of radio and control linkages.
What's more, the fully assembled model can fit in the trunk of most cars.
Although mainly designed for electric power, you can also use a .25-sized glow engine as well. Glow engines are side mounted. Electric motors are mounted on the "extended" firewall to space the motor the proper distance forward.
When assembled, you now have a blank canvas and can apply any number of color schemes, or make up your own.
In the air, the One-O Nine is a blast to fly. A simple hand-launch gets it airborne, then you can cruise quite easily and 1/2 power. Throttle up for loops, eights, snaps, spins, hammerhead turnaounds - or maybe a screaming low-level pass, right down the runway. When you're ready to land, simply throttle back and gently bring the One-O Nine in for a belly landing on the grass.
This is just one design in our growing Sunday Fighter series.
Specifications: Wingspan: 44.5 inches Wing Area: 330 sq inches Length (airframe only): 39 inches Weight: 2.75 - 3.25 pounds Radio: 4 channel system Power: o Glow (.25 engine) o Electric (350+ watt, 60 amp ESC, 3-4s LiPo)
Features of the One-O Nine Sunday Fighter
Premium USA Hardware Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality. Dual Ailerons Mounted under the lower wing, these two pre-cut aileron hatches make it easy to install the aileron servos. WEB-LOCK Construction There's nothing else like it. Build our wings, straight and true - with a minimum amount of fuss. Battery compartment Perfectly sized to take 3-4s 2200 lipo packs, plus an ESC. Open design makes batteries easy to swap out, and keeps the components cool. Design your color scheme Download this sheet to design your One-O Nine's color scheme. Additional items needed to complete this Sunday Fighter kit: o Propeller o Engine/Motor mount & mounting hardware o 4-5 mini servos depending on setup: 4 flight controls, 1 for throttle if glow o "Y" servo harness (for ailerons) o Pushrods (two 6" for ailerons, one 10" for throttle if glow powered, two flexible 26" for elevator & rudder) o Clevises for the pushrods (8 if electric, 10 if glow) o 1-1/2 - 2 rolls of covering o 3" spinner
Due to high demand, please allow 1-2 weeks for shipment, thank you!
Spektrum Smart technology LiPo Batteries practically take care of themselves. When combined with a Spektrum(TM) Smart Battery Charger, the unique parameters, history of the battery and more are all available the instant it's connected. Charging a Smart Battery is easy as it gets, plus Smart LiPo battery packs are programmable to meet your exact charging needs. But the crowning feature of a Spektrum Smart LiPo battery is that it can be programmed to safely self-discharge to storage condition!
Spektrum Smart technology puts you in complete control, makes you more aware and more confident about the capability of your equipment--all the while making your hobby easier. The combined result will make you wish everything about your hobby was "smarter."
You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger "Start" button. Smart technology takes care of the rest.
Every Smart LiPo battery is factory assembled with the next-generation IC3(TM) or IC5(TM) output connector that's conveniently compatible with older devices equipped with robust EC3(TM) and EC5(TM) connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.
Spektrum Smart LiPo Batteries Store Unique Data, such as:
Battery Brand
Battery Type
Battery Capacity
Battery C Rating
Individual Cell Voltage
Battery Temperature
Charge/Discharge Cycles
Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you've chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the "Start" button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.
Features
Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
Integrated Microship Stores Unique Parameters for Each Battery
IC3 and IC5 Connectors are Compatible with EC3 and EC5
Save Time and Hassle, while Improving Battery Life
Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage
Specifications:
Type: Smart LiPo
Capacity: 2200 mAh
Voltage: 11.1V
Connector Type: IC3
Cell Size: 3.7V
Number of Cells: 3
Weight: 0.40 lbs. (180g)
Dimensions (WxLxH): 4.2 x 1.3 x 0.9 in. (107 x 34 x 24mm)
Length: 4.2 in. (107mm)
Width: 1.3 in. (34mm)
Height: 0.9 in. (24mm)
Application: Aircraft
Maximum Continuous Discharge : 30C
CHARGING NOTE: This battery can only be safely charged with a Spektrum Smart Battery Charger. NEVER, UNDER ANY CIRCUMSTANCES, charge this battery using a non Spektrum Smart Battery Charger.
Fast, but not too fast. Maneuverable, but not tricky. A snap to build and surprisingly rugged compared to most. The original Sunday Fighters were the brainchild of Ken Willard back in the early 1970's. His were small, .049 powered 3-channel models and proved quite popular. Now, we've taken this idea, enlarged, and re-engineered them to make them as much fun to build as they are to fly.
You should see them take evasive maneuvers in Dog Fighting. Evade with snap rolls into spins, Immelmann turns and a loop. Our radio-controlled Sunday Fighter airplane kits just might be the most fun you've had in a long time.
Because of the interlocking design and high quality laser cutting of the parts, the Sunday Fighter is a quick build. Not only does it build quick, but it also builds straight and true as all of the parts are designed to align properly with a minimum of fuss and alignment tools.
The wings are removable for storage/transport and for giving access to the extra large cabin area. From there you have easy access to install most any brand of radio and control linkages. However, the fully assembled model can fit in the trunk of most mid-sized cars.
Up-front, we've designed in a hatch that covers the battery/tank compartment. This area will easily handle 3s packs and 6 ounce tanks.
Whether you choose to power your Sunday with electric or glow power, we've got you covered. Glow engines can be mounted side, inverted or even upright with a little modification. Electric motors can be mounted using the included Motor Box which will help space your motor to the proper distance.
Go true "old-school" with 3 channel control, or opt for functional ailerons (4 channel).
There are two Sunday Fighters - the German version you see here, and the British version you can see at this link.
Specifications:
Wingspan: 46.5 inches
Wing Area: 725 sq inches
Length (airframe only): 34 inches
Weight: 3.5 - 4 pounds
Radio: 3-4 channel system
Power:
o Glow (.20-.30 engine, 6 ounce tank, fuel tubing)
o Electric (equivalent brushless motor, 3s LiPo)
Premium USA Hardware
Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality.
Dual Ailerons Mounted under the lower wing, these two pre-cut aileron hatches make it easy to install the aileron servos.
WEB-LOCK Construction There's nothing else like it. Build our wings, straight and true - with a minimum amount of fuss.
Bolt on main gear Bending your own landing gear is hard. So that's why we include pre-bent main landing gear wire ready for you to assemble.
Front hatch Held in with magnets, this extra hatch gives you easy access to batteries or fuel.
Included Motor Box For electric power, we include the pieces to build this electric motor mounting box.
Design your color scheme Download this sheet to design your Heinschmitt's color scheme.
Additional items needed to complete our Sunday Fighter kit:
o Propeller
o Engine/Motor mount & mounting hardware
o 2-5 servos depending on setup: 2 mini for elevator/rudder, 2 Sub-Micro for ailerons/throttle
o "Y" servo harness (for ailerons)
o Pushrods (two 5" for ailerons, two 20" for elevator & rudder, one 9" for throttle if glow powered)
o Clevises for the pushrods (8 if electric, 10 if glow).
o 2 - 3.5" diameter wheels. We recommend Du-Bro's #350V Vintage wheels for the proper look.
o 1 - tailwheel assembly
o Covering
Flickr Album
Due to high demand, plaese allow 1-2 weeks for shipment, thank you!
Your Dad raved about it. So did your Uncle, your Grandpa, and most of the members in your club.
Now you can experience one for yourself.
Since the early 70's, more of these have been built and flown than most any other R/C design. It's an all-time favorite R/C trainer and sport design. It's fondly remembered because it's so easy to build and to gentle to fly.
Our version of the Fifty Six keeps all of the iconic look and great flying characteristics, and introduces new, simplified building features, as well as laser-cut precision - making this all time favorite even better.
Building the wing and stab are a snap as all of the ribs include tabs which allow you to quickly and precisely align them on your building board. Did we say stab ribs? Why yes we did, as we integrated the original airfoil shaped stab into our design as well.
Now you can experience one for yourself.
Since the early 70's, more of these have been built and flown than most any other R/C design. It's an all-time favorite R/C trainer and sport design. It's fondly remembered because it's so easy to build and to gentle to fly.
Our version of the Fifty Six keeps all of the iconic look and great flying characteristics, and introduces new, simplified building features, as well as laser-cut precision - making this all time favorite even better.
Building the wing and stab are a snap as all of the ribs include tabs which allow you to quickly and precisely align them on your building board. Did we say stab ribs? Why yes we did, as we integrated the original airfoil shaped stab into our design as well.
The fuselage is built around a self-aligning, light-weight box for added strength. Surrounding this is the outer balsa skin that is strong, light-weight and twist resistant. Overall, this balsa/ply airframe is uncomplicated, lightweight, easy to build, and features precision laser-cut parts that fit together quickly and accurately.
The wing is removable the old-school way - using rubber bands (which are included). At first, you might think this is a bit old-fashioned, but it's simply the perfect way to hold the Fifty Six's wing in place. What's more, doing it this way keeps it faithful to the original design and since the Fifty Six is also a trainer, it gives the wing that extra bit of movement needed to help avoid breakage during those not-so-perfect landings.
Power can come from glow or electric powerplants. We've designed the fuselage with a magnetic top hatch so you have quick access to either your fuel tank or batteries.
In the air, the Fifty Six is a gentle and forgiving design that makes it the perfect trainer. When flying at slower speeds, it's a great way to relax, shoot touch-n-goes and enjoy low passes down the runway. But throttle it up a bit and the Fifty Six is just at home as a barnstormer. Loop it. Roll it. Flip over for some inverted flight. Throw in some hammerhead turns for fun and you'll enjoy every minute of it.
For value and features in a great-flying, rugged airplane, your best bet is the OSMW Fifty-Six.
Our Old School Model Work's Fifty Six is a Vintage R/C Society legal design for enjoying vintage fly-ins and contests.
Specifications:
Wingspan: 56 inches
Wing Area: 560 sq. inches
Length (airframe only): 41.5 inches
Weight: 3.5-4.5 pounds RTF
Radio: 4 channel Power:
o Glow (.19-.35 engine, 4 ounce tank, fuel tubing)
o Electric (equivalent brushless motor, 40+ amp ESC, 3-4S LiPo)
Premium USA Hardware
Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality.
Interlocking Construction
There's nothing else like it. Our interlocking construction allows you to assemble the entire airframe with a minimum amount of fuss.
Front hatch
Securely held in place with magnets, this hatch gives you easy access to batteries or fuel.
Glow or Electric power
Power the Fifty Six with either a glow or electric powerplant.
VRCS legal kit
Our Fifty Six is a Vintage R/C Society qualifying design making it eligible for vintage/retro events.
Design your color scheme
Download this sheet to design your Fifty Six's color scheme.
Additional items needed to complete the Fifty Six kit:
o Propeller
o Engine/Motor mount & mounting hardware
o "Y" servo harness (for ailerons)
o Pushrods (two 5" for ailerons, two 26" for elevator & rudder, one 14" for nose gear, one 10" for throttle if glow powered)
o Clevises for the pushrods (10 if electric, 12 if glow).
o Wheels: one 2.25" nose, two 2.5" mains
o Covering (typically 2 rolls)
Due to high demand, please allow 1-2 weeks for shipment, thank you!
Radical RC's Netted Safety Small Drone Enclosure 20x20x10 Feet.
Enclosure should be set up by competent personnel, wearing applicable safety gear such as, safety goggles, gloves, work shoes/boots, hard hat, work wear, etc. or similar. Assemble at your own risk. Set up time for 2-3 people is approximately 1 hour. Personnel and spectators should be kept at a 3-foot minimum distance from enclosure, for small drones weighing 10 ounces or less. Consult your safety director for your exact application.
Kit includes frame, netting, bungee tie downs, foam pole protectors, and customized portable storage cases. See Assembly video for details on kit components, safety tips, construction instruction and assembly tips.
Approximate weight of kit is 250-300lbs. Shipping cost and method will be chosen by Radical RC, and will be calculated as per your delivery address, package weight, and size. We will not calculate shipping without your pre-paid order.
Du-Bro's Electric Flyer Hinge Tape has great adhesion characteristics and is easy to remove. In addition, our hinge tape will not leave residue. 15' Roll/pkg Made in USA
Sticks well on most foams and any plastic covering. Perfect for small size park flyers, sticks, foamies.
Star mount fits most 28mm outrunners. Fits our Maytech 2830 and 2836 series motors and most other imported motors in this size class using similar looking star mounts. Motor bolt holes are .625" (15.8mm) on center for one pair and .730" (18.54mm) on center for the other pair. Outside holes are 1.375" (35mm) on center. 1/8" Thickness, overall OD 1.870" (47.5mm) 3D printed solid ABS part. Center hole .400" (10mm).

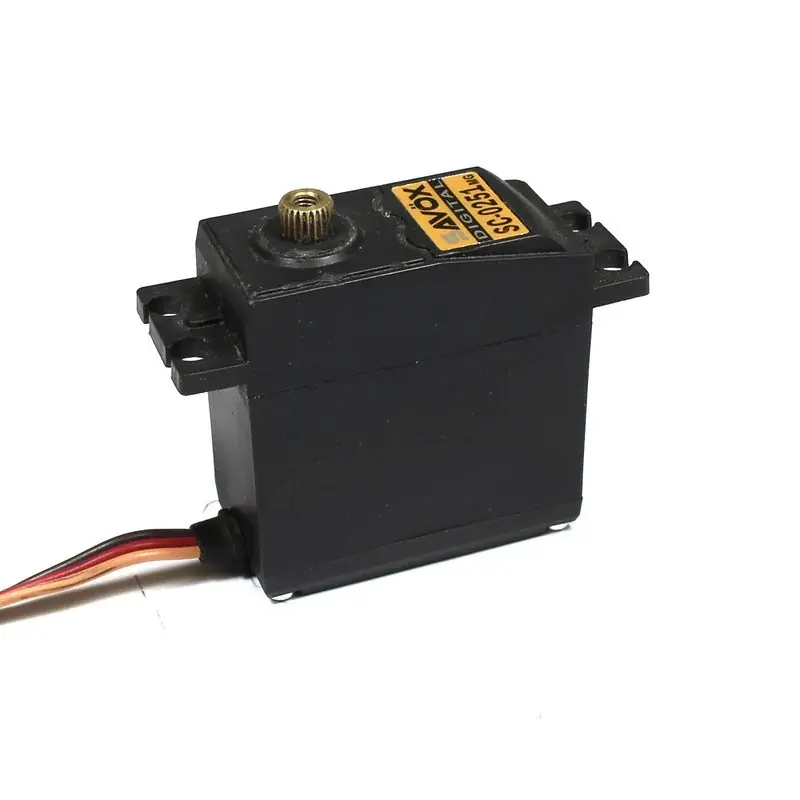

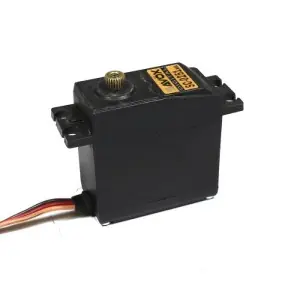

50% off selected servos! We're crowd sourcing a shelf clean out. Two shelves filled with servos on sale 50% off. 50% off servo group. SKU Number: ServoSale
Invented by Dave Thacker of Radical RC. The lightest weight and simplest connector lock ever made. Easy snap on and off, retains connector against vibration or accidental separation. Keeper is retained on female side of plug assembly and can't be easily lost in the grass or fuselage. Designed to slip through existing wing tubes and past snags. Only one is required, however, you can actually fit two on each connector assembly. Compatible with all brands of servo connectors. Patent Pending. Order 6 Pack - All Keepers Here SKU Number: RRCINLOCK6PK
Yes, I have some Calidus kits in stock. They have easily repaired broken tails from poor packing from the maker. The verticals are popped off the horizontals. Just glue them back in place. I'm making this quick listing for those who read in the forums that we have them. This is a kit meaning you have to bolt it all together. I've never flown one and can't help with setup and settings. This is a kit for somebody comfortable combing the internet for the knowledge they need to complete and set it up properly. Rare kit in the USA. I only have a few of these kits. Don't call, if I'm out, I'll take it off the website. SKU Number: Calidus
We have a special stock of previously owned kits. Many classic, rare and a few modern choices. Take your pick before they are all gone. Photos here are samples, we have many more. Vintage & Pre-owned Kits Here SKU Number: VintageKits
Just one more thing to add to the wish list! Hitec is proud to announce the arrival of our high performance, microprocessor controlled X1-200 Touch charger. With a 3.2-inch LCD touch screen, integrated cell balancing and automatic current adjustment, this 200-watt charge/discharge station has the ability to operate on a 12 volt automotive battery or 11 ~ 18 volt DC power supply. The X1-200 Touch package includes a universal balancing board with paired cable, two alligator clips and a 2-pin t-type charging cable. Easy-to-use and easy-to-setup, it is your convenient, proficient charging solution.
Buying the charger from us entitles you to get one of our 47 amp (575 watt) power supplies at a $10 discount to normal pricing below. Learn More Here
Input Voltage
11-18v (max power opperation requires 200 watt supply)
"T-CLIPS" is no ordinary clipped wing Taylorcraft. Originally a stock 1939 Taylorcraft, this is the only clipped wing T'craft in the world currently flying airshows with an original size engine. Airshow pilot Erik Edgren refers to this as "Twistin It Old School". SIG is proud to team up with Erik and offer a new R/C model of his one-of-a-kind airplane.
Designed for electric power, the new SIG T-CLIPS EP is a pure aerobatic delight. It's not meant to be an exact scale model, but more of an everyday no-frills flying field favorite.
Voted by pilots as the "Best New R/C Airplane At SEFF 2013".
See full listing details, video, manual and extensive MOTOR CHART for the T-Clips: HERE
Allows you to plug in any of the common balance connector types JST;XH, EH, TP, HP, PQ, and Tamiya Life. Plugs are grouped by cell count, one each for each connector and each cell count 2, 3, 4, 5 & 6S. The 4S group can be seen in the near section of the photo.
A split elevator torque rod with centrally molded on control horn. Horn is molded onto wire. Approx 4 1/16" (103mm) wide, Legs approx 1" (25.4mm) long. Horn is in center and drilled for control radius of .5" (12.7mm), .75" (19mm) and 1" (25.4mm) control radius. SKU Number: SIGSH554
We only have 1 of these DISCONTINUED BY MFR./NO LONGER PRODUCED, aircraft left in stock!
Video of a Thunder Tiger 3D Spirit . a .40 size glow model that I pegged to be an excellent electric conversion. This kit is no longer in production. I have several in stock. I had stocked them as my next big cool .40 conversion kit after another model had been worn out. Never got around to marketing them. Killer aircraft as you can see from this impartial video.
Bear in mind my actual cost to ship this to you is generally $20 to $30+ in the USA. My USPS Priority Insured charge online is only $13 (hIGHLY recommended to protect your investment as this item cannot be replaced). Keep in mind, we hold the right to ship using the best most economical option available.
Finished weight I expect to be around 4 lbs with a quality power system. The box says 4.5 to 5 but I think it's much lighter and why I took and interest in this kit as my next show model.
Dave's Wicked Power Setup: Himax 5018-530; APC E-Prop 14-7; 6S Kypom 3800; and Castle Phoenix Edge 75 (Plug and Play soldering get fully connectored), or similar. This is a good price on a high class model more capable and lighter weight than most anything available today. And YES, this will be even better than the system in the video.
This one is a sweet ride!
Performance, 149oz static thrust on 65oz model, 4812 foot per minute climb rate @ 90 degrees. That's almost 1 mile or almost 60mph in the vertical lines. 67mph max speed. This will likely be the best overall setup you've ever owned and the coolest .40 size model you and your flying buddies have ever seen. This is exactly how I'd set it up for myself, no holds barred.
Furthermore, are you serious about flying? Then look no further, we have the perfect 3D plane for you. Designed specifically for the 3D pilot. Only limited by the control inputs from the pilot.
Are you flying... better yet, well, you will... once you get you're Spirited at your local field. Everyone will think your a seasoned 3D pilot as soon as it goes airborne. Outrageous maneuvers will seem effortless, constant positive control while doing 3D has never been better. This plane is designed for 3D aerobatics and available in ARF version that only takes you a few hours in assembly. Built from precisely laser cut balsa and ply, covered in durable and easily repairable Oracover/Ultracote®. Large control surfaces that are counter balanced make 3D a breeze. The 3D Spirit will do Blenders, Waterfalls, Harriers, Elevators, Snap rolls, and more... Features: * State-of-the-art engineering that provide quick and easy assembly * Pre-built one piece wing with attractive trim scheme design and covered in Oracover/UltraCote® * Custom-built and covered by skilled craftsmen, built from top quality balsa and plywood * Lightweight construction, gives optimal power-to-weight ratio * Large surface area on all control surfaces: aileron, elevator and rudder provide quick precise response * Designed for the extreme 3D maneuvers such as Harrier, Waterfall, Blender, Torque roll, just to name a few.
Accessories Needed:
Radio Set: 4 Channel radio; x5 standard servos; Receiver and battery pack; 1 x "Y" style extension wire or 2x 10" ext. wire; 2x 20" ext. wires.
Tools: Hobby knife and blades; Fine-point or felt-tip pen; Phillips and flat head screw drivers; Long nose pliers; Diagonal cutting pliers; Mixing sticks for Epoxy; Drill bits (1/16, 5/64, 1/8); Paper Towels; Scissors; 1/2 masking tape; Straight building board; Reamer; and File.

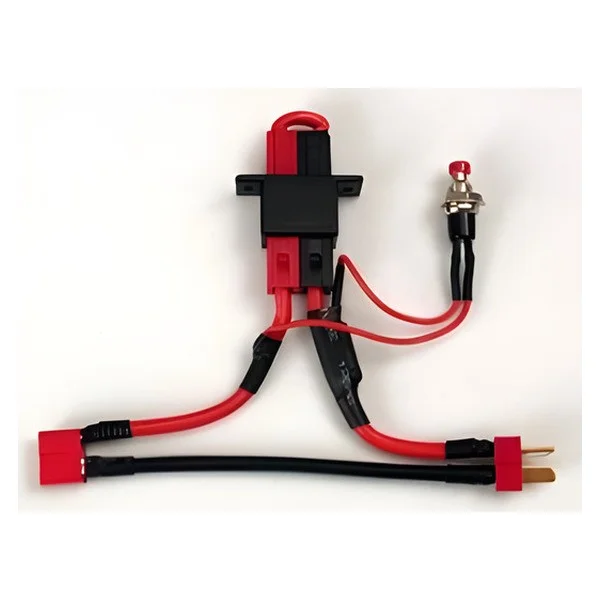

A must for large scale electric airplanes. Simply install the receptacle to the fuselage side and connect the battery and ESC. Plug or unplug the connector key to turn the power on and off. With jumper key removed, you can plug in battery then hold the mountable momentary contact switch button in for 3 seconds. The caps in your ESC will be charged for no big "spark" or "Fussszzzp" sound when plugging in your jumper key or battery. 12 gauge wire for high amp applications. Compatible with Ultra Dean's connector.

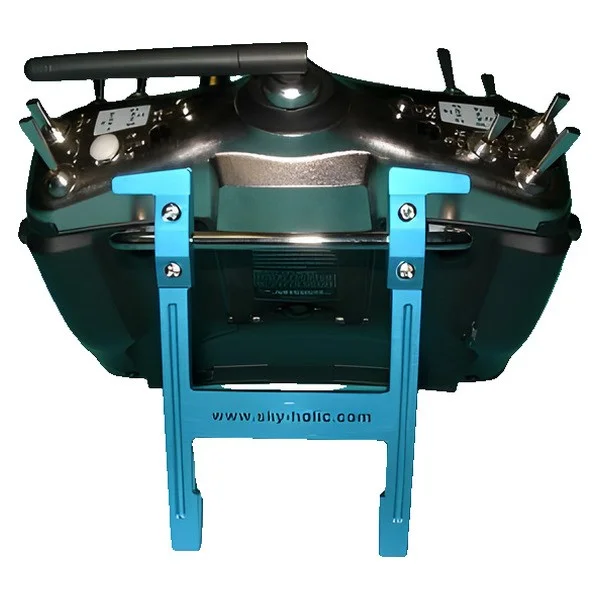

Our Deluxe TX balance will work with Futaba, JR and Spektrum TX's. Should work with any TX that has a metal eyelet. All hardware included, even a filler so bolt stays centered in your eyelet. Adjustable for horizontal and vertical eyelets along with about 1/2" adjustment for best balance.
DELight Ultra Bright LEDs pair. Powerful, easy to use LED lights which are designed to be used with the DELight Controller. Fully self-contained, can be used by themselves if desired. Standard servo-type plug, so you can use off-the-shelf servo extensions and Y-harnesses. Each LED puts ot 15 lumens of light, which is more than a child's night-light. They have a wide 120 degree beam angle, so they can be seen from many positions and light up large surfaces. Each module consists of a half-watt surface mount LED, an appropriate current-limit resistor and a 24" lightweight wire pigtail terminating in a universal servo-type connector. Available colors are currently red, green and white. Product Specs: Operating voltage: 4V-6V Current: 150mA max Size: .2" x .375" x .125" + 24" Wire Pigtail Weight: 2.8 g Applications: Additional LEDs for the DELight Programmable Lighting System Model Lighting Theatrical Light Effects Night Flying
DELight Ultra Bright LEDs pair. Powerful, easy to use LED lights which are designed to be used with the DELight Controller. Fully self-contained, can be used by themselves if desired. Standard servo-type plug, so you can use off-the-shelf servo extensions and Y-harnesses. Each LED puts ot 15 lumens of light, which is more than a child's night-light. They have a wide 120 degree beam angle, so they can be seen from many positions and light up large surfaces. Each module consists of a half-watt surface mount LED, an appropriate current-limit resistor and a 24" lightweight wire pigtail terminating in a universal servo-type connector. Available colors are currently red, green and white. Product Specs: Operating voltage: 4V-6V Current: 150mA max Size: .2" x .375" x .125" + 24" Wire Pigtail Weight: 2.8 g Applications: Additional LEDs for the DELight Programmable Lighting System Model Lighting Theatrical Light Effects Night Flying
Designed in conjunction with Dave Thacker at Radical RC, the MAMA is the most inovative way to keep track of your 2S A123/LithiumWerks RX packs ever produced. MAMA actually measures the Mili-Amp Hours you add and remove from your A123/LithiumWerks RX pack both ways. It gives you a visual indication of where your at in the capacity of the pack as your using it in the form of a blink code. At last, a real fuel gauge! This version of the MAMA Includes the remote led feature. Mount on outer surface or on dash to read out blink code. Also included is the throttle blip feture. You can run your throttle through the device if you like and it will give you a quick throttle blip when your getting into serious condition on the pack. Obviously you should'n routinely go that deep, the intention is only to alert you as a last resort.
All green blinks is A-OK, green with some blanks means we''ve used a little, green with a few some red blinks means we are getting close to needing to recharge. If you see more red than green blinks we''ve droped below 40% remaining capacity and it''s time to recharge pronto. Intermitant red or solid red blinks is well into the danger zone. A handy chart and field box card is included to remind you of the simple pattern.
Simply perform a charge/discharge cycle and MAMA learns the capacity of your battery. MAMA delivers blink codes to represent the remaining capacity of your pack based on what you''ve actually used out of it. Any capacity LIFE (A123/LithiumWerks) 2S pack may be connected to MAMA. Your charge/discharge cycle allows MAMA to calibrate to your pack. Even if it''s a veteran 2300mah pack with only 1900mah capacity remaining, she figures it correctly. It's even ok to put a short charge into the pack that does not fill it completely. MAMA has seen this trick before and will give accurate readings anyway.
Optionally, you can run your throttle servo connection through the MAMA and she will give you quick throttle blips if you ever drop down below 30% remaining capacity. The blips are brief so that even if your in a climb out or other critical manouvre you get an opportunity to return under control for recharge.
This unit can be used with either Futaba/JR/Spektrum or any ohter universal connector. Includes optional remote LED and thorttle features. (Use of warning throttle blip feature not required for proper function of MAMA.)
Specifications: Constant Current Limit: 10 amps Intermitant Current Limit: 20 amps Current Draw In Use: 5ma Current Draw At Idle: <100ua (1 million uah per amp hour) (time to run down full 2300mah pack at rest is 10k hours. Months of rest is safe.) Size: 2.05" x 1.10" Weight: 12 grams
This is the pencil iron we use to build hand solder packs in our shop. Capable of soldering large cells and large wire. If your tired of all the toys, here is an iron with spirit that will get the job done. Safety light lets you know when it's on, tip temperature up to 900 degrees F, 5 foot power cord, stainless body and simple iron support.
And you thought the story about aliens at Wright Patt was just a conspiracy theory? At long last, a durable light weight quad copter airframe kit. This kit makes use of basic 10mm square carbon, fiberglass or aluminum tubes. All of our 10mm boom based Slow Stick hopups such as servo mounts, battery tray's, gear mounts and etc.... are compatible with our Quad Coper Designers Kit.
By making use of different motor systems and different boom lengths, you can make a quad of any size you like up to 1 meter (39") frame OD...............
Can be used with glow, gas or smoke fuels. Simply push in place. comes six mounting screws. Drill 9/16" hole (14mm) for mounting flange, insert and run screws in to hold in place. Fueling stopper has o-ring to provide positive fit of plug into housing.
For 1.20 thru giant scale models (about 12lbs and up). Hinge Point Hinges are truly unique. Instead of trying to chisel a slot, as with ordinary hinges, simply drill a hole, add some glue and insert the hinge point. Simple, perfectly straight hinging can be done quickly. The hinges are available in three sizes 3/32", 1/8" & 3/16". 6 per package. SKU Number: ROB309
Falcon Electric 2-Blade Beechwood Props SKU Number: FALCONE2B

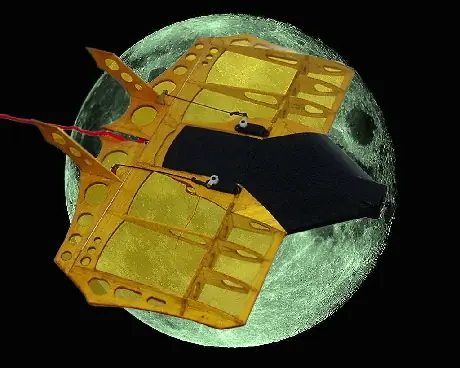

NASA wants to go back to the moon. Radical RC's Wicked Wing beat them to it! Check out our original designs! Radical RC Verti-Go 125, Verti-Go 3D, E-Hornet, Mini Stick, Micro Stick, Micro Bipe, Micro Low Stick, Quick Wing 12mm, Quick Wing 20mm, Quick Wing Twin 20mm Double Trouble, Das Mini Low Stick, Das Mini Bipe, Mini Hunter, Mini Intern Trainer, Stick 600,
Print and complete this form for all Orbit Charger repair orders to be included with all repair requests.
Pictured to left is one of Garrett's competition ships, to right .... Dave, Here is a picture of my second plane. This is a 3W Extra 330 40%. The plane is flying great. Thanks so much for all your support in this hobby. I really like using your products. My friends as well are very happy with the equipment & fast-friendly service that is coming out of your company. Let's keep in touch. -Garrett Morrison
 "Hitec X2 AC Plus Black Edition Multi-Function AC/DC Charger")
 "Old School Model Works Kaos 60 Kit")
 "Spektrum 11.1V 3S 2200mAh Smart Lipo 50C, IC3")
 "Old School Model Works Bat Kit")
 "Old School Model Works Lark Kit")
 "Old School Model Works Sunday Fighter Fifty-One Kit")
 "Old School Model Works Sunday Fighter (One-O Nine) Kit")
 "Spektrum RC Smart LiPo 3S 11.1V 2200mAh 30C Battery Pack w/IC3 Connector")
 "Old School Model Works German Sunday Fighter Bristol Heinschmitt Kit")
 "Old School Model Works Fifty Six Kit")
 "Radical RC Netted Safety Small Drone Enclosure 20x20x10 Feet")
 "Excel Swivel Head Pin Vise w/4 x Chucks 0-.125in. 0-3.175mm")
 "Du-Bro Electric Flyer Hinge Tape 1.0\" x 5 Yards")
 "NEW PRODUCT Motor Mount Star 28mm Outrunners")
 "Dave's InnerLock Connector Keeper")
 "Big Selection of Classic Kits")
 "Hitec X1 Touch 200 Charger")
 "Sig T-Clips EP - Waiting List Order")
 "Universal Balance Adapter Board")
 "Heavy Duty Split Elevator Control Horn by SIG")
 "SPECIAL OF THE DAY!!! Thunder Tiger 3D Spirit")
 "1/16 Replacement High Speed Drill Bit")
 "MP Jet Nylon Gear Block 6mm")
 "MPI 12g Hi-Current No-Spark Arming Switch Deans")
 "RRC Deluxe TX Balance")
 "Dimension Engineering DELight Ultra Bright LED White")
 "Dimension Engineering DELight Ultra Bright LED Red/Green")
 "MAMA Miliamp Monitor for A123/LithiumWerks with Remote LED & Throttle")
 "Weller 80 Watt Iron")
 "Radical RC Quad Copter Designers Kit SHIPPING NOW")
 "JEM Fuel Filler Dot")
 "Robart 3/16 Inch Hinge Points")
 "Sullivan Gasoline Bulb Pump 6oz.")
 "Falcon Electric 2-Blade Beechwood Props")
