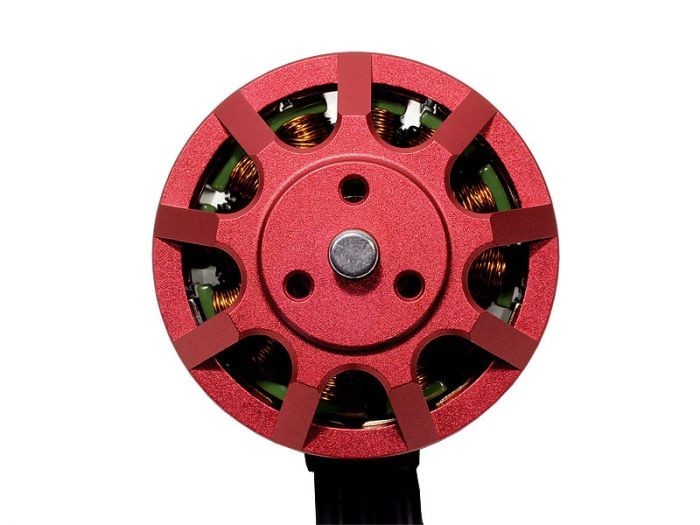

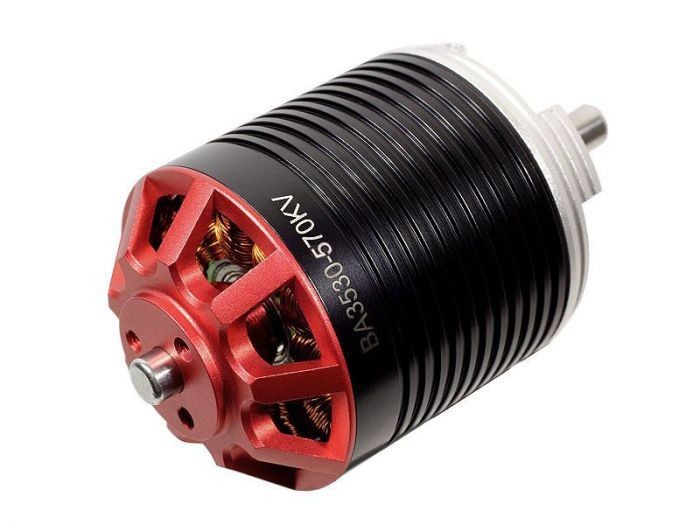

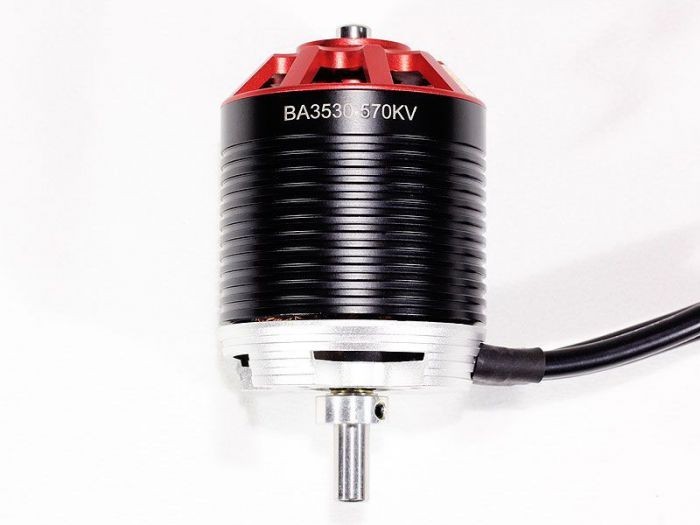

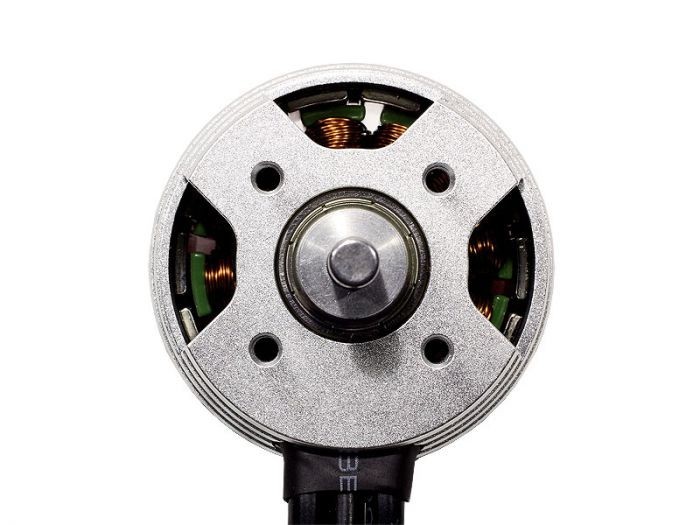

BadAss 3530-570Kv Brushless Motor

Starting from a blank slate, Lucien Miller, CEO of Innov8tive Designs, set out to design the finest motors for the R/C aircraft market. Using the best materials available, such as hi-temperature N52 curved magnets, hi-temperature copper wire, high efficiency Kawasaki stator laminations, 7075 aluminum alloy and high-quality bearings, these motors truly live up to the name "BadAss". If you're tired of cheap motors that don't last, or motors with a complete lack of performance information (we call them mystery motors), then we think you're going to appreciate the new level of power, performance, and quality that BadAss motors offer.

Our performance charts are the most extensive and complete available anywhere. The specifications table included on each motor page is also very complete with all the information you may need to know about a motor. A full set of CAD drawings is also available for the motor, prop adapter and cross mount, allowing you to check the physical fit in your aircraft before you receive it. With all this information, it is easy to make an informed decision and purchase the ideal power system for your model every time.

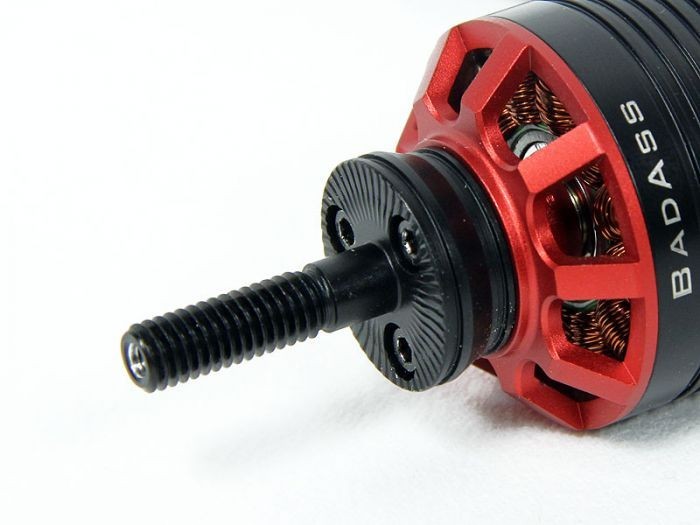

BadAss motors provide multiple options for mounting a propeller. Included with each motor is the standard bolt-on style prop adapter, which works for most applications. An optional extra-long bolt-on prop adapter is also available if you are using a prop with a thick hub along with a spinner with a thick backplate. Both adapters come with a standard hex nut and a Ny-Lock hex nut, for modelers that prefer the security of a locking style nut. Also available is the optional Bolt-on Smooth Shaft prop adapter. This part allows you to use a collet style prop adapter, folding prop hub, or aluminum spinner with integrated collet adapter on your motor without having to move the shaft. A full line of replacement parts is available to keep your BadAss motor in top shape for years to come.

Once you see how motor information should be presented and experience the exceptional build quality and performance of BadAss motors, you may never buy another "Mystery Motor" again. Let us show you a better way to select a power system, and we believe that you will become a BadAss Power Systems customer for life.

Features:

• Strong N52 curved magnets rated for 150C (302F)
• High temperature copper windings rated for 180C (356F)
• Bolt-on threaded prop adapter included with standard and Ny-Lock nut
• Optional bolt-on smooth front shaft and extra-long threaded prop adapters are available
• Versatile mounting options to fit most aircraft firewalls
• Dual Shaft Retention system with C-clip and shaft collar
• Ribbed Flux Ring for added strength and increased cooling area

Included in the Box:

• Motor with 4mm male bullet connectors installed
• Set of three 4mm female bullet connectors for your ESC
• Set of three red, black, and white heat shrink for your ESC
• Cross Mount with 4 flat-head mounting screws
• Bolt-on Prop Adapter with 3 hex socket head screws
• 1 Regular Prop Nut, and 1 Nylon Locking Prop Nut

Performance Data

BadAss 3530-570Kv Specifications:

Stator Diameter 35.0 mm (1.378 in)

Stator Thickness 30.0 mm (1.181 in)

Number of Stator Slots 12

Number of Magnet Poles 14

Motor Wind 8 Turn Delta

Motor Kv Value 570 RPM per Volt

No Load Current (Io) 1.54 Amps @ 10 Volts

Motor Resistance (Rm) per Phase 0.030 Ohms

Motor Resistance (Rm) Phase to Phase 0.020 Ohms

Maximum Continuous Current 75 Amps

Max Continuous Power (3-cell Li-Po) 830 Watts

Max Continuous Power (4-cell Li-Po) 1110 Watts

Max Continuous Power (5-cell Li-Po) 1390 Watts

Max Continuous Power (6-cell Li-Po) 1660 Watts

Motor Weight 319 grams (11.25 oz.)

Outside Diameter 43.5 mm (1.713 in.)

Shaft Diameter 6.00 mm (0.236 in.)

Motor Body Length 56 mm (2.205 in.)

Overall Shaft Length 78 mm (3.071 in.)

Motor Timing 5-10 degrees

PWM Frequency 8 KHz
