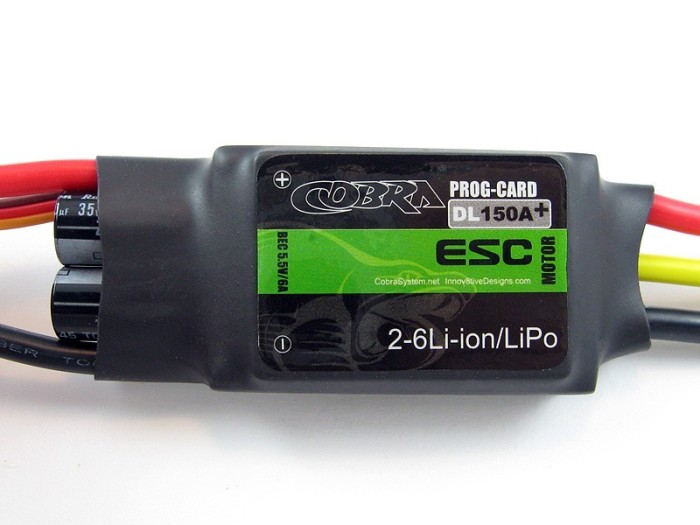

Cobra 150A ESC with 6A Switching BEC

Cobra 150A ESC with 6A Switching BEC

Cobra Speed Controllers are designed with a relentless pursuit of exceptional product quality. These speed controllers are the perfect complement to a Cobra Brushless motor, and they will also work with virtually any other brushless motor on the market as well. Cobra Speed Controllers are built from the best components available to provide the user with long life and trouble-free operation.

Cobra Speed Controllers are simple to program, and in most cases, they can be used right out of the package. Three of the Speed Controller parameters can be set without a programming card: Brake Mode, Battery Type, and Timing mode. The remaining parameters can be set with the optional ESC Programming Card, which is available separately.

All of the Cobra Speed Controllers come with an internal BEC circuit to power your radio receiver and servos. This 150A model comes with a 5.5 volt switching BEC rated for 6 amps of current to handle the power needs of the larger digital servos.

Because of the wide range of different motor connectors used on this size speed controller, the Cobra 100A ESC comes without any bullet connectors already installed. The motor leads are pre-tinned and ready to solder on your favorite connectors. 5mm or larger bullet connectors are recommended for this size speed controller.

Cobra Speed Controller Features

  • Easy Set-up and Operation
  • Basic Programming available through Throttle Stick
  • Throttle Range automatically detected and set for smooth, linear throttle response
  • Three different types of Low Voltage Cut-off available for Li-Po, Ni-XX or LiFe batteries
  • Three different LVC levels for each cell type: 3.2, 3.0 or 2.8 Volts/cell for Li-Po batteries, 0.9, 0.8 or 0.6 Volts/cell for Ni-XX batteries and 2.8, 2.5 or 2.2 Volts/cell for Li-Fe batteries
  • LVC type can be set to Hard Cut-off or Power Reduction Mode
  • Three different brake levels, Hard, Medium or Off
  • Three different timing modes, High, Low and Auto
  • Three different Motor Acceleration Rates, High, Medium and Low
  • Safe Start-Up: The ESC will not arm until the throttle is in the idle position
  • Locked-Rotor Protection: If the motor is blocked so the prop cannot rotate, the ESC will automatically shut down to prevent damage
  • PWM Frequency is set to 8KHz for best operation on a wide range of motors
  • Over Temp Protection: Shuts down the ESC output if temperature exceeds 230F (110C)
  • Auto Power Cut-off: If the throttle signal is lost for more than 3 seconds, the throttle will reduce to idle to prevent fly-aways.

Cobra 150 Amp ESC Specifications:

Weight (Without Connectors): 82.0 grams (2.8 oz)

Max Continuous Current: 150 Amps

Burst Current rating (15s): 188 Amps

Operating Voltage Range: 6 to 26 Volts

Number of Li-Po cells: 2 to 6 cells

Number of Ni-XX cells: 6 to 20 cells

Number of Li-Fe cells: 2 to 7 cells

Switching BEC Output: 6 amps @ 5.5 Volts

ESC Size (Inc. Caps, in mm): 72 x 33 x 18

ESC Size (Inc. Caps, in inches): 2.83 x 1.30 x 0.71

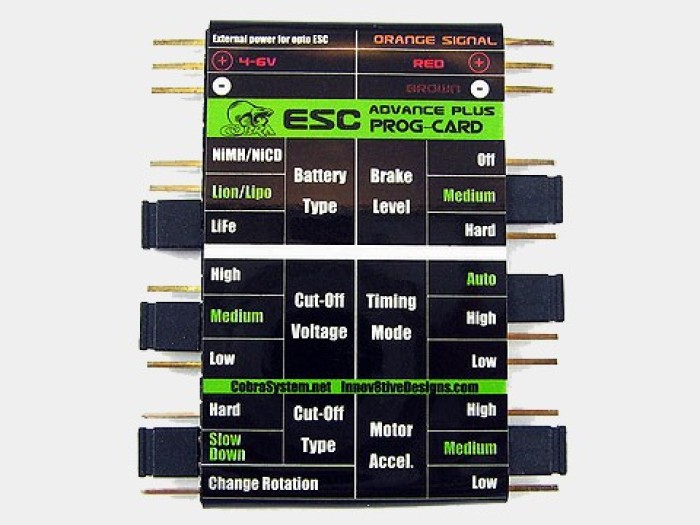

Note: The Cobra speed controllers do NOT ship with the programming card. This part must be purchased separately. The same programming card is used for the entire series of Cobra speed controllers so only one programming card is needed for all of your Cobra speed controllers.


SKU Number: C-150A-ESC
Price: $99.99
