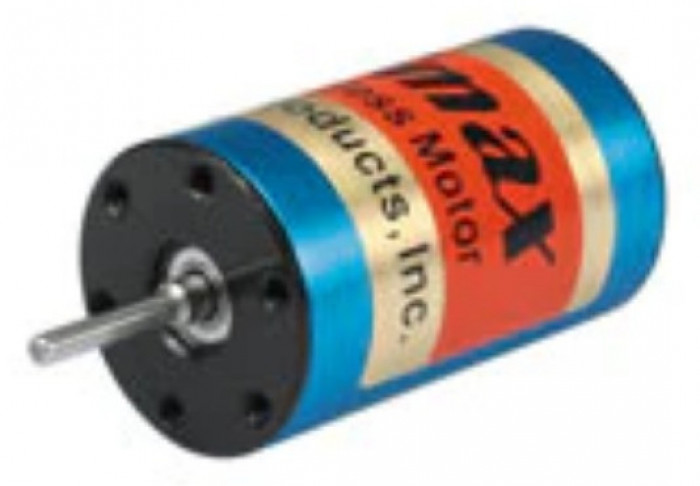

Himax Brushless motors are manufactured to high standards for the discerning modler. Designed for light-weight, high efficiency and durability of todays performance. Select ESC Combo below.
Specifications/Constants:
Weight
OD x Lengths
Max Efficient
Shaft
Max Motor RPM
KV
Resistance
No Load Current
48g(1.7oz)
20mm (.79") x 32mm (1.26")
6-15A
2.0mm(.078")
60k
5400
.120Rm
1.0A
Setup and Performance Chart
# Cells
Prop
Amps
Watts In
RPM
Thrust oz.
Pitch Speed MPH
2
3x3
9.5
56
32,930
6
87
2
4x2.5
12.9
96
27,720
11
60
2
4.1x4.1
17.1
127
23,670
11
87
Estimates based on manufacturers provided constants using E-Calc. High Quality 1200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.
