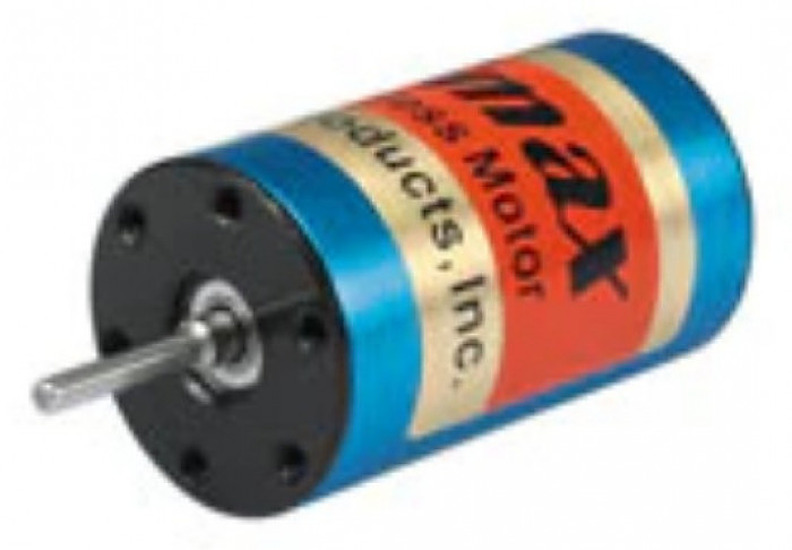

Himax 2825 Series Brushless Motor - LAST ONE LEFT!

Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, and durability these Himax motors are sure to make today's radio controlled models perform. Please read the entire operating manual to ensure correct functionality and best performance. The HA2825 series motor is made for small to medium size models weighing 32 to 64 ounces.

Features:

High Efficiency - High Power - Light-weight - Replacement for 500-600 Motors

Specifications:

• Weight: 138g, (4.9oz), Motor Only
• Max Power: 400W, (This is dependent on several factors)
• Max RPM: 50,000 RPM
• Diameter: 28mm, (1.10")
• Length: 48mm, (1.89")
• Shaft Diameter: 4.0mm, (.1575") or 3.17mm (.125")
• Mounting Screw Thread: 3.0mm, max depth 4.0mm, on 16mm, (.625") bolt circle
• Maximum Case Temperature: 100o C, (212o F)

Electrical Specifications:

• HA2825-2300 Kv = 2300, Rm = .078, Io = 0.5
• Efficient Operating Current = 4-23A HA2825-2700 Kv = 2700, Rm = .041, Io = 0.8
• Efficient Operating Current = 8-30A HA2825-3600 Kv = 3600, Rm = .025, Io = 1.4
• Efficient Operating Current = 15-35A HA2825-4400 Kv = 4400, Rm = .017, Io = 1.9
• Efficient Operating Current = 20-50A HA2825-5500 Kv = 5500, Rm = .011, Io = 2.2
• Efficient Operating Current = 25-60A

Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

Himax/Maxx Products Warranty Info.

DISCONTINUED; LAST OF HA2825 SERIES; SOLD AS-IS; NON-WARRANTY; NO RETURNS; NEW IN HARD CLEAR BOX.
