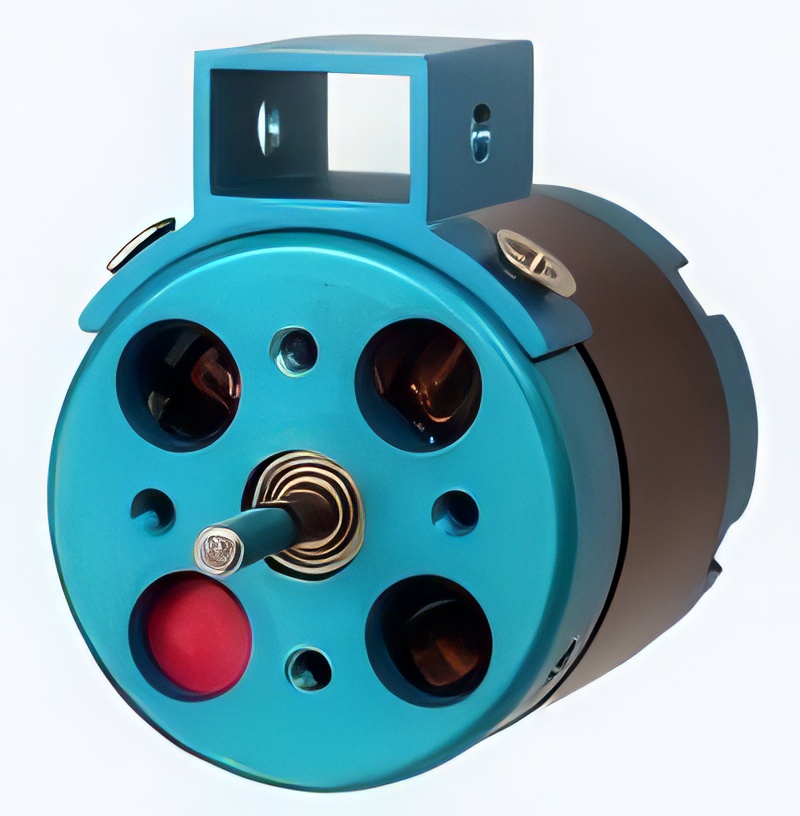

Himax HC2208 Outrunner Motor 1260kvHimax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. The HC2208 series motor is made for small to medium size models weighing 6 to 10 ounces. Replacement for N60-280 motors. Package includes collet type bolt on prop adapter, prop saver, bullet females for your ESC and fasteners. Specifications: | Weight | Size D x L | Amps | Shaft | Max Motor RPM | KV | Resistance | No Load Current | | 25g/.88oz. | 21.8mm (.86") x 21.6mm (.85") | 1-5, 6.5 15s | 2.0mm (.0787") | 20k | 1260 | .450Rm | .5A | Setup and Performance Chart | # Cells | Prop | Amps | Watts In | RPM | Thrust oz. | Pitch Speed MPH | | 2 | 7x4 | 2 | 26 | 7,270 | 6 | 26 | | 2 | 7x6 | 4.3 | 32 | 6,690 | 6 | 37 | | 3 | 8x6 | 5.5 | 41 | 5,920 | 8 | 32 | | 3 | 9x5 | 6.2 | 47 | 5,470 | 9 | 25 | | 3 | 7x4 | 6.1 | 69 | 10,080 | 12 | 36 | | 3 | 7x5 | 6.9 | 78 | 9,550 | 13 | 43 | | 3 | 8x3.8 | 7.8 | 88 | 8,940 | 14 | 30 | | 4 | 6x4 | 6.6 | 99 | 14,280 | 15 | 51 | | 5 | 4.7x4.2 | 5.2 | 98 | 19,840 | 153 | 75 | Estimates based on manufacturers provided constants using E-Calc. High Quality 1200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.
SKU Number: MPIHC22081260
|
