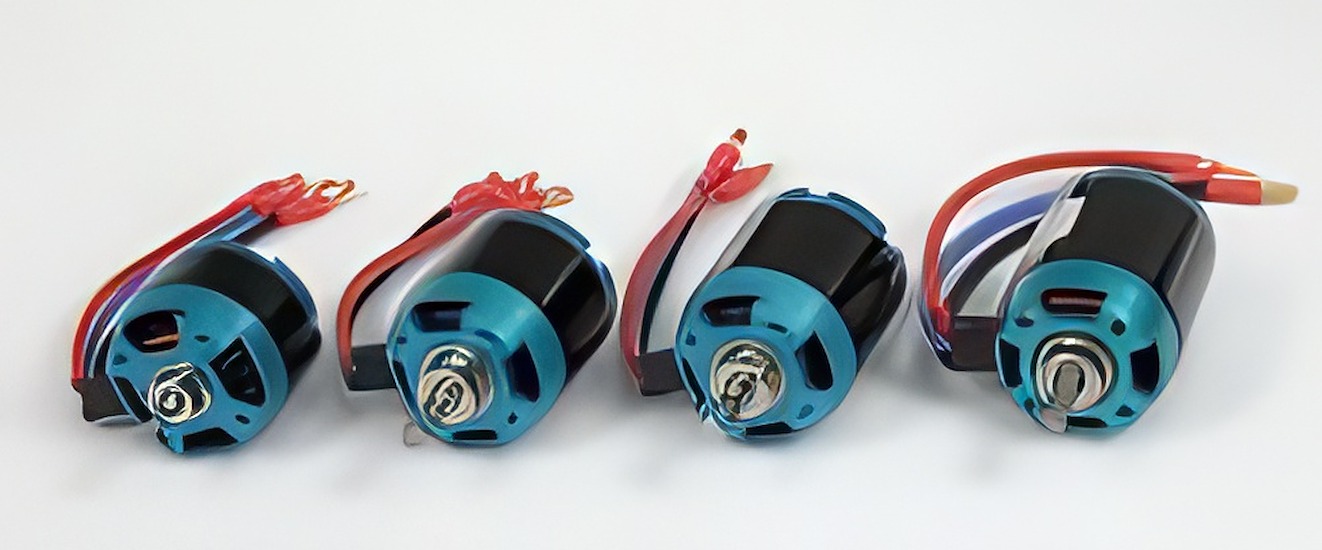

Himax HC3510 Outrunner 1540 KV

Himax 3510 series motors are most generally used in models 1.5 to a little over 3lbs depending on application. Replaces AXI 28 series motors. Manufactured to high standards for the discerning modeler. Package includes collet type prop adapter, prop saver, bullet females for your ESC and fasteners.

Specifications:

Weight	Size D x L	Amps	Shaft	Max Motor RPM	KV	Resistance	No Load Current
89g/3.1oz.	35.2mm(1.39") x 32.2mm(1.27")	10-30, 42 15s	4.0mm (1.574")	20k	1540	.029Rm	1.8A

Setup and Performance Chart

# Cells	Prop	Amps	Watts In	RPM	Thrust oz.	Pitch Speed MPH
2	8x6	19	143	9,820	24	54
2	9x7	28.6	215	8,950	32	58
2	10x8	39.1	293	8,000	40	59
3	8x4	26.6	299	14,600	43	53
3	9x4.5	39.2	441	13,310	57	54
3	8x6	35.3	397	13,710	48	75
4	7x4	28.7	431	19,830	52	71
4	7x6	38.4	576	18,720	56	103
4	8x4	41.3	620	18,390	70	66

Estimates based on manufacturers provided constants using E-Calc. High Quality 2200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.
SKU Number: MPIHC35101540
