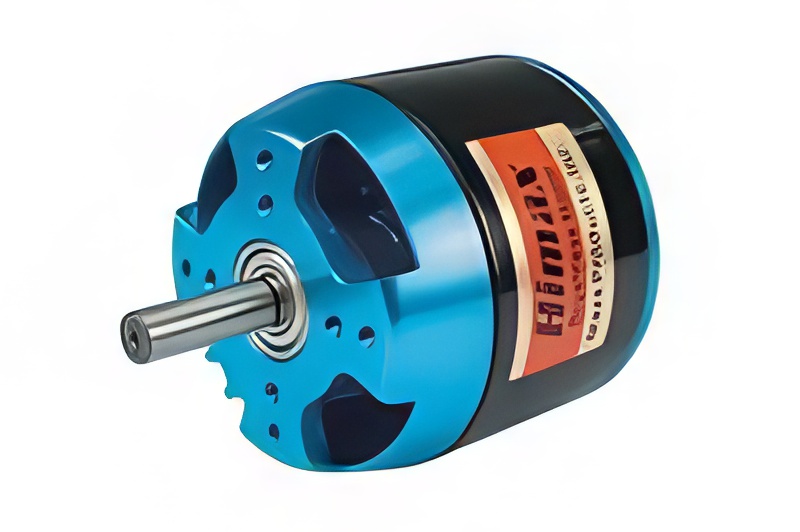

Himax HC6332-230 Series Outrunner MotorThese motors are for large models weighing 10-12Lb for 3-D flight, 17-22Lb for aerobatic flight and 22-30Lb for leisure flight. High torque to turn large props direct drive. Mounting hardware and connectors included. Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for light-weight, high efficiency, high torque and durability Himax Outrunner motors are sure to make today's radio controlled models perform. All HC63 series outrunner motors include: Prop adapter, female wire connectors, motor mounting kit w/screws and two hex keys. Specifications: | Weight | Size D x L | Amps | Shaft | Max Motor RPM | KV | Resistance | No Load Current | | 690g/24.3oz. | 63mm(2.48") x 63mm(2.48") | 30-80, 100 15s | 8.0mm (.315") | 10k | 230 | .025Rm | 1.9A | Setup and Performance Chart | # Cells | Prop | Amps | Watts Input | RPM | Static Thrust oz. | Pitch Speed MPH | | 12 | 16x12 | 77.7 | 3636 | 8,550 | 349 | 97 | | 12 | 18x8 | 81.1 | 3795 | 8,450 | 397 | 64 | | 10 | 18x8 | 62.4 | 2434 | 7,390 | 295 | 56 | | 10 | 16x12 | 59.6 | 2324 | 7,460 | 261 | 85 | | 10 | 16x12 | 57.3 | 2625 | 7,630 | 276 | 87 | | 10 | 15x10 | 43.2 | 1685 | 7,880 | 212 | 75 | | 8 | 20x10 | 69.2 | 2159 | 5,650 | 279 | 54 | | 8 | 20x12 | 77.5 | 2418 | 5,460 | 298 | 62 | | 7 | 22x12 | 81.1 | 2214 | 4,620 | 286 | 53 | Estimates based on manufacturers provided constants using E-Calc. Kokam 3200 used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.
SKU Number: MPIHC63320230
|
