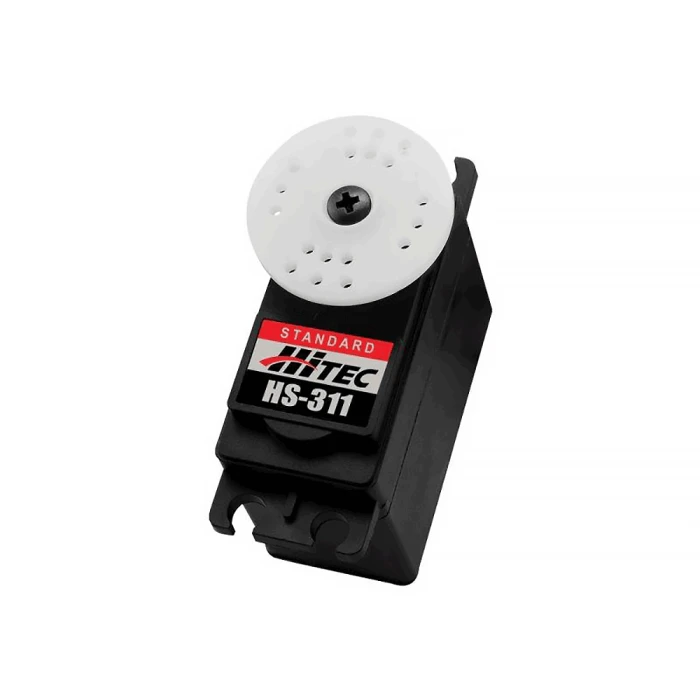

The HS-311 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with precise resin gears and SMT circuitry, the HS-311 represents a remarkable value in today's R/C market.
Features:
- Our Low Cost Standard Size Servo
- Reliable Three-Pole Ferrite Motor
- Durable Resin Gears
- Popular Selling Servo
| Torque (4.8/6v) | Weight | Speed (4.8/6v) | Bearings | Size SAE | Size Metric | Type |
|---|
| 41.66/51.38 oz.in. - 3~3.7kg.cm | 1.51oz./43g | 0.19~0.15s | | 1.57" x 0.78" x 1.43" | 40.0 x 20.0 x 36.50mm | Analog |
HS-311 Servo Specifications Performance Specifications Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.19 ~ 0.15
Maximum Torque Range: oz. / in. 41.66 ~ 51.38
Maximum Torque Range: kg. / cm. 3.0 ~ 3.7
Current Draw at Idle: 7.7 mA
No Load Operating Current Draw: 180 mA
Stall Current Draw: 800 mA
Dead Band Width: 5 us
Physical Specifications
Dimensions (Inches): 1.57 x 0.78 x 1.43
Dimensions (Metric): 40.0 x 20.0 x 36.5
Weight (Ounces): 1.51
Weight (Gram): 43.0
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type: None
Output Shaft (type / Omm): Standard 24
Case Material Plastic:
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40
