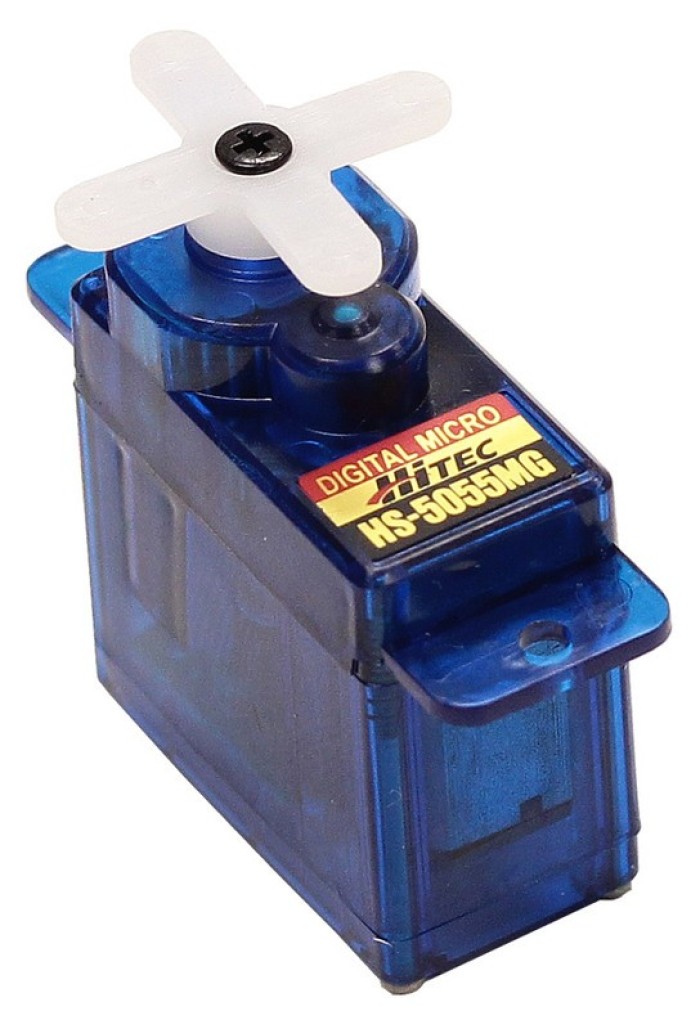

Hitec HS-5055MG Economy Metal Gear Feather Servo .33oz

Enter the new HS-5055MG digital, metal geared version... with this new servo Hitec takes ultra micro performance to the next level without breaking the bank. The new HS-5055MG is a perfect choice for " smaller" high performance electric helicopters, aircraft and sail planes.

Features

Digital Circuit for Increased Performance and Holding Power

Smooth Coreless Motor

Rugged Metal Gears

Standard Programmable Digital Circuit

Economical, Feather, Digital Servo

Programmable Functions

End Point Adjustments

Direction

Fail Safe

Dead Band

Speed (Slower)

Data Save / Load

Program Reset

Accessories

Metal Gear Set

Plastic Case Set

Applicable Horns

Performance Specifications

Operating Voltage Range (Volts DC) 4.8V ~ 6.0V

Speed (Second @ 60?) 0.20 ~ 0.17

Maximum Torque Range oz. / in. 18 ~ 22

Maximum Torque Range kg. / cm. 1.3 ~ 1.6

Current Draw at Idle 8 mA

No Load Operating Current Draw 120 mA

Stall Current Draw 700 mA

Dead Band Width 6 us

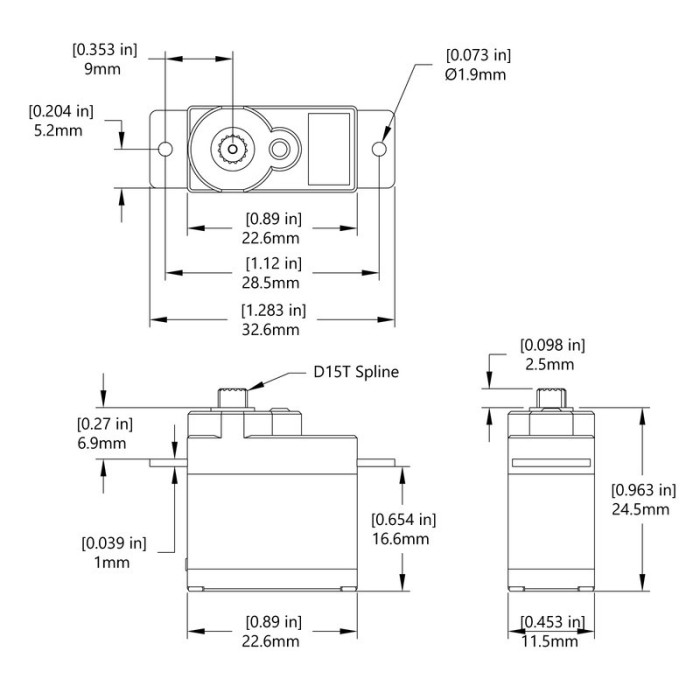

Physical Specifications

Dimensions (Inches) 0.89 x 0.45 x 0.94

Dimensions (Metric) 22.8 x 11.6 x 24.0

Weight (Ounces) 0.33

Weight (Gram) 9.5

Circuit Type G1 Programable Digital

Motor Type 3 Pole Metal Brush Ferrite

Gear Material Metal

Bearing Type None

Output Shaft (type / Omm) Feather 15

Case Material Plastic

Dust / Water Resistance N / A

Connector Gauge (AWG) / Strand Count 28 / 20

Radio Control Applications

Parkflyer < 36 oz.

Sport Plane 20 - 35 oz.

Sailplane <2 meter / DLG

3D Performance Foamie

Scale N / A

Electric Helicopter 200mm

Gas Helicopter N / A

On Road N / A

Monster Truck N / A

Buggies N / A

Truggies N / A

Short Course / Truck N / A

Crawlers N / A

Sail Boat N / A

Power Boat 1/18th

Choose Quantity Option below. Want 1, 2, or 3 servos? Select first option, then enter quantity 1, 2, or 3. Want a bulk discount? Select 4-Pack, then enter how many 4-Packs you want.
