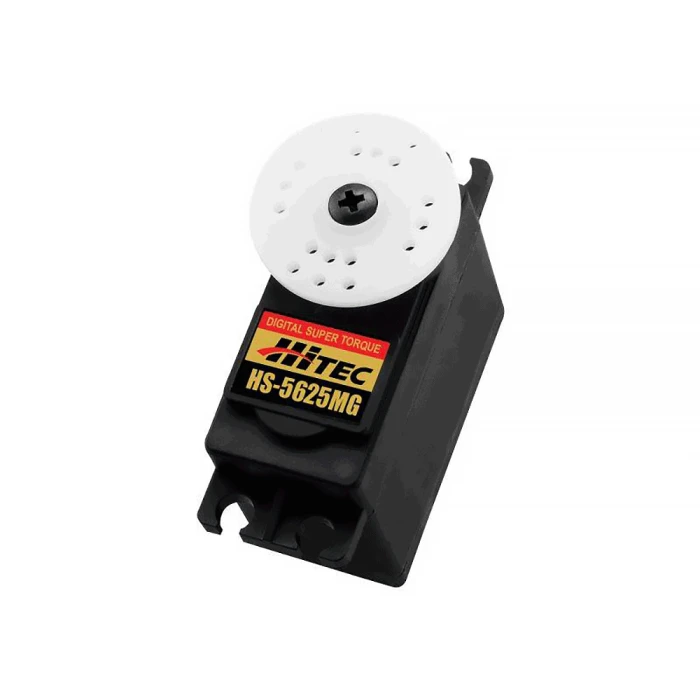

Built to endure tough conditions, the HS-5625MG delivers outstanding performance in both high-stress and high-speed environments. Its cored motor and dual ball bearings work together to produce powerful, efficient movement with minimal backlash, making it ideal for demanding tasks that require tight control.

NOTE: The HS-5625MG is the digital version of the HS-625MG.

Torque (4.8/6v)	Weight	Speed (4.8/6v)	Bearings	Size SAE	Size Metric	Type
109.7/130.5 oz 7.9/9.4 kg cm	60g /1.95oz	0.17/0.14s	2BB	1.6"x 0.78"x 1.49"	41 x 20 x 38mm	Digital

Key Features:

• High Speed Response: With a swift transit time of just 0.14 sec/60° @ 6.0V, the HS-5625MG is engineered for applications that demand quick, accurate control.
• Metal Gear Train: Built with 1 MP (Metal + Plastic) & 3 Metal Gears, it provides long-lasting performance and increased crash resistance over plastic gear counterparts. Cored Metal Brush Motor: Designed with Hitec's cored motor, the HS-5625MG provides dependable speed, torque, and long service life.
• Ball Bearing Support: Even during heavy-duty use, the dual ball bearings on the output shaft ensure smooth operation and reduced wear.
• Standard Fit: Its standard size makes it compatible with many popular RC platforms. Fully Programmable: Via the Hitec DPC-20 and/or HFP-30 digital servo programmers, the performance of the HS-5625MG can be fined tuned for customized response curves, fail-safe settings, and more.

Specifications:

• Operating Voltage Range: 3.5V ~ 6.8V (2S LiFe)
• Speed:4.8V: 0.17 sec/60°; 6.0V: 0.14 sec/60°
• Torque: 4.8V: 109.7 oz-in (7.9 kgf-cm); 6.0V: 130.5 oz-in (9.4 kgf-cm)
• Dimensions: 1.60 x 0.78 x 1.49 in (40.8 x 20.0 x 37.8mm)
• Weight: 1.95 oz (60.0g)
• Position Sensor Type: Digital
• Output Spline: 24T

Ideal Applications:

• Large-scale and competition-grade models
• RC monster trucks and crawlers
• Gas and glow-powered aircraft
• High-performance RC boats
• Robotics and automation projects
