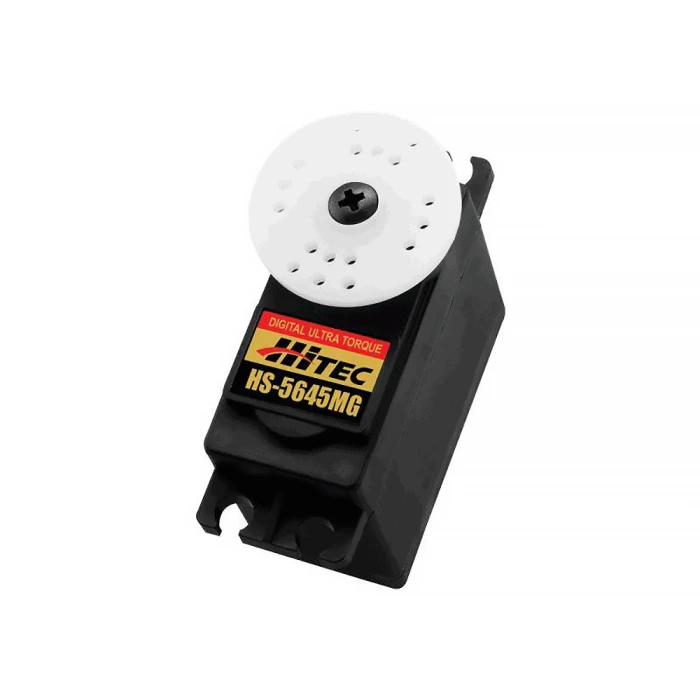

Upgrade your RC setup with Hitec's HS-5645MG Digital Servo, engineered for hobbyists who demand power, precision, and proven reliability. Featuring high-torque output, digital accuracy, and a robust metal gear train, the HS-5645MG is a top choice for demanding applications like RC vehicles, airplanes, crawlers, boats, and robotics. This servo's advanced digital circuitry delivers enhanced centering and holding power while providing ultra-smooth, consistent motion across the entire range. Built to handle the stress of high-load scenarios, the HS-5645MG includes a powerful cored motor and dual ball bearings for smooth operation and extended life. The durable metal gear train ensures you get consistent performance under load, making it ideal for 1/8 scale vehicles, aerobatic planes, and large-scale models.
NOTE: The HS-5645MG is the digital version of the HS-645MG.
| Torque (4.8/6v) | Weight | Speed (4.8/6v) | Bearings | Size SAE | Size Metric | Type |
|---|
143.0/168.0oz
10.3/12.1 kg cm | 60g/2.12oz | 0.23/0.18s | 2BB | 1.61"x 0.79"x 1.49" | 40 x 20 x 38mm | Digital |
Key Features:
High Torque Output: With a torque rating of up to 168 oz-in @ 6.0V, the HS-5645MG delivers exceptional strength for steering, throttle, and control surface applications. Metal Gear Train: Built with 1 MP (Metal + Plastic) & 3 Metal Gears, it provides long-lasting performance and increased crash resistance over plastic gear counterparts. Cored Metal Brush Motor: Designed with Hitec's cored motor, the HS-5645MG provides dependable speed, torque, and long service life.
Ball Bearing Support: Even during heavy-duty use, the dual ball bearings on the output shaft ensure smooth operation and reduced wear.
Standard Fit: Its standard size makes it compatible with many popular RC platforms. Fully Programmable: Via the Hitec DPC-20 and/or HFP-30 digital servo programmers, the performance of the HS-5645MG can be fined tuned for customized response curves, fail-safe settings, and more.
Specifications:
- Operating Voltage Range: 3.5V ~ 6.8V (2S LiFe)
- Torque: 4.8V: 143.0 oz-in (10.3 kgf-cm); 6.0V: 168.0 oz-in (12.1 kgf-cm)
- Speed: 4.8V: 0.23 sec/60°; 6.0V: 0.18 sec/60°
- Dimensions: 1.61 x 0.79 x 1.49 in (40.0 x 20.0 x 37.8mm)
- Weight: 2.12 oz (60.0g)
- Position Sensor Type: Digital
- Output Spline: 24T
Ideal Applications:
- Large-scale and competition-grade models
- RC monster trucks and crawlers
- Gas and glow-powered aircraft
- High-performance RC boats
- Robotics and automation projects
 "Hitec HS-5645MG High Torque Metal Gear 24T Digital Sport Servo")
