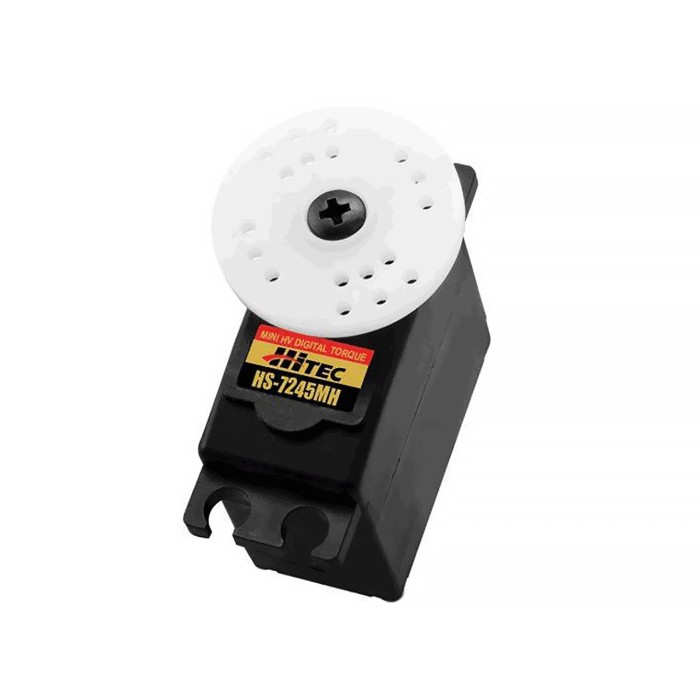

Hitec HS-7245MH 34g Coreless Metal Gear 24T Digital Mini Servo

Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the full-size muscle of this servo will make you the master of your RC domain.

Features:

• Our Best High Speed Mini Servo
• Efficient Coreless Motor
• Heavy Duty Metal Gear Train
• Dual Ball Bearing
• 7.4v 2-Cell LiPo Capability
• G2.5 Fully Programmable Digital Circuitry

 Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Overload Protection
• Resolution
• Data Save / Load
• Program Reset

 HS-7245MH Servo Specifications

Performance Specifications:

• Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
• Speed (Second @ 60?) 0.13 ~ 0.11
• Maximum Torque Range oz. / in. 72 ~ 89
• Maximum Torque Range kg. / cm. 5.2 ~ 6.4
• Current Draw at Idle 12 mA
• No Load Operating Current Draw 190 mA
• Stall Current Draw 1,600 mA
• Dead Band Width 2 us

 Physical Specifications:

• Dimensions (Inches) 1.28 x 0.66 x 1.29
• Dimensions (Metric) 32.4 x 16.8 x 32.8
• Weight (Ounces) 1.20
• Weight (Gram) 34.0
• Circuit Type G2.5 Programable Digital
• Motor Type Coreless Metal Brush
• Gear Material Metal
• Bearing Type Dual Ball Bearing
• Output Shaft (type / Omm) Standard 24
• Case Material Plastic
• Dust / Water Resistance N / A
• Connector Gauge (AWG) / Strand Count 22 / 60

 Radio Control Applications:

• Parkflyer N / A
• Sport Plane 4 - 12 lbs.
• Sailplane 2 meters
• 3D Performance 4 - 12 lbs.
• Scale 4 - 12 lbs.
• Electric Helicopter 500mm
• Gas Helicopter 50-59 Class
• On Road 1/12th
• Monster Truck N / A
• Buggies 1/12th
• Truggies N / A
• Short Course / Truck N / A
• Crawlers N / A
• Sail Boat <1 meter
• Power Boat N / A
