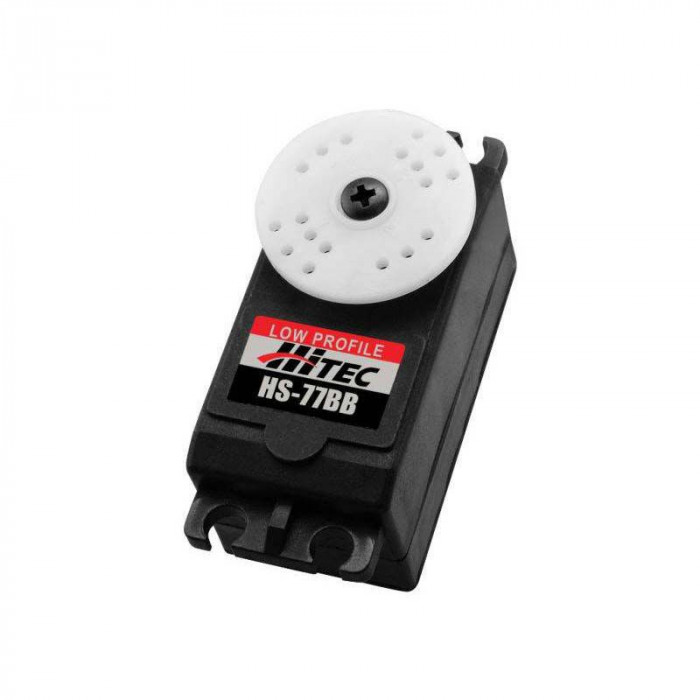

Hitec HS-77BB  Low Profile, Nylon, Top Ball Bearing High Speed High Torque Servo - Product Image
Click for larger image

Hitec HS-77BB Low Profile, Nylon, Top Ball Bearing High Speed High Torque Servo

The HS-77BB With its low profile design and strong standing torque the HS-77BB is a great choice for wing or tail mounting in aircrafts up to 1.20 size. Submarines, boats, cars and trucks can also benefit from this servo's strength and compact size.

Torque (4.8/6v)WeightSpeed (4.8/6v)BearingsSize SAESize MetricType
61.1 oz/in (4.4kg/cm) @ 4.8V 76.3 oz/in (5.5kg/cm) @ 6V1.23oz. 0.18 sec/60 deg @ 4.8V; 0.14 sec/60 deg @ 6V at no load1BB 1.73 x 0.90 x .98" high43.94 x 22.86 x 24.89mmAnalog

Specifications:

Size Category: Specialty

Type: Analog

Application: Aircraft, 1/10th scale steering

Torque: 61.1 oz/in (4.4kg/cm) @ 4.8V, 76.3 oz/in (5.5kg/cm) @ 6V

Speed: 0.18 sec/60 deg @ 4.8V; 0.14 sec/60 deg @ 6V, at no load

Length: 1.73 in (44.0mm)

Width: 0.90 in (23.0mm)

Height: 0.98 in (25.0mm)

Weight: 1.23 oz. (35g)

Bushing Or Bearing: Bearing

Bearing: Single

Motor Type: 3 Pole

Connector Type: Universal

Gear Type: Nylon

Current Draw Idle: 8mA

Voltage: 4.8V to 6.0V

Deadband: 8us

Choose Quantity Option below. Want 1, 2, or 3 servos? Select first option, then enter quantity 1, 2, or 3. Want a bulk discount? Select bulk quantity, then enter quantity of 1.




SKU Number: HRC31077S
Price: $29.99
Quantity
Quantity:
