Old School Model Works Javelin Kit


Old School Model Works Javelin Kit

An all-around classic that flies as great as it looks.

Imagine an easy-to-build kit that has outstanding high-speed performance as well as dependable low speed stability. Now imagine it in a great looking design and you've just described our Javelin.
Bolt on a .25-sized engine and enjoy gentle flying and barnstorming. max it out with a .51-sized engine and tear up the skies with high-performance aerobatics.
All of this comes in a great looking design that is remarkably easy to build, thanks to our innovative design techniques and precision laser cut parts.

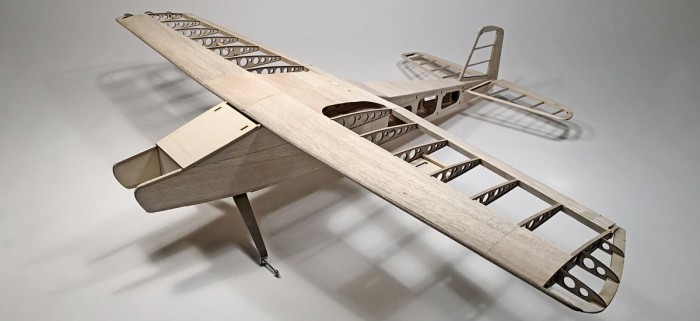

Because of the interlocking design and high quality laser cutting of the parts, the Javelin is a quick build. Not only does it build quick, but it also builds straight and true as all of the parts were designed to align properly with a minimum of fuss and alignment tools.

The Javelin utilizes a first for OSMW kits - a built-up main gear box. This is extremely strong, yet lightweight at the same time.

The extra large cabin area gives you easy access to install most any brands of radio and control linkages.

Up-front, we've designed in a large hatch that covers the spacious battery/tank compartment. This area will easily handle larger 4s packs and 12 ounce tanks.

Whether you choose to power your Javelin with electric or glow power, we've got you covered. The firewall comes pre-etched with markings to aid in the mounting of the included motor mount. Glow engines can be mounted upright, side, or even inverted with little modification necessary.

Specifications:

Wingspan: 60 inches
Wing Area: 710 sq inches
Length (airframe only): 49 inches
Weight: 4.5 - 6 pounds

Radio: 4 channel system
Power:
o Glow (.25-.51 engine, 6-10 ounce tank, fuel tubing)
o Electric (equivalent brushless motor, 3-4s LiPo)



Features of the Javelin

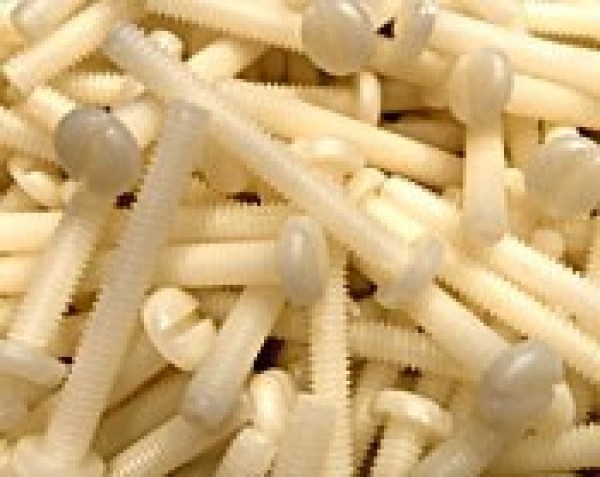

Premium USA Hardware

Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality.

Dual Ailerons

Mounted underwing, these two pre-cut aileron hatches make it easy to install the aileron servos.



WEB-LOCK Construction

There's nothing else like it. Build our wings, straight and true - with a minimum amount of fuss.

Bolt on main gear

The included pre-bent gear mounts to a new rugged main gear box and quickly bolts in place.

Front hatch

Held in with magnets, this extra large hatch gives you easy access to batteries or fuel.

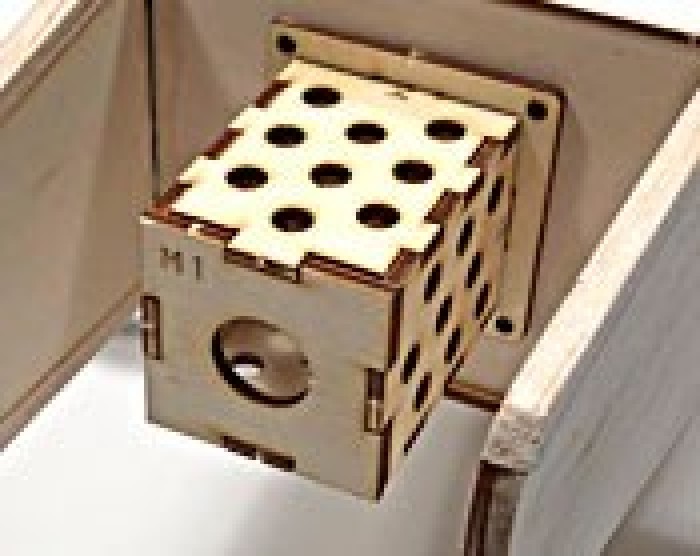

Included Motor Box

For electric power, we include the pieces to build this electric motor mounting box.



Additional items needed to complete the Javelin kit:

o Propeller
o Engine/Motor mount & mounting hardware
o "Y" servo harness (for ailerons)
o Pushrods (two 5" for ailerons, two 24" for elevator & rudder, one 12" for throttle if glow powered)
o Clevises for the pushrods (8 if electric, 10 if glow).
o 2 - 3.5" diameter wheels
o 1 - tailwheel assembly
o Covering

Due to high demand, please allow 1-2 weeks for shipment, thank you!


SKU Number: OSMJAVEKIT
Price: $219.95
