Old School Model Works Robinhood 25 Kit - Product Image
Click for larger image



Old School Model Works Robinhood 25 Kit

Based off a 1980's classic, originally offered by World Engines.

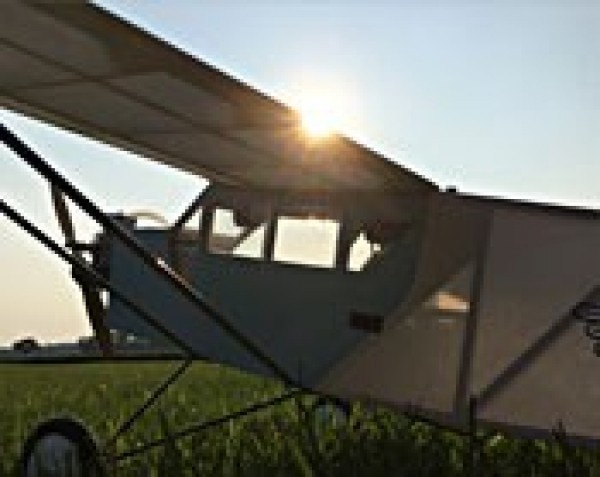

The Robinhood is a fun-scale version of the Curtiss Robin built back in the 1920's Originally marketed through World Engines, this model retains all the good, clean looks of the original and retains all the great flying characteristics that make a good sport airplane.

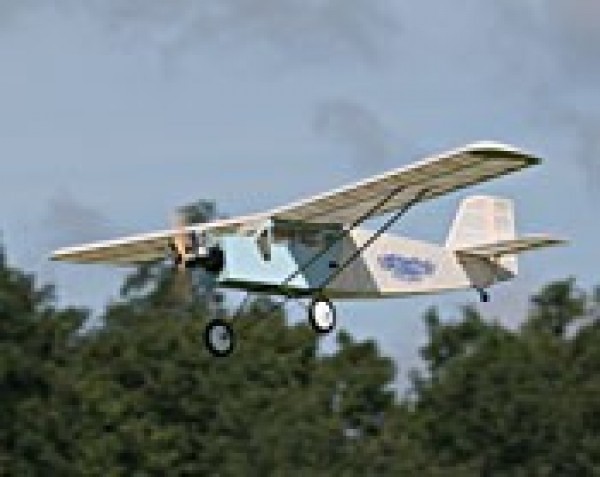

In the air, the Robinhood 25 is a true barnstormer. Don't mistake this for a 3-D hovering machine and resist the urge to overpower it. The Robinhood 25 is at it's best when cruising on a lazy afternoon or performing some gentle aerobatics. Also, no problems with mown-grass runway takeoffs and landings.

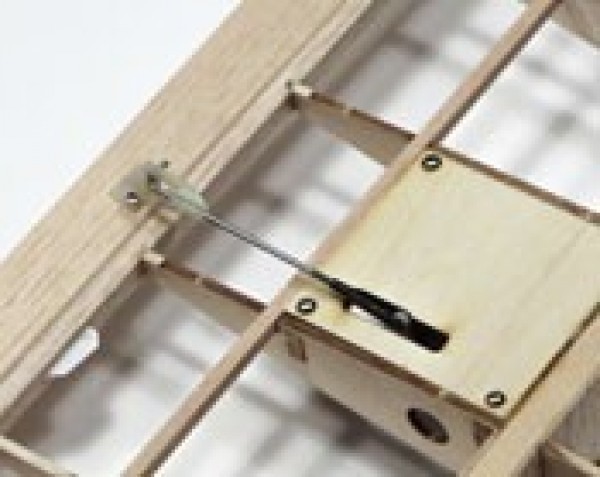

If you want to go truly "old school", it can be built for simple 3-channel control (rudder, elevator and throttle). For even more control, the included ailerons can be made fully functional (4 channel control).


The Robinhood can be powered with either an electric or glow powerplant. We've designed the fuselage with a built-in hatch so you have quick access to either your batteries or fuel tank.


Struts were a necessity on the full-scale Curtiss Robin, but are optional for the Robinhood 25. Instructions are included on how to implement them if you'd like to give your Robinhood 25 a touch of Old-School elegance.


Specifications:

  • Wingspan: 51 inches
  • Wing Area: 400 sq inches
  • Length (airframe only): 33 inches
  • Weight: 3-3.5 pounds

 Radio:

  • 3 or 4 channel system
  • 2 40-70 in./oz. servos for elevator and rudder;
  • 2 40-70 in./oz. servos for ailerons if making a 4 channel model;
  • 1 40-70 in./oz. servo for throttle (if using a glow engine)

 Power:

  • Electric (.25 equivalent brushless motor, 60 amp ESC, 3S LiPo)
  • Glow (.20-.25 engine, 4-6 ounce tank, fuel tubing)

 Additional items needed to complete the Robinhood 25 kit:

  • Propeller
  • Engine/Motor mount & mounting hardware
  • "Y" servo harness (for ailerons)
  • Pushrods (two 5" for ailerons, two 24" for elevator & rudder, one 12" for throttle if glow powered)
  • Clevises for the pushrods (8 if electric, 10 if glow).
  • 2 - 3" diameter wheels
  • 1 - tailwheel assembly
  • Covering

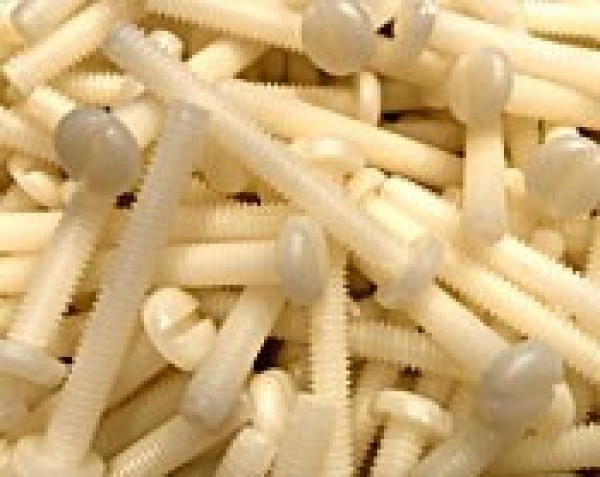

 Premium USA Hardware Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality.

3 or 4 channels You decide - go true "old-school" with 3 channel control, or opt for functional ailerons (4 channel).

WEB-LOCK Construction There's nothing else like it. Build our wings, straight and true - with a minimum amount of fuss.

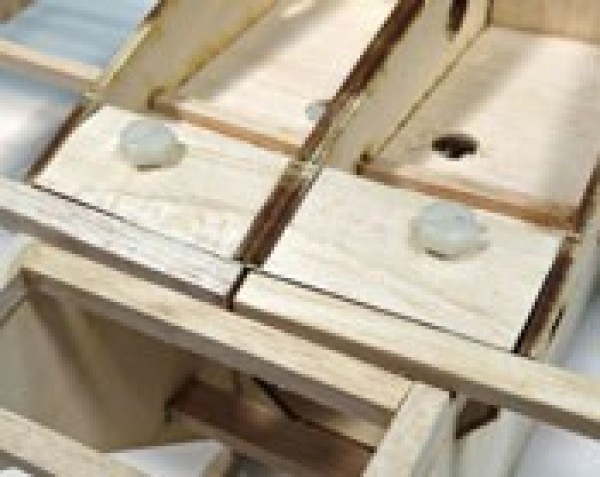

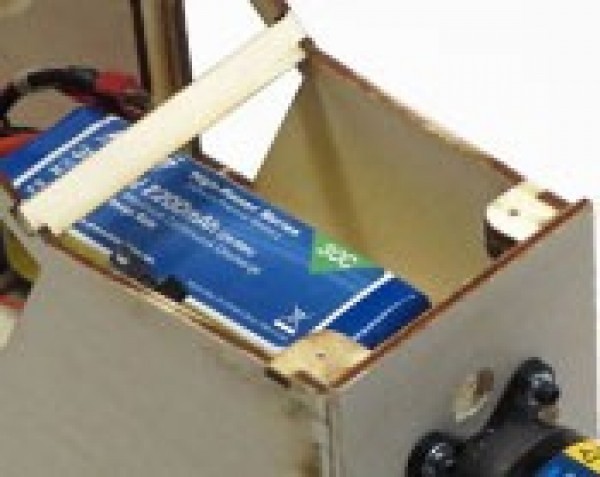

 Bolt on wing Staying true to the original, we have replicated the original bolt-on system for the wing. Front hatch Held in with your choice of screws or magnets, this gives you easy access to batteries or fuel.

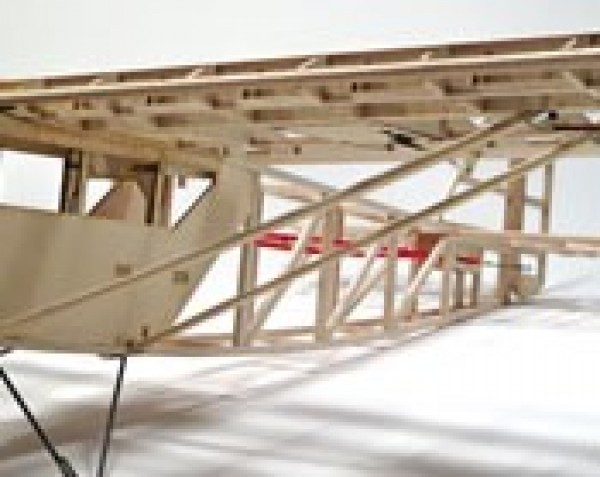

Optional Wing Struts You choose. Create a set for scale looks, or fly without them for a streamlined change of pace.





All Old School Model Works kits feature:

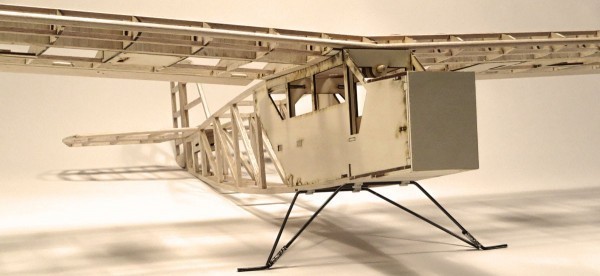

Precision laser-cut parts
Included in every Old School Model Works kit are all the wing ribs, fuselage formers, and other wood needed to build the aircraft.

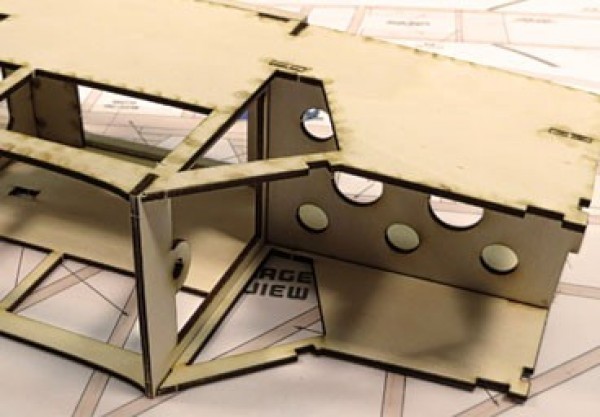

Interlocking parts
We've engineered each kit to give you the best chance of success. Each laser-cut part interlocks with the next for an accurate and secure joint.

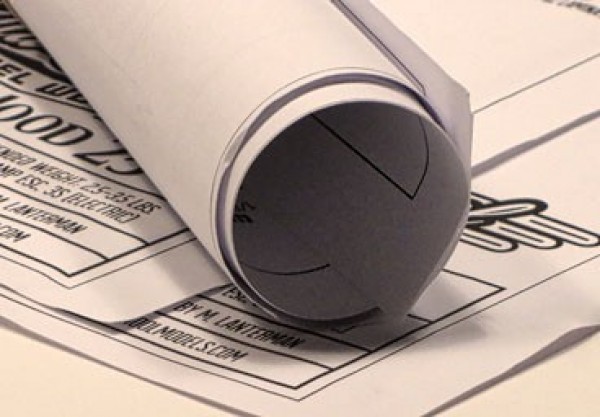

Rolled Plans
Each of our kits contains a set of rolled plans, never folded. They are full-size, highly detailed, and computer-drawn for accuracy.

WEB-LOCK Wing Construction
Our exclusive wing design and construction techniques give you everything you need to easily build a straight and true wing with a minimum amount of fuss.




SKU Number: OSMRH25KIT
Price: $109.95
Quantity Available:  1
Quantity:

Radical RC SiteMap

Questions on this Old School Model Works Robinhood? Email us at RadicalRC.com@gmail.com
