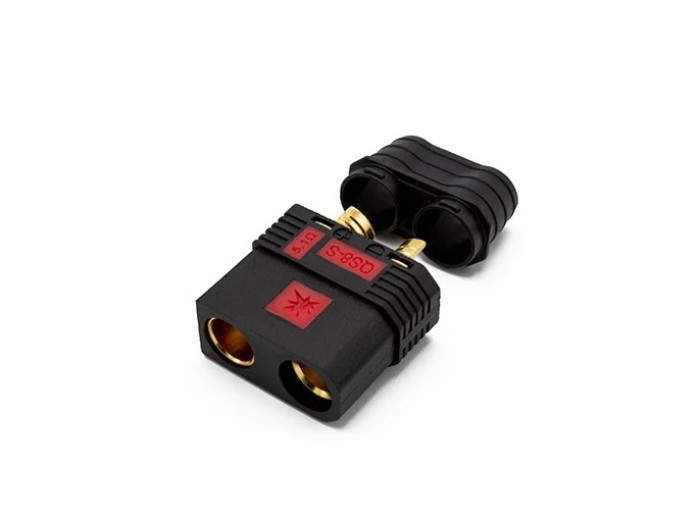

QS8-S Anti-Spark, 5.1ohm Connector, Female
Click Image To View Larger

QS8-S Anti-Spark, 5.1ohm Connector, Female

Made from high-temp Nylon and gold-plated bullet connectors that have a built-in anti spark system, used for high voltage/high current brushless power systems. QS8 Anti-Spark Connectors are a high quality, high current connector that is perfect for high voltage applications. Not only is the connector capable of handling spikes in excess of 300 amps, but the design also provides an anti-spark connection that eliminates the dreaded POP when you plug in the battery helping to extend the life of the connector. High voltage bashers, speed run enthusiasts and pilots of all disciplines can benefit from this advanced connector technology. The QS8 connector features 8mm bullets that can accommodate wire up to 6awg, inside a heavy-duty nylon/fiber composite housing. Plus, an included plastic wire cap covers the soldered connection and eliminates the need for heat shrink to create an incredibly clean installation that works well, looks great and is easy to manage.

FEATURES:

  • Anti-Spark technology increases lifespan of connector
  • Great for all High Voltage Applications
  • Package Includes One Female Connector, One Male Connector & End Cap

SPECIFICATIONS:

Connector Diameter: 8.00mm

Width: 29.5mm

Total Length: Approx 70mm (Male & Female w/End Cap)

Weight:
41g (Male+Female Set)

Metal Material:
Gold Plated Brass

Plastic Material: Fiber Nylon Comp

Flame retardant rating: UL94 V0

Rated Voltage: 500V DC

Continuous Current: 110A

Rated Current: 110A-180A

Continuous Current: 110A - Maximum peak current 500A

Resistance: 5.1ohm

Temperature Range:-30° to +120°C

Max Wire: 6AWG-10AWG

Recommended Cable: 8AWG Silicone Wire

Color: Black



INCLUDES:

(1) QS8 Female Antispark connector
(1) Wire Cap


No reviews yet Write a review

SKU Number: RRCQS8F
Price: $8.99
