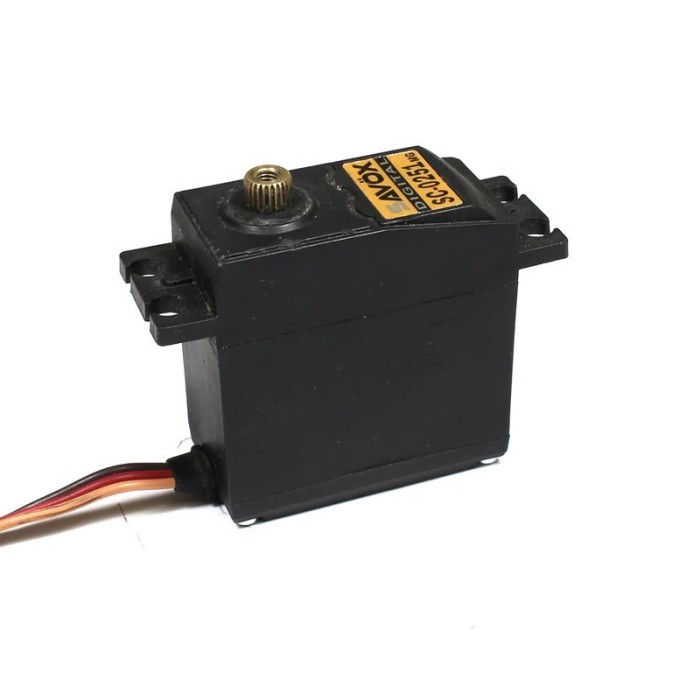

Savox SC-0251MG High Torque, Metal Gear, Digital Servo

Savox SC-0251MG High Torque, Metal Gear, Digital Servo

The Savox SC-0251MG is a high torque, metal-geared, digital servo which is suitable for many applications.

Features:

  • Metal gear train ensures durability under harsh situations.
  • Slightly taller case design.
  • Ideal for aircraft and some 1/8 off road car applications.

Specifications:

  • Torque @ 4.8v - 13.0kg/180.5oz-in
  • Torque @ 6v - 16.0kg/222.2oz-in
  • Speed @ 4.8v - 0.20 sec/60 deg
  • Speed @ 6v - 0.18 sec/60 deg
  • Dimensions L x W x H (mm): 40.7 x 19.6 x 42.4
  • Weight: 61.0g
  • Operating Temperature: 14° - 122°F (-10° - 50°C) Running Current (no load): 300mA @4.8V, 350mA @6.0V
  • Stall Current (at locked): 2600mA @4.8V, 3200mA @6.0V
  • Idle Current: 5mA @4.8V, 6mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120? (1000 -> 2000 μ second)
  • Neutral Position: 1500 u second
  • Pulse Width Range: 800 -> 2200 μ second
  • Maximum Travel: Appx 164? (800 -> 2200 μ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed



Discontinued, while supplies last! 3 LEFT IN STOCK

See SAVSC-0251MGP for replacement


SKU Number: SAVSC-0251MG
Price: $59.99
