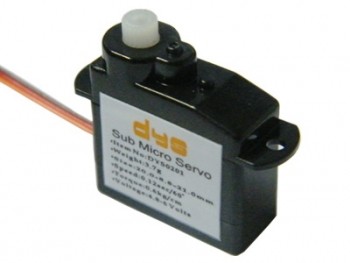

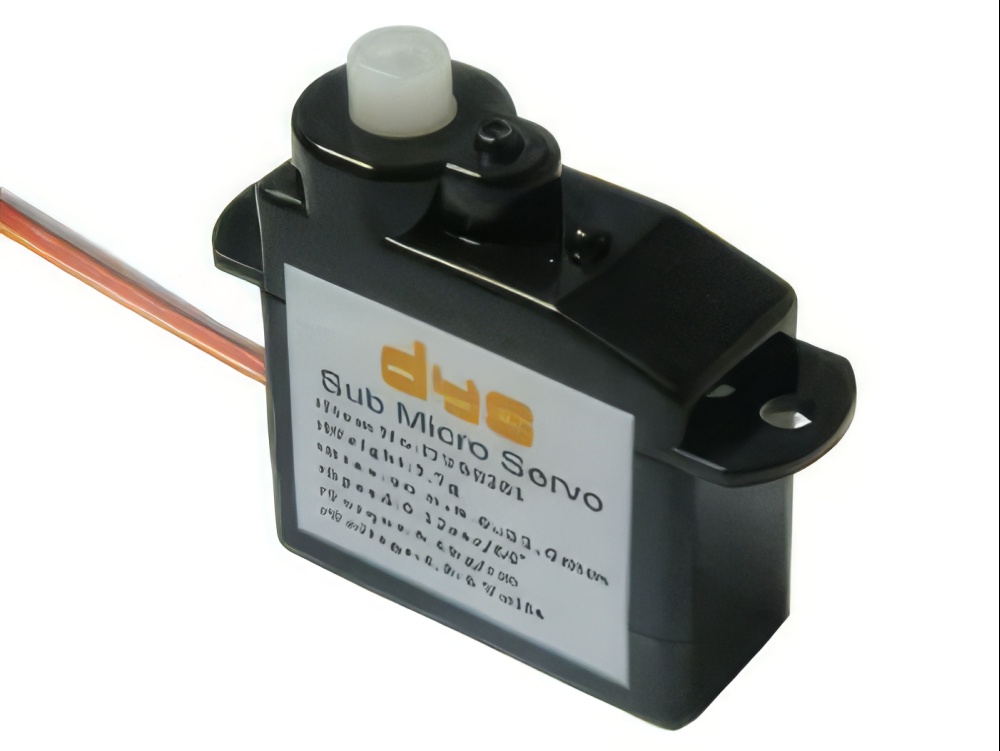

Light servo! Great for indoor and small park flyers where large throws are not used. Universal servo connector. Includes several servo horns, horn and mounting screws.
Specifications: Weight Advertised: 3.7g No BS* Weight: 4.625g Volt: 4.8~6V Speed: 0.12/60 degree Torque: 0.7kg/cm Dimension(mm): 19.8x8.0x22.5 Bearing: Plastic
Typical Advertised weights are without connector, wire, horn & screw. "No BS Weight" includes connector, horn and horn screw.

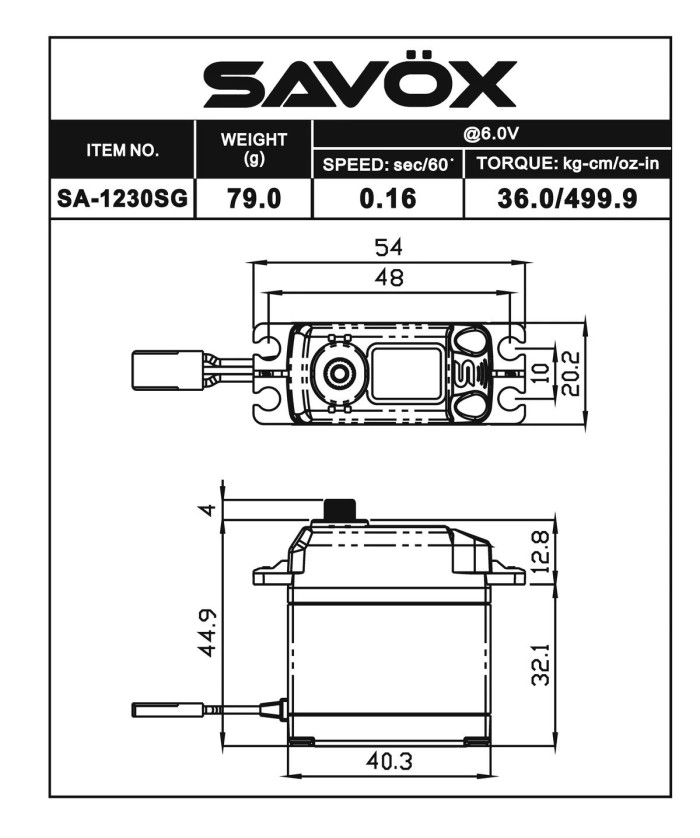

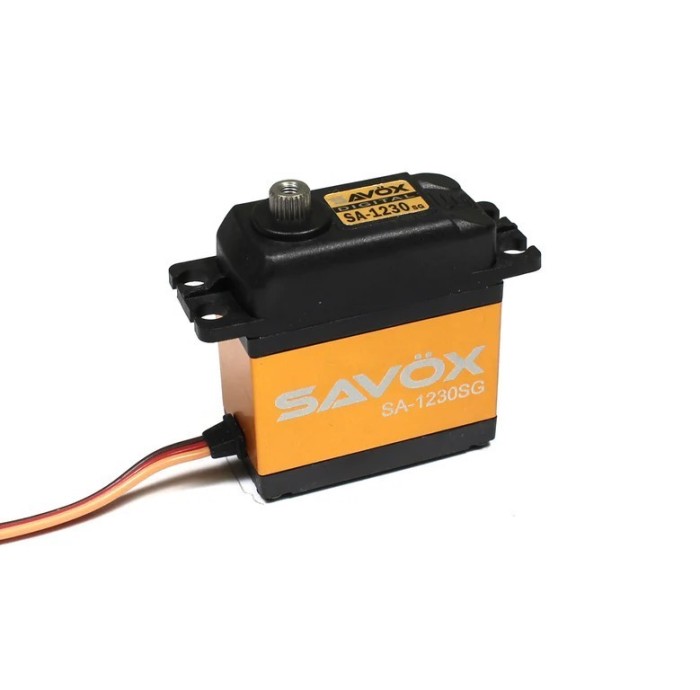

The Savox SA-1230SG Monster Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.
Features:
Extremely strong unique steel gears ensure long-life and durability. Ideal for steering on rock crawlers, monster trucks, and large-scale aircraft. Slightly taller case design.
Specifications:
Torque @ 4.8v - 30.0kg/416.6oz-in
Torque @ 6v - 36.0kg/499.9oz-in
Speed @ 4.8v - 0.20 sec/60 deg
Speed @ 6v - 0.16 sec/60 deg
Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
Weight: 79.0g
Operating Temperature: 14° - 122°F (-10° - 50°C) Running Current (no load): 180mA @4.8V, 250mA @6.0V
Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
The SC-1252MG is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution. Ideal for 1/10 on-road cars where space is limited and speed is desired.
Features:
Metal gear train ensures durability under harsh situations.
Ideal for 1/10 on road vehicles.
Aluminum case provides cooler operating temperatures.
Specifications:
Torque @ 4.8v - 4.5kg/62.5oz-in
Torque @ 6v - 7.0kg/97.2oz-in
Speed @ 4.8v - 0.08 sec/60 deg
Speed @ 6v - 0.07 sec/60 deg
Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
Weight: 44.5g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 150mA @4.8V, 180mA @6.0V
Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 90° (1000 -> 2000 μ second)
Neutral Position: 1500 μ second
Pulse Width Range: 950 -> 2050 μ second
Maximum Travel: Appx 160° (700 -> 2300 μ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
Discontinued, while supplies last, 2 LEFT IN STOCK!
The SW-0231MG is a budget friendly, waterproof, high torque, digital servo in a slightly taller case than most standard sizes. This is a great upgrade if you're looking to drive your RC vehicle in any condition yet unable to use higher voltage to obtain more power. Features:
Strong metal gear train for added durability.
Waterproof case design.
Ideal for cars, truck, and boats subject to water or snow.
Slightly taller case design.
Specifications:
Torque @4.8v - 12.0kg/166.6oz-in
Torque @6v -15.0kg/208.3oz-in
Speed @4.8v - 0.20 sec/60 deg
Speed @6v - 0.17 sec/60 deg
Dimensions L x W x H (mm): 41.8 x 20.2 x 42.9
Weight: 66.0g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 100mA @4.8V, 120mA @6.0V
Stall Current (at locked): 3800mA @4.8V, 4800mA @6.0V
The SW-0250MG is a waterproof, high torque, digital mini servo that performs! An excellent replacement for the standard servo found in Traxxas 1/16 scale vehicles. Features:
Strong metal gear train for added durability.
Waterproof case design.
Ideal for cars and boats subject to water or snow.
Ideal for Traxxas 1/16 vehicles.
Specifications:
Torque @4.8v - 3.5kg/48.6oz-in
Torque @6v -5.0kg/69.4oz-in
Speed @4.8v - 0.14 sec/60 deg
Speed @6v - 0.11 sec/60 deg
Dimensions L x W x H (mm): 29.5 x 14.0 x 32.5
Weight: 25.0g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 80mA @4.8V, 100mA @6.0V
Stall Current (at locked): 1000mA @4.8V, 1250mA @6.0V
The SC-0253MG is a budget friendly, digital standard servo with metal gears and a bearing support for those wanting more than what a standard servo offers.
Features:
Strong metal gear train for added durability.
Ideal for 1/10 cars and planes.
Great replacement for standard servos with plastic gearing.
Specifications:
Torque @ 4.8v - 4kg/55.0oz-in
Torque @ 6v -6.0kg/83.3oz-in
Speed @ 4.8v - 0.17 sec/60 deg
Speed @ 6v - 0.15 sec/60 deg
Dimensions L x W x H (mm): 40.7 x 20.0 x 37.0
Weight: 59.0g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 220mA @4.8V, 240mA @6.0V
Stall Current (at locked): 800mA @4.8 V, 1000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 +- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 120° (1000 -> 2000 μ second)
Neutral Position: 1500 μ second
Pulse Width Range: 800 -> 2200 u second
Maximum Travel: Appx 164° (800 -> 2200 μ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
SKU Number: SAVSC-0253MG
RC Servos
Servos are the small motors that move an aircraft's control surfaces, and this category collects a range of them from lightweight micro units to a high-torque digital servo. The right servo comes down to matching size, weight, and torque to the job it has to do on your model.
Micro and Sub-Micro Servos
DYS servos in 3.7g, 4.4g, and 6g sizes suit park flyers, small models, and tight installations where space and weight are limited. The Cirrus SC301 9g servo steps up slightly for models that need a bit more muscle in a compact package.
High-Torque Options
At the other end, the Savox SA-1230SG is a steel-gear digital servo built for monster torque, suited to large or fast aircraft where control loads run high and gear strength matters. Steel gears and a digital circuit help this servo hold position firmly under the loads a bigger model puts on a surface.
Compare the servos below and choose one sized to your airframe and control demands.
