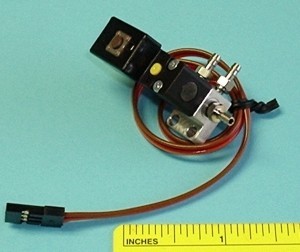

evoJet Orbit Pro Premium R/C Pneumatic Single Action Landing Gear Valve

The PRO pneumatic evoJet Orbit valves are based on first-class miniature valves with Viton seals. These valves are equipped with entirely new digital micro controllers, making their handling even more convenient:

* Freely programmable switching points for compatibility with all R/C equipment
* Switch mode(gear) or Pulse width mode(brakes) selectable
* Completely EMC compliant (electromagnetic compatibility)

The valve is simply connected to a receiver output just like you would connect a servo, or e.g. combined with the elevator servo as a braking valve. This allows precise and easy programming of the switching points with the help of a small push-button on the valve. A red LED informs you about the current switching state.

This one-way version is suitable for landing gears and flaps with built-in spring or as a proportional braking valve.

* Weight: 21 g
* Power: 4.8 - 6 V / 100 mA
* Connector selection:
A3: barbed pushover for 3mm+Robart
A4: barbed pushover for 4mm tubing
B: QS-3 straight for 3mm tubing
C: QS-3 90? turnable for 3mm tubing
* Operating pressure: max. 10 bar
* Nominal flow rate: 12 l/min
* Dimensions (W x H x D): 16 x 28 x 30 mm

SKU Number: EVO0980P

Price: $83.00
