Specifications:
Input Voltage Range: 5-30v
Output Voltage: 5V
Output Amps: 3A continuous; 10A surge
Regulation Method: Switch Rate
Weight: 16.3g (.582 oz)
Size: 2" x 1" x .5" at thickest point
Wire Length: >8" input and output

Instructions:
Install between switch harness and your RX. Switch must be between battery and regulator, not between regulator and RX.

TEMPORARILY OUT OF STOCK, COMING SOON!

Product Introduction

Linear High Precision Regulator system (No switching Noise generated)Digital Controlled Electrical (MOSFET) Power Switching System.

3steps Low voltage sound and visual warning indicators.

The DYMOND DIGI SWITCH is an electronic switch with a powerful integrated BEC for use with two-cell LiPo battery packs.

The DIGI SWITCH provides a low voltage control for the connected LiPo pack, that outputs a visual and audible signal as the battery pack gets empty.

Linear BEC without any switching noise

3-stage low voltage warning

Extremely low power consumption in the off state (only 0.047 mAh)

Specifications

Nominal input voltage: 7.4V, 2-cell LiPo, max. > 1

Output voltage: 6V

Rated current: 5.5A continuous current at then 5V output voltage

Self power consumption

Off: 0.047 mAh

Off: 0.047 mAh

On mode: 3.9 mAh

With signal: 21 mAh

Dimensions: 59 x 20 x 21 mm

Dimensions for mounting hole: 17 x 46 mm, 19 mm mounting depth

Weight: 19.8g

Low voltage warning

Below 7.0V: Slow sound and flash frequency

Below 6.6V: Medium Speed sound and flash frequency

Below 6.0V: Rapid Tone and flash frequency

1. When the switch is on/off, press and hold the button for about 1 second.

2. Regulator built-in digital electronic switch.

3. When the voltage drops, it will be notified by LED lights and sound.

Protects equipment from over voltage. A 5 cell Rx NiCd battery pack (7.5 volts) offers the advantage of faster servos with more torque. But, when fully charged this same pack can cause jittery servos. Maxx Product offers ACC134 to regulate the higher voltage down to 6.0 volts, eliminating the jittering. This product limits voltage to Rx to 6.0v. Output 6.0 volts max. Bypassed below 6.0 volts. Fits JR, Futaba J, Hitec & Air.Z. Current capacity: 10A continuous, 20A surge.

Note: Some equipment is not rated as high as 6 volts (some servos and gyros).

• Universal connectors.
• User friendly design.
• Protects equipment from overvoltage.
• Provides steady regulated power.

• Large heat sink for optimum performance
• Dual HD AWG22 input/ouput connectors to double current capacity and redundancy
• Output is factory preset to 5.95V, fully adjustable between 5V to 6.5V
• When input is higher than 6V or any set voltage, it will regulate to 6V or any set voltage
• When input drop below set voltage, regulator is bypassed
• Weight only 1.4 oz
• Current: At 7.4V input, 10Amp continuous, 20Amp max for 1 minutes
• Input Range: 4.8V -12V

Replaces MPIACC134N

Specifications:
Input Voltage Range: 5-30v
Output Voltage: 6V
Output Amps: 3A continuous; 10A surge
Regulation Method: Switch Rate
Weight: 16.3g (.582 oz)
Size: 2" x 1" x .5" at thickest point
Wire Length: >8" input and output

Instructions:
Install between switch harness and your RX. Switch must be between battery and regulator, not between regulator and RX.

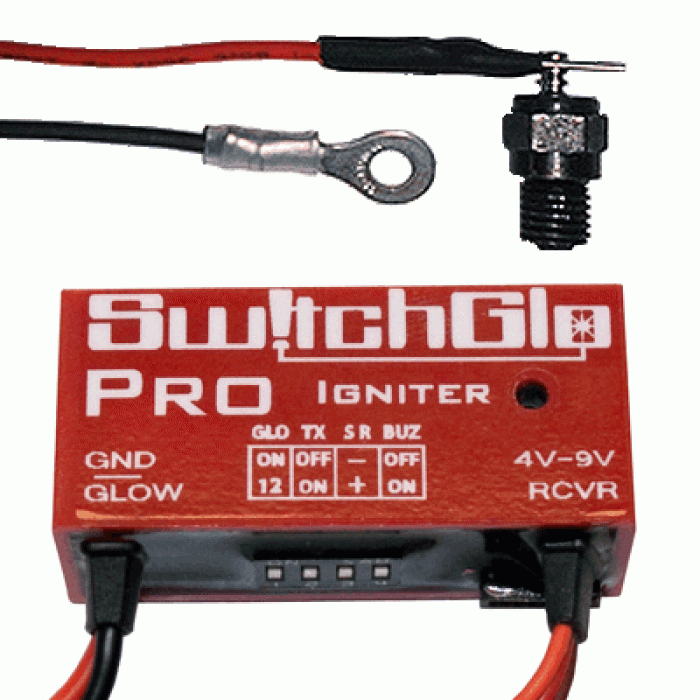

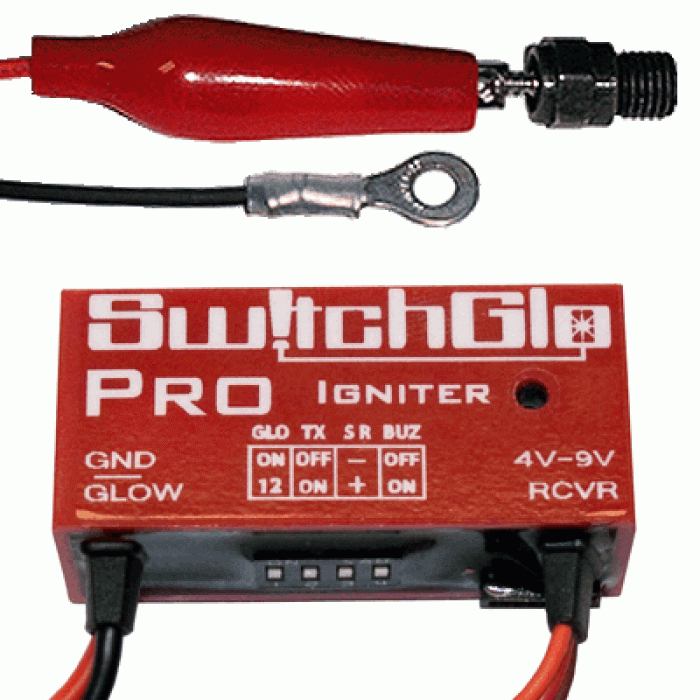

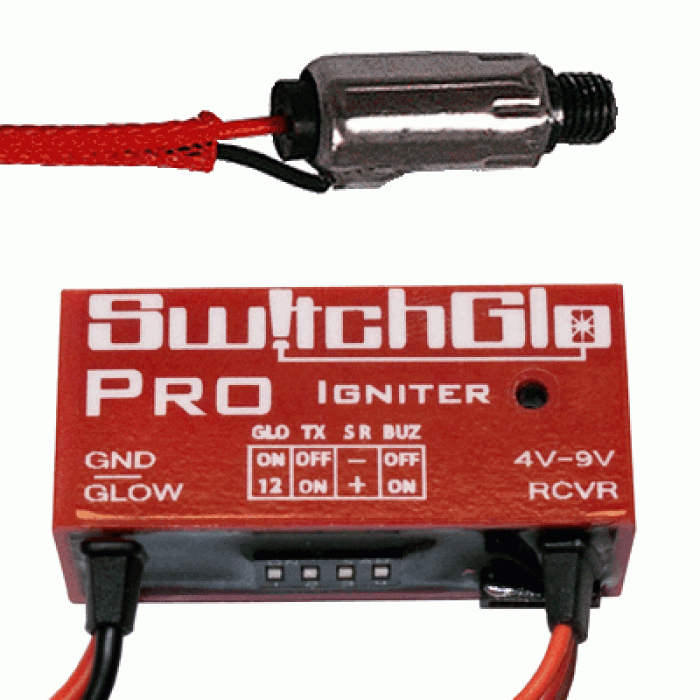

You can program mix SwitchGlo just as you can program mix any servo on your craft, allowing you to utilize your glow in ways you never thought possible! Low Throttle glow activation is achieved by programming your TX to activate the SwitchGlo channel at any throttle position you desire. You can further enhance your Low Throttle mix by assigning a toggle switch to activate the mix, thereby forever preventing "Hot Starts"

Know when you glow! - SwitchGlo will beep the entire time your glow plug is glowing, providing invaluable reassurance you never thought you needed! SwitchGlo helps you diagnose starting problems; a single beep from SwitchGlo signals the glow/ground loop is open, most often indicating your glow plug is spent. This feature greatly reducing your troubleshooting efforts!

Technology: SwitchGlo Pro is an intelligent and highly efficient on-board glow driver. Its state-of-the-art voltage adaptive algorithm optimizes the power transferred from your battery pack to your glow plug providing the ideal glow. Outfitted with low power components, switched-mode voltage regulation and adjustable firmware, SwitchGlo is not your conventional on-board glow system.

Other on-board glow systems use linear regulators that waste power (up to 3 times as much) and operate at dangerously high temperatures. These linear glow drivers also suffer from low glow at lower pack voltages, while SwitchGlo gives a strong and consistent glow from 4V - 9V. Combining the benefits of switch-mode voltage regulation and the smallest footprints on the market, SwitchGlo Pro is the most advanced way to glow! SwitchGlo Pro draws an insignificant 0.4mAh per 1 second of glow time and will not noticeably drain your receiver battery. Total onboard weight is only 25 grams including the pig tail.

Easy to cut gator off and solder on any plug connector you like, see options in drop down menu. Check out "Glow & Fuel Power Everthing" sub category "Glow Plug Fittings" for varieties. At your Add any of them to your basket and include a note with order that you'd like it added to your SwitchGlo Pro along with wire length you'd like. We'll do the soldering no charge!

Specifications:

• Dimensions: 1.587" x .720" x .590"
• Receiver cable: 8"
• Glow Plug Pigtail: 8"
• Weight: 28 grams with pigtail
• Input Voltage: 4V - 9V input
• Output Power: 4.8W

Power Consumption:

•  0.44mah per second of glow time
• 2.2mah per 5 seconds glow (average start)
• 4.4mah per 10 second glow (auto shut-off)
• 33mah to start craft for a typical 15 flights per charge
• Over 2300 average glows on a 5200mah battery (assumes no other battery draw)
• Glow plug average current draw measured at 1.5a

Low voltage warning beeps start when input voltage falls to 7V, increased warnings at 6.6v. Warning beeps and flash become rapid at 6V. So efficient, when off, it would take 886 days to consume 1000mah out of your pack.

Specifications:
Regulated Voltage: 6.11v (less than fully charged 6V NiCad or NiMH pack which is about 7.5v)
Max Input Voltage: 9V
Current used at idle when on: 3.897mah
Current with alarm sounding: 21 mah
Current used when off: .047 mah (1/21276th of an amp!)
Cutout Dimensions: .663" (16.9mm) x 1.8" (45.7mm)
Weight: .701 oz. (19.8g)

TEMPORARILY OUT OF STOCK

Specs:
Input Voltage 5.5-45 volts (to 28 NiMh/NiCad or 10 Lipos)
Output Voltage 5.5 volts(<35mv ripple)
Weight 20 grams
Max no. servos 8-10
Output Current 3 amps continuous / 5 amps up to 5 minutes
Dimensions 1 1/4 inches wide x 1 3/4 inches long x 3/8 inch thick
Type High efficiency Switching Voltage Regulator
Input / Output leads 12 inches in length
Output servo connector Universal
Normally $40.00, on sale for $25.00!!
SKU Number: UBEC45V55VHV

Replaces HS-5685MH.

The metal D-645MW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Features

Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline

Programmable Functions

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

Accessories

Metal Gears Set | Link |
Metal / Plastic 1st Gear Set | Link |
Plastic Case Set | Link |
Applicable Horns | Link 1 o 2 o 3 |

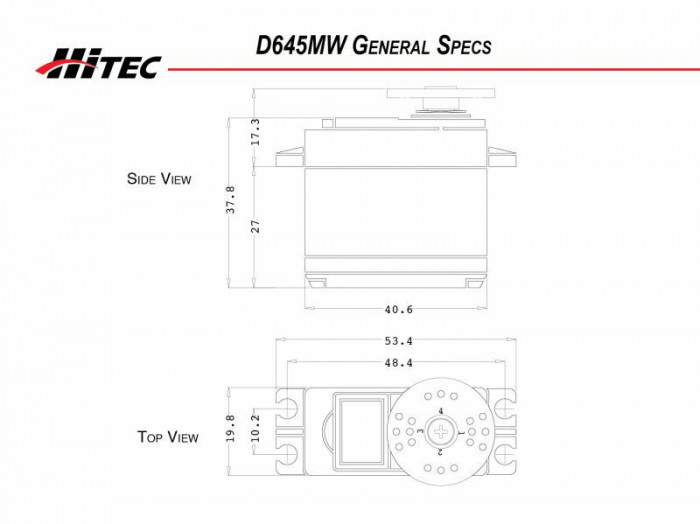

D645MW Servo Specifications
Performance Specifications

Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60?) 0.28 ~ 0.20 ~ 0.17
Maximum Torque Range oz. / in. 115 ~ 158 ~ 180
Maximum Torque Range kg. / cm. 8.3 ~ 11.3 ~ 12.9
Current Draw at Idle 30 mA
No Load Operating Current Draw 500 mA
Stall Current Draw 2,650 mA
Dead Band Width 2 us

Physical Specifications

Dimensions (Inches) 1.59 x 0.77 x 1.48
Dimensions (Metric) 40.6 x 19.8 x 37.8
Weight (Ounces) 2.11
Weight (Gram) 57.0
Circuit Type 32bit Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / ?mm) H25T
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60

Radio Control Applications

Parkflyer N / A
Sport Plane 12 - 15 lbs.
Sailplane 2 meters and up
3D Performance 12 - 15 lbs.
Scale 12 - 15 lbs.
Electric Helicopter 600mm
Gas Helicopter 50 - 59 Class
On Road 1/10th
Monster Truck 1/10th
Buggies 1/10th
Truggies 1/10th
Short Course / Truck 1/10th
Crawlers N / A
Sail Boat = >1M & Scale
Power Boat 1/10th

Large heat sink for optimum performance. Soft-mount Charge Switch can be relocated with a regular extension. Dual HD AWG22 input/output connectors to double current capacity and redundancy. Built-in regulator is factory preset to 5.95V output, fully adjustable between 5V to 6.5V. When input is higher than 6V or any set voltage, it will regulate to 6V or any set voltage. When input drop below set voltage, regulator is bypassed. Weight only 1.7 oz. Idle Current: 0.03 ma max. Current: At 7.4V input, 10Amp continuous, 20Amp max for 1 minutes. Input Range: 4.8V -12V.

Note: Current capacity drops as input voltage increases.
SKU Number: MPIACC405

Castle Creations Warranty Info.

SOLD OUT, MANUFACTURER BACKORDER, PENDING PRODUCTION

Specs:
Input Voltage 5.5-45 volts (to 28 NiMh/NiCad or 10 Lipos)
Output Voltage 5.5 volts(<35mv ripple)
Weight 20 grams
Max no. servos 8-10
Output Current 3 amps continuous / 5 amps up to 5 minutes
Dimensions 1 1/4 inches wide x 1 3/4 inches long x 3/8 inch thick
Type High efficiency Switching Voltage Regulator
Input / Output leads 12 inches in length
Output servo connector Universal
Normally $40.00, on sale for $25.00!!
SKU Number: UBEC45V55VHV

A digital switch and linear voltage regulator in one that simplifies wiring in your craft. Rated for 10 amps constant, 20 amps burst (Max 8 seconds). Perfect for use with 2S LIPO packs. Simple opperation, hold button 1 second to turn on, hold button 1 second to turn off.

Low voltage warning beeps start when input voltage falls to 7V, increased warnings at 6.6v. Warning beeps and flash become rapid at 6V. So efficient, when off, it would take 886 days to consume 1000mah out of your pack.

Specifications:
Regulated Voltage: 6.11v (less than fully charged 6V NiCad or NiMH pack which is about 7.5v)
Max Input Voltage: 9V
Current used at idle when on: 3.897mah
Current with alarm sounding: 21 mah
Current used when off: .047 mah (1/21276th of an amp!)
Cutout Dimensions: .663" (16.9mm) x 1.8" (45.7mm)
Weight: .701 oz. (19.8g)

Data points include: Battery Voltage, Battery Ripple, Battery Current, Controller Temperature, Motor RPM, Controller Input Throttle and Controller Motor Power Output.

Data is stored directly in the controller and may be accessed once the run is over using the Castle Link USB adapter (sold separately) and Castle Link software (available free at castlecreations.com). The Max Log Size is 21,504 bytes, everything takes one byte except for motor rpm which takes two.

Logging 'Battery Current' at 1 sample / second - 358 minutes of logging time (almost 6 hrs)
Logging 'Motor RPM' at only 1 sample / second - 179 minutes of logging time
Logging everything at only 1 sample / second - 44 minutes of logging time
Logging everything at 10 samples / second - 4 minutes and 28 seconds

Specifications Ice Lite HV60:
Dimensions:2.6" (66mm) x 1.3" (33mm) x .8" (20.6mm)
Max Input Voltage 50V up to 12S Lipo, 14S A123, 36 cells Nicad or NiMH.
Max Continuous 60 Amps
Brake yes, on/off
Reversible yes - change any two wires
Low Voltage Cut-off, auto lipo or nimh/nicd
Weight (whithout wires) 2 oz. (56.7g)
Universal connector
BEC: Switch rate regulator, 5 amp max adjustable from 5 to 7v in .1v increments.

Castle Link Compatible

Castle Creations Warranty Info.

DISCONTINUED BY CASTLE CREATIONS, WHILE SUPPLIES LAST

SportBEC's output is selectable between 5V/6V using a small slide switch. The 6V setting gives more speed and torque to the servos, and is especially useful for helicopter flyers. A red LED indicates when 6V is selected.

Many people don't realize that their ESC's BEC rating is misleading. With the linear BEC built into most speed controls, the current rating decreases as pack voltage increases. For example, several popular 25A ESCs with "3A" BECs are only capable of supplying 0.5A when running from a 3s pack. Because it is an efficient switching regulator, SportBEC can supply its full rated current of 3.5A all the way up to 8s.

Many design hours were spent on SportBEC to ensure it does not create radio interference. It uses a shielded inductor and optimized layout, so you can use it without fear of glitching.

SportBEC installs between your ESC and receiver, so you don't have to modify your speed control to disable its internal BEC.

For best results, ensure that the SportBEC is installed at least 2 inches away from your receiver and antenna.

Additional notes If you are using small servos make sure they can run at 6v. Some sub-micros, notably the Hitec HS-50 and Futaba S3154, can be damaged by a 6v supply.

Specifications: Model: SportBEC
Specifications: Input voltage: 9V to 33.6v (3s-8s lithium, up to 21 NiMHs)
Output current: 3.5A (~8 standard servos, 4-6 digital)
Weight: 13g/.46oz (including wires)
SKU Number: DESportBEC

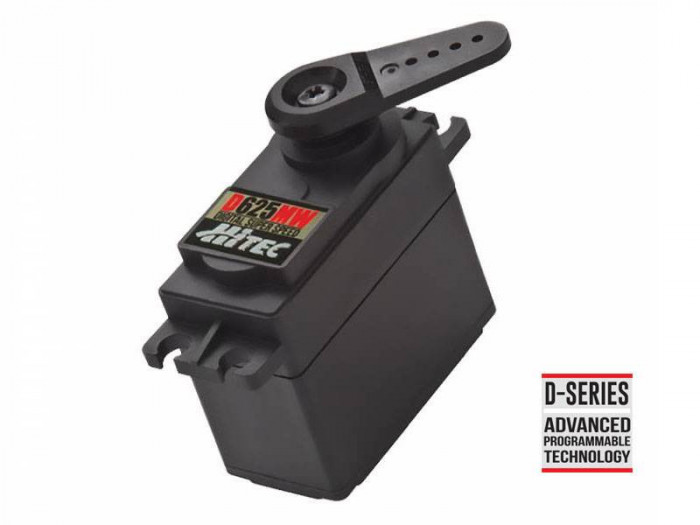

Replaces HS-5665MH. The metal D-625MW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Features

Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline

Programmable Functions

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

Accessories

Metal Gears Set | Link |

Metal / Plastic 1st Gear Set | Link |

Plastic Case Set | Link |

Applicable Horns | Link 1 o 2 o 3 |

D625MW Servo Specifications
Performance Specifications

Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V

Speed (Second @ 60?) 0.20 ~ 0.15 ~ 0.13
Maximum Torque Range oz. / in. 87 ~ 122 ~ 139
Maximum Torque Range kg. / cm. 6.3 ~ 8.8 ~ 10.0
Current Draw at Idle 30 mA
No Load Operating Current Draw 500 mA
Stall Current Draw 2,650 mA
Dead Band Width 2 us

Physical Specifications

Dimensions (Inches) 1.59 x 0.77 x 1.48

Dimensions (Metric) 40.6 x 19.8 x 37.8
Weight (Ounces) 2.11
Weight (Gram) 57.0
Circuit Type 32bit Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / ?mm) H25T
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60

Radio Control Applications

Parkflyer N / A
Sport Plane 12 - 15 lbs.
Sailplane 2 meters and up
3D Performance 12 - 15 lbs.
Scale 12 - 15 lbs.
Electric Helicopter 600mm
Gas Helicopter 50-59 Class
On Road 1/10th
Monster Truck 1/10th
Buggies 1/10th
Truggies 1/10th
Short Course / Truck 2 meters and up
Crawlers N / A
Sail Boat = >1M & Scale
Power Boat 1/10th
