Battery Analyzer
|
| | | |

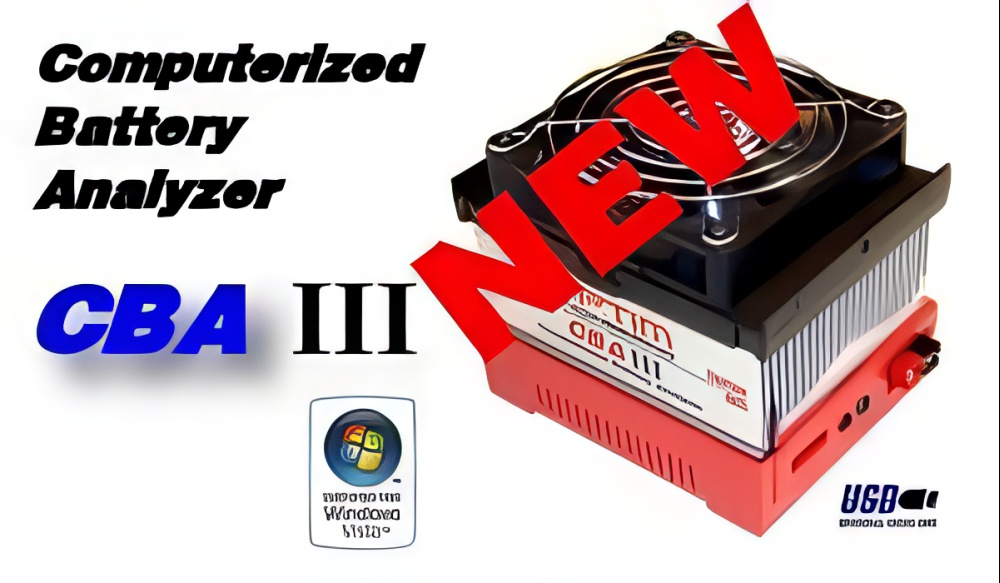

CBA III Computer Battery Analyzer Consumer Version, LAST ONE!Capabilities
Scientifically Analyze Battery Performance
True constant current battery capacity test with results graphically displayed, constant power testing supported with Extended software upgrade
Discharge current is software and electronically regulated using a solid state switch and fan cooled electronic load
Test any type of battery; coin cell to automotive or larger. Presets for NiCad, NiMH, Lead Acid, Li Ion, Li Poly, Alkaline, Carbon Zinc, Mercury etc.
Perform Fast, High Power Testing
Tests quickly at real world load conditions, up to 150 watts or 40 amps maximum, whichever is higher
High voltage testing at up to 55 volts; the equivalent of 1 to 38 NiCad or NiMh cells
Optional 500 watt and 1000 watt amplifiers
Accuracy and Precision for Demanding Applications
On-board computer performs accurate measurement with 12 bit effective resolution. Auto ranging for 2 current ranges and three voltages
Each CBA is individually calibrated with a computerized calibration system
Calibration certification data provided with CBA III Pro
Built-in Safety Features Provide Superior Battery Protection
Fail safe: automatic protection of temperature, current and power
Discharge test current user selectable from 0 to 40 Amps
Automatic voltage shut off at end of test using a software recommended or user selected safe discharge voltage
Automatic over-temperature shut off at end of test at using a software recommended or user selected maximum temperature with optional external magnetic temperature sensor.
Easy-to-Use Software for Data Analysis
User selected battery cell chemistry, number of cells and test current
Software recommends safe tests based on user supplied battery information
Automatic graph setup and scaling
Measures and displays voltage, current, amp-hrs, watts and temperature*
Easy overlay comparisons of multiple graphs may be displayed saved and recalled
Save, display and print battery test graphs and battery labels
Plug and Play high speed USB interface, with easy to use and intuitive Windows® software supplied on CD ROM
* Requires optional temperature probe
CBA III Extended Software Upgrade License Unlocks Features for Serious Battery Testing
Support for operation with one or two CBA 500 watt amplifiers
Programmable automatic duty cycle test with up to 999 second on/off cycle periods
Regulated constant power discharge (current goes up as battery voltage drops)
Temperature graphing with a recovery time option
Ragone power density charting using battery weight (used for performance comparison of energy sources charting
energy density (Watt-Hours/kg) vs power density (W/kg))
Test-lead resistance voltage calibration utility to give higher accuracy voltage readings right at the battery terminals
Enables placement of user notes on graphs
Multi CBA Software Upgrade License for Production Testing of Batteries
Single computer license for up to twelve CBA IIIs
Simultaneous battery testing saves valuable technician time
Computer System Requirements
Basic Requirements:
A PC with a Pentium 233 or better
At least an 800 X 600 graphics card and display monitor
98SE, W2K, XP, Vista®: 32 or 64 bit, Windows® 7: 32 or 64 bit
An available USB port
Recommended:
AMD or Intel 1.2 GHz or better
Better than 800 X 600 graphics and display monitor
Windows® XP, Vista® 32 or 64bit, or Windows® 7 32 or 64 bit 1 GB RAM
An available USB port (external hubs not supported)
For graph and label printing:
Any Windows compatible, laser or ink jet, color or black and white, printer.
Avery 5160 labels are required for label printing.
CBA III Extended Software Upgrade License requires the following:
CBA software version 2.1 or later, free download
Serial number of CBA that license will be locked to Multi CBA Software License requires the following:
CBA software version 2.1 or later, free download
Serial number of CBA that license will be locked to
Requires desktop PC (not laptop) running Windows XP SP3 for full support
Use internal PCI ports OR four-port USB PCI expander cards sold by West Mountain Radio (can't mix internal PCI ports and PCI expander cards) Last one in stock, replaced by CBA IV
SKU Number: CBAIII
|
|
|
|
