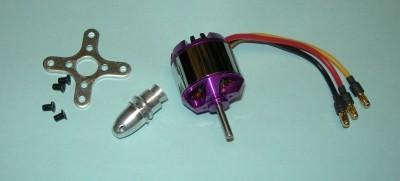

MTO2830-1000

1000kv motors in this size are some of the most useful motor spec's available across a wide range of park flyers. A motor like this is perfect for many aircraft and commonly used on models from 16-32 oz. The lighter the more high performance, the larger the more floaty.

Specifications As Per MFG:

Weight Size D x L Amps Shaft Max Motor RPM KV Resistance No Load Current

52g/1.83oz. 28.0mm (1.102") x 30mm (1.182") 14.7A (210 watts) 3.17mm (1/8") x 45mm OAL Non-Pub 1000 Non-Pub Non-Pub

Setup and Performance Chart

# Cells Prop Amps Watts In RPM Thrust oz. Pitch Speed MPH

2 GWS 10x8HD 11.6 86 5,510 15 42

2 APC 11 x 7E 13.3 99 5,220 18 35

2 GWS 12 x 8HD 16.8 125 4,640 20 35

3 GWS 9 x 5HD 12.3 137 8,860 22 42

3 APC 9 x 7E 15.6 174 8,240 26 53

3 GWS 10 x 6HD 18 201 7,790 31 43

4 APC 8x 6E 16.2 241 11,520 33 63

4 GWS 9 x 5HD 19.1 284 10,910 40 50

5 APC 8 x 4E 17.1 318 14,700 42 53

Estimates based on manufacturers provided constants using E-Calc. High Quality 1300mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

SKU Number: MTO28301000
