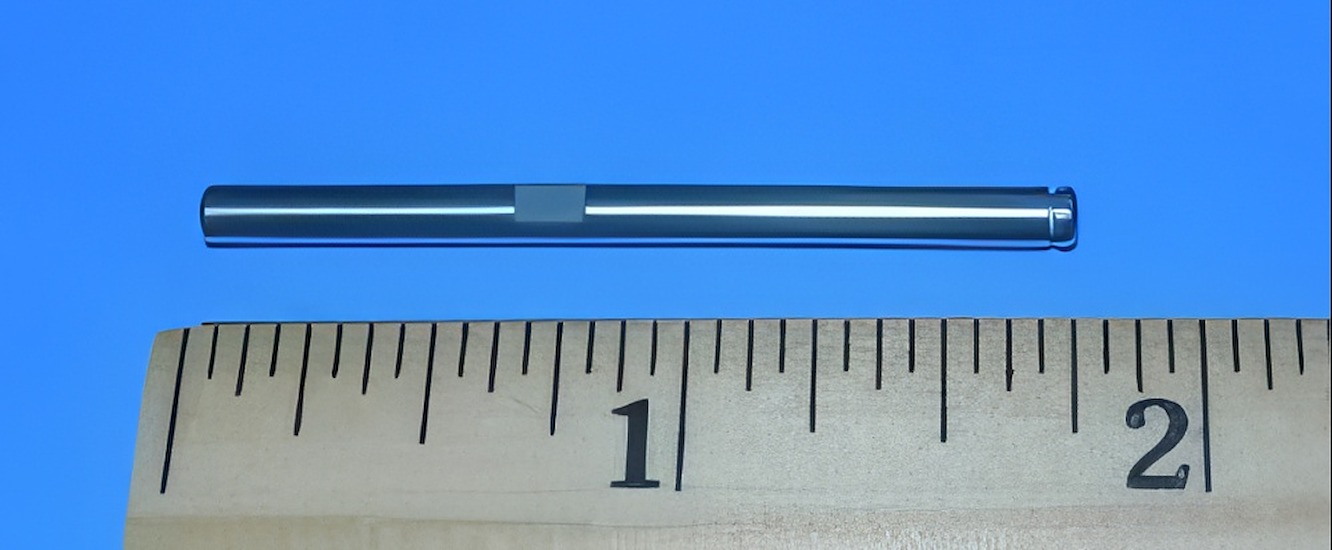

Replacement shaft for Maytech 2830 series motors. Diameter 1/8", 3.17mm or 3.2mm (whatever you want to call it). 45mm length with snap ring groove at one tip. SKU Number: MTOS2830

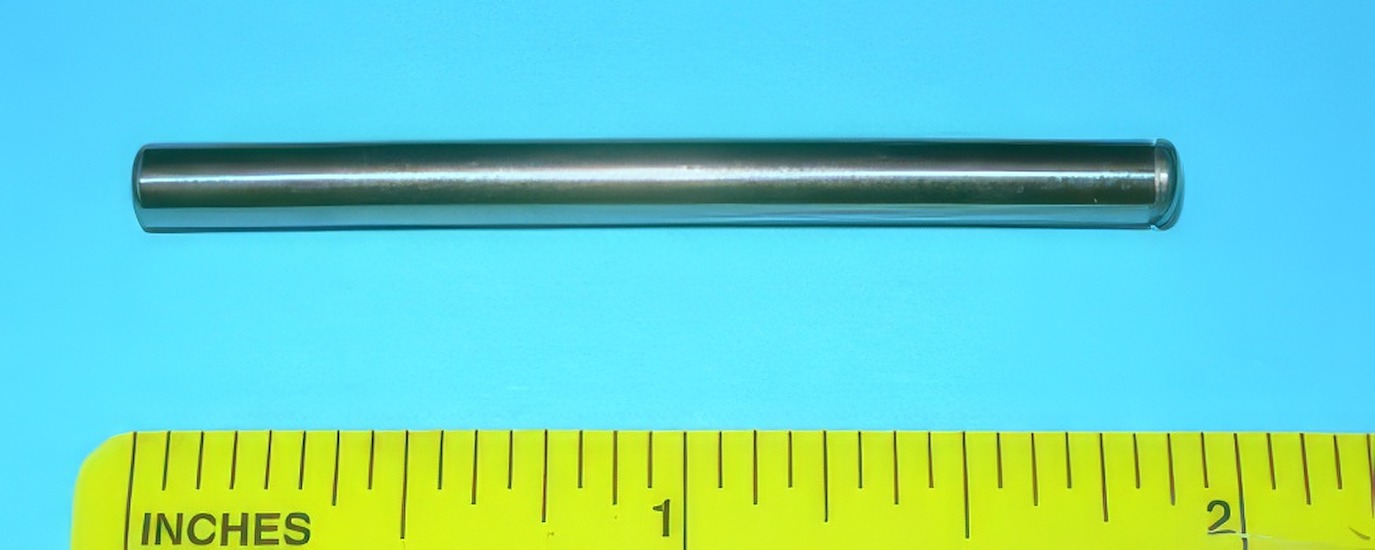

Replacement shaft for Maytech 2836 series motors. Diameter 1/8", 3.17mm or 3.2mm (whatever you want to call it). 49mm length with snap ring groove at one tip. SKU Number: MTOS2836
1820 motor has small weight, is designed specifically for indoor ultra-light acrobatic models (F3P). Two oversize and high quality ball bearings fix the rotor, which ensures its long life and excellent balance. The motor comes with a complete set of propeller mount accessories, as well as the perfect packaging to protect the motor and its accessories.
Model NO.: MTO1820-2300-M
Motor KV ........................................ 2300(RPM/V)

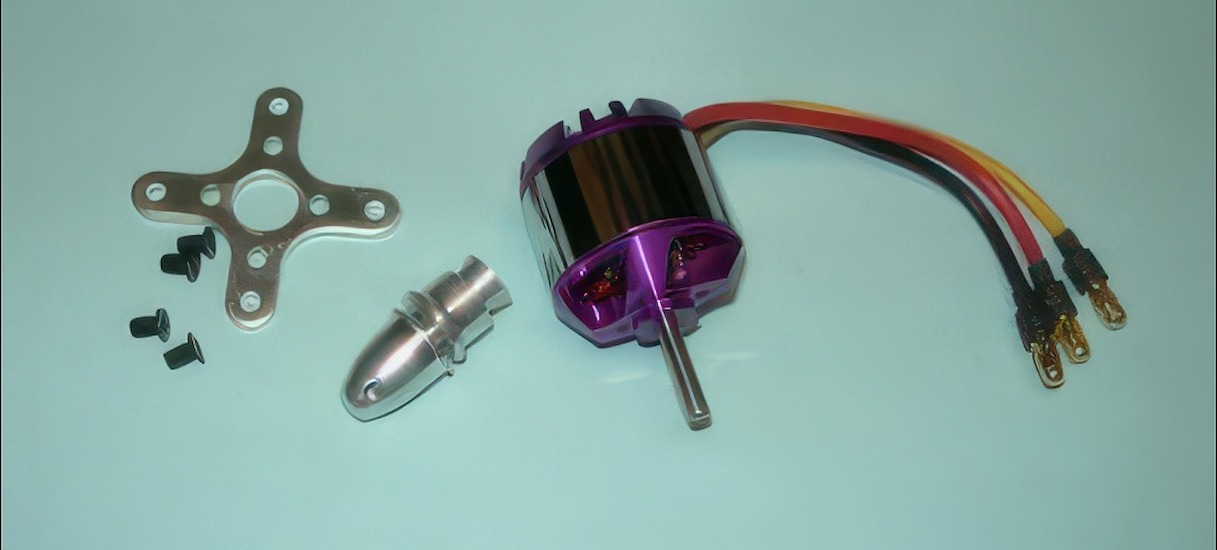

Actual KV here measured in our shop is 1207. Motors like this mostly commonly used 3S for sport ship range where moderate to high pitch speeds are required. A motor like this is perfect for many aircraft and commonly used on models from 16-32 oz. A good motor on our Stick 400 and other similar kits.
Specifications As Per MFG:
Weight
Size D x L
Amps
Shaft
Max Motor RPM
KV
Resistance
No Load Current
55g/1.94oz.
27.7mm (1.102") x 29.5mm (1.091")
19.5A (275 watts)
3.17mm (1/8") x 44.9mm OAL
Non-Pub
Actual 1207 (1300 Claimed)
Non-Pub
Non-Pub
Setup and Performance Chart
# Cells
Prop
Amps
Watts In
RPM
Thrust oz.
Pitch Speed MPH
2
GWS 9x5HD
1.8
89
7,800
18
35
2
APC 9 x 7E
14.9
112
7,470
20
48
2
APC 10 x 6E
17.6
132
7,180
24
39
3
APC 7 x 6E
12.5
141
12,140
21
67
3
APC 8 x 4E
13.6
153
12,010
25
43
3
APC 8 x 6E
18.3
206
11,470
30
63
3
APC 9 x 4.5E
20.6
232
11,200
36
46
4
APC 6 x 5.5E
11.7
176
16,650
22
84
4
APC 7 x 4E
14.5
218
16,300
31
59
4
APC 7 x 6E
19.8
297
15,640
35
86
5
APC 6 x 4E
13
244
20,900
31
75
5
APC 6 x 5.5E
16.8
315
20,390
33
102
5
APC 7 x 4E
20.8
390
19860
47
71
Estimates based on manufacturers provided constants using E-Calc. High Quality 2200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

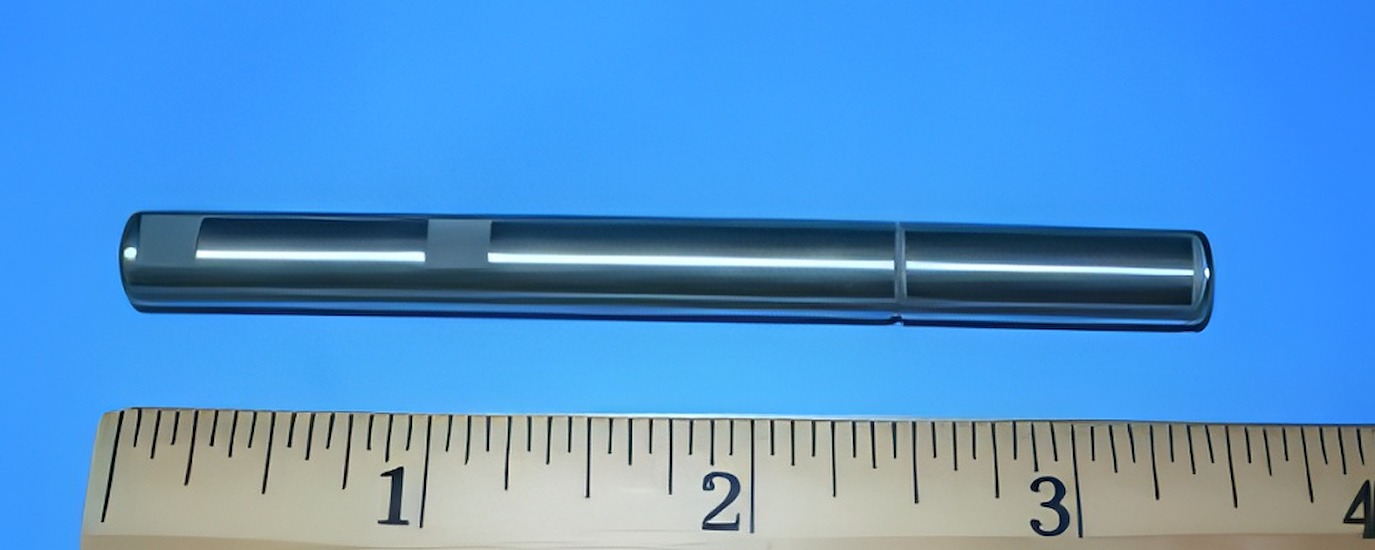

Replacement shaft for Maytech 6362 series motors. Diameter 8mm. 87.5mm length. Snap ring groove at 2mm and 24.75mm in from one end. Useful for many motors requiring a 8mm shaft. SKU Number: MTOS6362
Replacement shaft for Maytech 3530 series motors. Diameter 5mm. 47.5mm length. Snap ring groove at 1mm in from one end. Useful for many motors requiring a 5mm shaft. SKU Number: MTOS3530

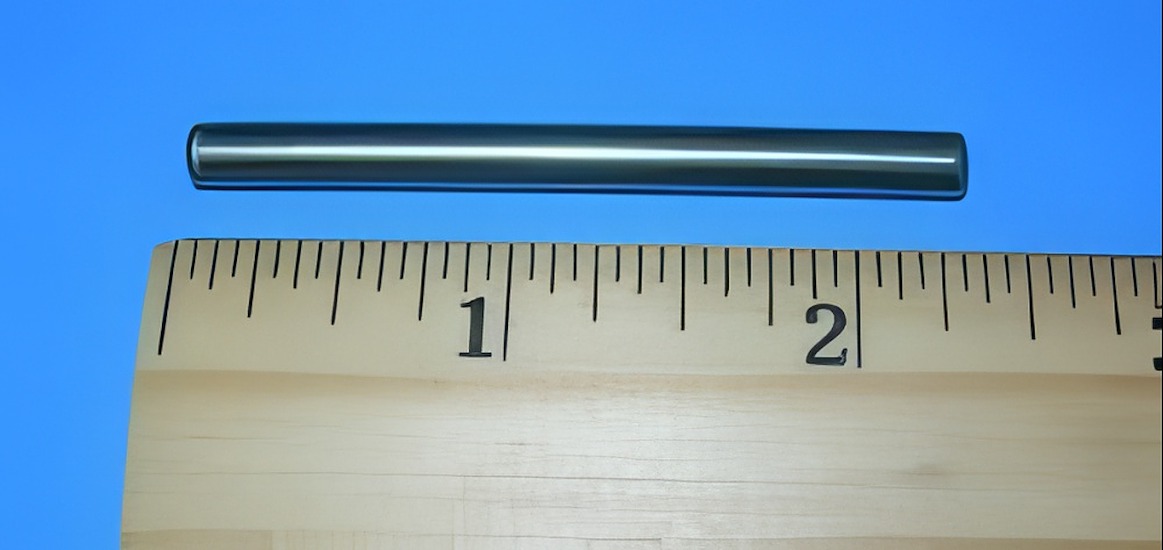

Replacement shaft for Maytech 3442 series motors. Diameter 5mm. 59.5mm length. Snap ring groove at 1mm in from one end. Useful for many motors requiring a 5mm shaft. SKU Number: MTOS3542

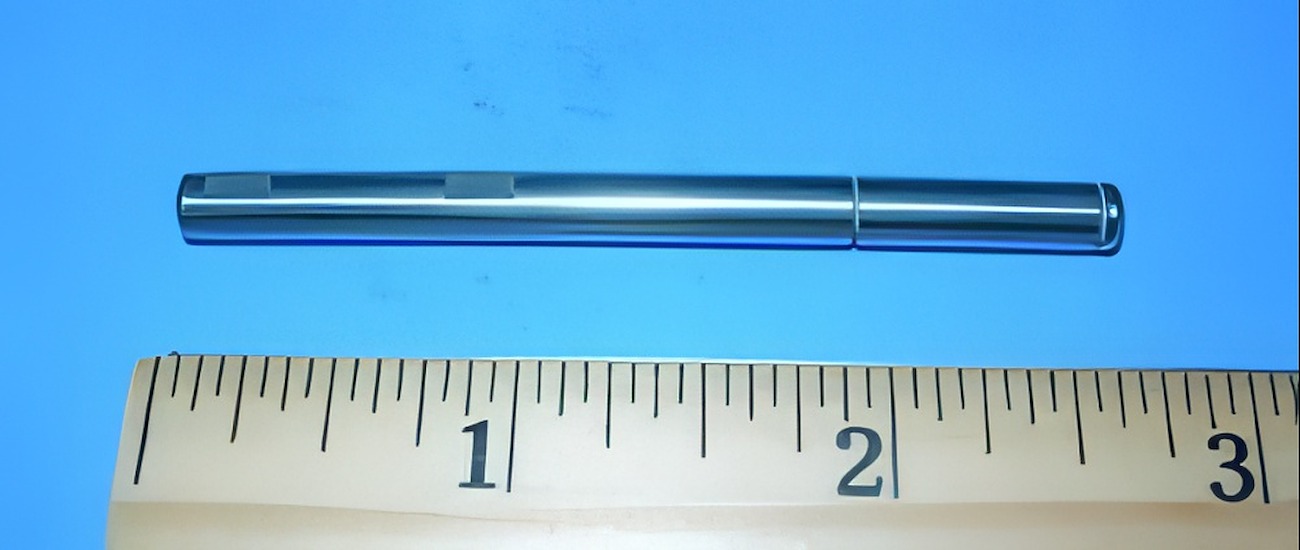

Replacement shaft for Maytech 5055 series motors. Diameter 5mm. 67.5mm length. Snap ring groove at 2mm and 19mm in from one end. Useful for many motors requiring a 5mm shaft. SKU Number: MTOS4250

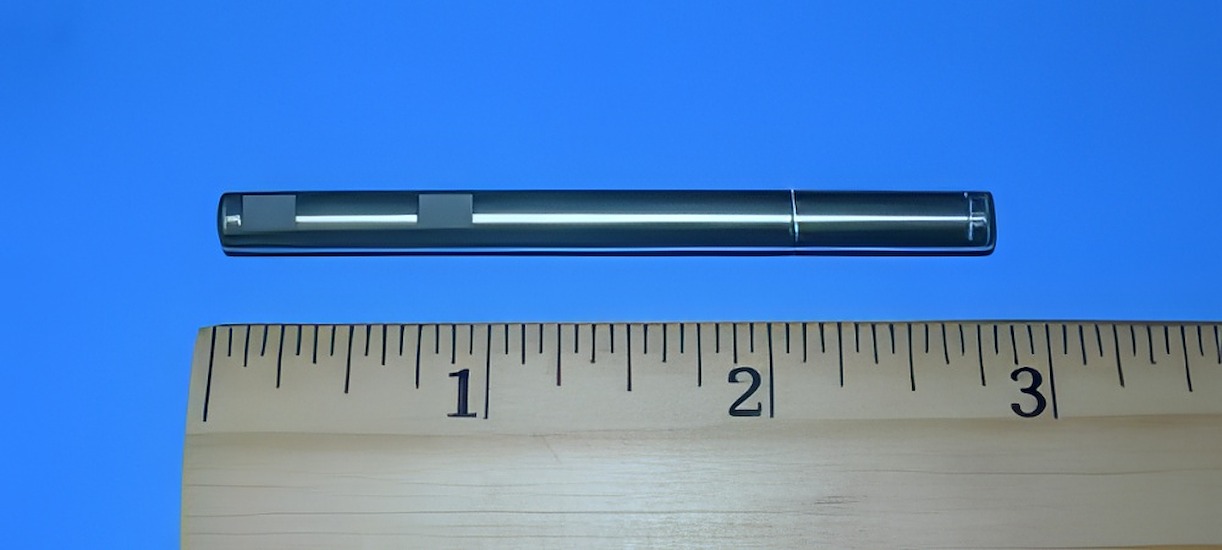

Replacement shaft for Maytech 5055 series motors. Diameter 6mm. 72.5mm length. Snap ring groove at 2mm and 19mm in from one end. Useful for many motors requiring a 6mm shaft. SKU Number: MTOS5055
1000kv motors in this size are some of the most useful motor spec's available across a wide range of park flyers. A motor like this is perfect for many aircraft and commonly used on models from 16-32 oz. The lighter the more high performance, the larger the more floaty.
Specifications As Per MFG:
Weight
Size D x L
Amps
Shaft
Max Motor RPM
KV
Resistance
No Load Current
52g/1.83oz.
28.0mm (1.102") x 30mm (1.182")
14.7A (210 watts)
3.17mm (1/8") x 45mm OAL
Non-Pub
1000
Non-Pub
Non-Pub
Setup and Performance Chart
# Cells
Prop
Amps
Watts In
RPM
Thrust oz.
Pitch Speed MPH
2
GWS 10x8HD
11.6
86
5,510
15
42
2
APC 11 x 7E
13.3
99
5,220
18
35
2
GWS 12 x 8HD
16.8
125
4,640
20
35
3
GWS 9 x 5HD
12.3
137
8,860
22
42
3
APC 9 x 7E
15.6
174
8,240
26
53
3
GWS 10 x 6HD
18
201
7,790
31
43
4
APC 8x 6E
16.2
241
11,520
33
63
4
GWS 9 x 5HD
19.1
284
10,910
40
50
5
APC 8 x 4E
17.1
318
14,700
42
53
Estimates based on manufacturers provided constants using E-Calc. High Quality 1300mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables. SKU Number: MTO28301000

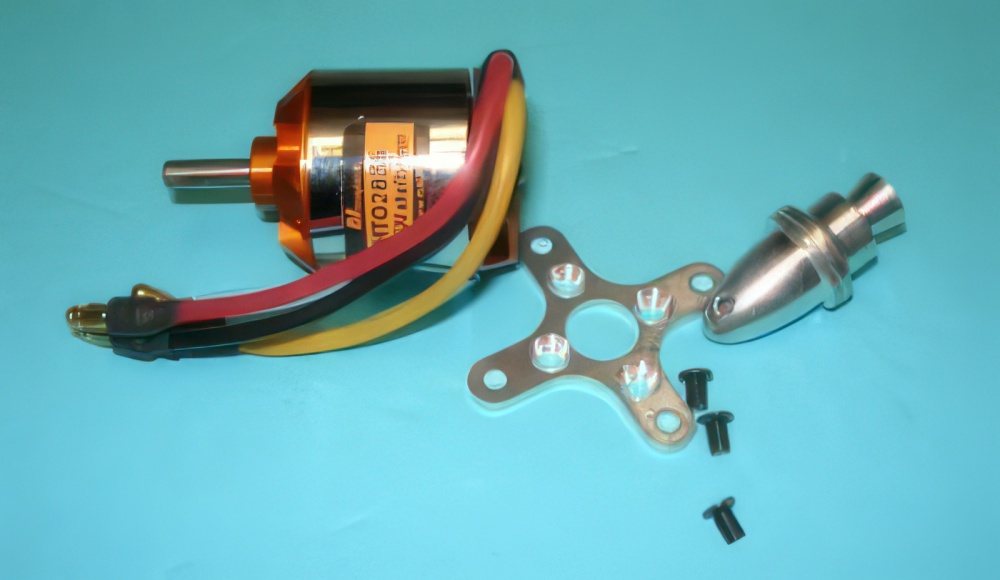

Actual KV here measured in our shop is 1207. Motors like this mostly commonly used 3S for sport ship range where moderate to high pitch speeds are required. A motor like this is perfect for many aircraft and commonly used on models from 16-32 oz. A good motor on our Stick 400 and other similar kits.
Specifications As Per MFG:
Weight
Size D x L
Amps
Shaft
Max Motor RPM
KV
Resistance
No Load Current
73g/2.72oz.
27.7mm (1.102") x 35.86mm (1.412")
25.4A (368 watt)
4mm (.159") x 44.9mm OAL
Non-Pub
Actual 1478
Non-Pub
Non-Pub
Setup and Performance Chart
# Cells
Prop
Amps
Watts Input
Lost Watts (Heat)
% Motor Efficiency
RPM
Static Thrust Ounces
Pitch Speed MPH
2
9x7
23.5
176
40
75%
8,150
24
54
2
10x6
27.1
203
50
73%
7,670
28
44
3
7x6
21.4
241
39
82%
13,810
27
78
3
8x4
23.3
262
44
82%
13,540
31
51
3
8x6
29.8
335
63
79%
12,610
37
72
4
6x5.5
20.7
311
43
85%
19,300
30
101
4
7x4
25.5
383
55
84%
18,650
42
70
4
7x5
29.5
443
67
83%
17,940
45
85
5
6x4
23.5
441
55
87%
24,230
43
92
Estimates based on manufacturers provided constants using E-Calc. High Quality 2200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

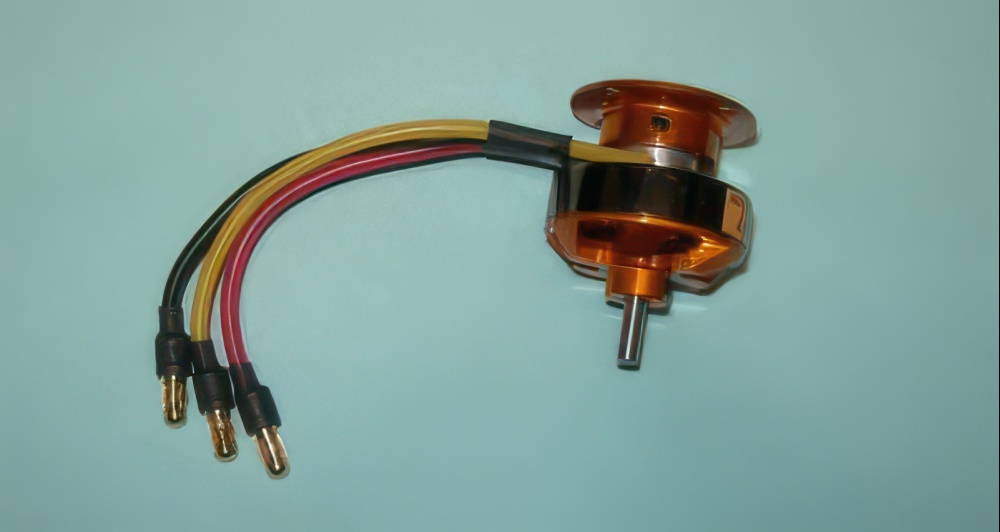

This hot little wind could be the perfect motor for your pusher jet foamy. 11mm bearing tube mount to firewal included.
Specifications As Per MFG:
Weight
Size D x L
Amps
Shaft
Max Motor RPM
KV
Resistance
No Load Current
32g/1.19oz.
28.5mm (1.122") x 27mm (1.063")
128 watts
3.17mm (1/8") x 37mm OAL
Non-Pub
2840
Non-Pub
Non-Pub
Setup and Performance Chart
# Cells
Prop
Amps
Watts In
RPM
Thrust oz.
Pitch Speed MPH
2
GWS 5x3HD
9.1
63
18,400
10
52
2
APC 5 x 5E
12.8
95
17,280
11
82
2
GWS 6 x 3HD
14.7
109
16,710
15
47
2
APC 5.5 x 4.5E
15.3
114
16,530
14
70
3
APC 4.1 x 4.1E
12
134
27,390
12
106
3
APC 4.5 x 4.1E
15.5
173
26,140
16
101
Estimates based on manufacturers provided constants using E-Calc. High Quality 1300mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.

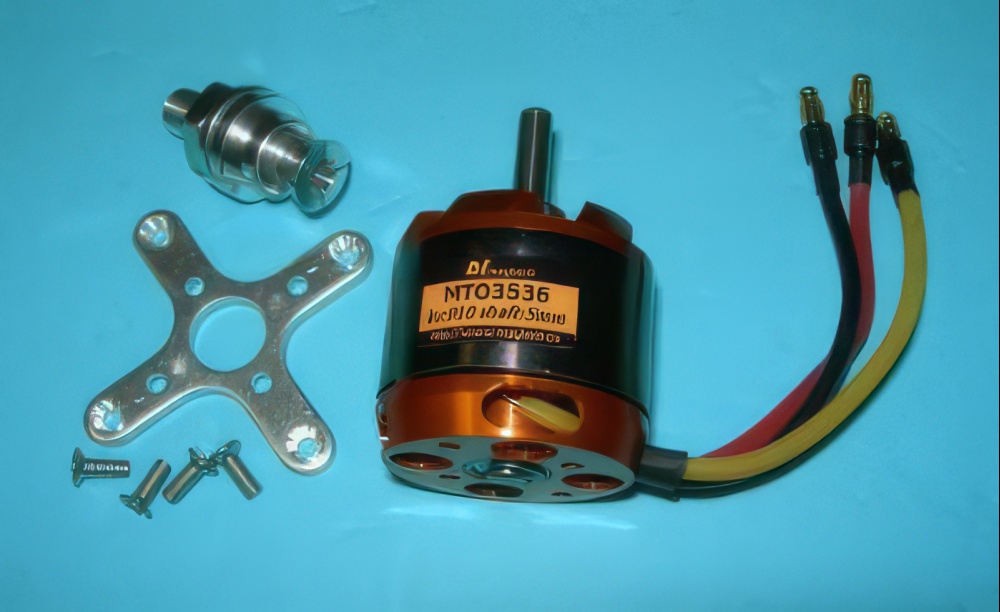

Usefull for models .10 through .30 size. A compact 3.6 ounce package with plenty of punch. Range of setups provided below to fit many needs.
Specifications As Per MFG:
Weight
Size D x L
Amps
Shaft
Max Motor RPM
KV
Resistance
No Load Current
Max Current
103g/3.63oz.
35mm (1.38") x 36.5mm (1.44")
371 watts
5mm (.197") x 53.5mm OAL
Non-Pub
910
Non-Pub
Non-Pub
25.8
Setup and Performance Chart
# Cells
Prop
Amps
Watts In
RPM
Thrust oz.
Pitch Speed MPH
2
12x10
23
173
4,900
30
45
2
13x10
27.2
204
4,550
35
42
3
10x6
19.8
223
8,440
38
46
3
11x5.5
23.9
269
8,070
45
41
3
11x7
27.8
313
7,720
49
50
3
12x6
30.9
348
7,440
54
41
4
9x5
20.4
306
11,660
47
53
4
9x7
25.9
389
11,130
51
72
4
10x5
27.2
408
11,000
59
50
5
8x6
23.8
446
14,580
55
80
5
9x5
29
544
14,040
69
64
6
7x6
21.6
486
18,080
52
99
6
8x4
23.5
529
17,870
65
64
Estimates based on manufacturers provided constants using E-Calc. High Quality 2200mah used as trial cell in calculations. Actual performance may vary depending on components used, accuracy of data as provided by manufacturer, quality of ESC, weather and many other variables.
 "Maytech 2830 Series Shaft")
 "Maytech 2836 Series Shaft")
 "MTO18202300")
 "MTO2830-1300")

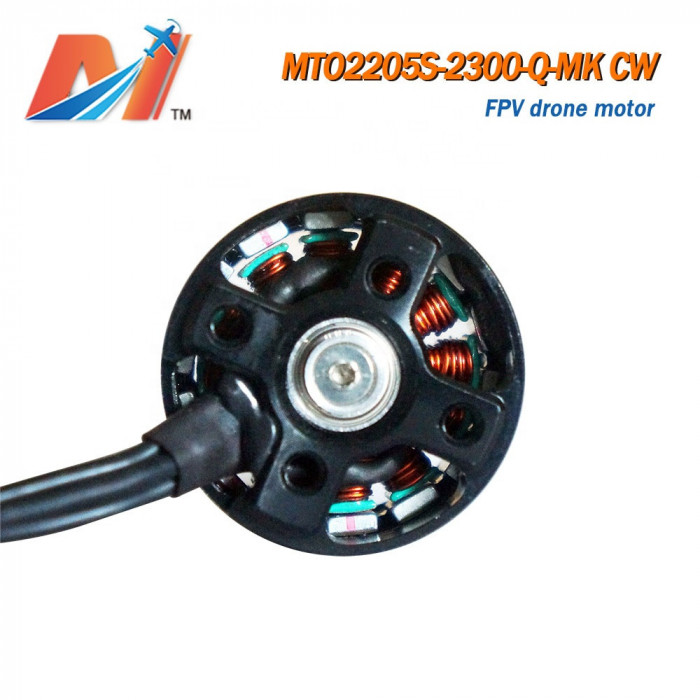

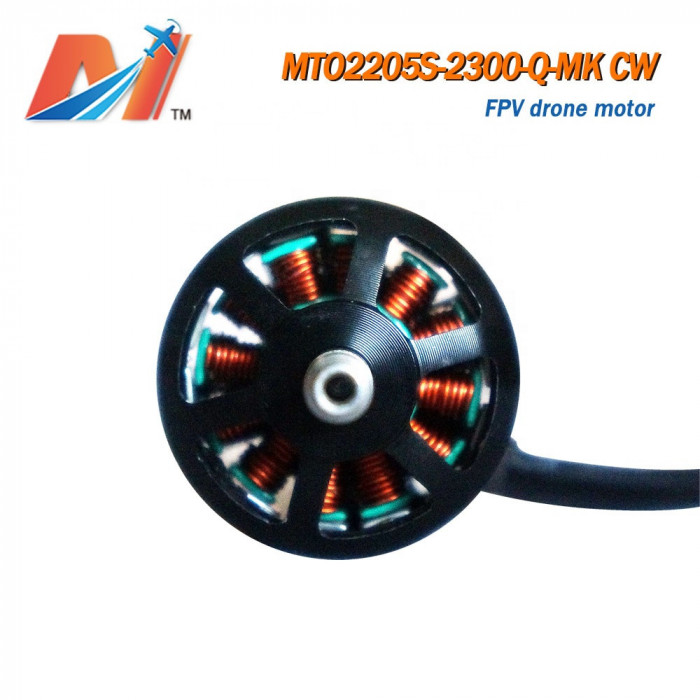

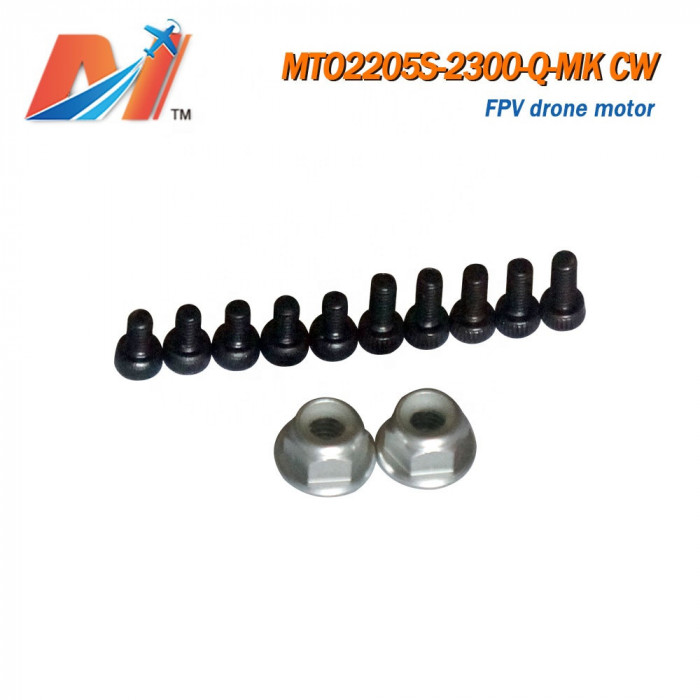

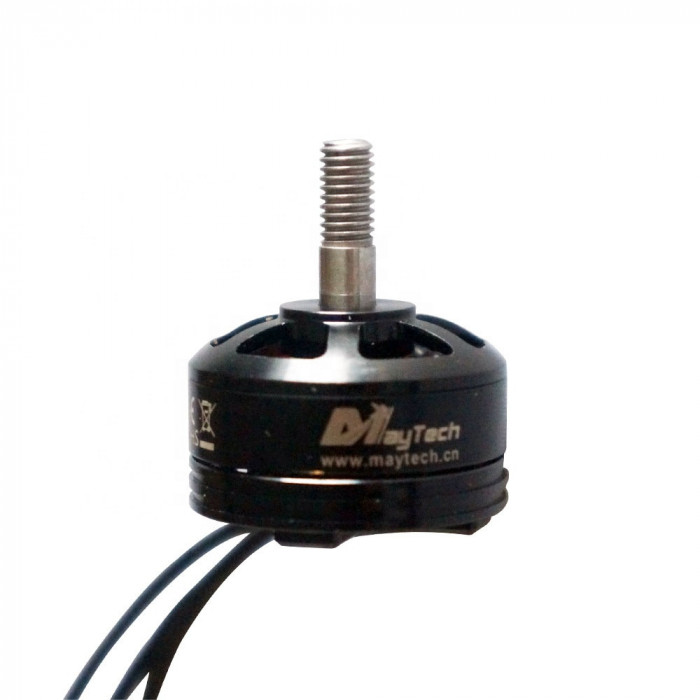

 "Maytech 2205S 2300kv Brushless Motor CW ~LAST ONE LEFT!")

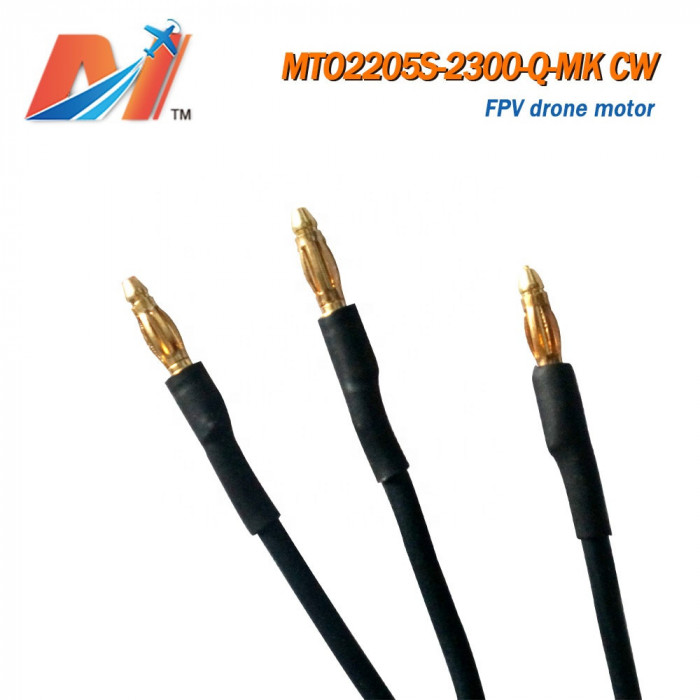

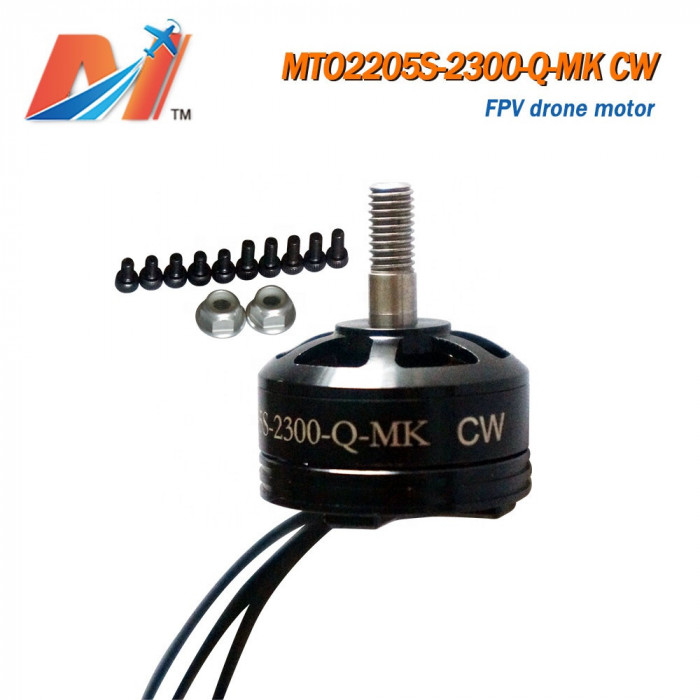

 "Maytech 2205S 2300kv Brushless Motor CCW")
