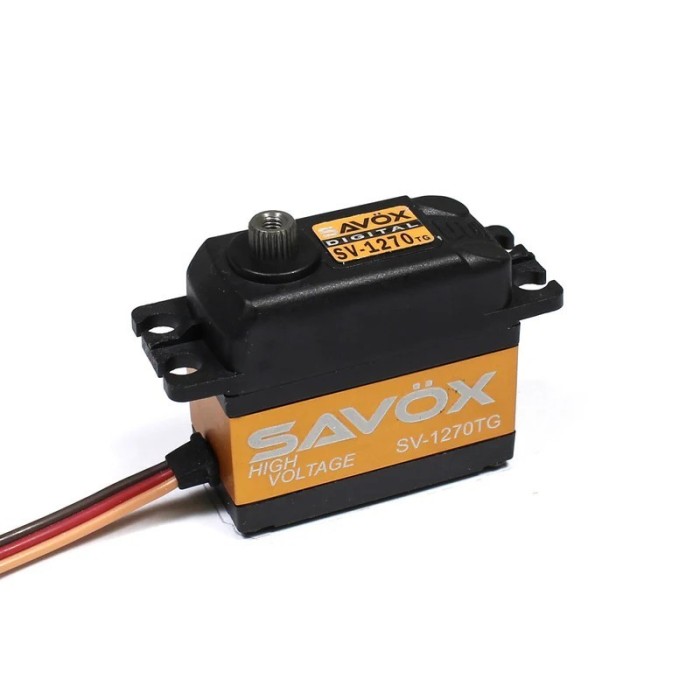

Savox SV-1270TG High Voltage, "Monster Torque", Titanium Gear, Digital Servo This is the Savox SV-1270TG High Voltage "Monster Torque" Titanium Gear Digital Servo. Built to handle extreme requirements, this servo delivers. Features:
Super strong, precision-made titanium gears provide durability that will survive heavy use. Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications Capable of HV operation. The servo that racers desire. Specifications:

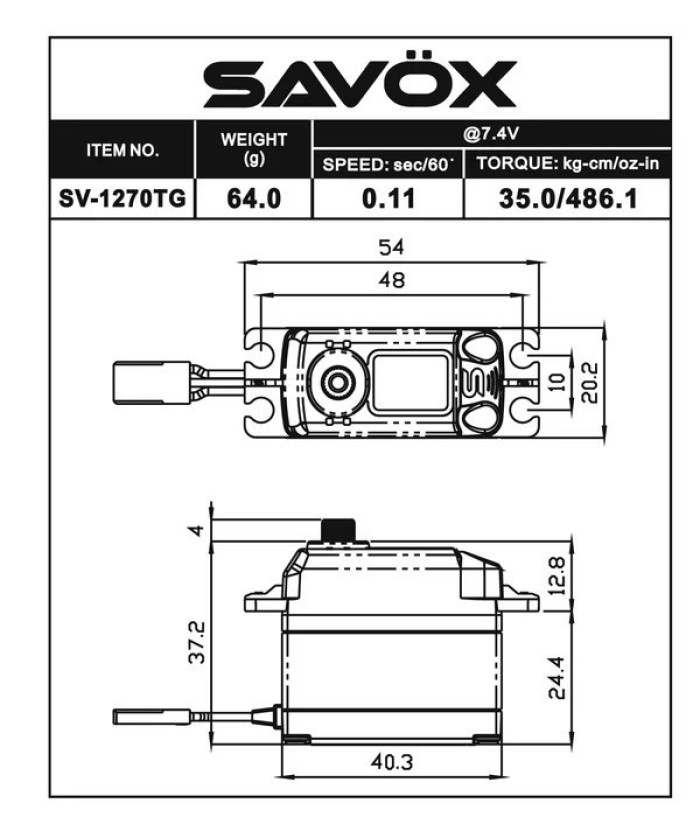

Torque @6v - 26.0kg/361.1oz-in Torque @7.4v - 35.0kg/486.1oz-in Speed @6v - 0.14 sec/60 deg Speed @7.4v - 0.11 sec/60 deg Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2 Weight: 56.0g Operating Temperature: 14° - 122°F (-10° - 50°C) Running Current (no load): 120mA @6.0V, 150mA @7.4V Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V Idle Current: 5mA @4.8V, 5mA @6.0V Wire Length: 200 +- 5mm Output Gear Spline: 25 Tooth Bearings: 2BB Operating Travel: 100° (1000 -> 2000 μ second) Neutral Position: 1500 μ second Pulse Width Range: 800 -> 2200 u second Maximum Travel: Appx 130° (900 -> 2100 μ second) Refresh Rate: 333 Hz Motor Type: Coreless
SOLD OUT See SAVSC-1270TGP for replacement
SKU Number: SAVSV-1270TG
