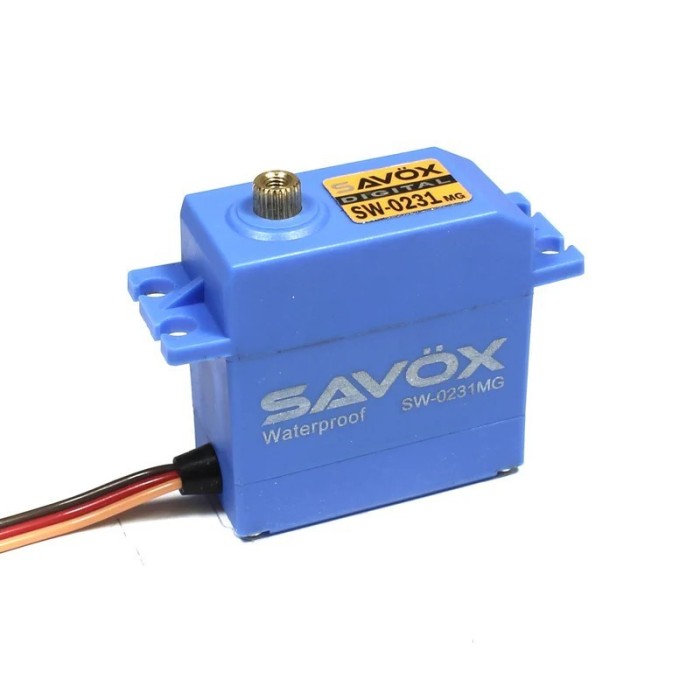

Savox SW-0231MG Waterproof, High Voltage, Digital Servo
Savox SW-0231MG Waterproof, High Voltage, Digital ServoSavox SW-0231MG Waterproof, High Voltage, Digital Servo

Savox SW-0231MG Waterproof, High Voltage, Digital Servo

The SW-0231MG is a budget friendly, waterproof, high torque, digital servo in a slightly taller case than most standard sizes. This is a great upgrade if you're looking to drive your RC vehicle in any condition yet unable to use higher voltage to obtain more power.

Features:

  • Strong metal gear train for added durability.
  • Waterproof case design.
  • Ideal for cars, truck, and boats subject to water or snow.
  • Slightly taller case design.

Specifications:

  • Torque @4.8v - 12.0kg/166.6oz-in
  • Torque @6v -15.0kg/208.3oz-in
  • Speed @4.8v - 0.20 sec/60 deg
  • Speed @6v - 0.17 sec/60 deg

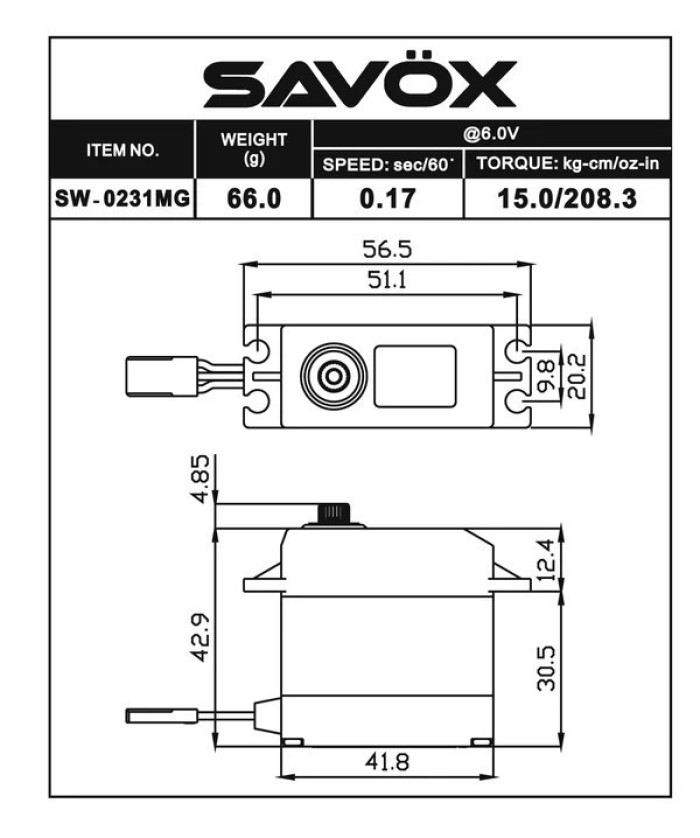

  • Dimensions L x W x H (mm): 41.8 x 20.2 x 42.9
  • Weight: 66.0g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 3800mA @4.8V, 4800mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 +- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 -> 2000 μ second)
  • Neutral Position: 1500 μ second
  • Pulse Width Range: 800 -> 2200 μ second
  • Maximum Travel: Appx 130° (900 -> 2100 μ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed



SOLD OUT See SAVSW-0231MGP for replacement








SKU Number: SAVSW-0231MG
