Key Features

Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy

Integrated Microchip Stores Unique Parameters for Each Battery

New IC3 and IC5 Connectors are Compatible with EC3 and EC5

Save Time and Hassle, while Improving Battery Life

Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage

Feature Overview

You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger "Start" button. Smart technology takes care of the rest.

Every Smart LiPo battery is factory assembled with the next-generation IC3(TM) or IC5(TM) output connector that's conveniently compatible with older devices equipped with robust EC3(TM) and EC5(TM) connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.

Spektrum Smart LiPo Batteries Store Unique Data, such as:

Battery Brand

Battery Type

Battery Capacity

Battery C Rating

Individual Cell Voltage

Battery Temperature

Charge/Discharge Cycles Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you've chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the "Start" button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.

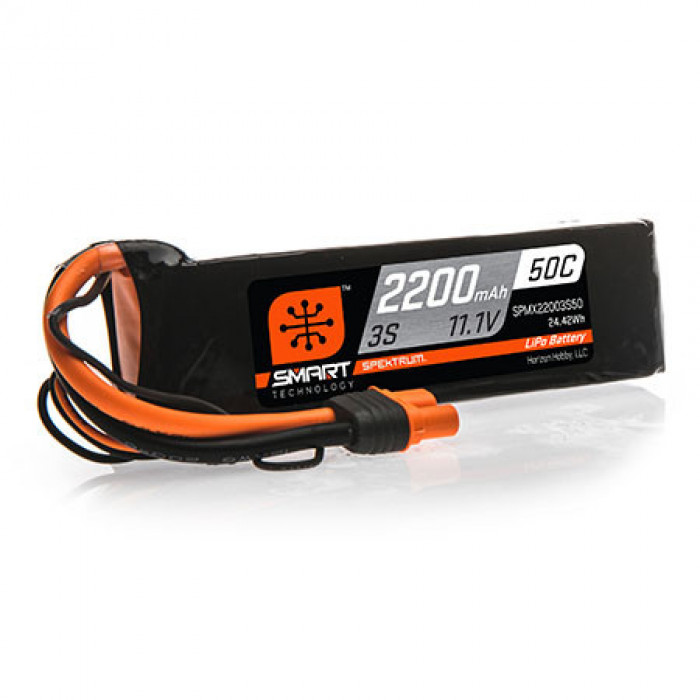

PRODUCT SPECIFICATIONS
Type:Smart LiPo
Capacity:2200 mAh
Voltage:11.1
Connector Type:IC3
Wire Gauge:12
Number of Cells:3
Weight:0.33 lbs. (150 g)
Configuration:3S1P
Length:4.5 in (115mm)Width:1.3 in (34mm)Height:0.8in (21.5mm)
Application:Aircraft
Maximum Continuous Discharge :50C
