Collar with swedged on steering arm. Control radius is 12mm. For 3/32" and 2.5mm nose gears. Useful for other torque rod purposes also. Small steering arms are difficult to find today.
Collar with swedged on steering arm. Control radius is 5/8" (16mm). For 3/32" and 2.5mm nose gears. Usefull for other torque rod purposes also. Small steering arms are difficult to find today.
Collar with swedged on steering arm. Control radius is 5/8" (16mm). For 3mm nose gears. Easily drilled out to 1/8". There are no other available steering/torque arms for 1/8" wire. Small steering arms are difficult to find today.

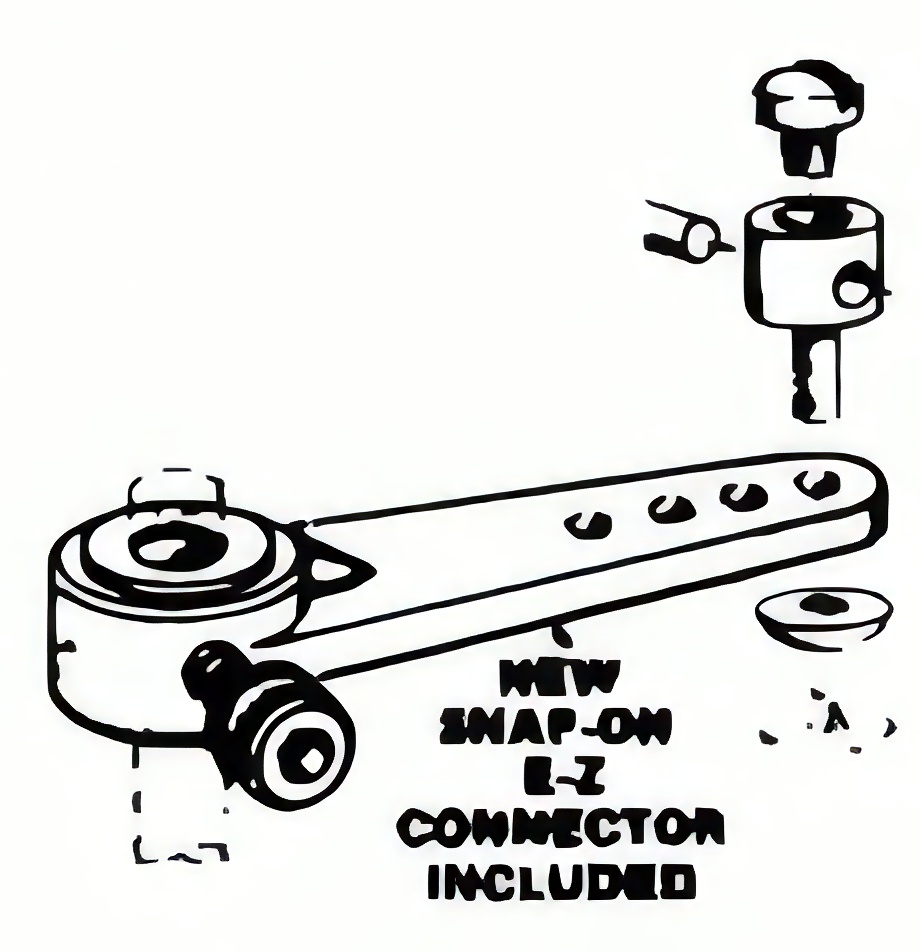

1-1/4 (31.7mm) steering arm assembly. Nylon steering arm with bushing and set screw fits 5/32 (4mm) nose gear wire. Snap on E/Z Connector included.
Daves Comments: Unlike the crappy junk that comes from China, you get a real socket head cap screw with this part. What is significant here is they are heat treated and the tip of the screw will cut into the nose gear music wire (which is VERY hard) actually locking the arm to the wire. POOR quality units come with a silver looking screw which is soft and the wire actually dents the tip of the screw when tigtened. This is why the slip constantly.
SKU Number: DUB155
Steering Arms for RC Nose Gear
A steering arm clamps to the nose gear wire and connects it to the rudder linkage, so the same input that moves the rudder also steers the model on the ground. This category collects steering arms sized for common nose gear wire diameters.
Nylon Arms
Sig offers nylon steering arms in 1/8 inch and 5/32 inch bores to match different gear wire, and Sonic Tronics lists a 1/8 inch nose gear steering arm with a 1-1/4 inch arm length. Nylon arms are light and resist corrosion.
Metal Fitments
For a firmer grip, MP Jet steering arms are offered in metric sizes such as 12mm with a 2.5mm bore. Du-Bro also lists a 5/32 inch nose gear steering arm at 1-1/4 inch length for a longer moment arm. Choosing the bore that fits your gear wire is the first thing to check, since an arm that is loose on the wire will not steer reliably.
Match an arm to your gear wire size in the listings below.

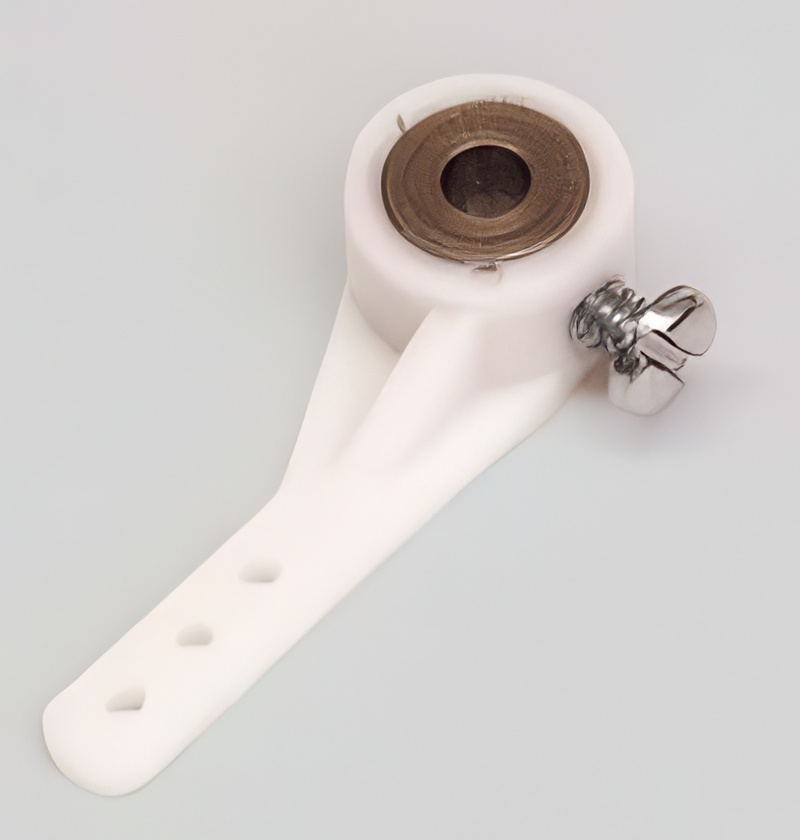

 "Sig 1/8 Inch Nylon Steering Arm")

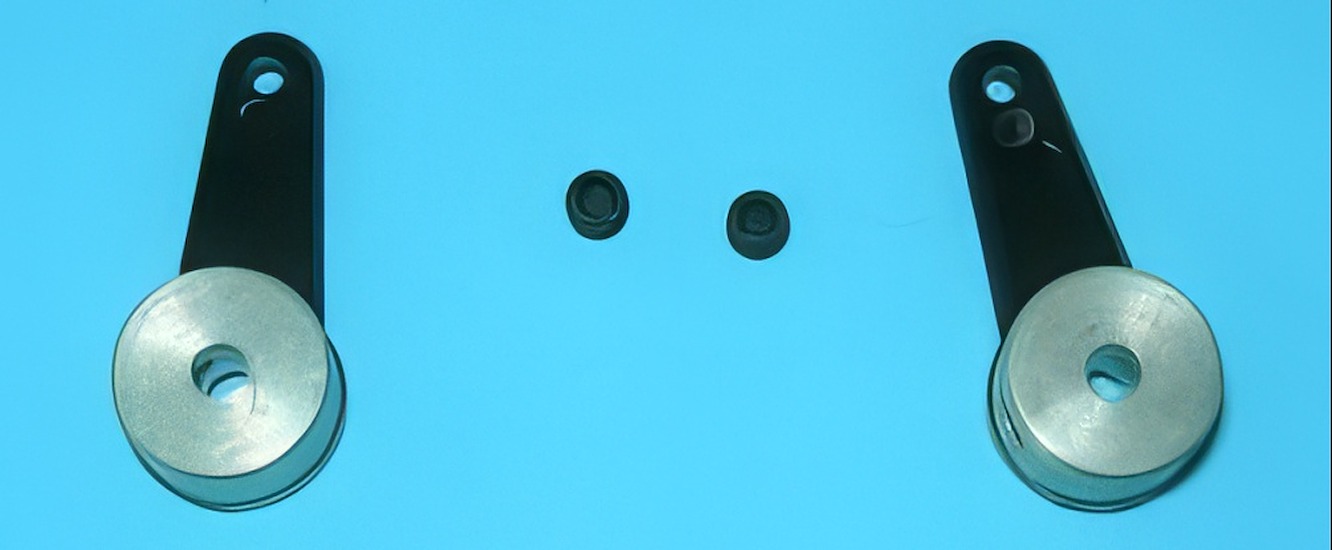

 "MP Jet Steering Arm 12mm 2.5mm")
 "Sig 5/32 Inch Nylon Steering Arm")

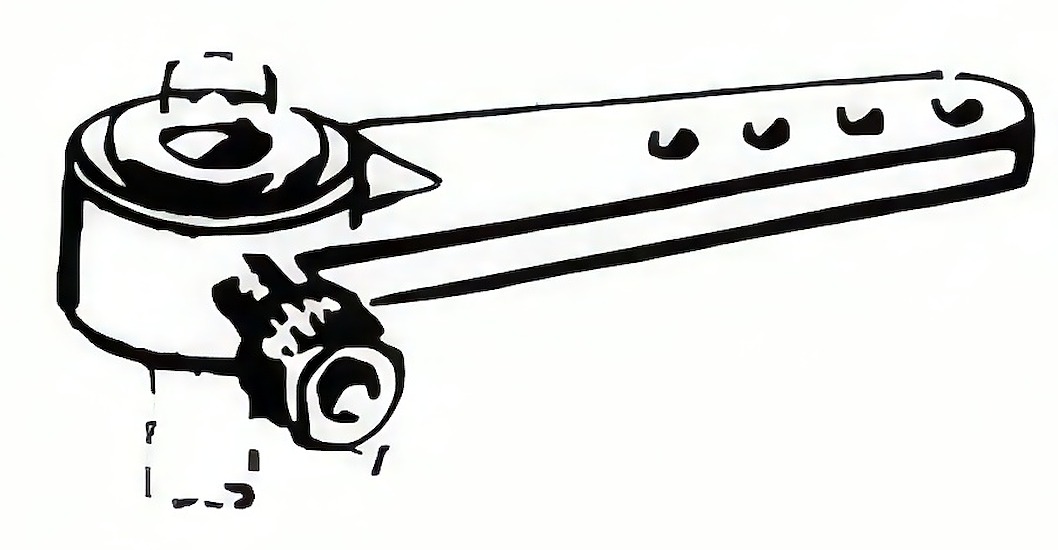

 "Du-Bro Nose Gear 5/32\" Steering Arm, 1-1/4\" Long")
 "MP Jet Steering Arm 3/32-2.5mm")

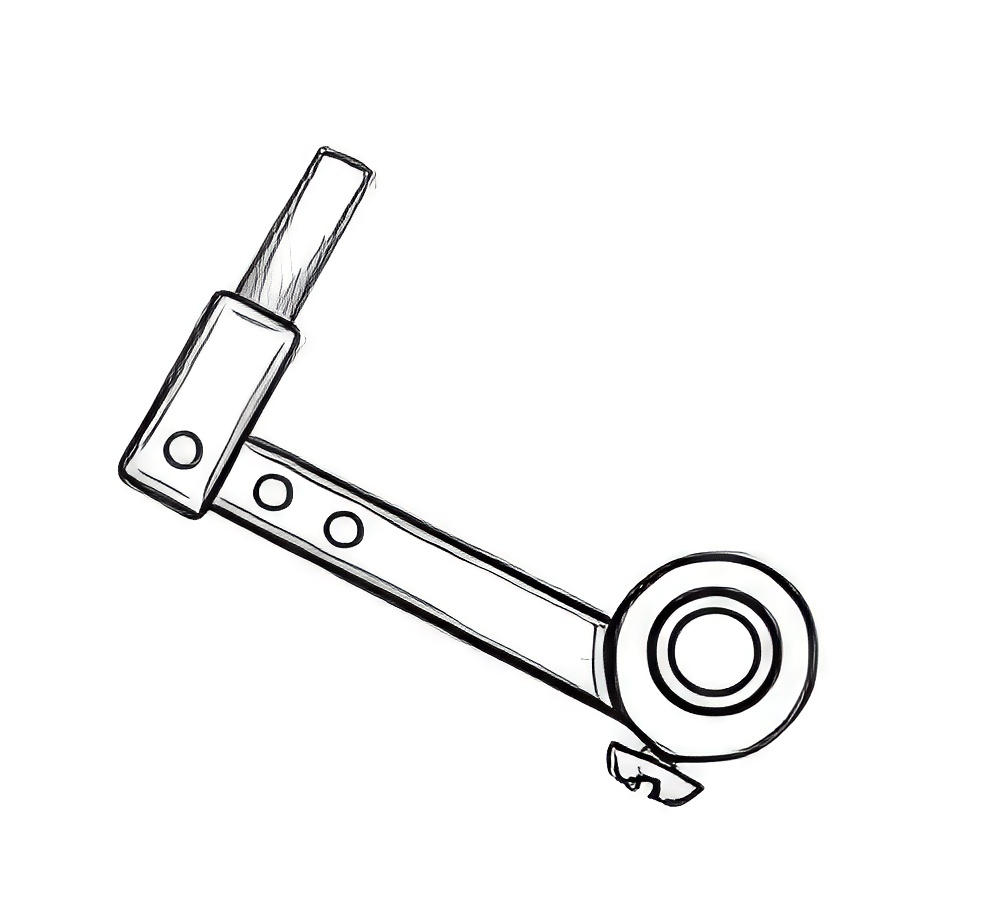

 "Nose Gear 1/8\" Steering Arm, 1 1/4\" Long by Sonic Tronics")

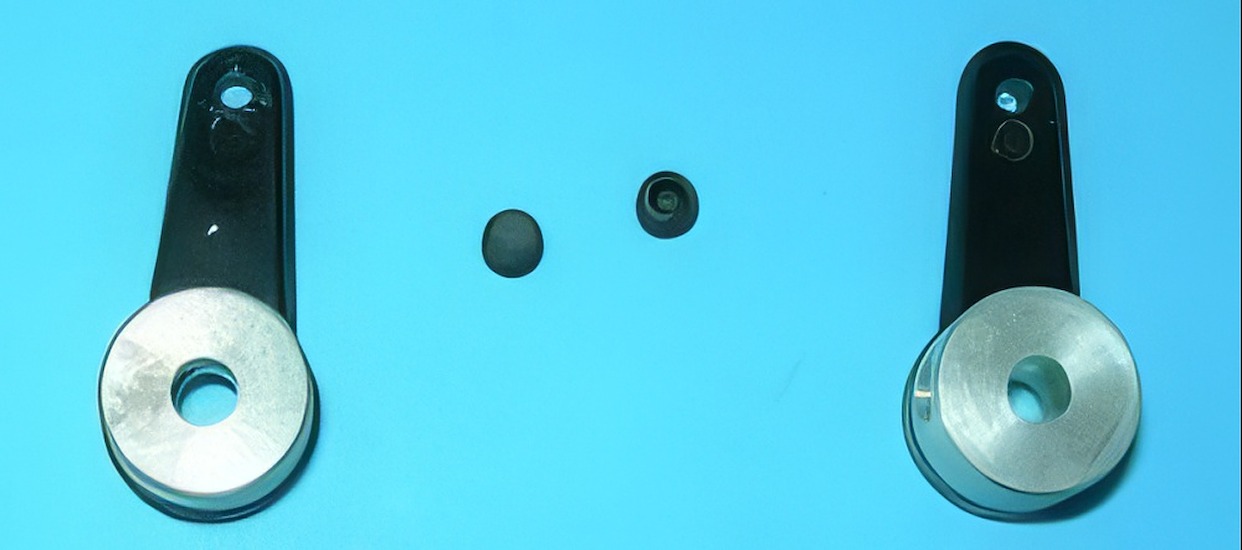

 "MP Jet Steering Arm 3mm")
 "Nose Gear 5/32\" Steering Arm, 1 1/4\" Long by Sonic Tronics")
 "Du-Bro 1-1/4 Inch Nylon Steering Arm Assembly for 5/32 wire")
