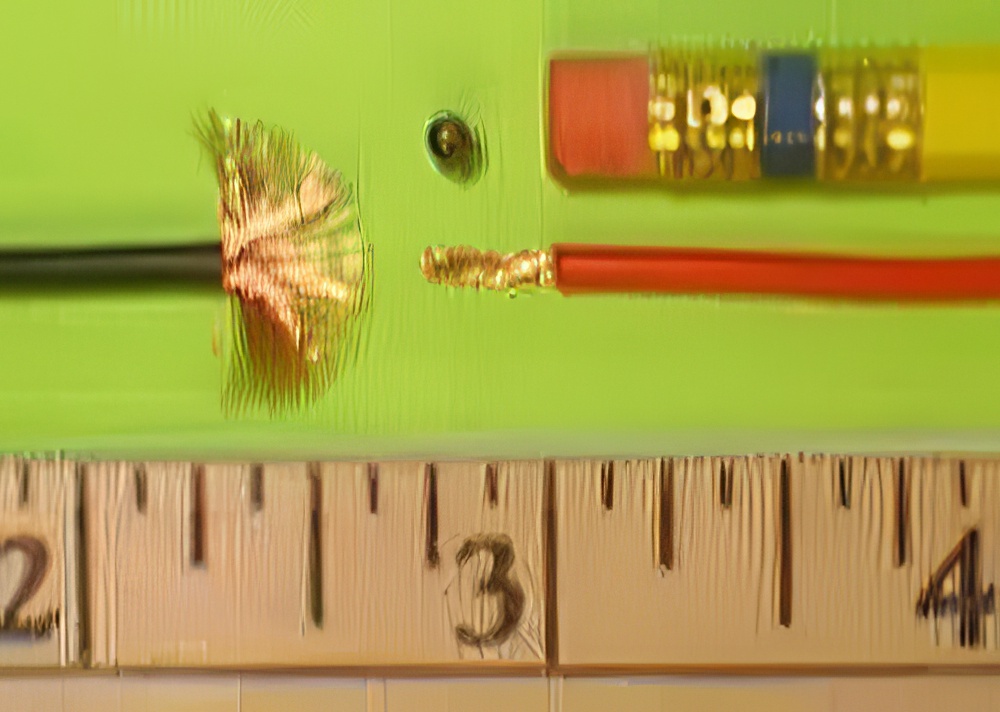

This size silicone wire is great for your high powered S-400 (14 amps)and smaller. High quality, supple with many fine strands. Wire consists of 3 bundles of 50 strands of 0.08mm wire(008x50x3). Thats 150 Strands. Gauge is approximately 18~19. OD of silicone jacket is approximately 2.4mm. Cross section area = 0.75mm sq.
Comes in package with 1 meter of each of both red and black.

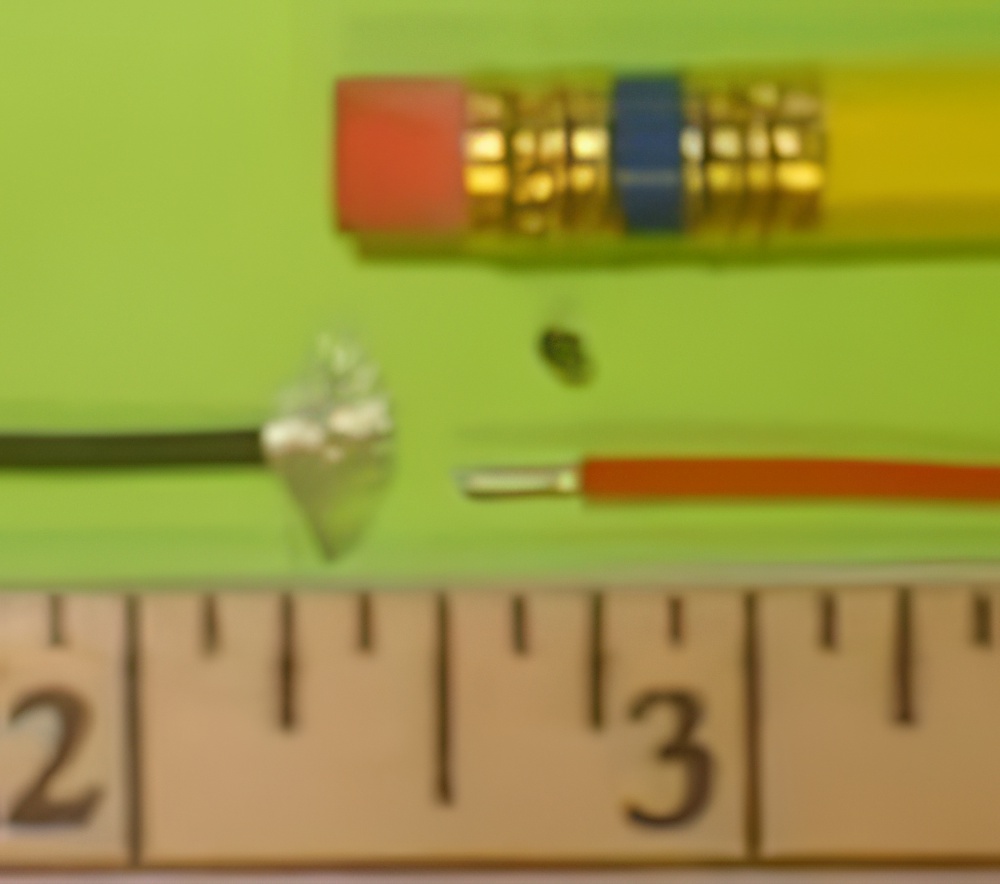

This size silicone wire is great for your high powered S-300 (up to 9 amps) and smaller. High quality, supple and many fine strands. Wire consists of 90 strands of 0.08mm wire (008x90). Gauge is 20. OD of silicone jacket is approximately 1.5mm. Cross section area = 0.33mm sq.
This size silicone wire is great for your high powered S-400 (14 amps)and smaller. High quality, supple with many fine strands. Wire consists of 3 bundles of 50 strands of 0.08mm wire(008x50x3). Thats 150 Strands. Gauge is approximately 18~19. OD of silicone jacket is approximately 2.4mm. Cross section area = 0.75mm sq.
This size silicone wire is great for typical Sub C battery type applications. Generally up to 35 amps and smaller. High quality, supple with many fine strands. Wire consists of 7 bundles of 57 strands of 0.008mm (008x57x7) wire = 399 strands, gauge is approximately 14. OD of silicone jacket is approximately 3-4mm (allow for manufacturing variances). Cross section area = 2.0mm sq.
Comes in package with 1 meter of each red and black.

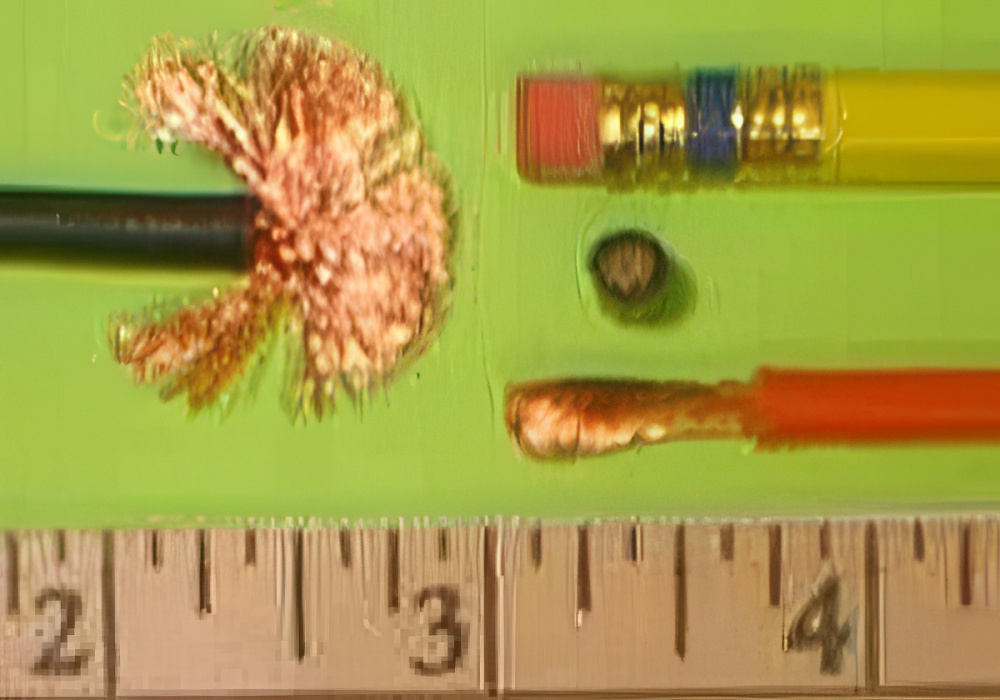

Wire for your high power applications. 50 amps is no problem here. High quality, supple with many fine strands. Wire consists of 7 bundles of 70 strands of .008mm wire = 490 strands, gauge is about 13. OD of silicone jacket is approximately 4-5mm (allow for manufacturer variances). Cross section area = 2.46mm sq.

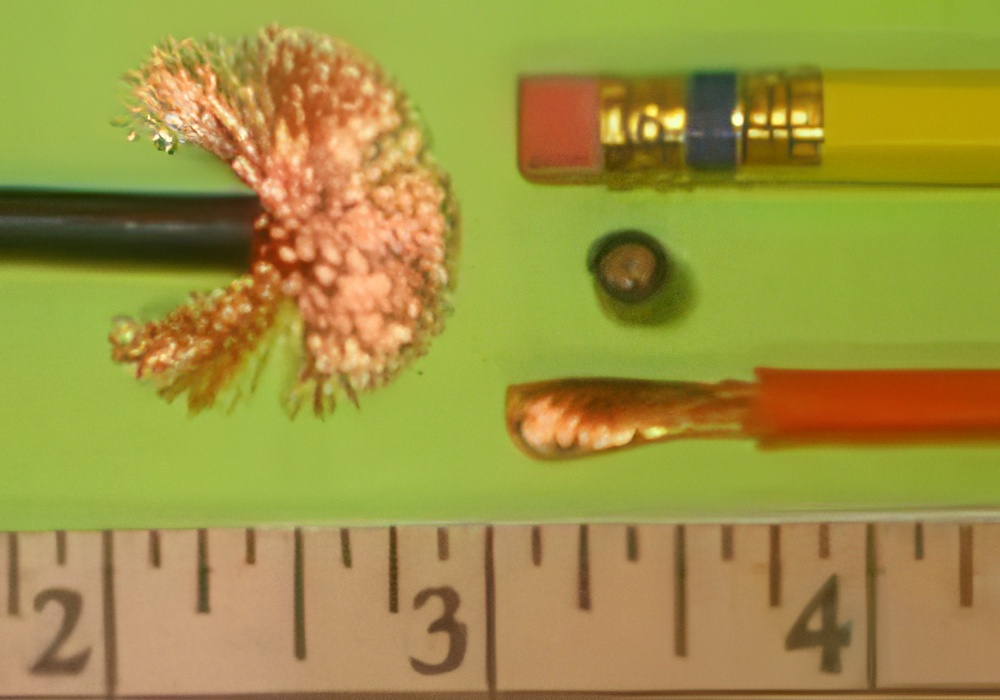

Wire for your Extreme high power applications. 100 amps is no problem here. High quality, supple with many fine strands. Wire consits of 7 bundles of 113 strands of 0.08mm wire (008x113x7). That's 791 Strands. Gauge is approximately 11. OD of silicone jacket is approximately 5mm. Cross section area = 3.97mm sq.
Both Red & Black or Blue & Yellow, bulk length measured by feet. Note, new supply from factory came in as BLUE & YELLOW, understand your shipment may be in BLUE & YELLOW.

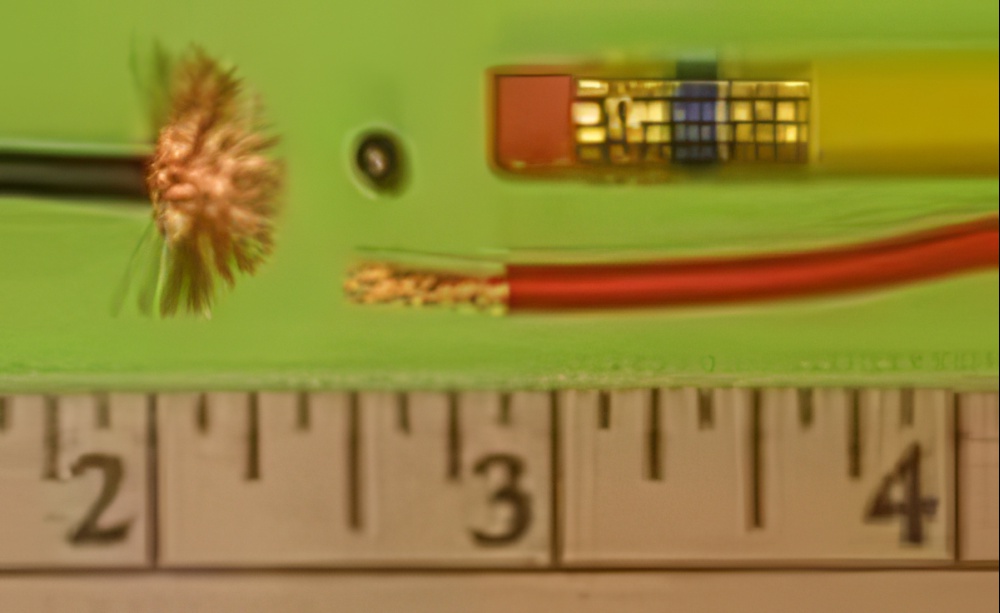

This size silicone wire is great for your high powered S-480, cobalt 400, Astro 020 or similar(20 amps)and smaller. High quality, supple with many fine strands. Wire consists of 7 bundles of 30 strands of .008mm wire. That is 210 Strands. Gauge is 17. OD of silicone jacket is approximately 3mm. Cross section area = 1.06mm sq.
Comes in package with 1 meter of each of both red and black.
10 gauge wire for your Extreme high power applications. Over 100 amps is no problem here. High quality, supple with many fine strands. Wire consists of 1020 strands of 0.08mm wire. Gauge is 10. OD of silicone jacket is approximately 5.4mm.
6 gauge wire for your Extreme high power applications. Over 200 amps is no problem here. High quality, supple with many fine strands. Wire consists of 3200 strands of 0.08mm wire. Gauge is 10. OD of silicone jacket is approximately 8.3mm.
This size silicone wire is great for typical Sub C battery type applications. Generally, up to 35 amps and smaller. High quality, supple with many fine strands. Wire consists of 7 bundles of 57 strands of 0.08mm (008x57x7) wire = 399 strands, gauge is approximately 14. OD of silicone jacket is approximately 3-4mm (allow for manufacturing variances). Cross section area = 2.0mm sq.
Both red and black, bulk lengths measured by feet.
Wire for your high power applications. 50 amps is no problem here. High quality, supple with many fine strands. Wire consists of 7 bundles of 70 strands of .008mm wire = 490 strands, gauge is about 13. OD of silicone jacket is approximately 4-5mm (allow for manufacturer variances). Cross section area = 2.46mm sq.
Comes in package with 1 meter of each red and black.
Wire for your Extreme high power applications. 100 amps is no problem here. High quality, supple with many fine strands. Wire consits of 7 bundles of 113 strands of 0.08mm wire (008x113x7). That's 791 Strands. Gauge is approximately 11. OD of silicone jacket is approximately 5mm. Cross section area = 3.97mm sq.
Comes in package with 1 meter of each red and black. Note, new supply from factory came in as BLUE & YELLOW, understand your shipment may be in BLUE & YELLOW.
This size silicone wire is great for your high powered S-300 (up to 9 amps) and smaller. High quality, supple and many fine strands. Wire consists of 90 strands of 0.08mm wire (008x90). Gauge is 20. OD of silicone jacket is approximately 1.5mm. Cross section area = 0.33mm sq.
Comes in package with 1 meter of each of both red and black.
This size silicone wire is great for your high powered S-480, cobalt 400, Astro 020 or similar(20 amps) and smaller. High quality, supple with many fine strands. Wire consists of 7 bundles of 30 strands of .008mm wire (008x30x7). That's 210 Strands. Gauge is 16. OD of silicone jacket is approximately 3mm. Cross section area = 1.06mm sq.
Both Red & Black, measured by feet.
SKU Number: RRCWS48016RBFT
Silicone Insulated Wire
Silicone insulation stays flexible and handles heat better than standard PVC, which is why it is a favorite for battery leads, motor wires, and any connection that flexes or runs warm. This category gathers silicone insulated wire in a spread of gauges for RC power work.
Gauges and Series
Wire is offered from lighter 20 gauge up through heavy 11 gauge, covering everything from small servo and BEC leads to high-current motor and battery runs. The lineup includes S-300 and S-400 series wire and heavier Sub C, Super Sub C, and Extreme Sub C sizes for demanding setups.
Packs and Colors
Common colors such as red and black make it easy to keep polarity straight, and wire is available in one meter packs as well as bulk lengths for builders wiring several models.
Review the gauges on this page and choose the wire that matches your current needs.
 "Silicone Wire S-400 18 Gauge 1m Pack")
 "Silicone Wire S-300 20 Gauge Red & Black ~Bulk Lengths")
 "Silicone Wire S-400 18 Gauge Red & Black ~ Bulk Lengths")
 "Silicone Wire Sub C 14 Gauge, Red & Black, 1m Pack")
 "Silicone Wire Super Sub C HI Power App 13 Gauge Red & Black ~ Bulk Length")
 "Silicone Wire Extreme Sub C 11 Gauge Red/Black or Blue/Yellow ~ Bulk Length")
 "Silicone Wire S-480 16 Gauge 1m Pack")
 "Silicone Wire Sub C 14 Gauge Red & Black ~ Bulk Length")
 "Silicone Wire Super Sub C HI Power App 13 Gauge, Red & Black, 1m Pack")
 "Silicone Wire Extreme Sub C 11 Gauge Pack")
 "Silicone Wire S-300 20 Gauge 1m Pack")
 "Silicone Wire S-480 16 Gauge Red & Black ~ Bulk Lengths")
