Collet adapters work because a hole in the adapter shaft (machined to fit your motor or gearbox shaft with precision) is split along it's length several times is forced to contract (usually by the prop drive plate) tightly against the prop shaft. Collet type adapters usually provide a more true center than any other type of adapter meaning less vibration.
Fits 1.5mm(0.06") motor shafts. Presses into 4mm bore props. This is the easy way to adapt the small GWS Hyper Drive props such as the 4-2.5 to 1.5mm shafts found on the ever popular 12mm inrunners and many of the new micro outrunners. Works great with all of then, AON, Fiegao, Medusa, EMP, etc... Each package contains 5 adapters. Laser cut from aircraft grade plywood.
Notes: There are 7 props in the GWS line with a 4mm bore ranging from 4"x2.5" to 5x4.3". Also note the RRC Direct 4x3" prop has a 4mm bore. This adapter will get all these 4mm bore props onto a 1.5mm shaft.
Yes, this internal adapter allows you to run the 5x3 and 5x4.3 GWS HD props on your Sukoi which has 1.5mm gear box shaft.
Fits 2 motor shafts. Each package contains 5 collets. Presses into 4mm bore props. This is the easy way to adapt the small GWS Hyper Drive props such as the 4-2.5 thru 5x4.3" props to 2mm shafts. 20mm inrunners like HiMax 2015 and 2025, Hacker 20mm inrunners, almost all 20mm in runners long or short have 2 mm shafts. Many smaller outrunners also use 2mm shafts. Laser cut from aircraft grade plywood.
Notes: There are 7 props in the GWS line with a 4mm bore ranging from 4"x2.5" to 5x4.3". Also note the RRC Direct 4x3" prop has a 4mm bore. This adapter will get all these 4mm bore props onto a 2mm shaft.
This is an interesting prop driver. Comes with sleeve locker adhesive. It's intended to be "glued" onto your shaft. This gives you the shortest adapter possible. Originally designed for the Gunther props, will work with all the 4mm bore GWS props as well such as the ever popular 4x2.5 prop. Overall Length .474" (12mm). Max prop hub thickness about .350" (8.88mm)
Maxx Products Collet Prop Adaptor 2.0mm(0.08") Motor Shaft to 5mm(0.20"(3/16")) Prop Shaft. Common size for speed 280, 300, 301, 350, 370 and most 20mm OD brushless in-runner motors. Light weight Aluminium, nice nut. Note, this type adaptor is intended for small props and does not have enough motor shaft grip to hold high power 3D applications like 11-4.7 and 12-6 props. However, for props in the 8" and under category it works well and offers a very small shaft diameter so less prop drilling is required.
This is an interesting prop driver. Comes with sleeve locker adhesive. It's intended to be "glued" onto your shaft. This gives you the shortest adapter possible. Originally designed for the Gunther props, will work with all the 4mm bore GWS props as well such as the ever popular 4x2.5 prop. Overall Length .474" (12mm). Max prop hub thickness about .350" (8.88mm).
Maxx Products Prop Adaptor 2.3mm(0.09") motors. Has 5mm(0.20"(3/16"))prop shaft. This is the common size for S-400 thru S-480 motors. Light weight Aluminium, nice bullet nut, collet type.
Note, this type adaptor is intended for small props and does not have enough motor shaft grip to hold high power 3D applications like 11-4.7 and 12-6 props. However, for props in the 8" and under category it works well and offers a very small shaft diameter so less prop drilling is required.
Adapts 3.0mm(0.12") Motor or Gearbox Shaft to 5mm Prop Hub. This is the size shaft on 20mm Himax (3966) gearbox's as well as all the GWS 100-280-300-350-370 gearbox systems for S-300's.
Prop Adaptor for 3mm(0.12") motor or gearbox shafts. This is the size shaft on 20mm Himax (3966) gearbox's as well as all the GWS 100-280-300-350-370 gearbox systems for S-300's.
Adapts for 3.0mm(0.12") Motor or Gearbox Shaft to 5mm Prop Hub. Lite weight version. This is the size shaft on 20mm Himax (3966) gearbox's as well as all the GWS 100-280-300-350-370 gearbox systems for S-300's.
Prop Adaptor for 3.2mm(1/8") motor or gearbox shafts. Common size for many 550, 600 motors as well as Astro 020 and many 40mm brushless motors. Prop Shaft OD: 5mm. Shaft length: 18.5mm. Overall length: 27mm.
Prop Adaptor for 3.2mm(1/8") motor or gearbox shafts. Common size for many 550, 600 motors as well as Astro 020 and many 40mm brushless motors. Prop Shaft OD: 5mm. Shaft length: 12.25mm. Overall length: 22mm.
Adapts Prop mounts on 7mm shaft boss, threaded shaft is 6mm. Props with 6mm hole will need a 7mm recess in the back to accept the boss which is approximately 5mm high off the surface of the drive plate to 4mm(0.16") Motor or Gearbox Shafts.
Fits 4mm motor shafts, props must be clearanced for 6mm threaded shaft. Aluminum. 6mm bullet nut, collet type.
SKU Number: MPIACC368
Prop Adapters and Motor Shaft Collets
A prop adapter bridges the gap between a motor shaft and a propeller, letting a single motor turn props with different bore sizes. This category collects adapters, collets, and drivers for the small electric motors common in park flyers and sport electrics.
Collet Style Adapters
Internal collet adapters step a small motor shaft up to a larger prop shaft, such as a 1.5mm or 2mm shaft driving a 4mm prop. The collet grips the shaft as the nut is tightened, which makes these a clean choice for smaller setups.
Set Screw and Driver Types
For larger motors, Maxx prop adapters use a hex nut and set screw to lock onto the shaft, and options such as a 6mm size or a 1/8 inch motor shaft version cover common combinations. MP Jet prop drivers and a GWS prop hub round out the selection for 2mm shafts.
Match the adapter to your motor shaft and prop bore using the details in each listing.

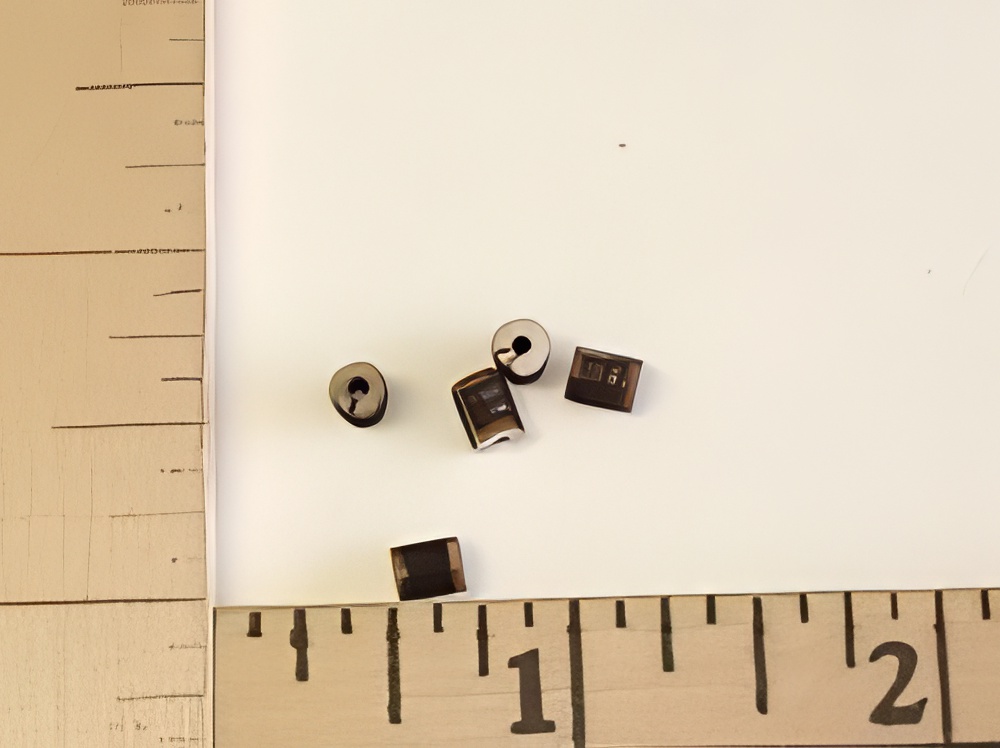

 "1.5mm/0.06\" shaft to 4mm, Internal collet adapter")
 "2mm shaft to 4mm prop, Internal collet adapter")
 "6mm Maxx Prop Adapter, Hex Nut Set Screw Type")
 "Maxx Prop Adapter 1/8\" Motor Shaft, 1/4-28 (6.3mm) Prop Shaft, Bullet Nut, Collet Type")

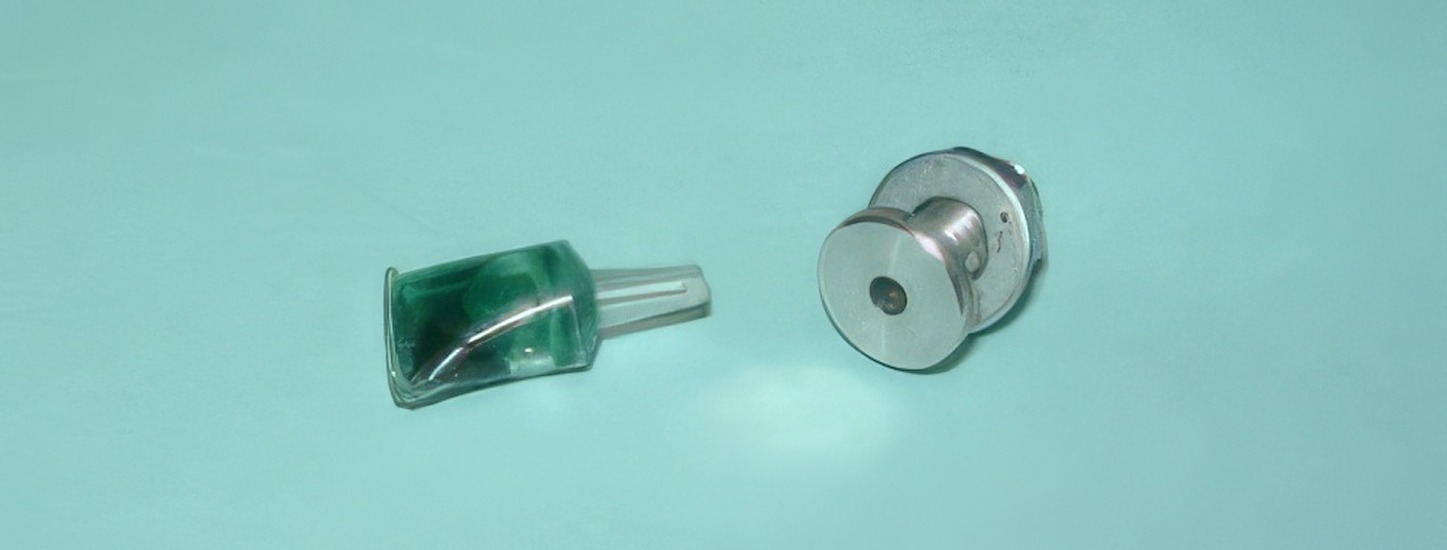

 "2mm Prop Driver 4mm Bore Props MP Jet")

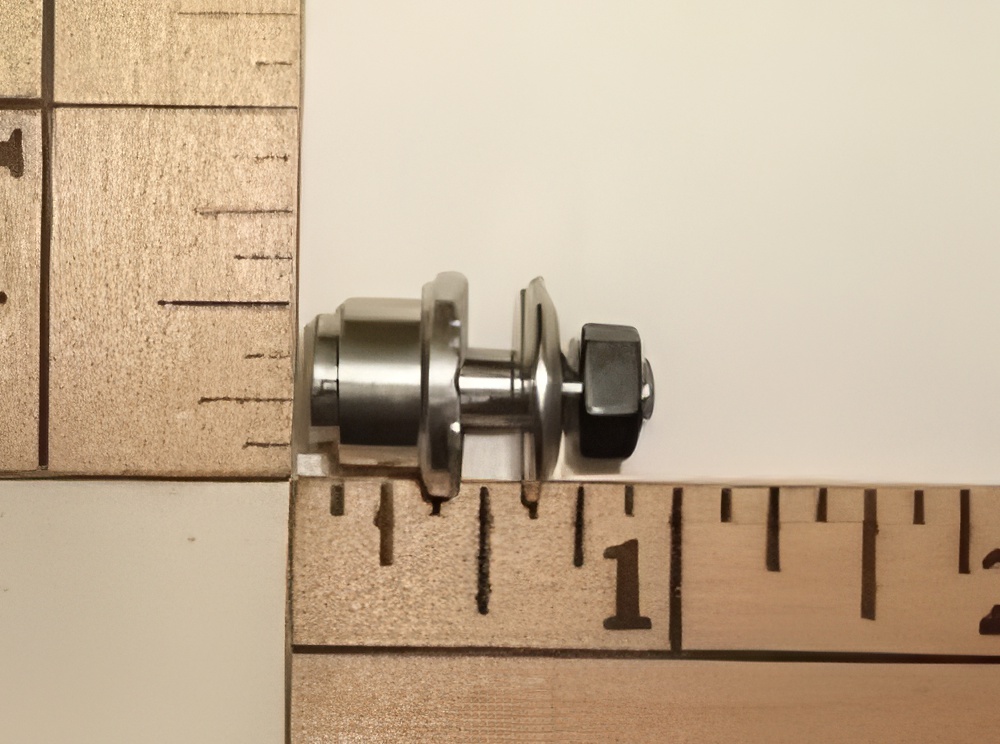

 "E Cubed R/C Prop Adapter: 2.0mm(0.08\") Motor Shaft x 5mm Prop Hub")

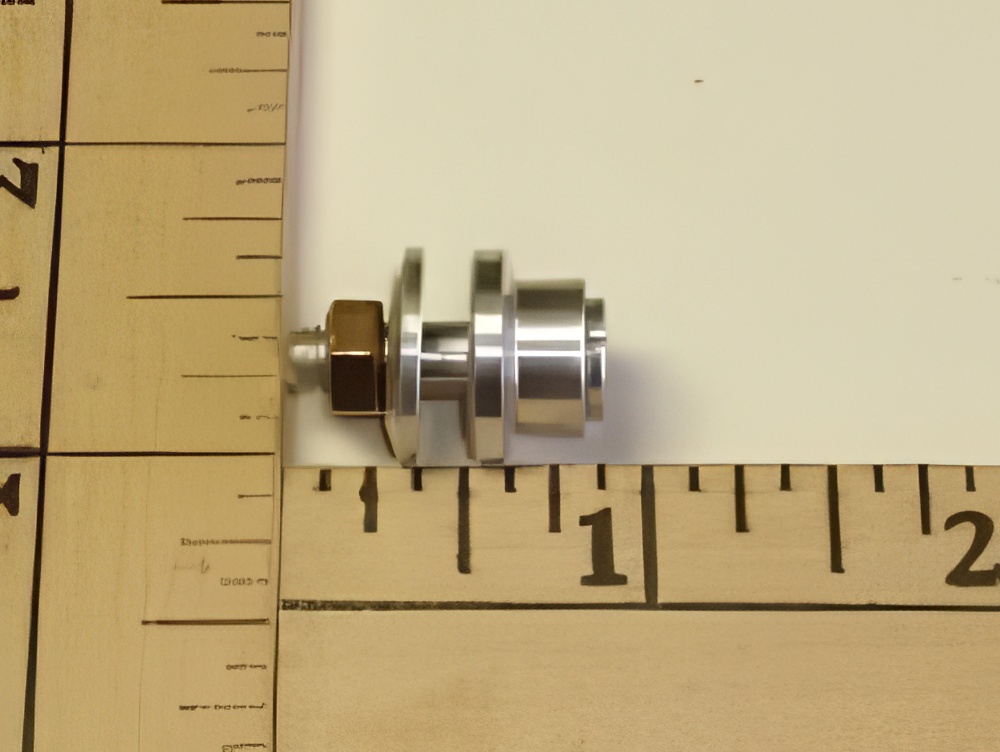

 "Radical RC Prop Adaptor 2mm")

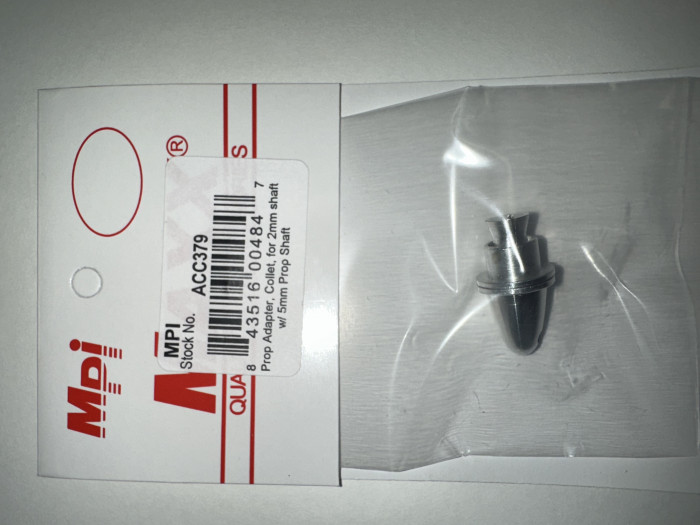

 "Maxx Prop Adaptor 2.0mm motor shaft, Collet Type, 5.0mm prop hub Bullet Nut")
 "2.3mm Prop Driver 4mm Bore Props MP Jet")

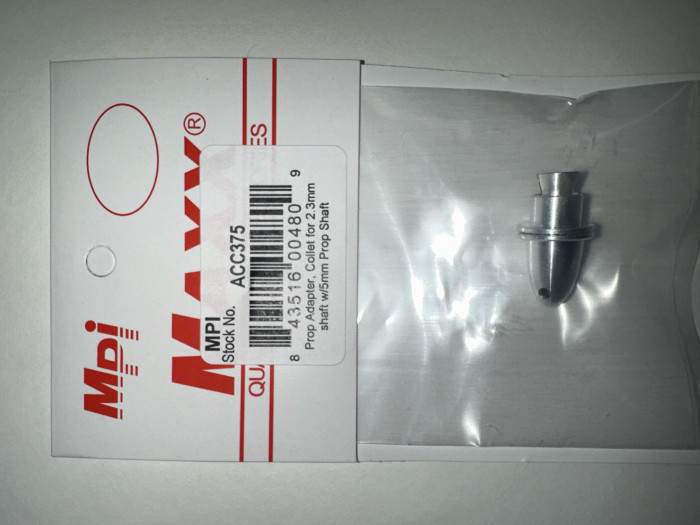

 "Maxx Prop Adaptor 2.3mm(0.09\") motor shaft, 3/16\" (5mm) prop shaft, Bullet Nut, Collet Type")

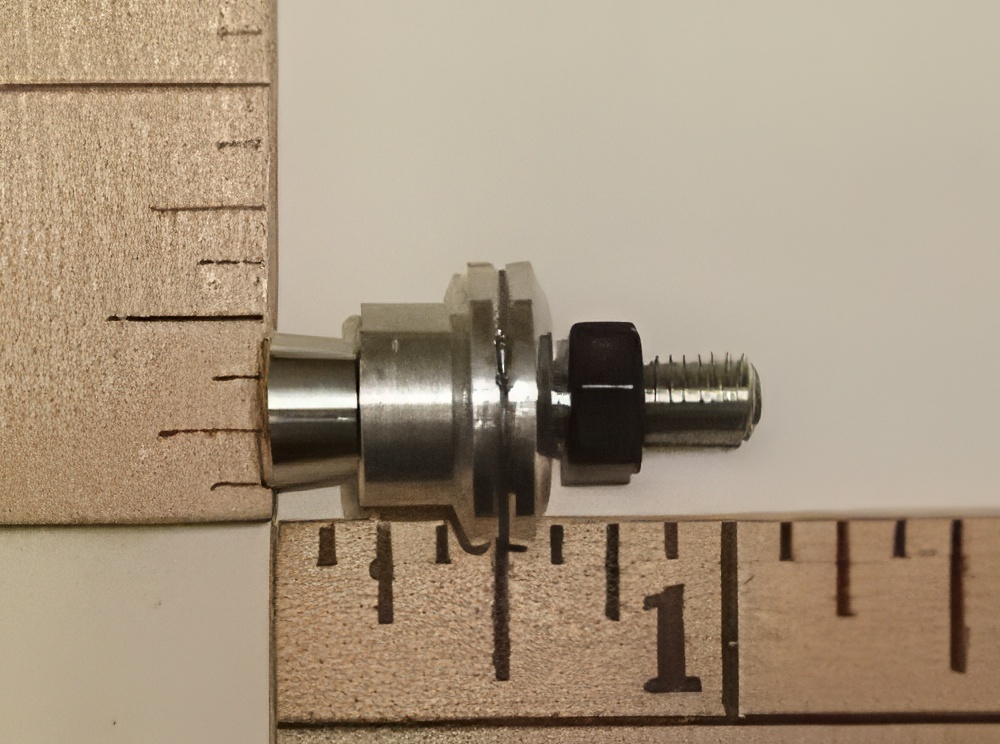

 "E Cubed R/C Prop Adapter: 2.3mm(0.09\") Motor Shaft x 5mm Prop Hub")

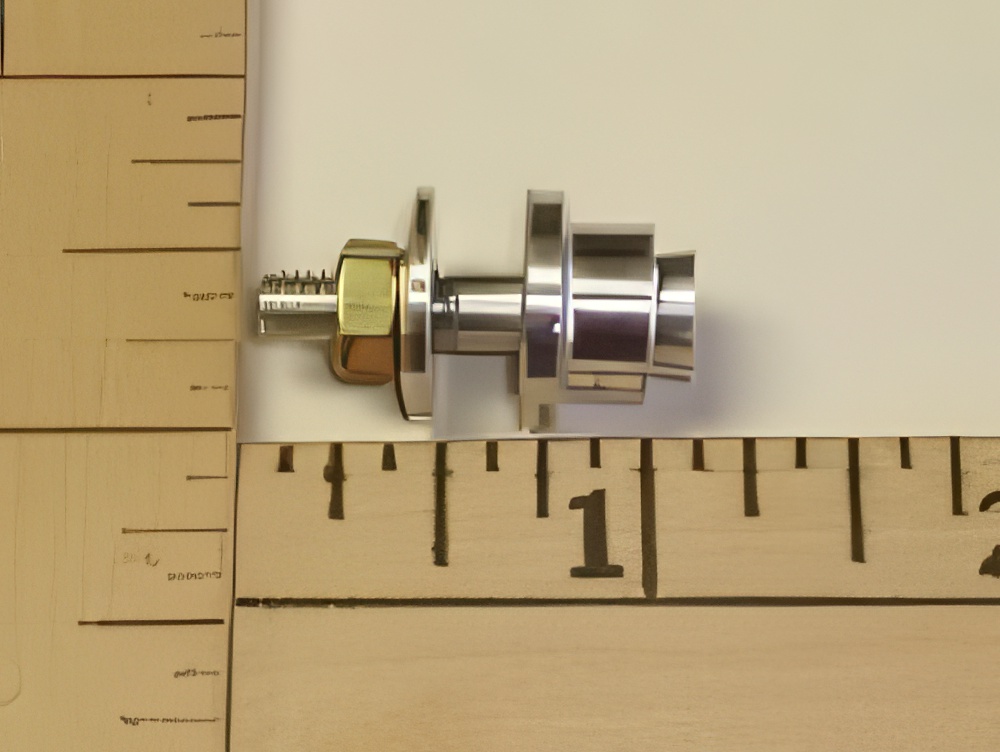

 "Radical RC Prop Adaptor 2.3mm(0.09\") Motor Shaft")

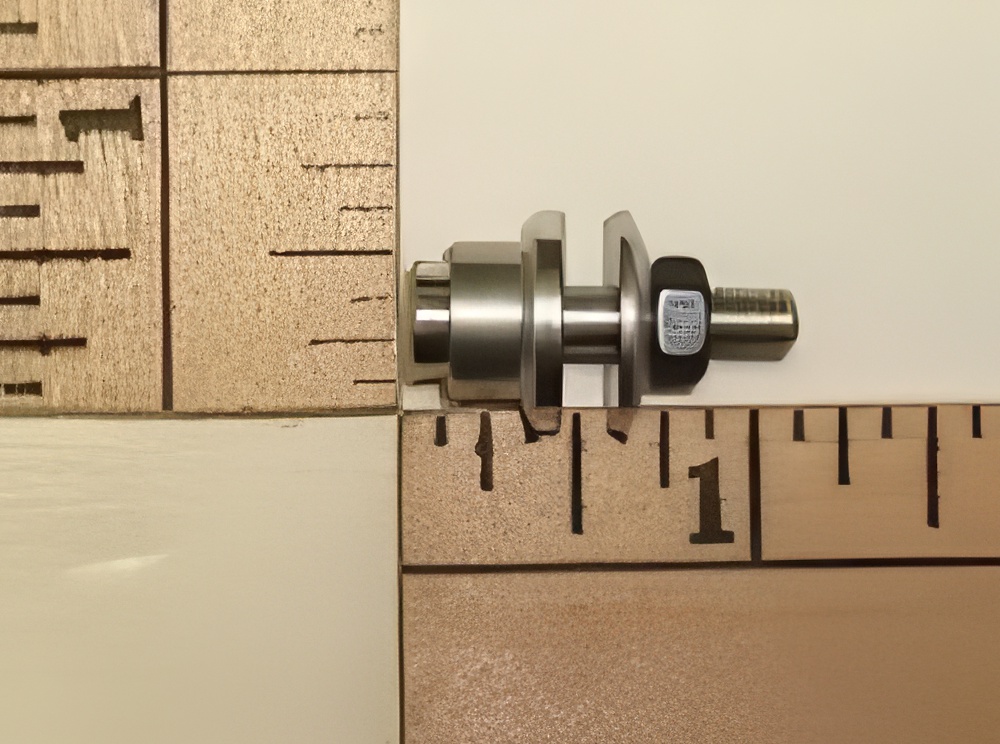

 "E Cubed R/C Prop Adapter: 3.0mm Motor Shaft X 5mm Prop Hub")

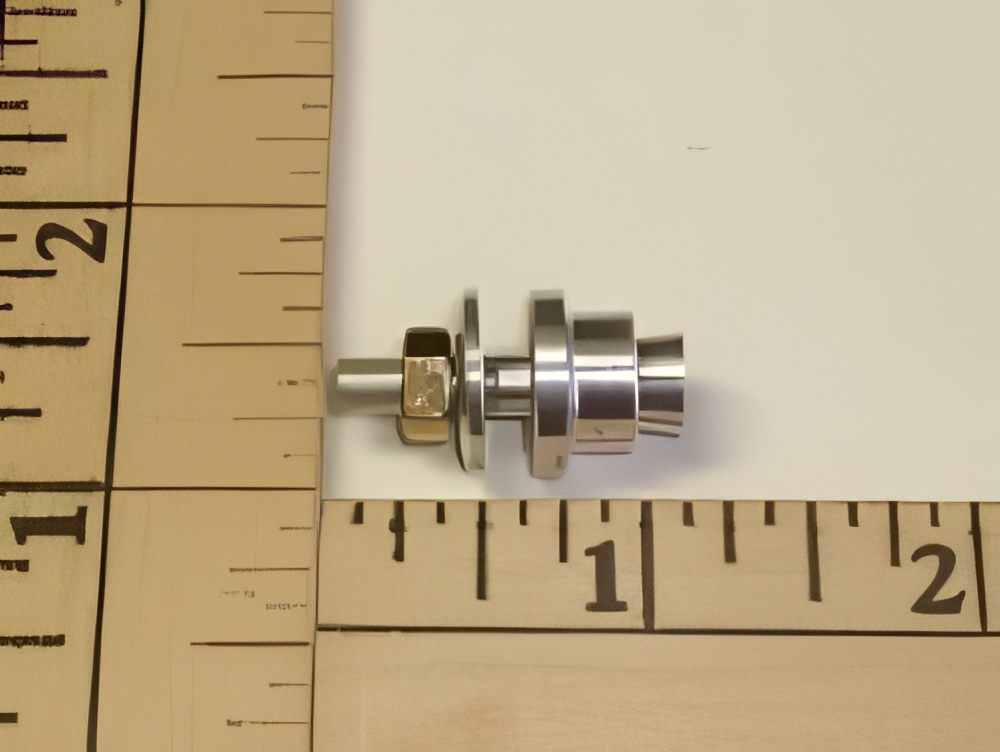

 "Radical RC Prop Adaptor 3mm Motor Shaft.")

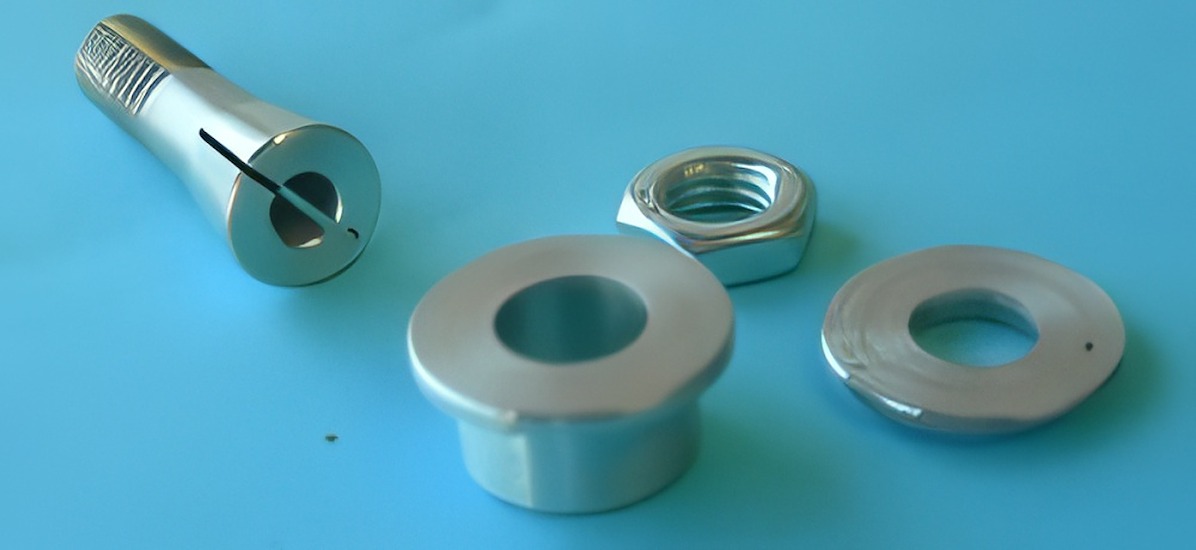

 "E Cubed R/C Prop Adapter: 3.0mm Motor Shaft x 5mm Prop Hub LITE")

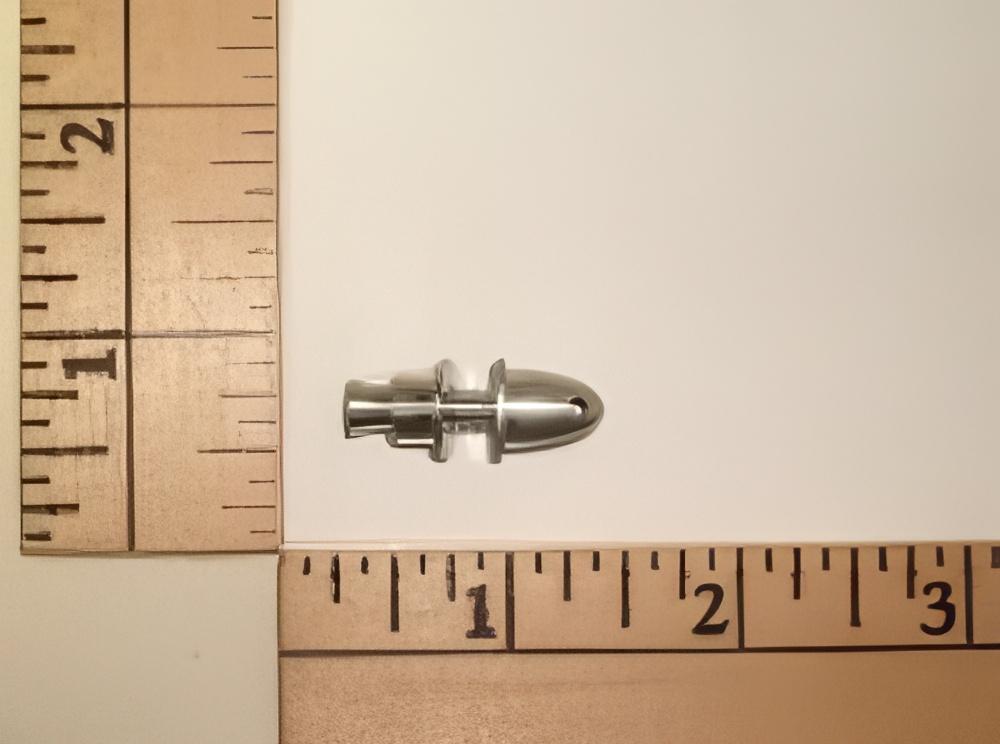

 "Maxx Prop Adaptor 3.2mm (1/8\") shaft, 6mm prop hub.")

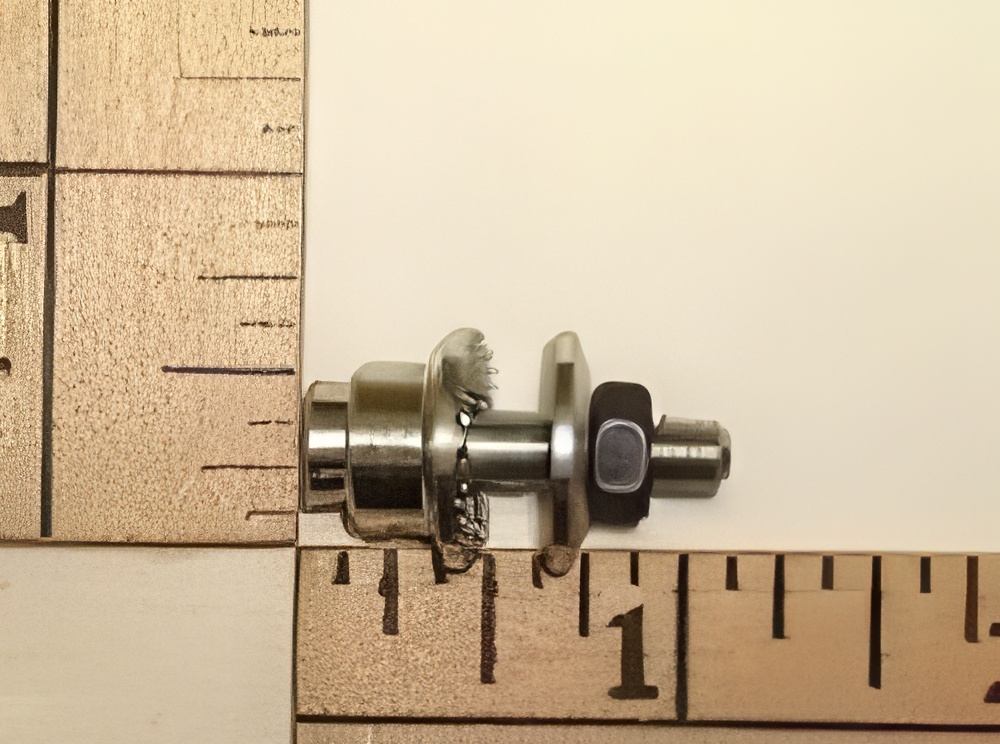

 "E Cubed R/C Prop Adaptor 3.2mm(1/8\") Motor Shaft x 5mm Prop Hub")
 "Radical RC Prop Adapter 3.2mm(1/8\") Motor Shaft")

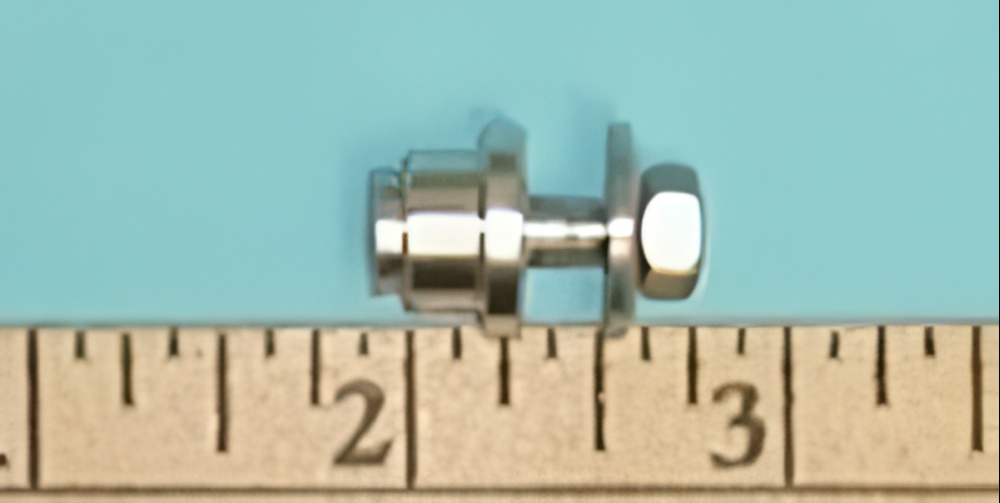

 "Radical RC Prop Adaptor 3.2mm(1/8\") Motor Shaft Standard Length")
 "MPI Prop Adapter 4mm (5/32\") Motor Shaft, Set Screw Type, 1/4-28 Prop Shaft Bullet Nut")
 "MPI Prop Adapter 4mm (5/32\") Motor Shaft, Bullet Nut, Collet Type")

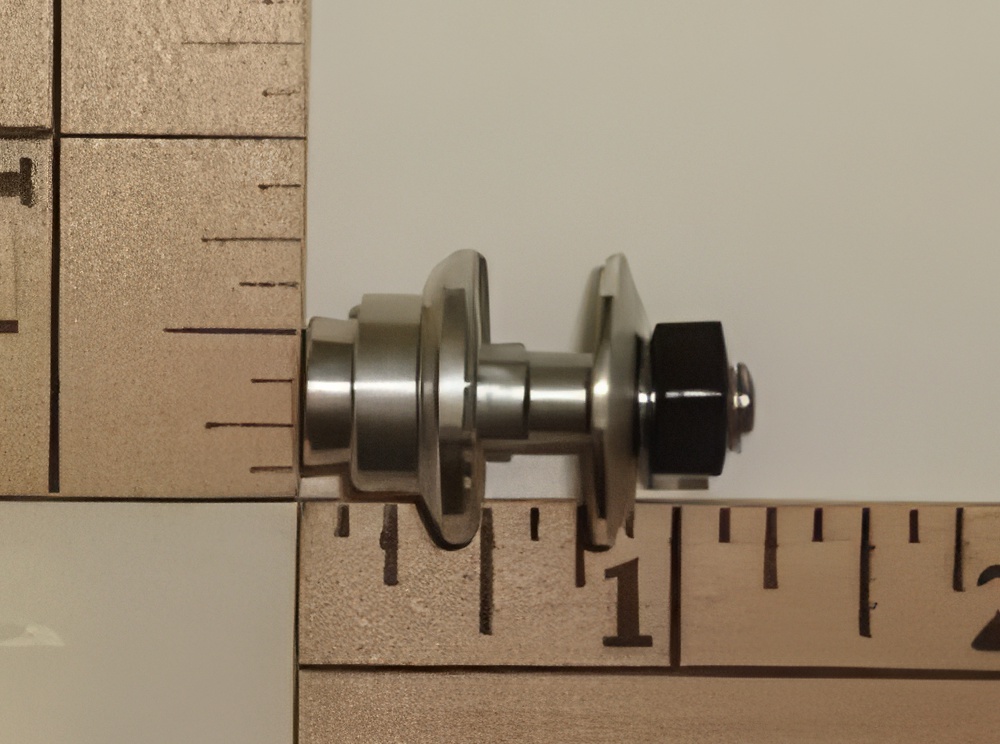

 "E Cubed R/C Prop Adapter: 4mm Motor Shaft x 6mm/7mm Prop Hub")

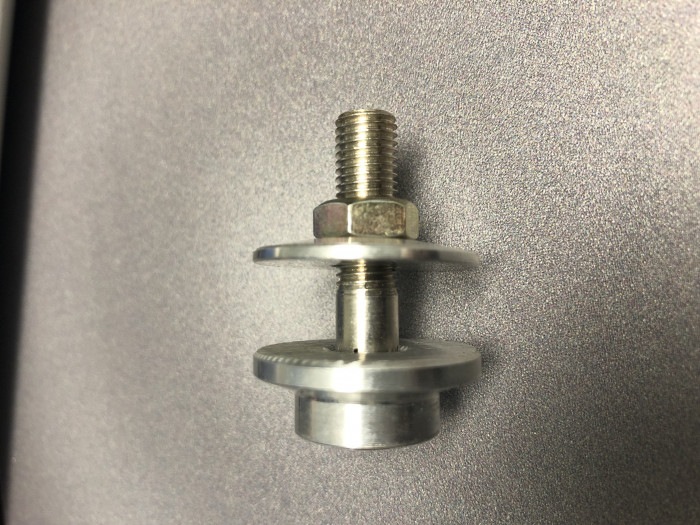

 "Radical RC Prop Adaptor 4mm Motor Shaft")

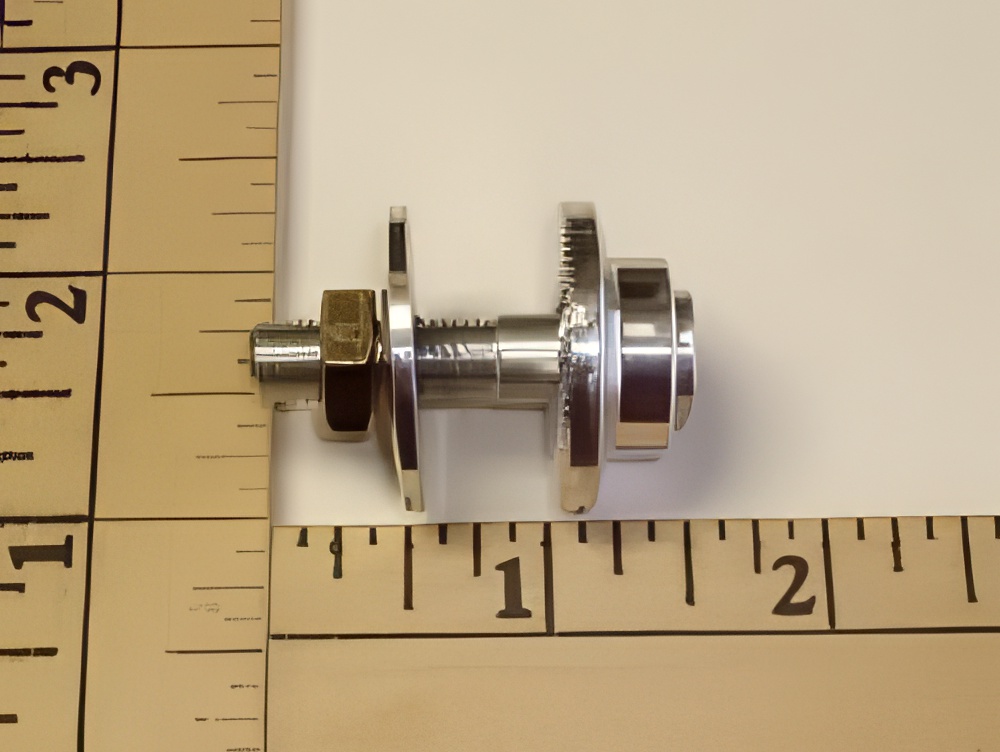

 "Prop Adaptor 4.0mm motor shaft / 8mm threaded prop shaft")

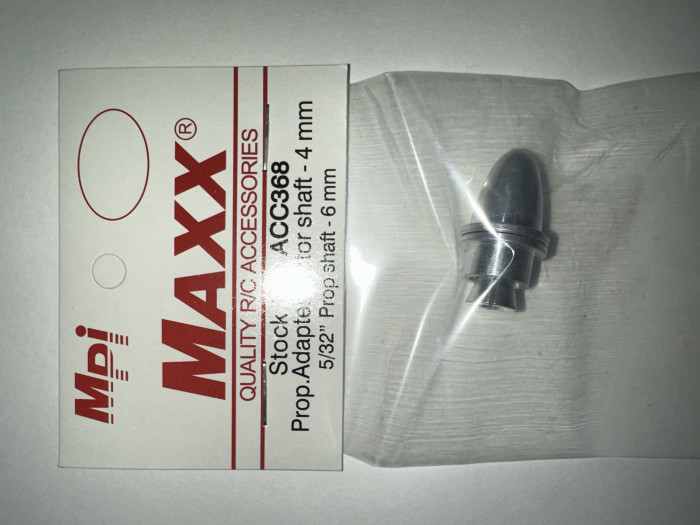

 "Maxx Prop Adaptor 4mm (5/32 or 0.16\") motor shaft, 6mm prop shaft, Bullet Nut, Collet Type")
