Remember, good consistent and accurate ground testing of your airborne packs requires a "loaded voltmeter". Open (or unloaded resting) voltages can fool you into thinking a battery is OK to fly again when it is not. Thus the reason RC hobby meters have load capability.
Onboard Digital Voltmeter. Connect to unused servo output on receiver. Monitor realtime battery voltage. Easily mounted in cockpit or panel mount anywhere on your plane. Two decimal readout.
Specifications: Minimum Voltage: 3.5VDC Maximum Voltage Input: 30VDC Current Draw: 30mAh Size: 30mm Long x 12mm Wide x 8.5 Deep Cutout size: 24mm x 12mm Mounting Holes: 26mm Center to Center (2mm hole) Power Supply: Measuring Power Source Weight: 4g
Shows individual cell voltage. Works with almost any connector. Adapter for TP type included. Reads out voltage of up to 6 cells. Gives fuel gauge to let you kinow if pack is empty-mid- or full. Has self balancing feature with up to 50mah balancing current. Weighs only 2 grams. Fits easily in pocket or field box.
Power Supply 9V Battery 6F22 (battery not included)
Maximum Display 1999
Product Net Weight 300g
Products Size 191x 89x 35mm
Standard Accessories Test Lead, Battery, Manual.
Case Color is Orange/Yellow
Features:
3-1/2 digits LCD, Max. reading 1999
8 function, 32 Ranges
Data hold
Low battery indication
Auto Power Off
Overload protection
Accessories:
Test lead; Users Manual;
SKU Number: DT9206A
RC Voltmeters and Pack Testers
Knowing the real voltage of a pack before and after a flight is one of the simplest ways to protect batteries and avoid a dead-stick landing. This category collects voltmeters and pack testers for checking flight and receiver batteries.
Onboard and Handheld Meters
The RRC Digital Onboard Voltmeter reads from 3.5 to 30VDC and can ride along in the model, while a digital multi-meter covers general bench testing. The Cell-Meter 7 and Hitec LiPo checker read individual cell voltages on a lithium pack.
Pack Testers
The Insta Check Pro RX/TX pack tester gives a quick check of receiver and transmitter battery condition, useful as a pre-flight habit at the field.
Regular voltage checks catch a weak cell or an over-discharged pack early, which extends battery life and reduces the chance of a failure in the air. Keeping one meter at the bench and a small checker in the field kit covers most needs.
Choose the meter or tester that fits how you check your batteries below.
 "RRC Digital Onboard Voltmeter 3.5-30VDC")

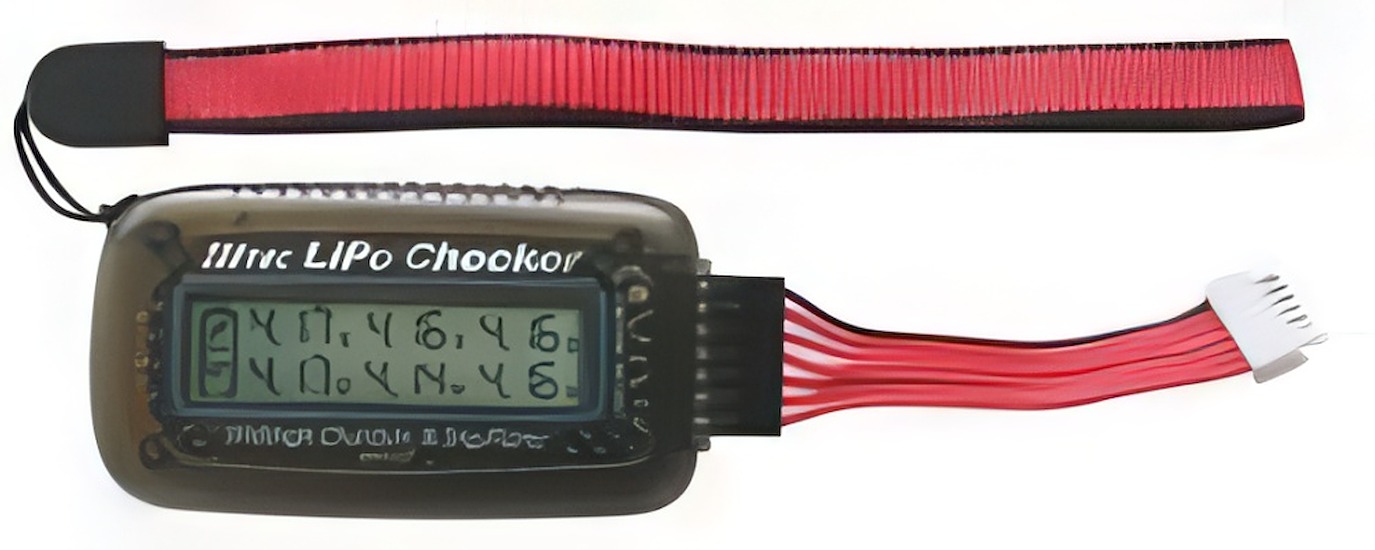

 "Hitec LiPo Checker")
 "Digital MultiMeter")
