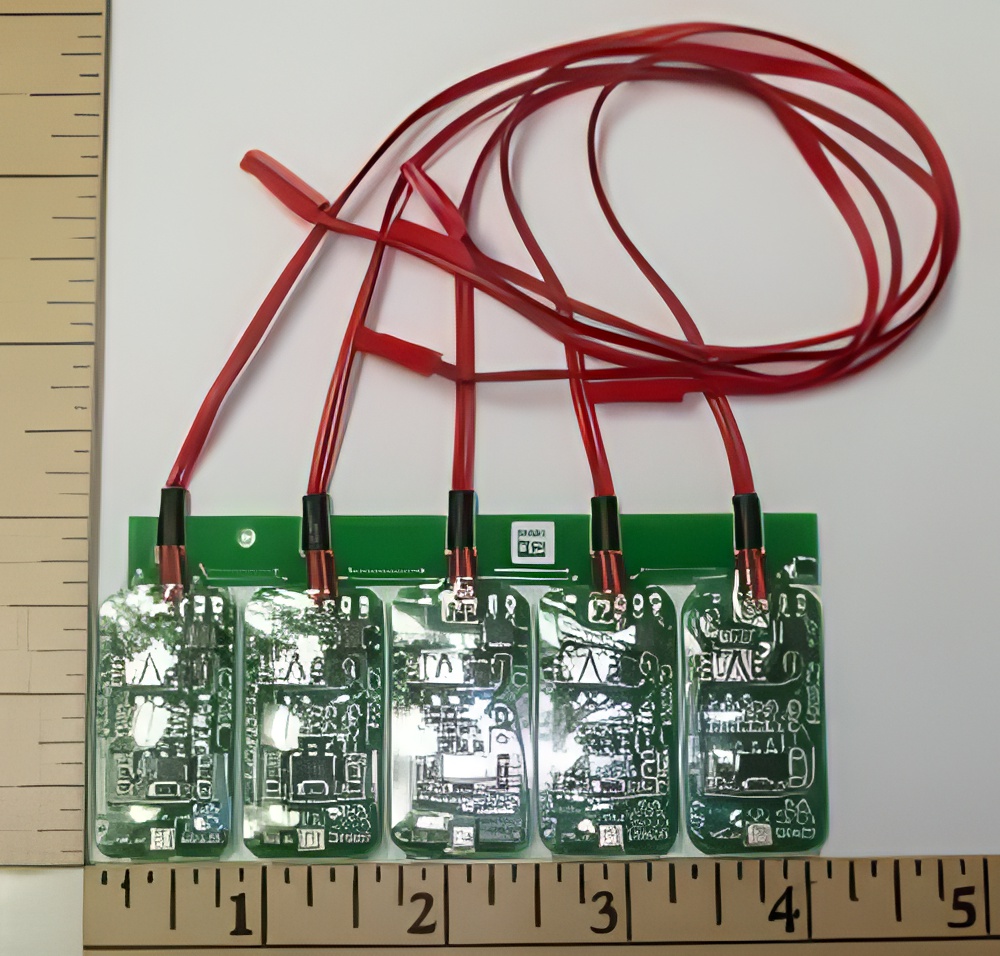

The evoJet Orbit LiPo-checker is a precision voltage supervisory unit (balancer)for rechargeable lithium battery cells (Lipo). It is simply connected or plugged to paralleled lithium cells. An ultra-bright LED digitizes the voltage curve of the cell(s) into: voltage is constant = (LED-OFF), voltage rise (LED-FLASHES) and overvoltage (LED-ON). An controlled current sink discharges the cells to an allowed level. This can balance the lithium cells in a pack to equal voltages. An alarm output is activated if the max or min voltage is reached anyway.
Specs:
* Operating current: 10uA, max. 550 mA * Connection: BEC(Tanic) connectors * Operating voltage: +2,1V to +4,5V * Thresholds: < 2,7V, > 4,20V, >=4,23V * Dimensions: 50 x 5 x 105 mm * Package includes: 5s Orbit LiPo-checker with connection cable and plugs

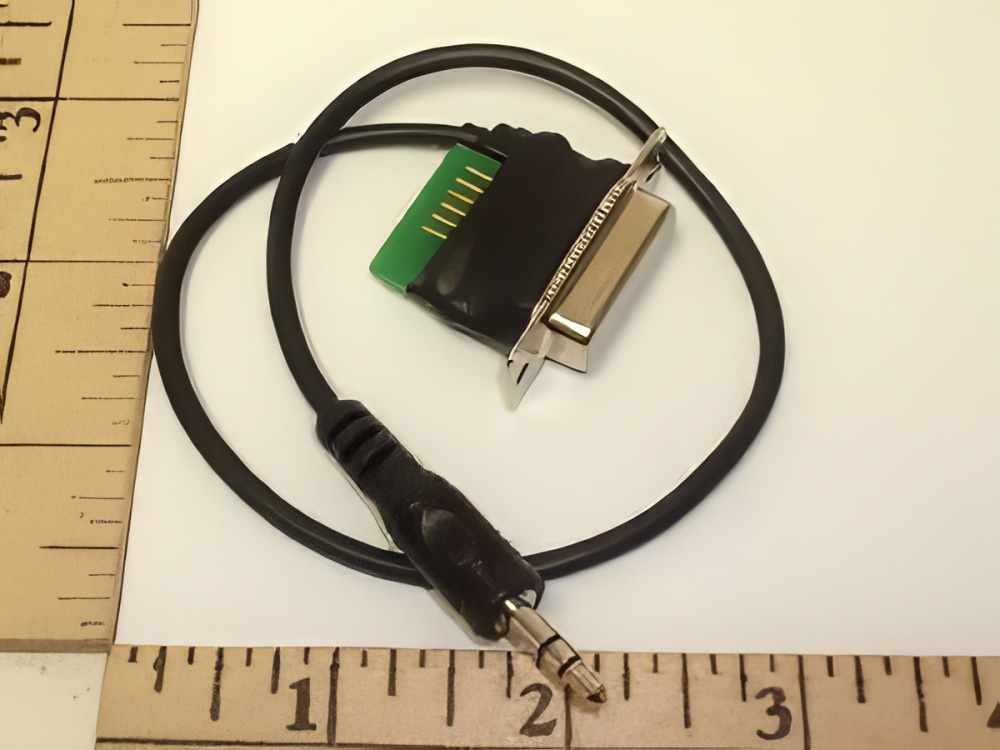

2-3S, 8.4-11.1Volt, Lipo Adapter. The LiPo Checker Pro Adapter Thunder Power & Flight Power / will allow you to connect to your evoJet Orbit LiPo Checker Pro to all these brands. It isn't required to connect the SIO plug between the an evoJet Orbit Charger and the Lipo Checker Prop, but if they are connected, then the Balancer/Checker can control charger if required.
This is the adapter you'll need for Thunder Power & Flight Power Lipo battery packs to the Balancer/Checker.
4-5S, 14.8-18.5 Volt, Lipo Adapter. The LiPo Checker Pro Adapter Thunder Power & Flight Power / will allow you to connect to your evoJet Orbit LiPo Checker Pro to these brands. It isn't required to connect the SIO plug between the an evoJet Orbit Charger and the Lipo Checker Prop, but if they are connected, then the Balancer/Checker can control charger if required.
This is the adapter you'll need for Thunder Power & Flight Power to the Lipo Checker Pro.
The LiPoChecker Pro Adapter-Graupner/Robbe will connect your evoJet Orbit LiPo Checker Pro, an evoJet Orbit Pocketlader Charger and a Graupner/Robbe Lipo Battery Pack. It isn't required to connect the Charger and Balancer/Checker, but if they are connected, then the Balancer/Checker can control charging rate to individual cells.
This is the adapter you'll need for Graupner/Robbe Lipo battery packs to the Balancer/Checker.
The LiPoChecker Pro Adapter-BEC-Tanic will connect your evoJet Orbit LiPo Checker Pro, an evoJet Orbit Pocketlader Charger to your custom battery pack or BEC equipped Tanic style Lipo battery packs.It isn't required to connect the Charger and Balancer/Checker, but if they are connected, then the Balancer/Checker can control charging rate to individual cells.
This is the adapter you'll need for custom Lipo battery packs with BEC connectors to the Balancer/Checker.
5S, 18.5Volt, Lipo Adapter. The LiPo Checker Pro Adapter Thunder Power & Flight Power / Radical RC / E-sky / E-Flight / Most China packs - will allow you to connect to your evoJet Orbit LiPo Checker Pro to all these brands. It isn't required to connect the SIO plug between the an Orbit Charger and the Lipo Checker Prop, but if they are connected, then the Balancer/Checker can control charger if required.
This is the adapter you'll need for Thunder Power & Flight Power / Radical RC / E-sky / E-Flight / Most China Lipo battery packs to the Balancer/Checker.

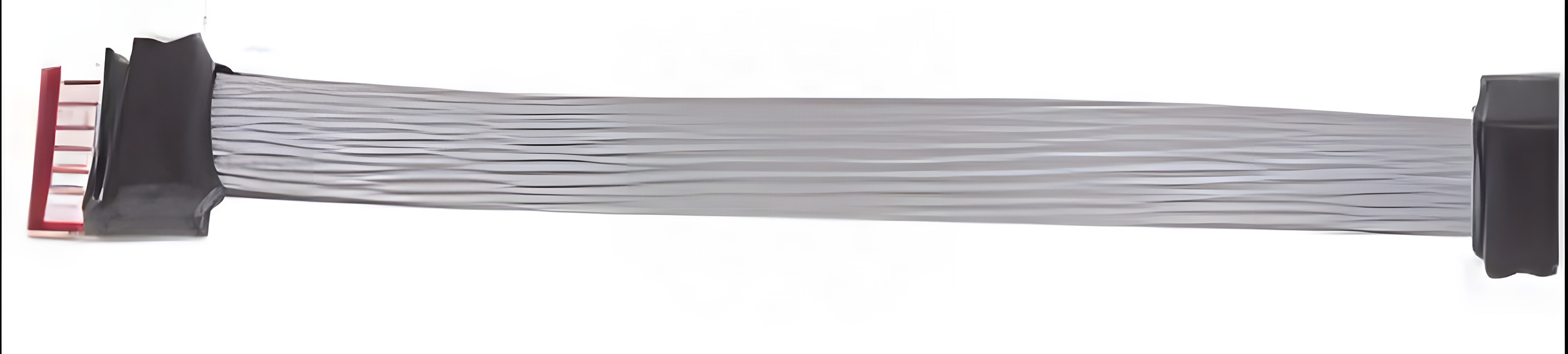

5S, 18.5 Volt, Lipo Adapter. The Pocketlader Combo Adapter to Thunder Power & Flight Power Lipo Battery Packs. This is the adapter you'll need for Thunder Power & Flight Power battery packs to the evoJet Orbit Pocketlader Combo.
4S, 14.8 Volt, Lipo Adapter. The Pocketlader Combo Adapter to Thunder Power & Flight Power Lipo Battery Packs. This is the adapter you'll need for Thunder Power & Flight Power battery packs to the evoJet Orbit Pocketlader Combo.
2s/3s (7.4/11.1V), Lipo Adapter T3r. The Pocketlader Combo Adapter to Thunder Power & Flight Power Lipo Battery Packs. This is the adapter you'll need for Thunder Power & Flight Power battery packs to the evoJet Orbit Pocketlader Combo.
5s (18.5V), Lipo Adapter G5. The Pocketlader Combo Adapter to Kokam, Graupner, Robbe Lipo Battery Packs. This is the adapter you'll need for Kokam, Graupner, Robbe battery packs to the evoJet Orbit Pocketlader Combo.
4s (14.8V), Lipo Adapter G4. The Pocketlader Combo Adapter to Kokam, Graupner, Robbe Lipo Battery Packs. This is the adapter you'll need for Kokam, Graupner, Robbe battery packs to the evoJet Orbit Pocketlader Combo.
2s/3s (7.4/11.1V), Lipo Adapter G3. The Pocketlader Combo Adapter to Kokam, Graupner, Robbe Lipo Battery Packs. This is the adapter you'll need for Kokam, Graupner, Robbe battery packs to the evoJet Orbit Pocketlader Combo.
SKU Number: EVO0646G3
LiPo and LiFe Battery Balancers
Keeping the individual cells of a lithium pack at matched voltages helps the pack charge evenly and reach its full usable capacity. This category covers balancers and checkers for LiPo and LiFe batteries.
Balancers
The Astro Blinky Battery Balancer, offered in the p/n 106 and 106-123 versions, works to even out cell voltages, and an Astro adapter is available to connect the Blinky to Thunder Power batteries.
Cell Checkers
For a quick read on pack condition, the evoJet Orbit LiPo Checker reports individual cell voltages, with Pro adapters offered for Thunder Power and Flight Power packs in 2 to 3 cell and 4 to 5 cell configurations. Checking cells before and after a flight is a simple habit that helps track a pack's health.
Between a balancer that evens the cells and a checker that reports their voltages, the two tool types cover the routine care a lithium pack needs over its life. Which one you reach for depends on whether you want to correct the cells or simply read them.
Browse the balancers and checkers below to suit your batteries.
 "evoJet Orbit LiPo Checker 5s 4.2V")
 "evoJet Orbit LiPo Checker Pro Adapter-Thunder Power/Flight Power 2-3S")
 "evoJet Orbit LiPo Checker Pro Adapter-Thunder Power/Flight Power 4-5S")
 "evoJet Orbit LiPo Checker Pro Adapter-Graupner/Robbe")
 "evoJet Orbit LiPo Checker Pro Adapter-BEC-Tanic")
 "evoJet Orbit LiPo Checker Pro Adapter-Thunder Power/Flight Power 5S/18.5V")
 "evoJet Orbit LiPo Checker Pro Adapter-D-Sub 15")
 "7.4V 2S Li-ion/Lipo Battery Charger 2-in-1 USB Balance Smart Charger")
 "evoJet Orbit Pocketlader Combo Adapter T5 -Thunder Power/Flight Power 5S.")
 "evoJet Orbit Pocketlader Combo Adapter T4 -Thunder Power/Flight Power 4S.")
 "evoJet Orbit Pocketlader Combo Adapter T3 -Thunder Power/Flight Power 2S/3S.")

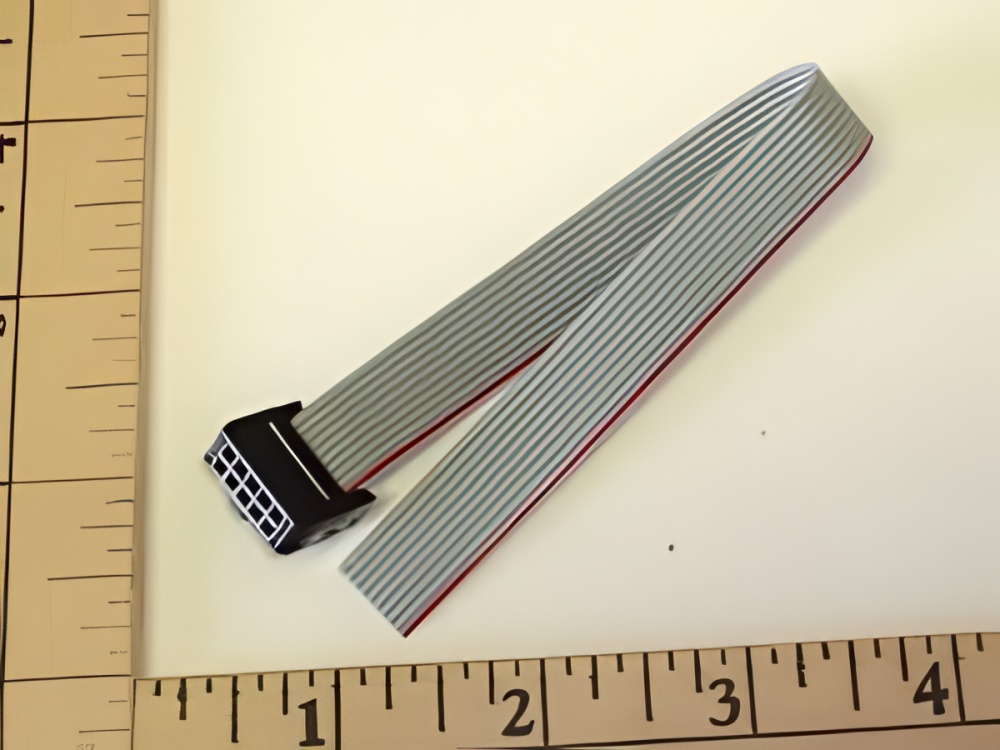

 "evoJet Orbit Pocketlader Combo Adapter Header or Pigtail, 2 x 5")
