$7 Minimum Shipping — USA Addresses $13 minimum on phone orders · Worldwide shipping — see checkout for all options · insurance automatically added to USA orders over $50
Special Shipping Note: Packages over 1 cubic foot in volume going to destinations beyond USPS Zone 4 will be shipped by UPS Ground or rarely Parcel Post, regardless of shipping method chosen or paid for. USPS charges a "Balloon Rate" turkey charge (same rate as 20lbs) for large light weight packages. A Slow Stick kit to California by Priority Mail cost about $30 to ship. This policy only applies to orders containing larger kits, ARF's, radio systems, larger power supplies and similar bulky boxes 1 cubic foot or larger.
Banana socket box and rubber feet included. Each one Doc builds could look a little different depending on hour and day of assembly. All will be equipped with double standard 4mm banana inputs or better. Made from re-manufactured and new components. Tested in our shop under load prior to shipping. Doc says if he has time, he can configure the outputs differently if you like. 30 day guarantee by Doc included.
Note: Power supplies take standard PC type power cords. Most people have 3 or 4 in a drawer somewhere just waiting to be recycled to a good use. This is an excellent place to employ one of the extra cords you've been saving. If you need one, please choose in the drop down below. The 18 gauge cord is light duty and should not be used if you'll be taxing this power supply above 20 amps. The 14 AWG cord is a heavy duty server grade cord and will run cool as a cucumber even when you've got this unit maxed out. Both are 6 feet long.
Made with barrell connector ready to go for the GWS C3-LP Charger. Plug into your 110V wall outlet and then plug power cord into your charger. Now you can leave the battery behind. Also a usefull power supply for many other chargers intended to run on 12V. Understand a running car 12V system is often about 14.5V so most other chargers made for typical 12V inputs will accept 15V just fine.
From Peak Electronics comes a simple way to run up to 4 chargers off one power supply or 12V battery. Comes in the same ultra rugged case Sirius chargers are built into. Top drawer quality.

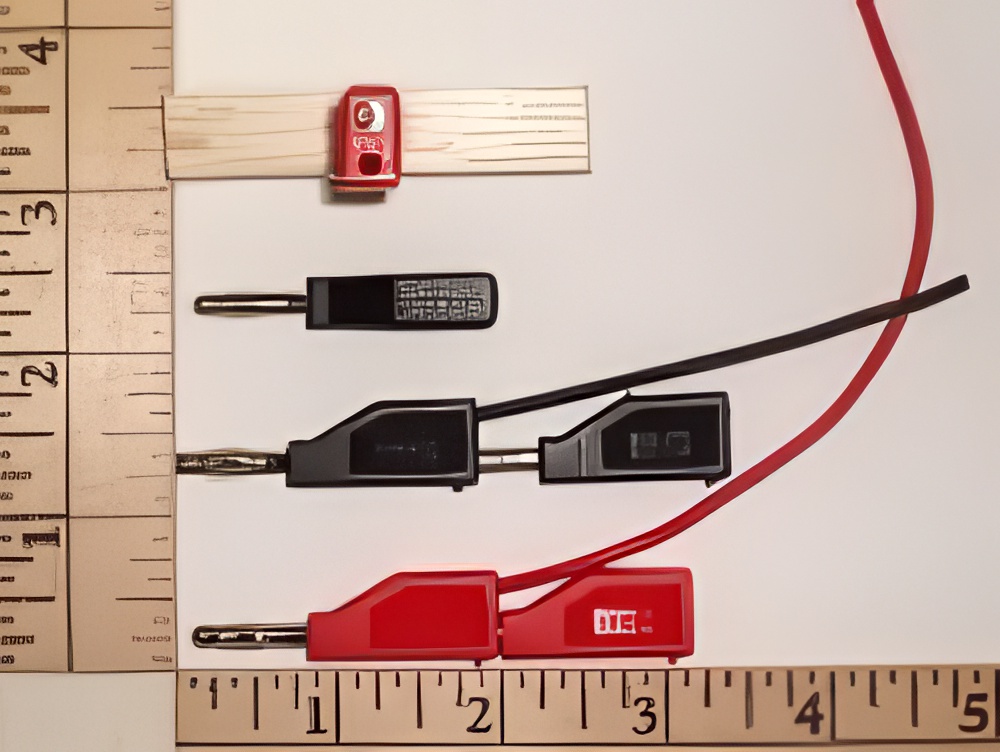

Stackable banana plugs. Can be plugged into each other allowing multiple items to be connected simultaneously to your field box or power supply. Multiple useage, heavy duty. Priced per pair, one red-positive and one black-negative. Really come in handy installed on your gear.
Ace Adapter cord to allow DDVC to be plugged into your auto/RV/Power Supply 12V cigaretter lighter plug. Also useful for your other projects requiring modest currents. Same plug used on the Digipulse and Alpha 4 chargers for power input.

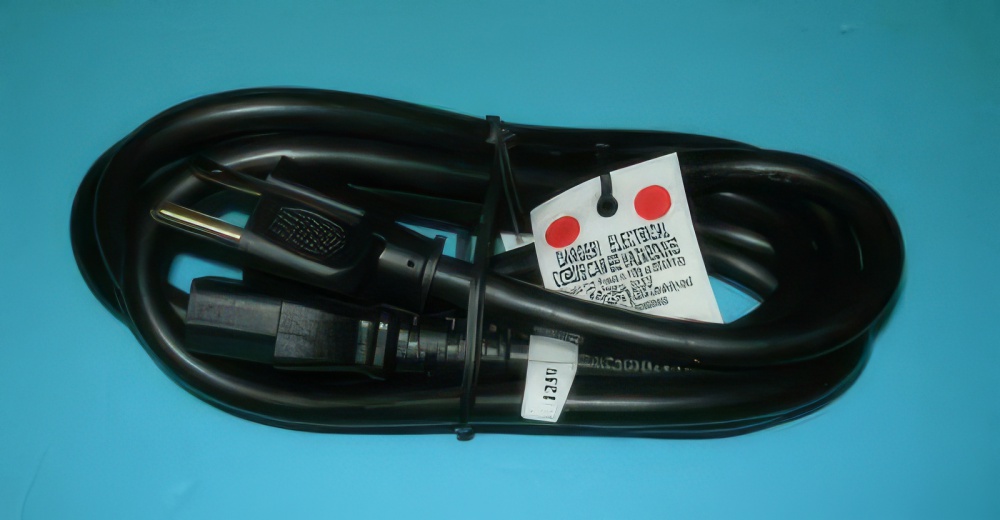

Heavy Duty IEC-C13 Power Cord fits many power supplies including our DB 32/47/94 series above. A requirement when the power supply is feeding a charger working on multiple 6 cell or 8 to 12 cell packs at very high rates.
Standard Duty IEC-C13 Power Cord fits many power supplies including our DB 32/47/94 series above. Use this lighter weight cord when your demands from the power supply are under 30 amps DC.
This extremely efficient power supply converts 100~240 AC volts into 17 amps of continuous 13.8 volt DC power, making it compatible with a wide variety of DC chargers.
Available as an individual unit or as a cohesive, innovative combination with the X1 Pro DC/DC Multicharger.
Specifications
Input Voltage Range: 100~240 Volts AC
AC Input Voltage Frequency: 50~60Hz
Output Voltage: 13.8 Volts DC +- 0.2V
Current Overload Protection: 17.5A 500ms Input Current Protection: 5A Fuse
Output Voltage Ripple:
USB Output Voltage/Current: 5V / 2.1A
Power Efficiency: 91%
Power Factor: >0.98
Temperature Protection Cutoff: 65?
Cooling Method: Temperature Controlled Fan
Dimensions: 5.0 x 3.6 x 2.0 in.
Net Weight: 21 oz.
DISCONTINUED BY HITEC, WHILE SUPPLIES LAST!
SKU Number: HRC44216
12V Power Supplies for the Charging Bench
Most RC chargers run on 12 volts, so a bench power supply that converts 110V household AC to 12V DC is a common need for anyone charging at home rather than at the field. This category collects Doc Brown's power supplies built for that job.
Amperage Ratings
Output current sets how many chargers or how large a pack you can run at once, and these supplies span a range: 32 amp, 47 amp, and 70 amp models are offered, along with a 47 amp version fitted with a deluxe output panel.
For higher-voltage needs there is also a 24V unit that provides two independent 47 amp 12V ports, useful when a charger calls for a higher input or when running two circuits at once. Match the supply's amperage to the total draw of the chargers you plan to run at the same time.
Compare the amperage options on this page to match a supply to your chargers.
