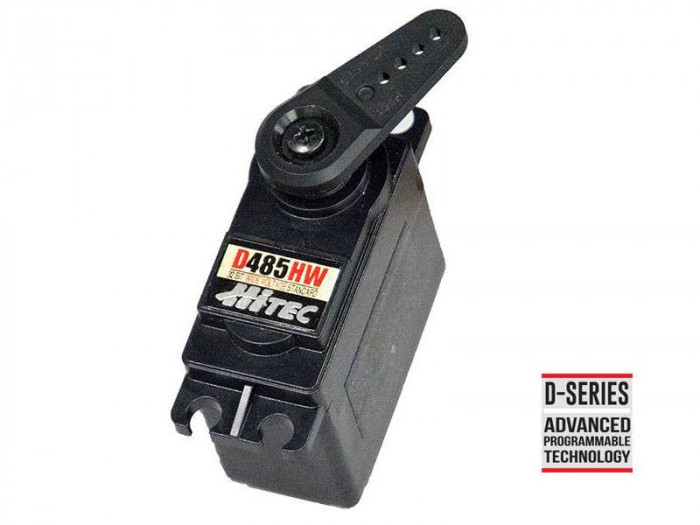

Hitec D485HW Digital Sport Servo, Standard Karbonite, 32-Bit, Wide Voltage Servo - Product Image

Hitec D485HW Digital Sport Servo, Standard Karbonite, 32-Bit, Wide Voltage Servo

Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.



D485HW Servo Specifications Performance Specifications

Operating Voltage Range (Volts DC) 4.8V ~ 7.4V Speed (Second @ 60?) 0.20 ~ 0.15

Maximum Torque Range oz. / in. 72 ~ 104

Maximum Torque Range kg. / cm. 4.8 ~ 7.4

Current Draw at Idle 30 mA

No Load Operating Current Draw 320mA

Stall Current Draw 1,500mA

Dead Band Width N / A

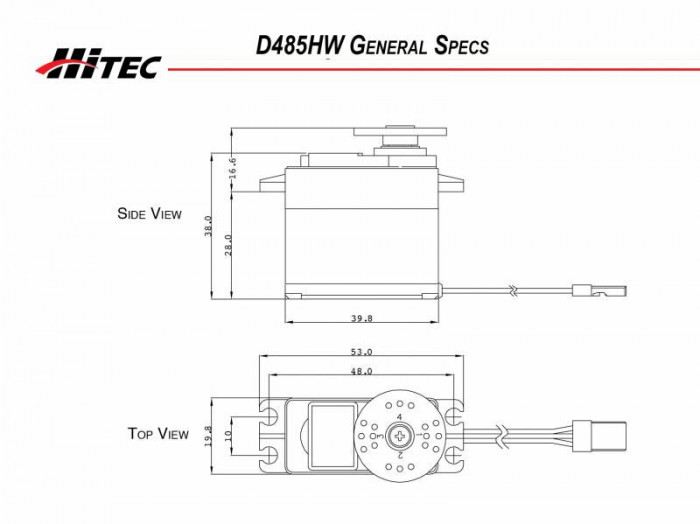

Physical Specifications Dimensions (Inches) 1.57 x 0.78 x 1.49

Dimensions (Metric) 39.8 X 19.8 X 38.0

Weight (Ounces) 1.59

Weight (Gram) 45.0

Circuit Type 32 bit

Programable Digital Motor Type 3 Pole Cored Carbon Brush Gear

Material MK 1st Gear & 3 Karbonite Resin Gears

Bearing Type Top Ball Bearing

Output Shaft (type / ?mm) 25 / 6

Case Material Plastic

Dust / Water Resistance N / A

Connector Gauge (AWG) / Strand Count N / A

Radio Control Applications Parkflyer N / A

Sport Plane 50 - 64 oz.

Sailplane 2 meters and up

3D Performance N / A

Scale 50 - 64 oz

Electric Helicopter N / A

Gas Helicopter N / A

On Road N / A

Monster Truck N / A

Buggies N / A

Truggies N / A

Short Course / Truck N / A

Crawlers N / A

Sail Boat < 1M Power Boat 1/10th


SKU Number: HRC36485S
Price: $25.49
