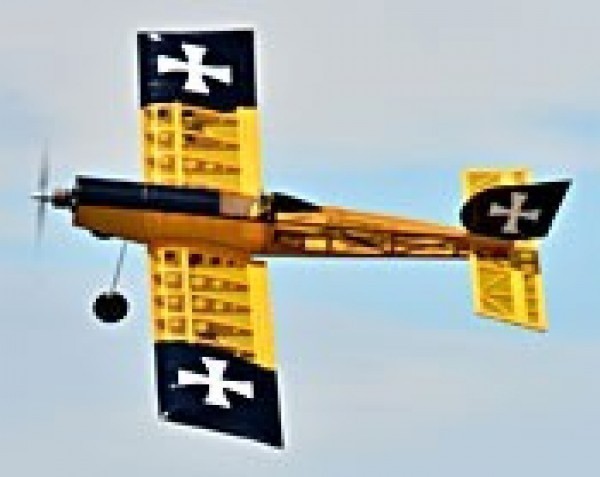

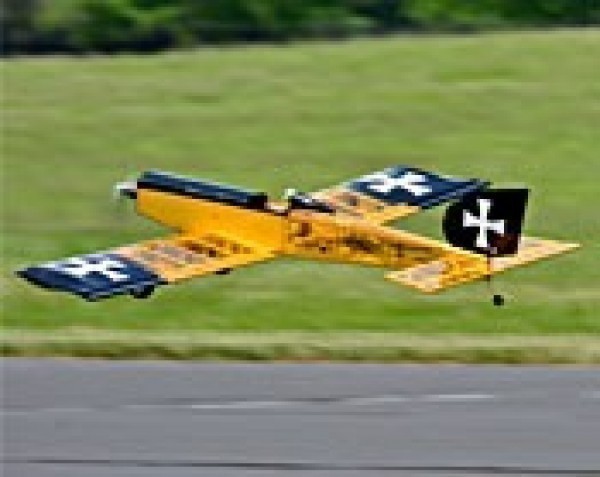

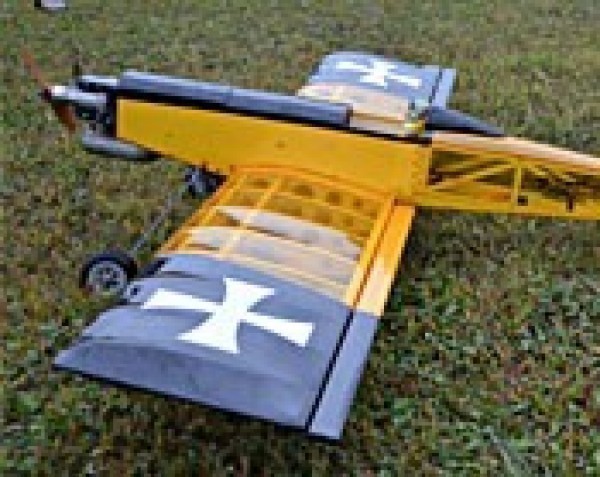

An all around low-wing sport model based off a 1970's classic.
The Sky Ranger 40 is as much fun to build as it is to fly. Using updated design techniques and laser-cut precision, we've designed this kit so most any modeler can successfully assemble it in a short amount of time.

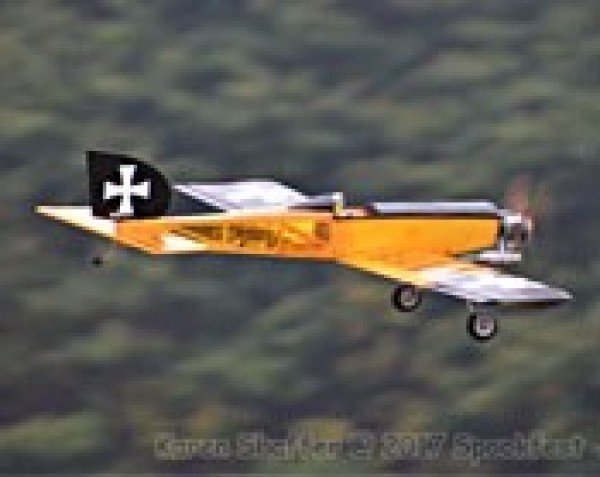

This all-around sport model's retro design looks great in the air and makes you look like an ace pilot. Loop it, roll it, spin it, snap it, and just have a great time flying it.

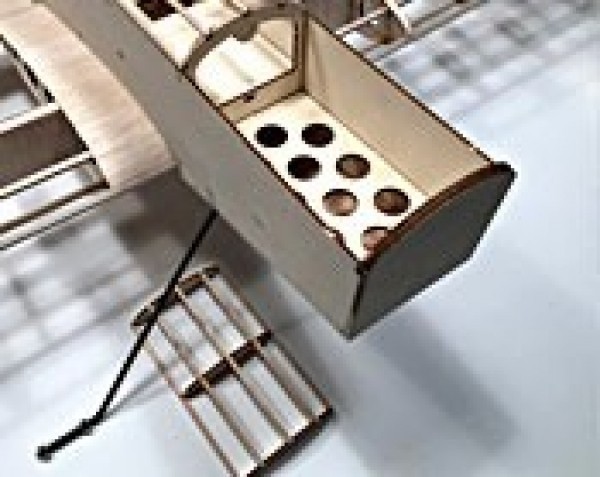

Power the Sky Ranger 40 with either an electric or glow powerplant. We've designed the fuselage with a built-in hatch so you have quick access to either your LiPo batteries or fuel tank.
Wingspan: 60 inches
Wing Area: 527 square inches
Length (airframe only): 42.75 inches
Weight: 3.5 - 4.5 pounds
4 channel system
2 40-70 in./oz. servos for elevator and rudder;
2 40-70 in./oz. servos for ailerons;
o 1 40-70 in./oz. servo for throttle (if using a glow engine)
Electric (minimum 800 watt motor, 80 amp ESC, 4-5S LiPo)
Glow ( .40-.45 engine, 6 ounce tank, fuel tubing)
Additional items needed to complete the Sky Ranger 40 kit:
4 channel radio and servos
Engine/Motor mount & mounting hardware
"Y" servo harness (for ailerons)
Pushrods (two 5" for ailerons, two 24" for elevator & rudder, one 12" for throttle if glow powered)
Clevises for the pushrods (8 if electric, 10 if glow).
Two 3" diameter main wheels

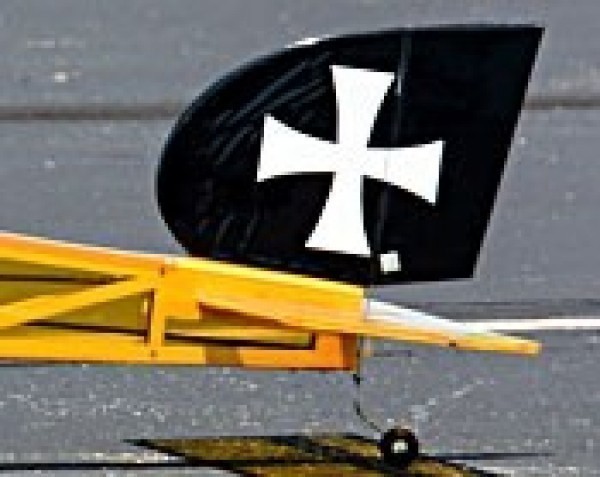

1 - tailwheel
Features of the Sky Ranger 40 Kit:
A Great Sportster Whether you like gentle cruising, or prefer to tear up the sky, the Sky Ranger 40's wide flight envelope makes it a blast to fly!

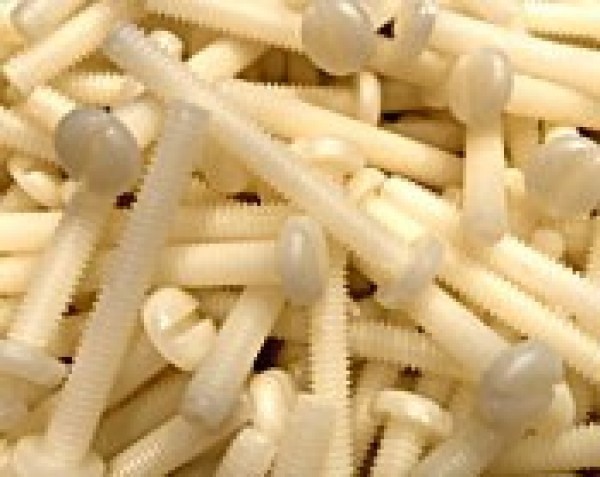

Premium USA Hardware Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality.
WEB-LOCK ConstructionThere's nothing else like it. Build our wings, straight and true - with a minimum amount of fuss.

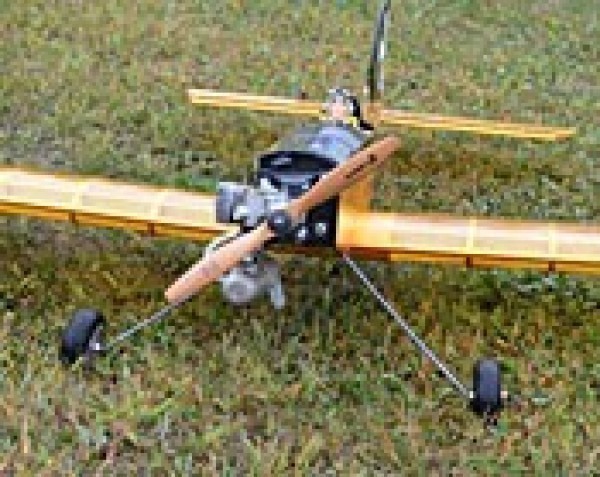

Rugged 3/16" Main Gear We include sturdy, pre-bent main gear and wheel collars. The 3/16" diameter wire can absorb quite a bit of abuse for those no-so-good landings.
Front hatch Held in place with magnets, this hatch gives you easy access to batteries or fuel.

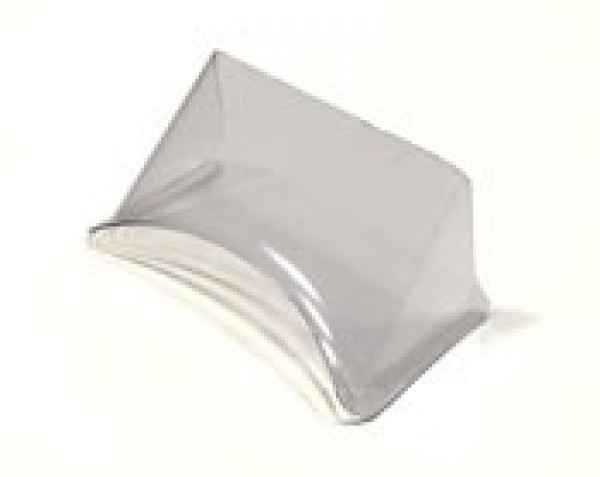

Windscreen Also included is a clear, pre-formed plastic windscreen.
All Old School Model Works kits feature:

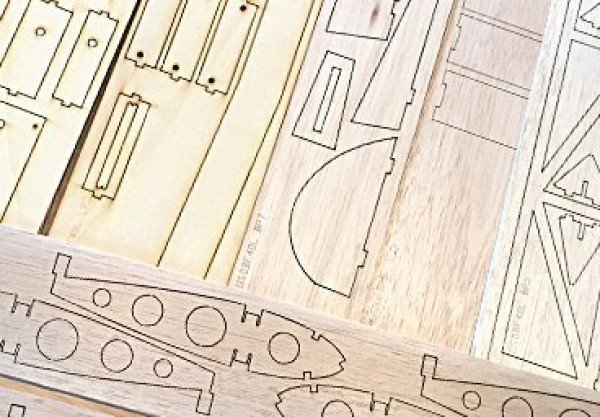

Precision laser-cut parts Included in every Old School Model Works kit are all the wing ribs, fuselage formers, and other wood needed to build the aircraft.

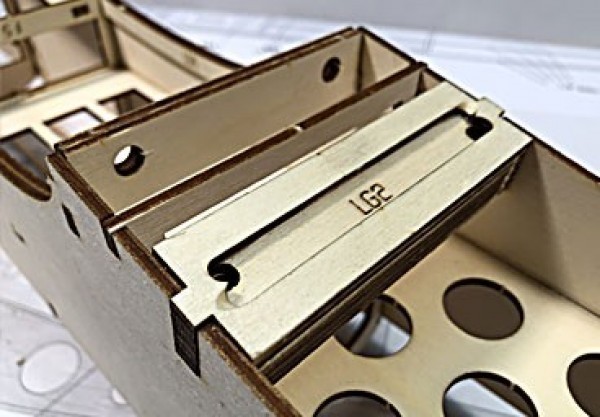

Interlocking parts We've engineered each kit to give you the best chance of success. Each laser-cut part interlocks with the next for an accurate and secure joint.

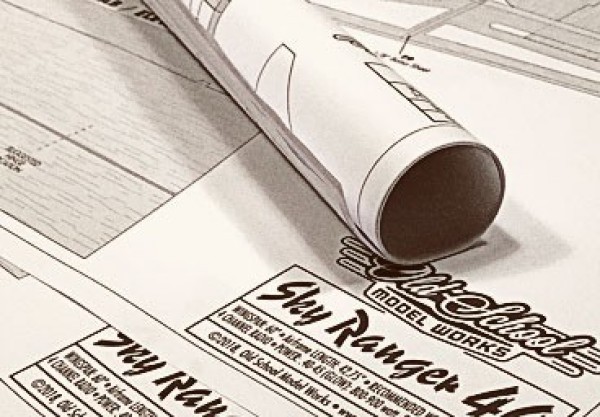

Rolled Plans Each of our kits contains a set of rolled plans, never folded. They are full-size, highly detailed, and computer-drawn for accuracy.
WEB-LOCK Wing Construction Our exclusive wing design and construction techniques give you everything you need to easily build a straight and true wing with a minimum amount of fuss.
