Female & Male set, 3-pack of gold plated 2.0mm pin diameter. Outstanding for higher quality projects up to 20 amps. 16 gauge wire. This is a smooth pin non-bullet style plug.

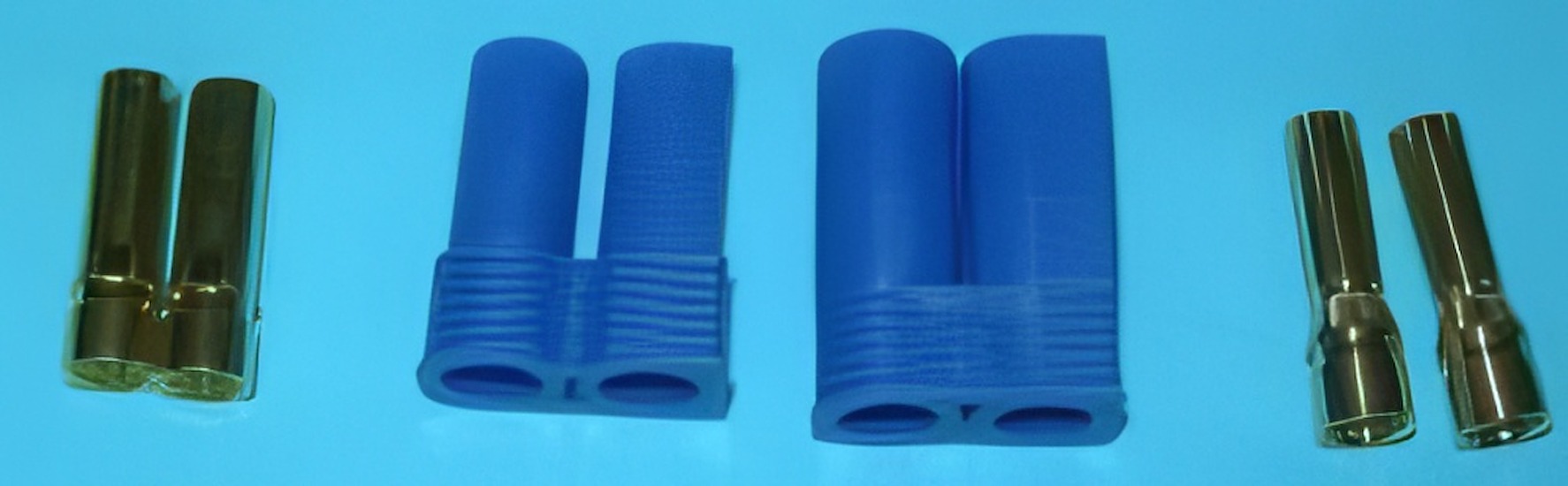

One pair EC5 heavy duty high performance power system connectors. Blue hard plastic, ribbed grip, polarized housings. Protected from shorting and polarity reversal. Designed around 5mm bullets. In the case of EC3 and EC5 type connectors they are gendered by the pins (as introduced to the hobby by Horizon Hobby). SKU Number: RRCEC5PR

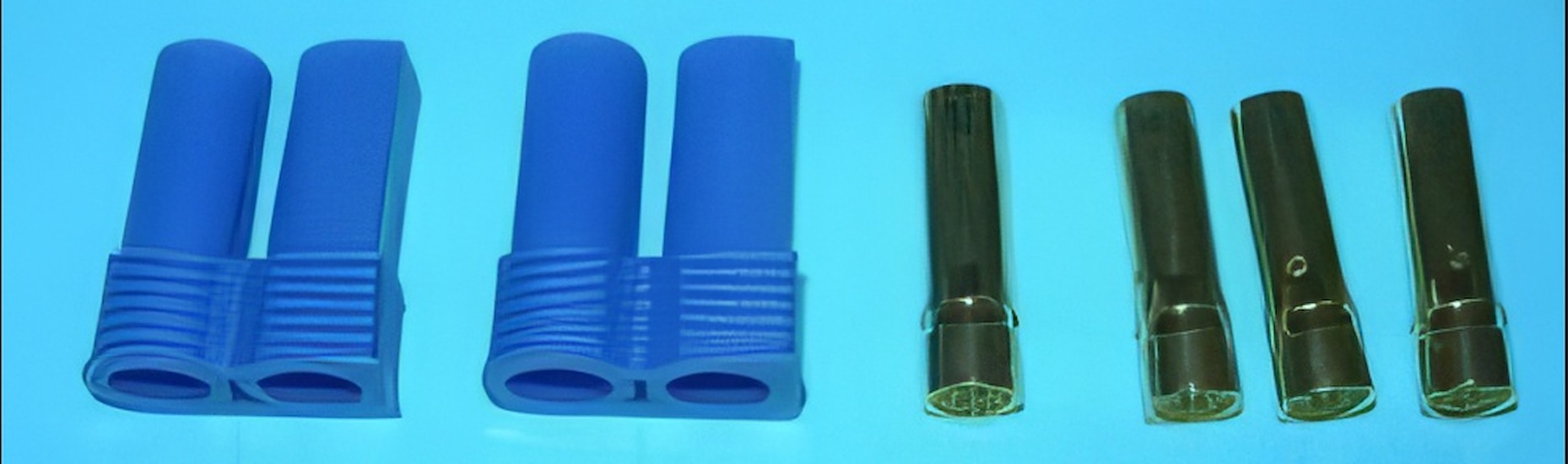

Enough to build 2 each female EC5 connectors Battery/Hot Side (used on a battery or other power source -Hot Side-). In the case of EC3 and EC5 type connectors they are gendered by the pins (as introduced to the hobby by Horizon Hobby). Package contains 2 male housings and 4 female pins. Assembly is gendered as female. SKU Number: RRCEC5F2PK

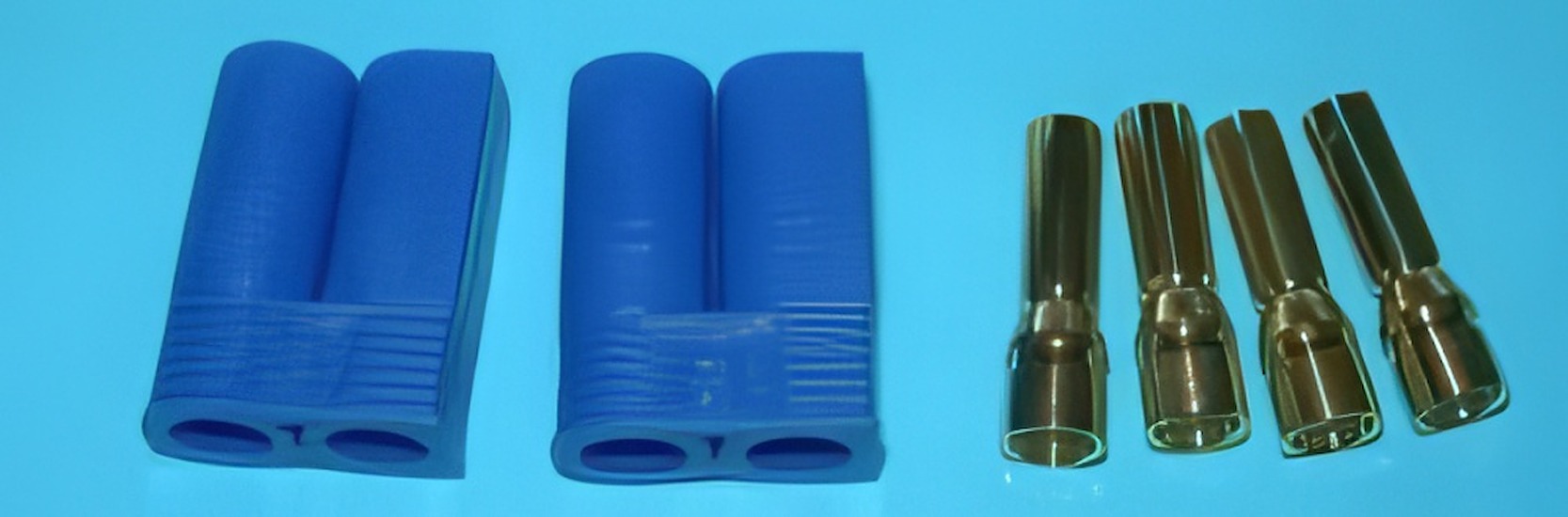

Components to build 2 each male EC5 connectors Charge Cord/ESC/Cold Side (used on ESC or Charge Cord -cold- side of circuit). This set has 2 female shells and 4 male pins. In the case of EC3 and EC5 type connectors they are gendered by the pins (as introduced to the hobby by Horizon Hobby). Assembly is gendered as male. SKU Number: RRCEC5M2PK
Correct plug and polarity for your 1SQ power input plug and to build custom charge cords for the 1SQ quad copter battery packs. May be used on other equipment. SKU Number: RRC1SQPPF

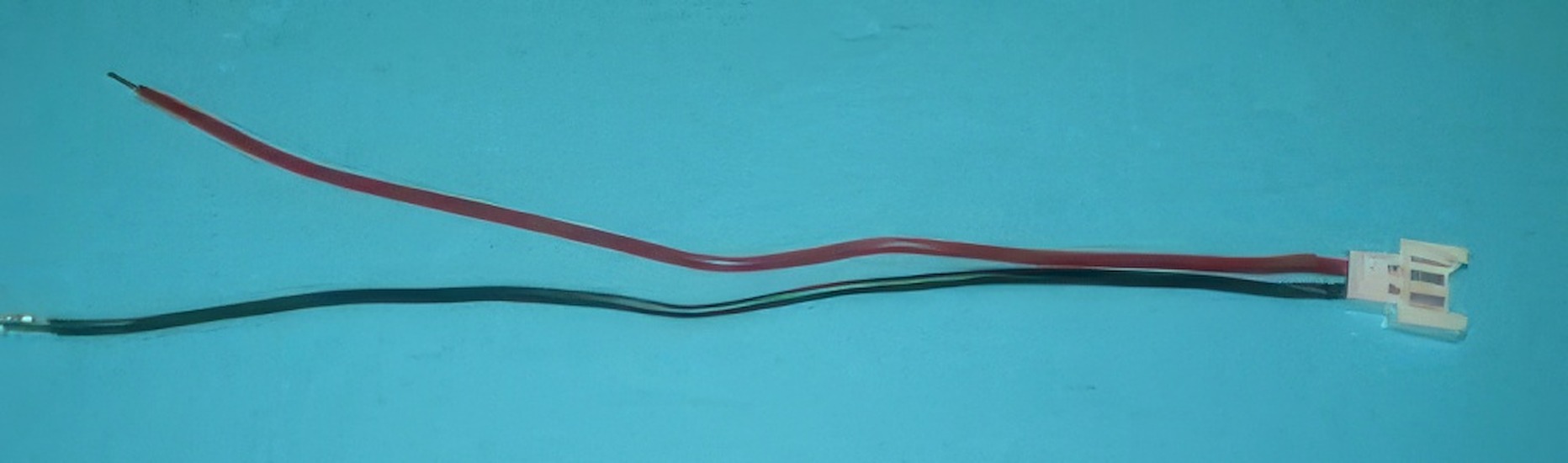

Correct plug and polarity for your Walkera CP & Traxxis DR1 input plug and to build custom charge cords or put on your own esc/controller board. May be used on other equipment. SKU Number: RRCWALKERAPPF
High performance Powerpole crimp tool for a reasonable price. Crimps all three sizes of Powerpole contacts; 15, 30 and 45 amp. Ratcheted mechanism assures proper crimps every time. Contact positioner holds contacts correctly while crimping. Far faster and better than soldering. The highest strength and the lowest resistance connections possible. Long high leverage handle makes even 45 amp 10 gauge crimps easy. Dimensions H,W,D 7.75" X 3" X 1.5" Weight 20 ounces Contact retention force, 15, 25 amp contacts More than 25 pounds Contact retention force, 45 amp contacts More than 35 pounds.
Made from high-temp Nylon and gold-plated bullet connectors that have a built-in anti spark system, used for high voltage/high current brushless power systems. QS8 Anti-Spark Connectors are a high quality, high current connector that is perfect for high voltage applications. Not only is the connector capable of handling spikes in excess of 300 amps, but the design also provides an anti-spark connection that eliminates the dreaded POP when you plug in the battery helping to extend the life of the connector. High voltage bashers, speed run enthusiasts and pilots of all disciplines can benefit from this advanced connector technology. The QS8 connector features 8mm bullets that can accommodate wire up to 6-10awg, inside a heavy-duty nylon/fiber composite housing. Plus, an included plastic wire cap covers the soldered connection and eliminates the need for heat shrink to create an incredibly clean installation that works well, looks great and is easy to manage. FEATURES:
Anti-Spark technology increases lifespan of connector
Great for all High Voltage Applications
Package Includes One Female Connector, One Male Connector & End Cap
SPECIFICATIONS:
Connector Diameter: 8.00mm
Width: 29.5mm
Total Length: Approx 70mm (Male & Female w/End Cap) Weight: 41g (Male+Female Set) Metal Material: Gold Plated Brass
Plastic Material: Fiber Nylon Comp
Flame retardant rating: UL94 V0
Rated Voltage: 500V DC
Continuous Current: 110A
Rated Current: 110A-180A
Continuous Current: 110A - Maximum peak current 500A
Made from high-temp Nylon and gold-plated bullet connectors that have a built-in anti spark system, used for high voltage/high current brushless power systems. QS8 Anti-Spark Connectors are a high quality, high current connector that is perfect for high voltage applications. Not only is the connector capable of handling spikes in excess of 300 amps, but the design also provides an anti-spark connection that eliminates the dreaded POP when you plug in the battery helping to extend the life of the connector. High voltage bashers, speed run enthusiasts and pilots of all disciplines can benefit from this advanced connector technology. The QS8 connector features 8mm bullets that can accommodate wire up to 6awg, inside a heavy-duty nylon/fiber composite housing. Plus, an included plastic wire cap covers the soldered connection and eliminates the need for heat shrink to create an incredibly clean installation that works well, looks great and is easy to manage. FEATURES:
Anti-Spark technology increases lifespan of connector
Great for all High Voltage Applications
Package Includes One Female Connector, One Male Connector & End Cap
SPECIFICATIONS:
Connector Diameter: 8.00mm
Width: 29.5mm
Total Length: Approx 70mm (Male & Female w/End Cap) Weight: 41g (Male+Female Set) Metal Material: Gold Plated Brass
Plastic Material: Fiber Nylon Comp
Flame retardant rating: UL94 V0
Rated Voltage: 500V DC
Continuous Current: 110A
Rated Current: 110A-180A
Continuous Current: 110A - Maximum peak current 500A
Resistance: 5.1ohm
Temperature Range:-30o to +120oC
Max Wire: 6AWG-10AWG
Recommended Cable: 8AWG Silicone Wire
Color: Black
INCLUDES: (1) QS8 Male Antispark connector (1) Wire Cap
For use with RC Hobby, Drone, UAV, Automobile Power Supply, High Current Connector, and E-Bike Connector.
Made from high-temp Nylon and gold-plated bullet connectors that have a built-in anti spark system, used for high voltage/high current brushless power systems. QS8 Anti-Spark Connectors are a high quality, high current connector that is perfect for high voltage applications. Not only is the connector capable of handling spikes in excess of 300 amps, but the design also provides an anti-spark connection that eliminates the dreaded POP when you plug in the battery helping to extend the life of the connector. High voltage bashers, speed run enthusiasts and pilots of all disciplines can benefit from this advanced connector technology. The QS8 connector features 8mm bullets that can accommodate wire up to 6awg, inside a heavy-duty nylon/fiber composite housing. Plus, an included plastic wire cap covers the soldered connection and eliminates the need for heat shrink to create an incredibly clean installation that works well, looks great and is easy to manage. FEATURES:
Anti-Spark technology increases lifespan of connector
Great for all High Voltage Applications
Package Includes One Female Connector, One Male Connector & End Cap
SPECIFICATIONS:
Connector Diameter: 8.00mm
Width: 29.5mm
Total Length: Approx 70mm (Male & Female w/End Cap) Weight: 41g (Male+Female Set) Metal Material: Gold Plated Brass
Plastic Material: Fiber Nylon Comp
Flame retardant rating: UL94 V0
Rated Voltage: 500V DC
Continuous Current: 110A
Rated Current: 110A-180A
Continuous Current: 110A - Maximum peak current 500A
Resistance: 5.1ohm
Temperature Range:-30o to +120oC
Max Wire: 6AWG-10AWG
Recommended Cable: 8AWG Silicone Wire
Color: Black
INCLUDES: (1) QS8 Female Antispark connector (1) Wire Cap
For use with RC Hobby, Drone, UAV, Automobile Power Supply, High Current Connector, and E-Bike Connector.
Battery to ESC plug Male/Female Pair. SKU Number: RRCXT30PR
ESC Connectors and LiPo Battery Plugs
The connection between a battery and a speed control has to pass high current without heating up, and this category collects the plugs and bullet connectors that link a pack to an ESC. Matching connector type and current rating across your battery and controller keeps a power system tidy and interchangeable.
Polarized Bullet Connectors
The Castle polarized bullet connectors are offered in 4mm and 6.5mm sizes, sold as male and female sets or in multi-packs of a single gender, with higher-current 6.5mm options rated for demanding setups. A polarized housing helps keep positive and negative oriented correctly when you plug in.
Choosing a Size
Larger bullet diameters carry more current, so heavier setups generally step up from 4mm to 6.5mm connectors as power demands rise. Standardizing on one connector family across your batteries and controllers also makes swapping packs between models far simpler.
Compare the connector sizes and sets below to standardize your battery and ESC wiring.
 "Traxxas Style Compatible Connector Kit Male Female Pair")
 "2.0mm Gold Plated Connector Pin Set, 3-pack Smooth Pin Style")
 "EC5 Power Connectors Male & Female Pair")
 "EC5 Power Connectors Females 2-Pack")
 "EC5 Power Connectors Male 2-Pack")
 "Anderson Power Pole Bulk Pack 30 Amp Bulk 24 Pair")

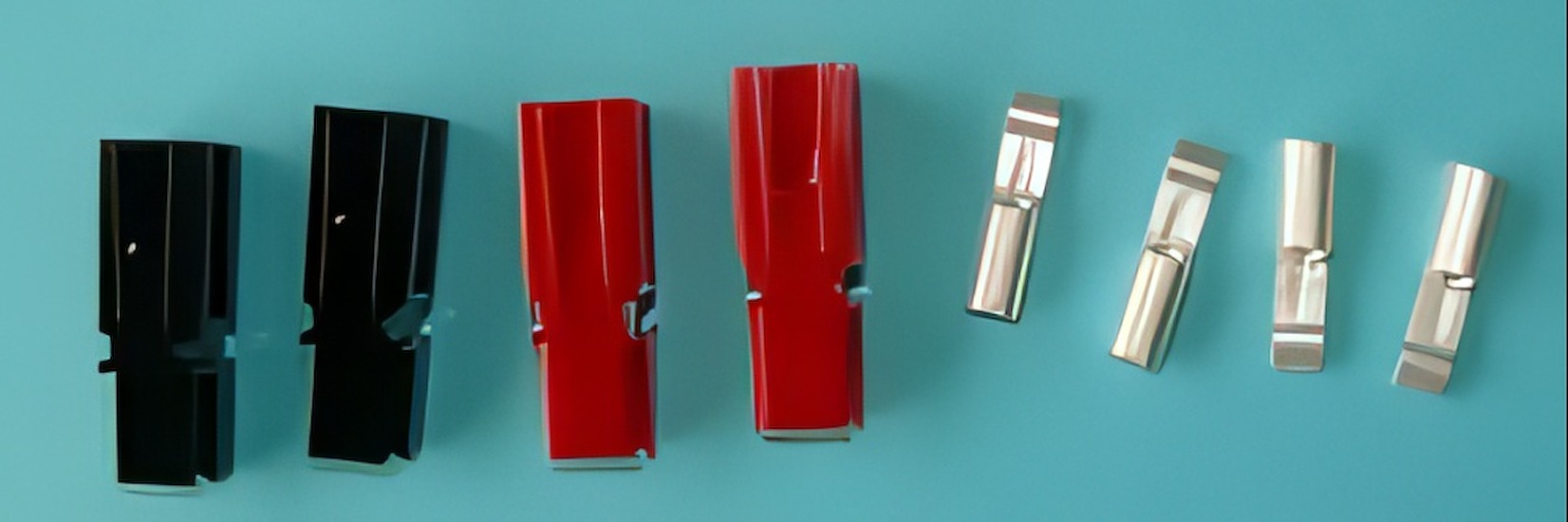

 "Anderson Power Pole Bulk Pack 30 Amp Bulk 100 Pair")
 "1SQ ESC / Charge Cord Connector")
 "Walkera / Traxxis Micro ESC / Charge Cord Connector")
 "Powerpole Power Crimp Tool")
 "QS8-S Anti-Spark, 5.1ohm Connector, Male-Female Set")
 "QS8-S Anti-Spark, 5.1ohm Connector, Male")
 "QS8-S Anti-Spark, 5.1ohm Connector, Female")
 "XT-30 Connector Male/Female Pair")
