Our F3P biased servo horn used by many top competition pilots. 4 peices per sheet. Control Radius .625" (Equivelant to 1.25" spread servo horn). 6 Holes are offset in 6 degree steps starting at 5 degrees and ending at 35 degrees. Holes are precision drilled at .031 to be snug zero slop fit to common .032 pin control rod fittings and music wire. May be sewn and glued to many standard horns. Laser cut from .020 Fiberglass. Strong and light weight. I've never had a report of a broken horn. Designed in conjunction with Scott Barnhart. SKU Number: RRCF3PBSH2FG
8 each of our Micro Pull Pull Tension Adjusters. Alows you to loop your pull pull string through a horn then back to this adjuster which can be slipped and locked along the lenght of the cord running to the horn. Works like a tent pole rope adjuster. Use on F3P and other small models with pull-pull control functions. A very difficult part to make by hand simplified for you here. SKU Number: RRCMPPTA
Du-Bro part with fasteners. Made to accept clevis pins typical in 2-56 hardware. Use anywhere you want a shorter horn, not just for 1/2A size models. 2 complete units per package. SKU Number: DUB107
Du-Bro Control Horn set. 1 1/16" working height/length. Molded from Nylon, left and right handed flange mount with nut plate. Complete with fasteners for easy installation. 2 per pkg.
Du-Bro Stronger than conventional nylon control horns, these aerodynamically designed Super Strong control horns come complete with back plate and 2-56 x 1/2" socket head cap screws for easy installation. 1 3/4" (44.45 mm) long with 5 adjustment positions. 2 complete units per package. SKU Number: DUB716
1 3/8 Long with 5 adjustment positions. Each set incluees 2 control horns that are center on base, 2 self threading nut plates and (4) 2-56 x 5/8 screws.
These large scale T-Style control horns were aerodynamically designed with large scale planes in mind. 1 3/8 long with 4 adjustment positions and 4 mounting holes. Comes complete with back plate and (4) 4-40 x 1 Socket Head Cap Screws. 2 complete units per package. SKU Number: DUB366
Set of five control horns, for control surfaces. Opaque fiberglass material. Precision cut. Mounting surface area on these are idealy suited to models with 3/32 to 1/4" thick control surfaces. These horns have pre-drilled holes correct for 1/32 wire which is used in most park flier and F3P applications. Upper right hand horn in photo. SKU Number: RRCFGCH13
Set of five control horns, for control surfaces. Opaque fiberglass material. Precision cut. Mounting surface area on these are idealy suited to models with 3/32 to 1/4" thick control surfaces. These horns have pre-drilled holes correct for 1/32 wire which is used in most park flier and F3P applications. Lower left hand horn in photo. SKU Number: RRCFGCH16
Set of five control horns, for control surfaces. Opaque fiberglass material. Precision cut. Mounting surface area on these are idealy suited to models with 3/32 to 1/4" thick control surfaces. These horns have pre-drilled holes correct for 1/32 wire which is used in most park flier and F3P applications. Lower right hand horn in photo. SKU Number: RRCFGCH19
Large size horn useful for all control surfaces. Drilled for #2-56 (or 2mm) bolt-on ball joints. May be enlarged. Mounting flange drilled for #2 fasteners, may also be enlarged. Solid glass filled horn. May come in CB Associates or B&B Specialties packaging. Bushings for small clevis pins not included. This horn is intended for large control rod hardware. #2 fasteners minimum. SKU Number: CB5546
Custom designed for F3P competition aircraft and similar foamies. This set contains all the most popular parts from our full rod and shink set. No bipe aileron transfer horns or stand offs in this set. Our ever popular #1 biased control horn for your center aileron servo is included.
We thank Seth Arnold for flying our F3P horn sets to victory at the 2009 ETOC.
The "Y" horn is for those that prefer a pull-pull rudder setup. Included is a set of 4 micro tension adjusters for your pull-pull lines. The adjusters allow you to loom up your lines like a tent line so you can adjust the tension of your control strings as weather and temperature demands.
Note the extra special Biased Servo Horn. This can be screwed or sewn to many common micro dual arm servo horns. Normally the aileron control horns are a bit farther apart than the spread of a stock servo horn. The Biased horn allows you to connect your aileron pushrod so that the rod is 90 degrees to the horn eliminating differential movement the stock horn would cause.
This package is sure to save you 2-3 hours of fiddly cutting, sanding and filing. ;-) Lets get busy and get some building done!
Think BIG!! These HD Adjustable Control Horns are the latest in a family of innovative control horn applications. The self-adjusting horn will mount straight (90? to center line of control surface) against the angled control surface using no wedges or shims! With two sizes available, your aircraft will be even more functional as well as stylish. Intended for .91 and above aircraft. 2 complete units in each package. SKU Number: DUB913
2 units per package complete with bases and fasteners. Nice 3 bolt aero shape base. Intended for 4-40 (or 2.5mm) thru-bolt ball joint type clevis ends. SKU Number: MPJ2220B
Two complete units with all fasteners and snap pins included. Excellent quality gear. For extra nap pins, order MPJ2234. Comes in Black and White, choose below.
Micro horn for smaller models. Glue into slot in control surface. Drilled for .039 (1mm) Wire Z and L bends or other similar micro control rod ends. Can be drilled out to larger sizes if you wish. In the size range of park flyer and indoor pushrods all over the world. 2 per package.
Micro horn for smaller models. Glue into two punctures in control surface. Drilled for .025" (.6mm) Wire Z and L bends or other similar micro control rod ends. Can be drilled out to larger sizes if you wish. Typical size for indoor pushrods all over the world. 2 per package. SKU Number: MPJ2201B
Micro horn for smaller models. Glue into two punctures in control surface. Drilled for .032" (.8mm) Wire Z and L bends or other similar micro control rod ends. Can be drilled out to larger sizes if you wish. Typical size for indoor pushrods all over the world. 2 per package. SKU Number: MPJ2202B
Micro horn for smaller models. Glue into two punctures in control surface. Drilled for .025" (.6mm) Wire Z and L bends or other similar micro control rod ends. Can be drilled out to larger sizes if you wish. Typical size for indoor pushrods all over the world. 2 per package. SKU Number: MPJ2204B
 "F3P Biased Servo Horn #2 Fiberglass")
 "Micro F3P Pull Pull Tension Adjuster Set")
 "Du-Bro Micro Razor Control Horns (2pk)")
 "Radical RC Micro Control Horns, 10 Pack")
 "Du-Bro 1/2A T-Style Control Horn")
 "Du-Bro Control Horn Set")
 "Super Strength T-Style Control Horn 2-PK")
 "Du-Bro Nylon T-Style Control Horn")
 "Du-Bro Large Scale Nylon T-Style Control Horns")
 "RRC Fiberglass 13mm Mini Control Horns")
 "RRC Fiberglass 16mm Mini Control Horns")
 "RRC Fiberglass 19mm Mini Control Horns")
 "C.B. Associates Large Scale Horn")

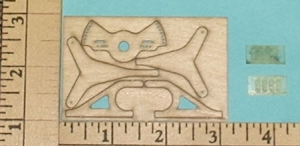

 "F3P Laser Control Horns Rod & Shrink Set Basic")
 "Heavy Duty Adjustable Control Horn")
 "MP Jet Large Control Horn")
 "MP Jet Small Control Horn Short with Ball Clevis")
 "MP Jet Small Control Horn Short with Ball Clevis")
 "MP Jet Small Control Horn Long with Ball Clevis")
 "MP Jet Small Control Horn Long with Ball Clevis")
 "MP Jet long Snap Pin 2mm")
 "MP Jet Micro Control Horn Type 1 With .039/1mm Hole")
 "MP Jet Micro Control Horn Type 2 With .025/.6mm Hole")
 "MP Jet Micro Control Horn Type 2 With .032/.8mm Hole")
 "MP Jet Micro Control Horn Type 3 With .025/.6mm Hole")
